2022 New Updated NanoVNA-H4 4inch Vector Network Analyzer 10k-1.5GHz HF VHF UHF Antenna Analyzer Version 4.3 with SD Card Slot
$71.99
In stock
NanoVNA-H4 Option
Features:
This Nano VNA is a DIY product that provides perfect vector network measurement capabilities, tiny and handheld, stand-alone with 4-inch LCD display, portable with 1950mAh battery powered or USB powered.
The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 1.5GHz. The 50K-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic, The extended 300M-900MHz band provides better than 60dB of dynamics, and the 900M-1.5GHz band is better than 40dB of dynamics.
The default firmware main function is used for antenna performance measurement. The TX/RX method can measure the complete S11 and S21 parameters. If you need to obtain S12 and S22, you need to manually replace the transceiver port wiring
Using PC software NanoVNASaver, it can connect to a NanoVNA and extracts the data for display on a computer, and for saving to Touchstone files. We can export Touchstone (snp) files for various radio design and simulation software through PC software
The metal shield is designed to reduce the external interference and improve the measurement accuracy.
Sprcifiactions:
ABS case: 75mm x 133mm x 18mm (excluding protrusions)
Measurement frequency: 10KHz -1.5GHz
HW version：4.3
RF output: 0dbm (±2dbm)
Measurement range: 70dB (50kHz-300MHz), 60dB (300M-900MHz), 40dB(0.9G-1.5GHz));
There may be errors caused by nonlinear transformation of fundamental wave when using harmonic measurement.
Port SWR: < 1.1
Display: 3.95 inch TFT (320 x 480)
USB interface: USB type-C communication mode: CDC (serial)

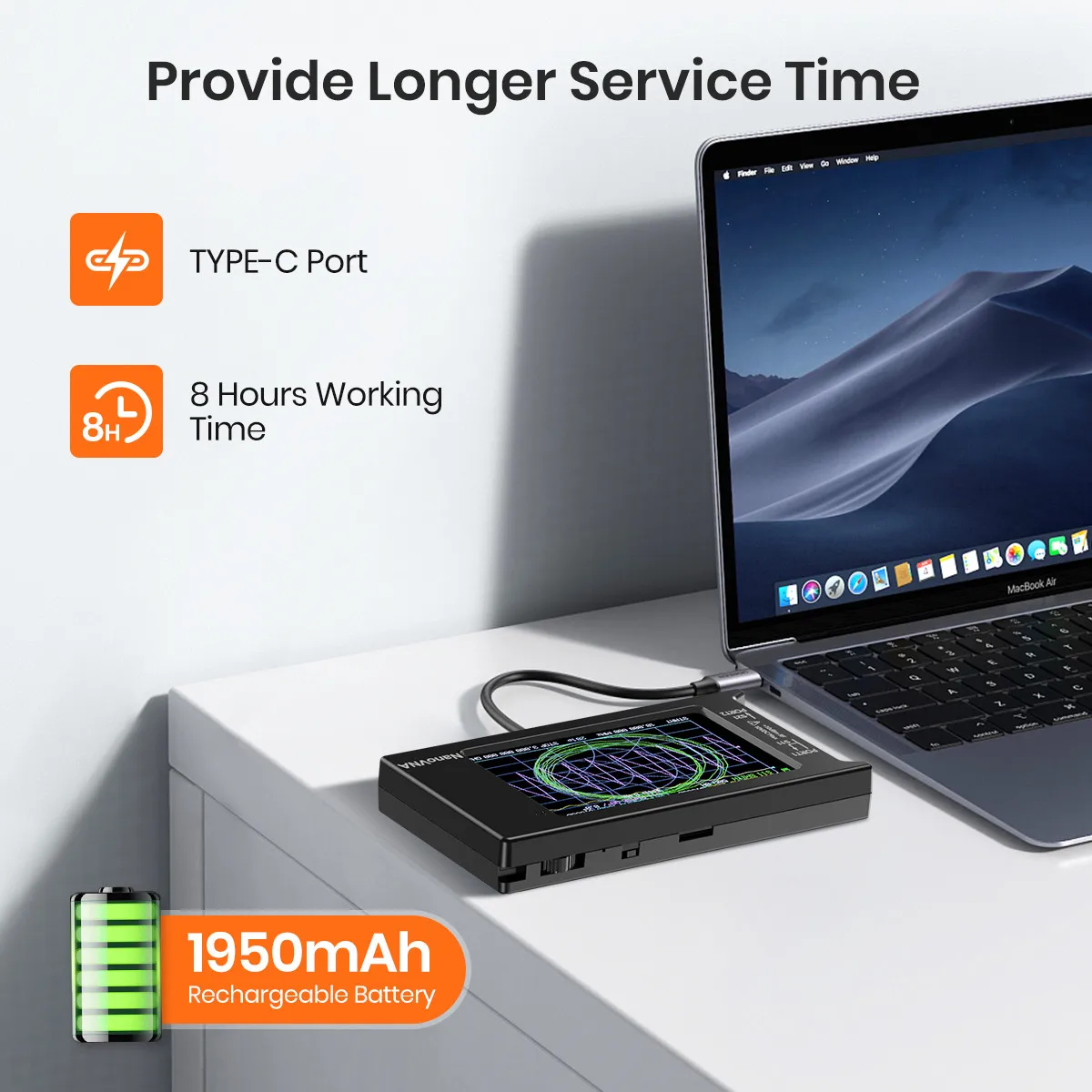

Power: USB 5V 200mA, built-in 1950mAh battery, maximum charging current 1A
Number of scanning points: 101 (fixed)
Display Tracking: 4, Marking: 4, Setting Save: 5
Frequency Tolerance:<2.5ppm
Frequency Stability:<0.5ppm

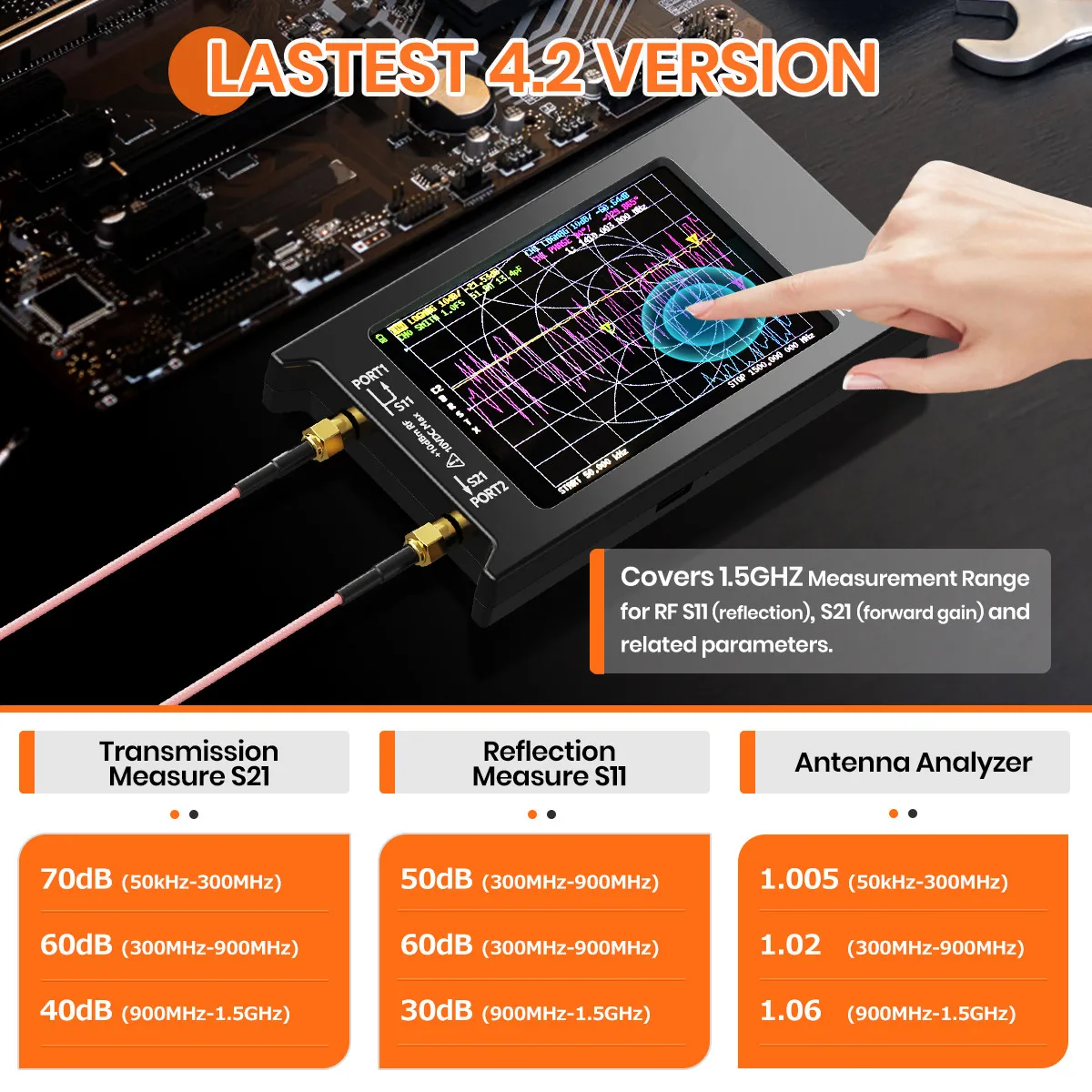

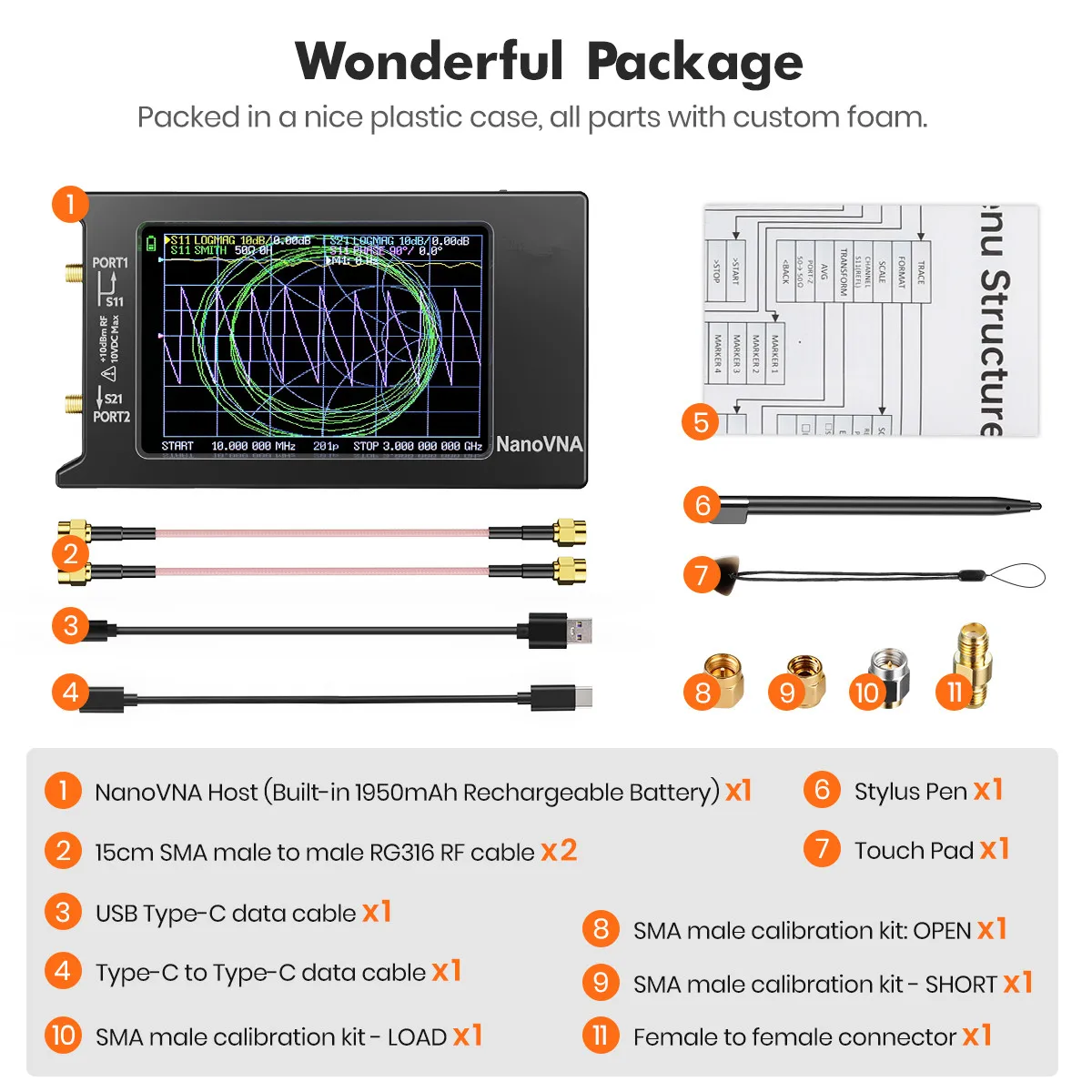

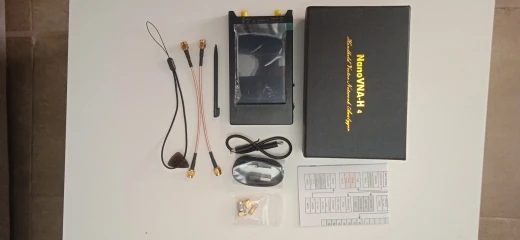

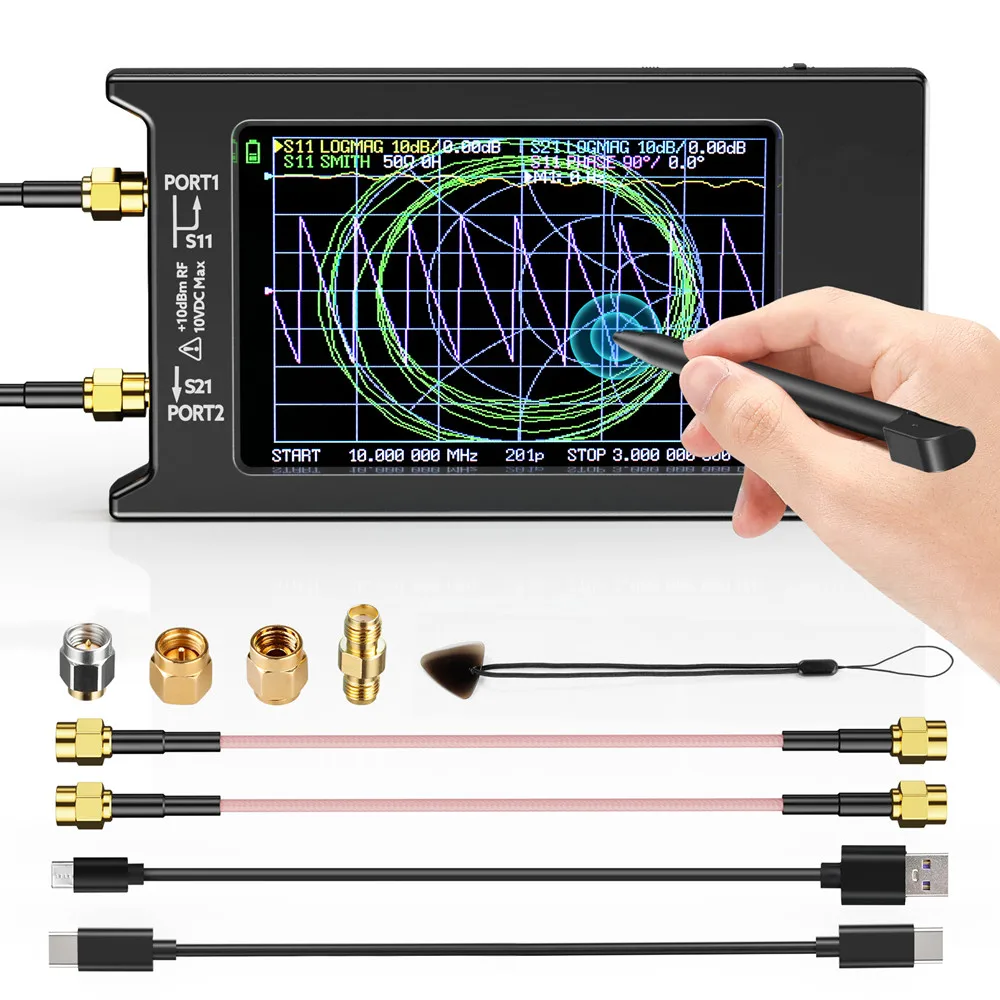

Package List:

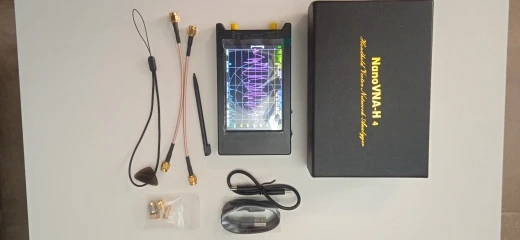

1X NanoVNA-H4 (with 1950mAh battery)
1X USB Type-C data cable
1X Type-C To Type-C cable
2X 15cm SMA male to male RG316 RF cable
1X SMA male calibration kit – OPEN
1X SMA male calibration kit – SHORT
1X SMA male calibration kit – LOAD
| Weight | 0.344 lbs |
|---|---|
| Dimensions | 16 × 11 × 5 in |
| Brand Name | SeeSii |
| Origin | |
| Battery Included | Yes |
| High-concerned chemical | None |
| Output Voltage | 1950mAh battery |
| Certification | CE |
| Measurement Bandwidth | / |
| Frequency Range | 10k-1.5GHz |
| Choice | yes |
15 reviews for 2022 New Updated NanoVNA-H4 4inch Vector Network Analyzer 10k-1.5GHz HF VHF UHF Antenna Analyzer Version 4.3 with SD Card Slot
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
K***r –
All good.
Color: NanoVNA-H4
a***r –

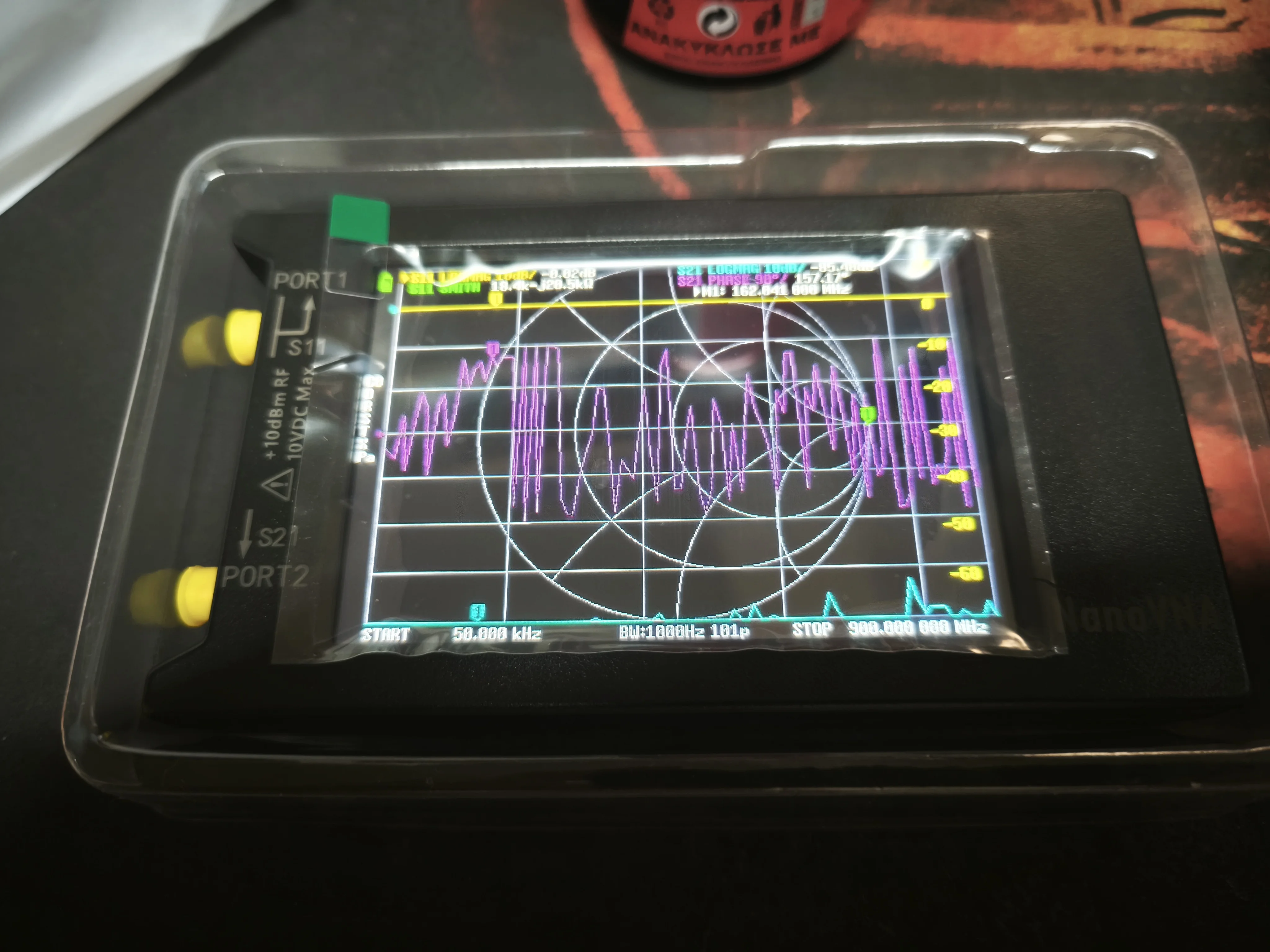

The nanovna arrived quickly, and in good shape, have only tried it a little but seems to works good. I did a swr test on an antenna and it was perfect.
Color: NanoVNA-H4
c***r –
Works perfectly! Product came in a storage container. Brand new and sealed. Checked several antennas on day one.
Color: NanoVNA-H4

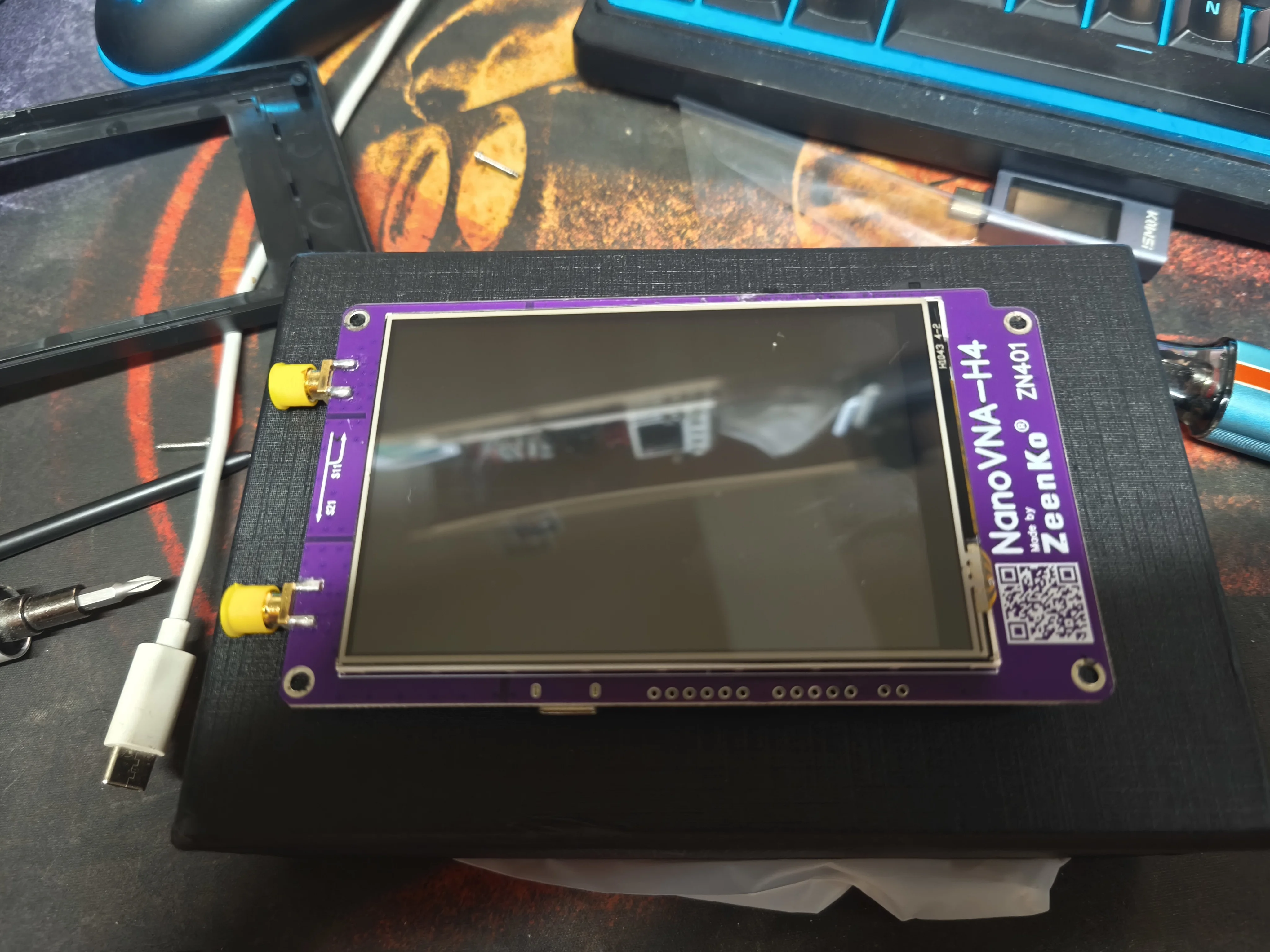

t***r –
Works really well.. very pleased.
Color: NanoVNA-H4
I***v –

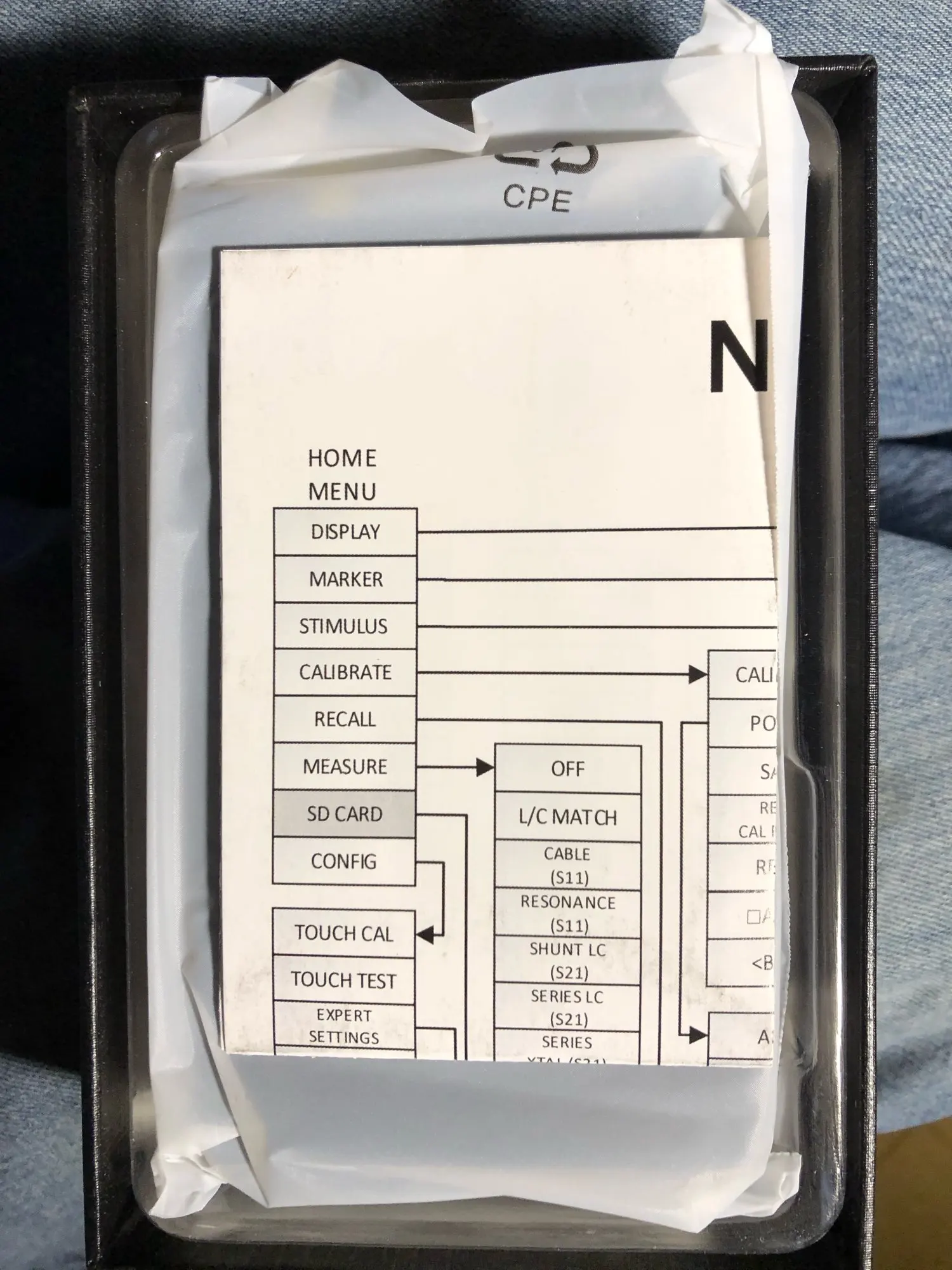

As described. Fast delivery. Nice quality.
Color: NanoVNA-H4
A***s –

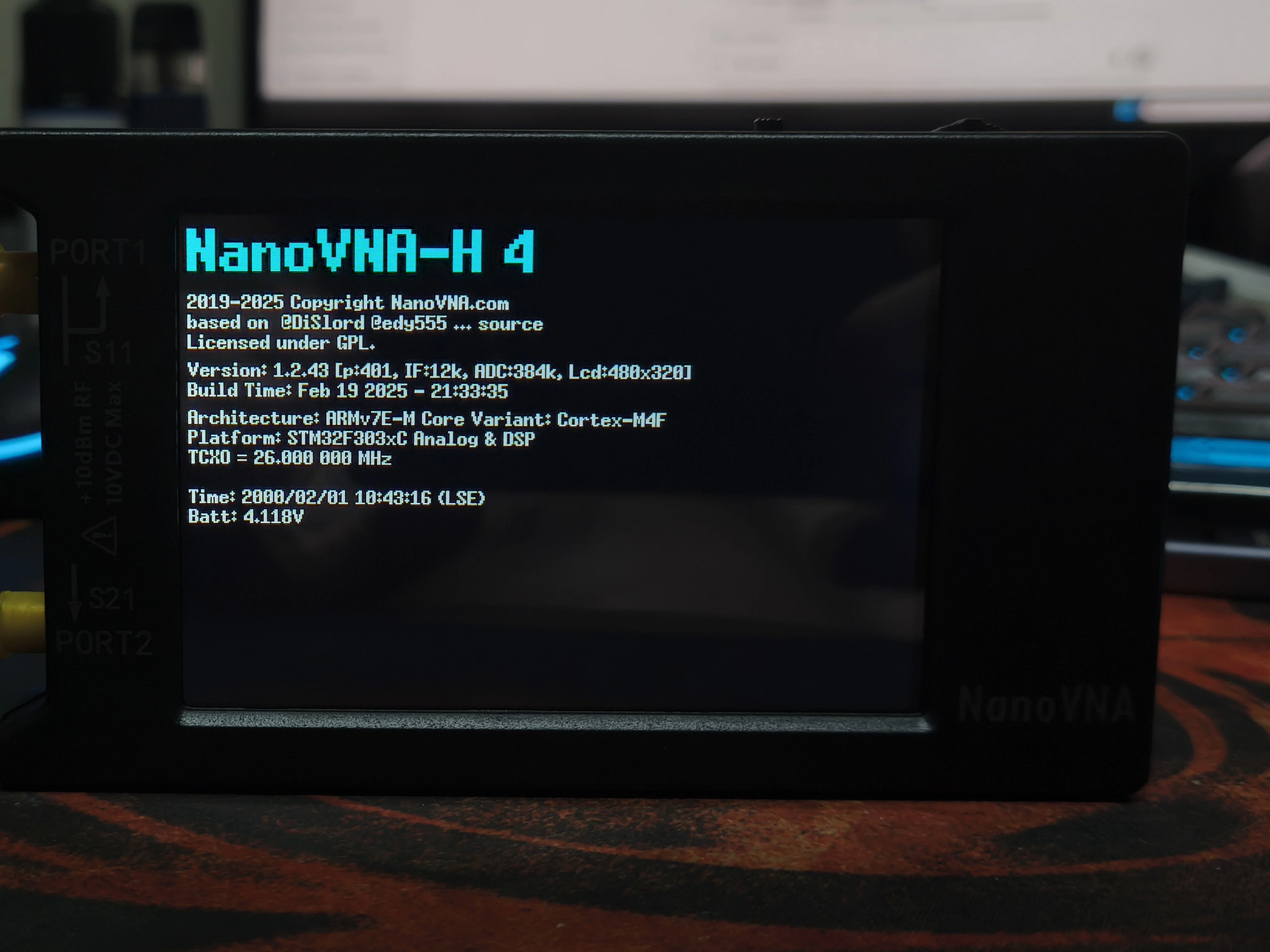

Excellent! With the (almost latest) firmware (1 version back, from february and now it’s june).
I flash the latest from github – hugen79 – nanovna-h.
I have already checked one antenna. More are waiting in line 🙂
Very fast shipping (from shipping to delivery, 10 days to greece! ).
Color: NanoVNA-H4
W***a –
Okay, guys and girls, I have to brag about something to you! This VNA is simply a miracle of technology, seriously! It measures everything like crazy, from impedance to cable losses, all with incredible precision and speed. The interface is super intuitive, even for an amateur like me, so using it is a pure pleasure. And most importantly – the results are always reliable, which saves a lot of time and nerves!
Color: NanoVNA-H4
M***k –

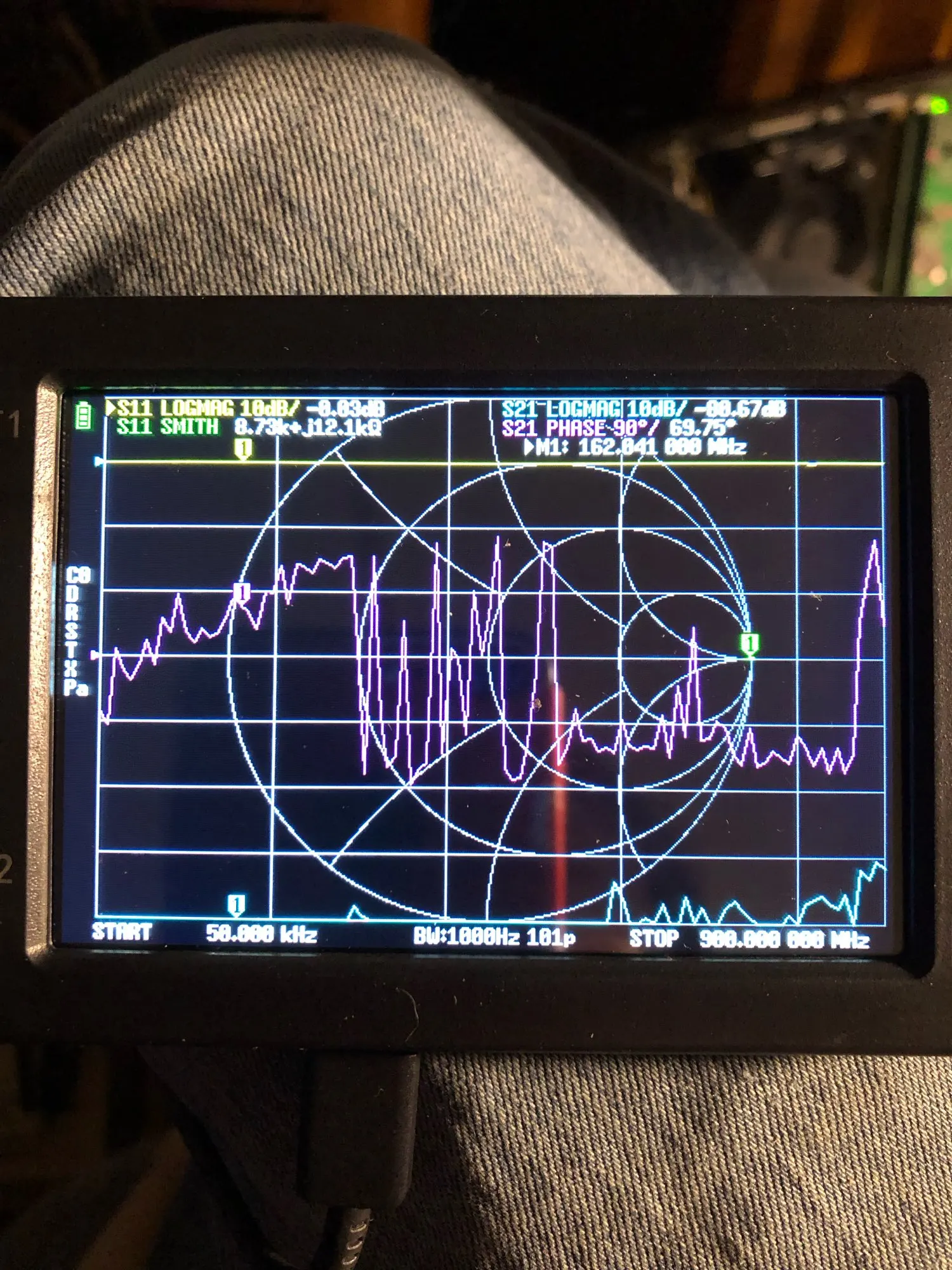

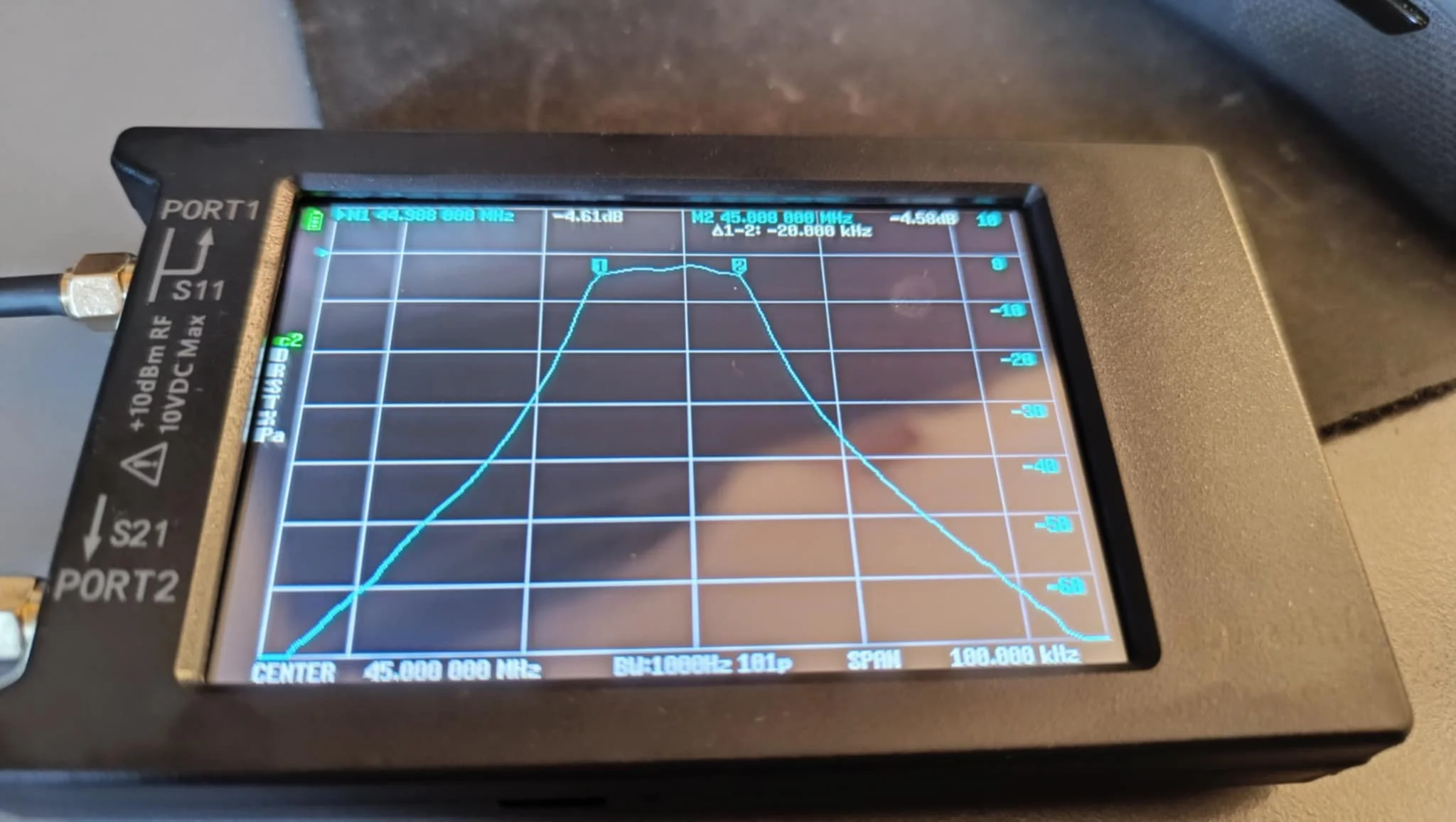

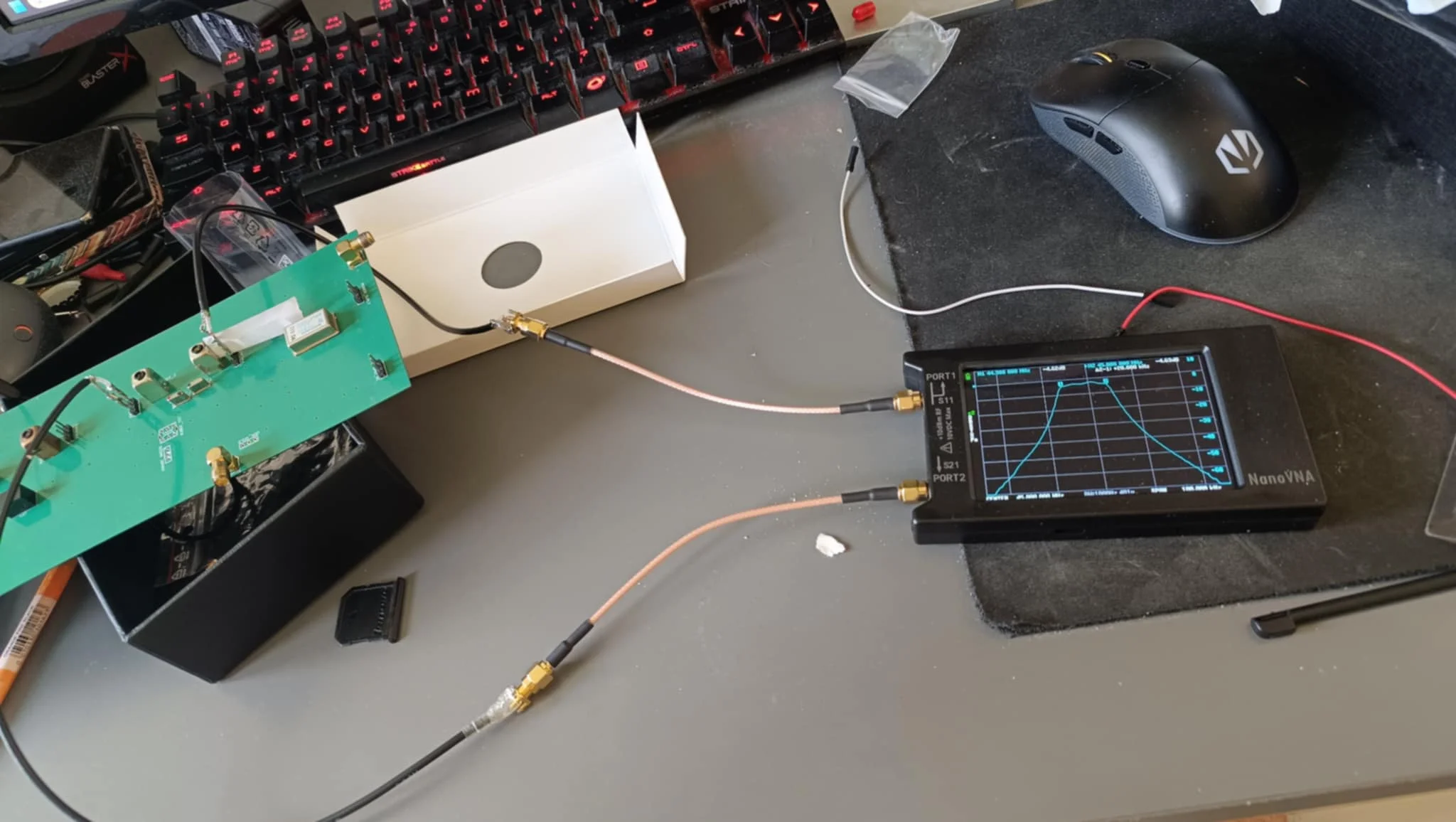

Great, I am very satisfied. For this price, it’s worth it for everyone who plays with RF and not only. 200zł for VNA is like free. You know – it’s not R&S or Keysight, but it works surprisingly well. I am attaching the measurement of the quartz filter for IF 45MHz.
