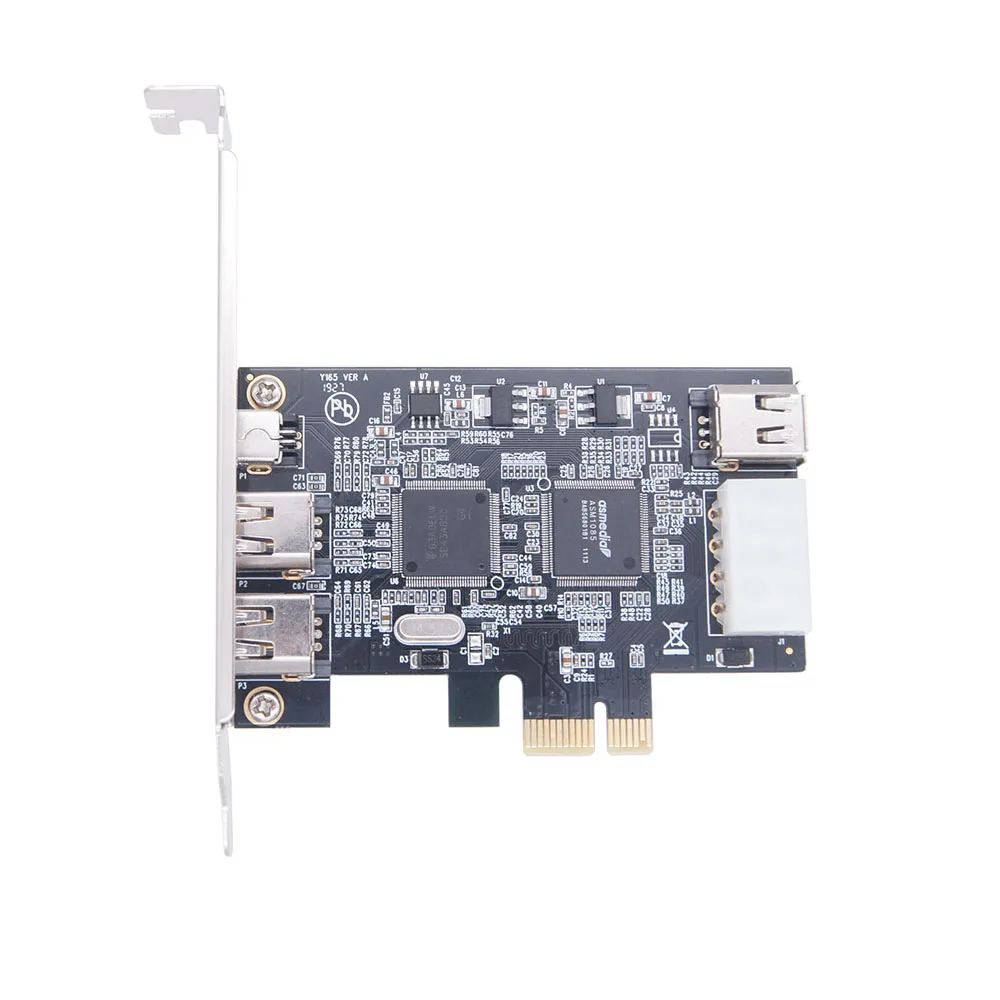

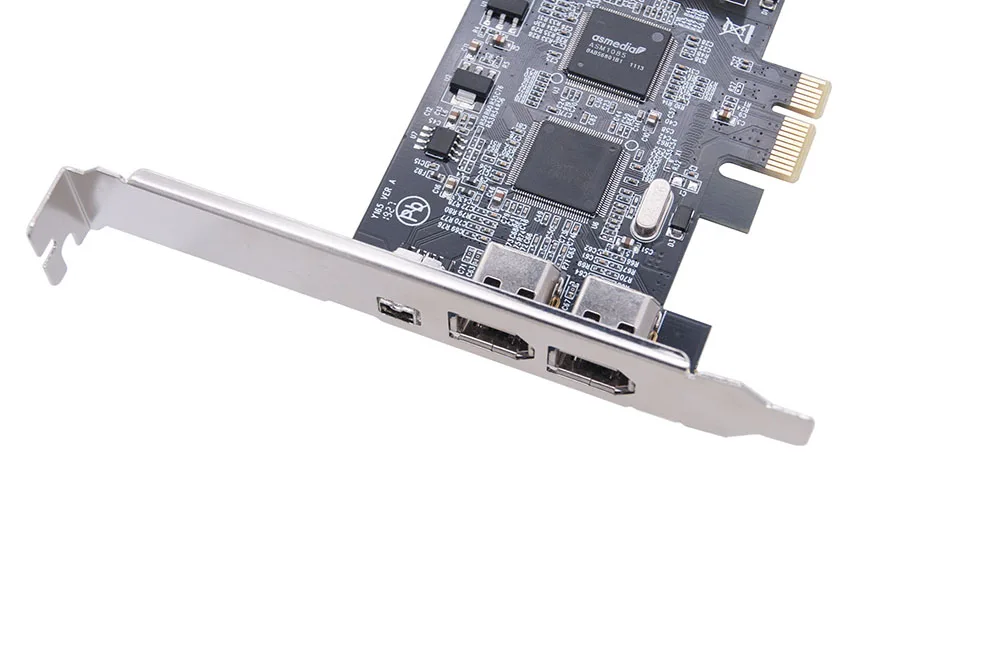

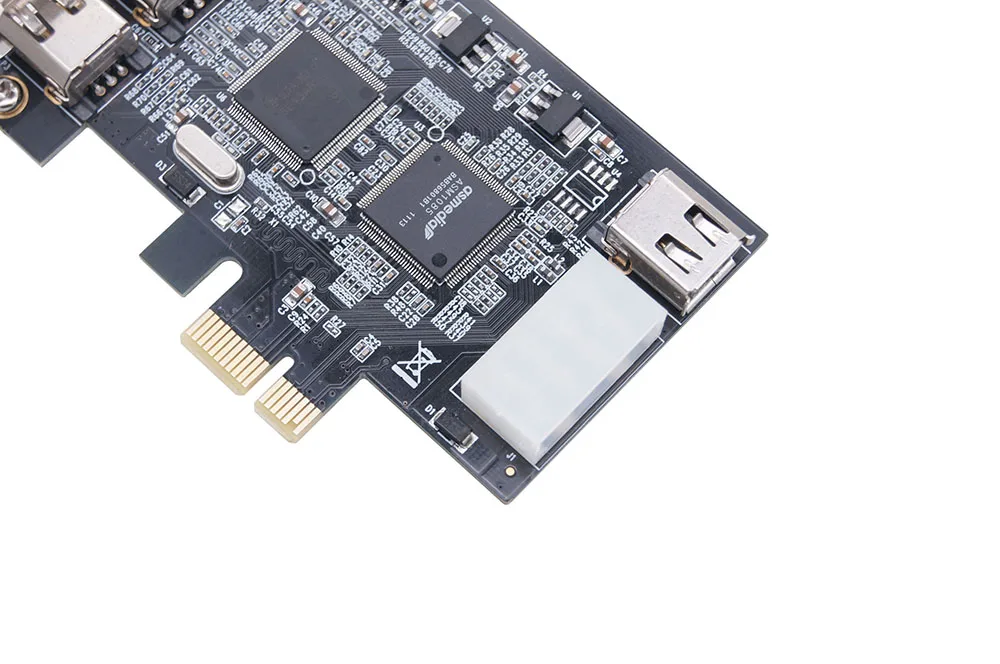

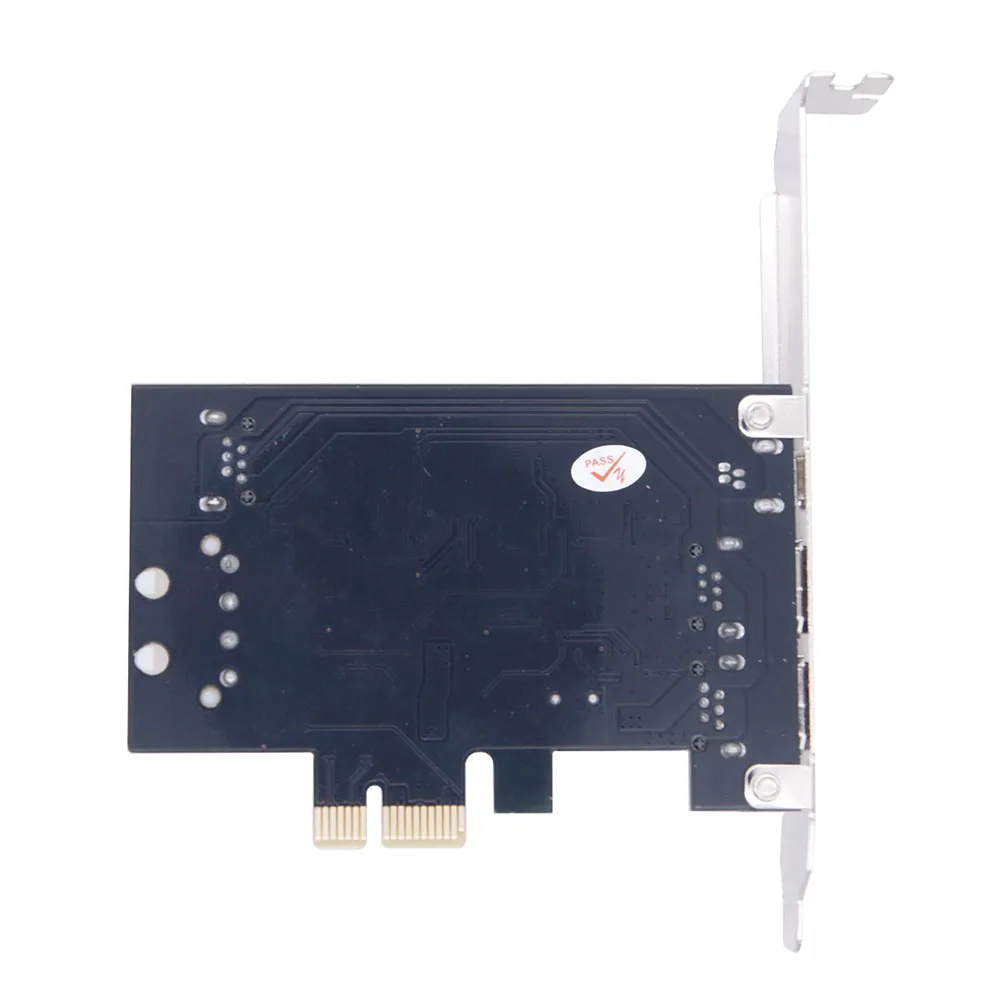

4 Ports 1394A Expansion Card PCI-E 1X to IEEE 1394 DV Video Adapter 1x 4Pin 3x 6Pin 1394 Controller Firewire Card for Desktop PC
About Description:
Item Description
1-Lane (x1) PCI-Express with transfer rate 2.5Gb/s full duplex channel.

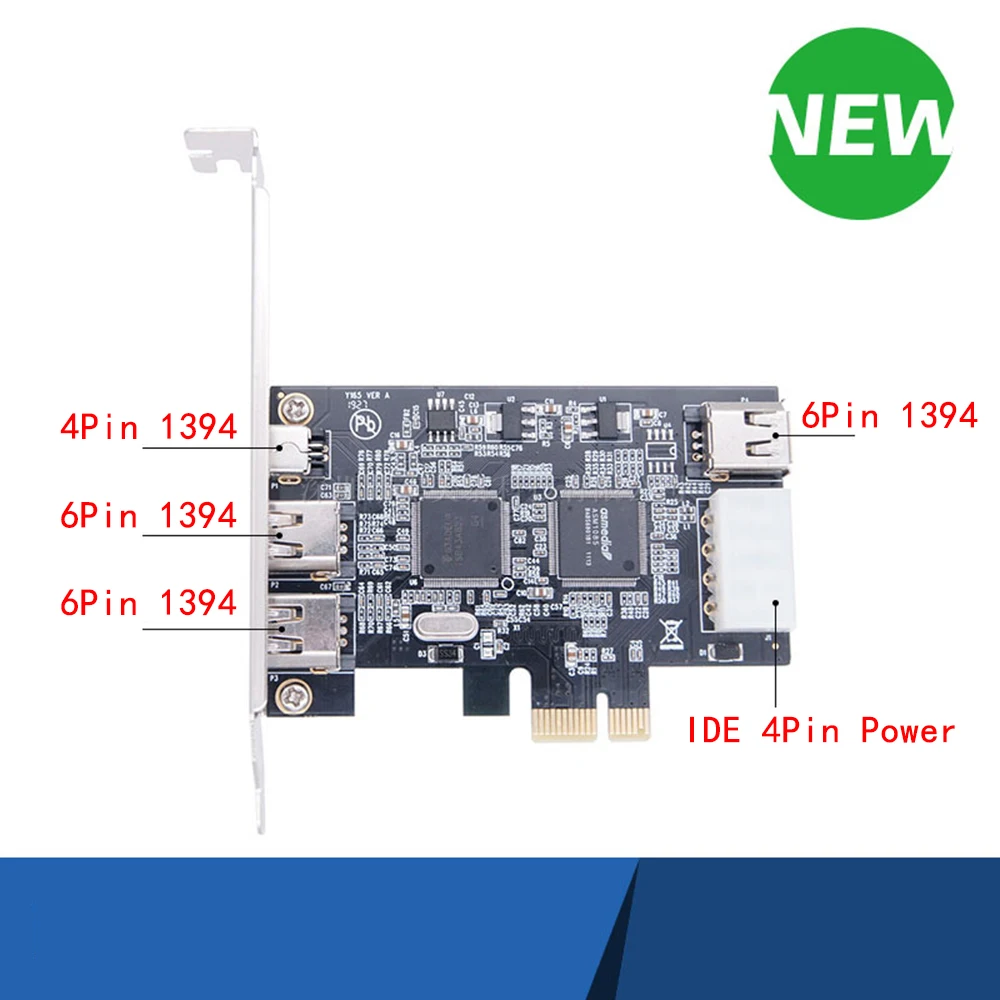

3x external 1394A ports (2 * 6 Pin + 1 * 4 Pin) and 1x internal 1394A port (1 * 6 Pin).
Compliant with PCI-Express revision 1.0a.Â
Compliant with IEEE 1394-1995, 1394a-2000 standard.
Compliant with IEEE 1394 OpenHCI Specifications V1.0 and V1.1.
Support 400/200/100Mbps data transfer rate.
Allows to connect more 1394a devices to your computer easily.
Attention: Don’t Support hot-plugging. Before installation, Turn off the power and then plug in the power cord.
3 external FireWire(1394a) ports to support DV camcorders, hard disk, removable drives, scanner, digital cameras and other FireWire devices.
OS Support:Â
for Windows 2000/XP/Server 2003/Vista /Windows 7 /Windows 8 / Windows 10 32/64 bit
Please note: The built-in 6-Pin IEEE 1394 female on metal bar can not work with the 9-Pin IEEE 1394 female on board simultaneously.
Specifications:
Material: Plastic + Metal
Color: Black (shown as pictures)
Size: 100×120×18mm/3.94×4.72×0.71in (Approx.)
Cable length: 80cm/31.50in (Approx.)
Connectors:Â
2* 6-Pin IEEE 1394 female(on metal bar); 1* 6-Pin IEEE 1394 female(on board)
1* 4-Pin IEEE 1394 female
Quantity: 1 Set (other accessories demo in the picture is not included)
Note:Â
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
You’ll receive:1Â x PCI-Express IEEE 1394A Firewire Card (No retail package)

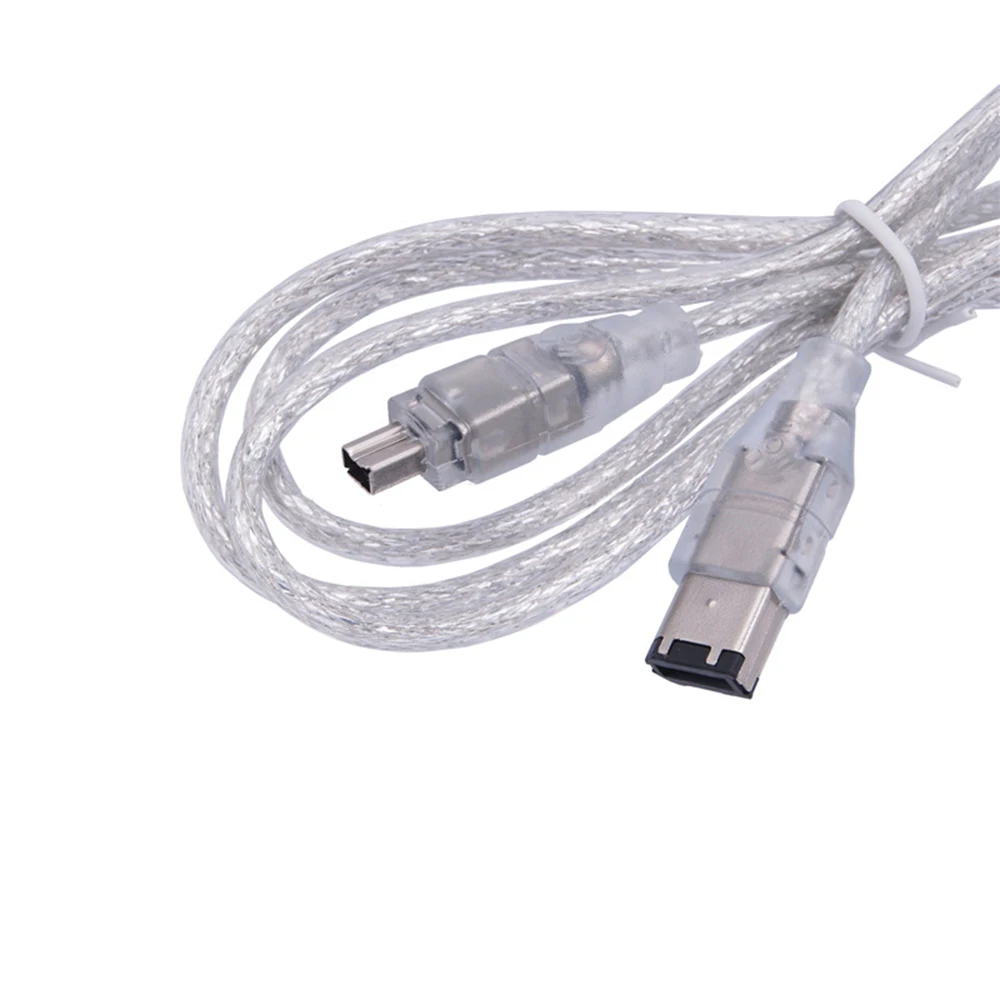

1Â x 6Pin To 4Pin IEEE 1394 CableÂ
-
Please check pictures for more details.
D***i –
Works with Windows 11 23H2. I am able to capture DV video from Sony camcorder with WinDV software. Drivers were installed automatically. No need to download them manually. Remember to connect power to this card. I highly recommend the product and the seller.
F***r –
OK
R***i –
An ok product.
C***n –
Does not work on Medion with Windows 10
k***s –
buying the same product for over 10th time because the chipset is Ti(texas instruments) ans it’s compatible with the old firewire sound cards(i tried it on RME fireface and TC Konnekt6 and 48). It doesn’t need extra drivers, it’s totally plug&play. Came right in time and it was very well packed! totally recommend!
C***v –
Thank you, as described, everything works.
D***v –
Thank you!
Customer –
The card accsebly and package earns even 6 stars. The original TI components too. Unfortunately the delivered Firewire cable earns 1 star. Tips for potential buyers. Order high quality cable from somewhere else and don’t spend days in debuging the problems.
D***m –
Plugged in and it worked directly. I connected the 4pin power inlet, but is that always necessary? Or is it only when you connect extternal drives?
Customer –
The chip is a ti 93ACS4w TSB43AB23. Works very well under linux connected to an audio map.
