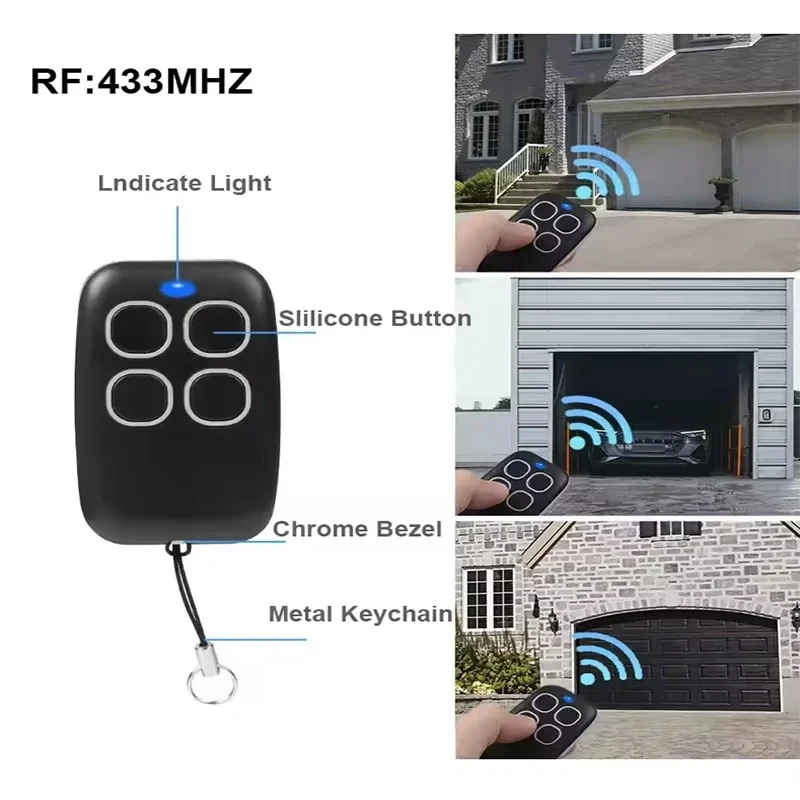

433Mhz Universal Duplicator Garage Remote Controller Command Clone Self-copying Automation Gate 433.92MHz Fixed Rolling Code

Feature :

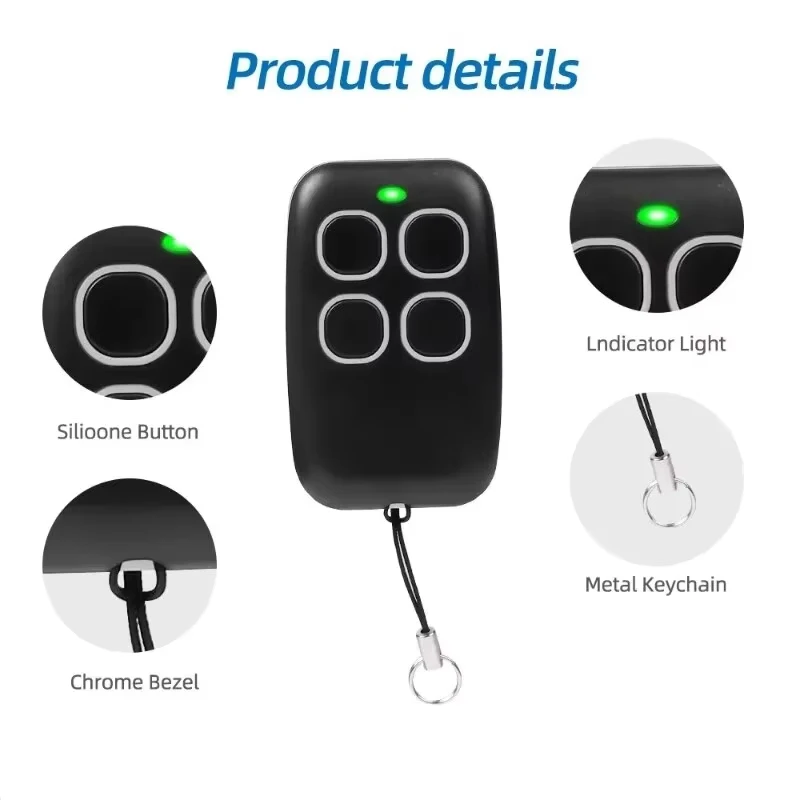

1. Appearance pinch just the right palm size design, hard and compact , hold in the hand feel 'just right'!

2. ABS high toughness body is made of ABS plastic particles injection moulding, with the advantages of strong toughness, pressure resistance, drop resistance, wear-resistant, etc.

3.HIGH-PERFORMANCE RF CHIP: This remote control replicator is equipped with a high-performance RF chip, which ensures stable frequency oscillation, accurate frequency point and long transmission distance. which can provide reliable and sensitive control ability.

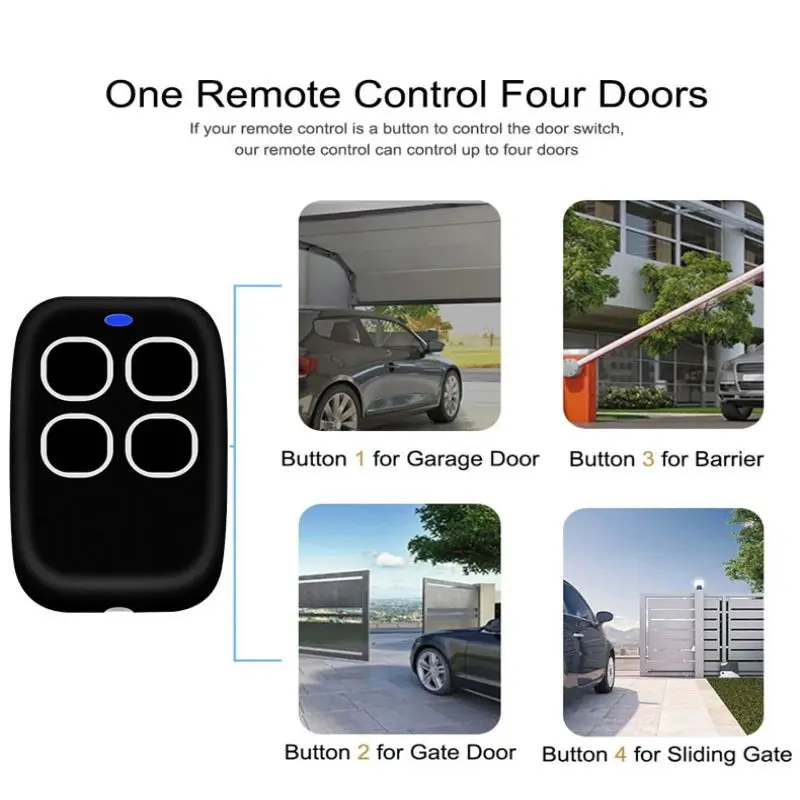

4.Multi-functional and multi-purpose: The remote control has a simple design with multiple functions and variables, applicable to electric door remote control, retractable door remote control, garage door remote control, motor control remote control, curtain control remote control, LED control remote control, motor control remote control, and so on. control, curtain control remote control, LED light remote control, automobile and motorcycle remote control, industrial equipment remote control, and so on.

5.EASY COPYING PROCESS: The copying process of this industrial wireless remote control is fast and easy, which can copy the settings of the original remote control without affecting its functions.

Transmitter (Remote Control)

Model: AK-K200803

Operating voltage: DC12V

Transmit current: ≤21mA

Static current: <0.15uA

Operating Frequency: 433MHz

Transmit power: 3~6dBm

Size: 65.5*41*13mm

Weight: 25g

Package include

Remote control (with batteries + product operation manual *1)

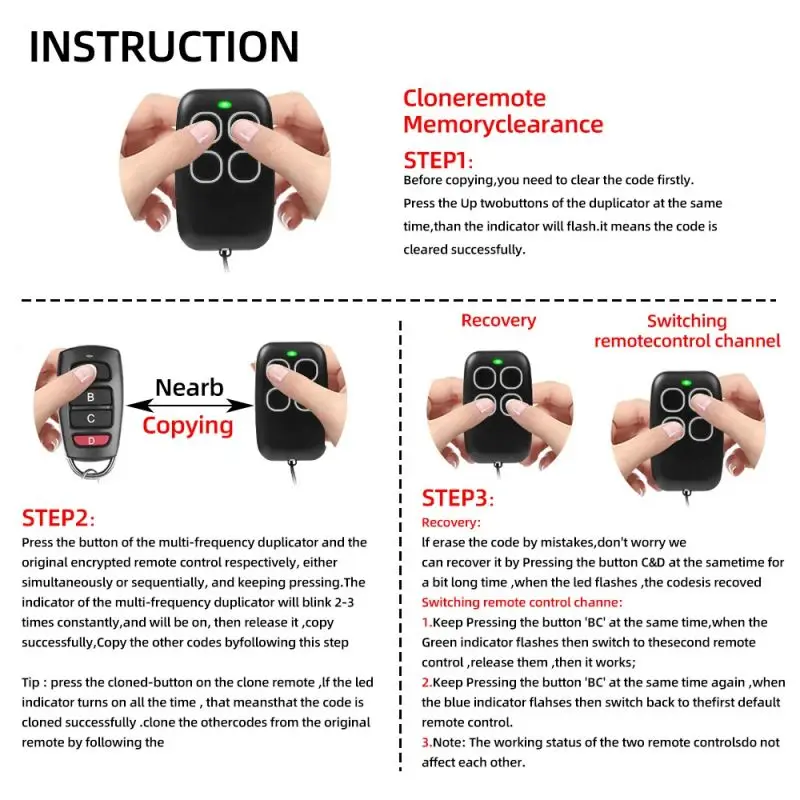

How to operate the remote control

Ⅰ. Clearing method: Press and hold the two keys in the first row at the same time, the LED indicator flashes three times, release any one of the buttons (the other one keeps pressing and holding), press the released button three times, and the LED indicator enters Fast flashing status, indicating that the clearing code is completed (the remote controller has been cleared, short press, the LED indicator does not light).

Note: Press the two buttons as much as possible at the same time, otherwise it will not enter the clear code state.

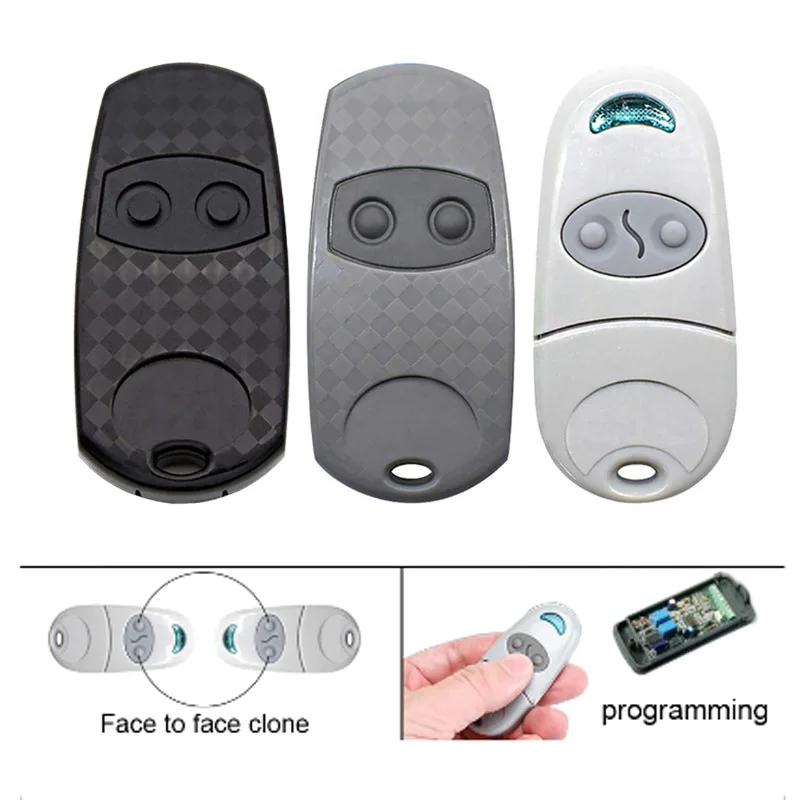

Ⅱ. Copy: One hand holding the original remote control, the other hand-held copying remote control, the two remote controls are close to each other, respectively press the button to be copied, the LED indicator flashes three times and then lights up continuously, indicating that the copy is successful, other buttons the operation method is the same.

Note: If the post-copy function is not normal, please clear the code and copy it again. (Recommended: replace the original remote control battery before copying)

Description

Material: Plastic.

Size: 60*36*12mm.

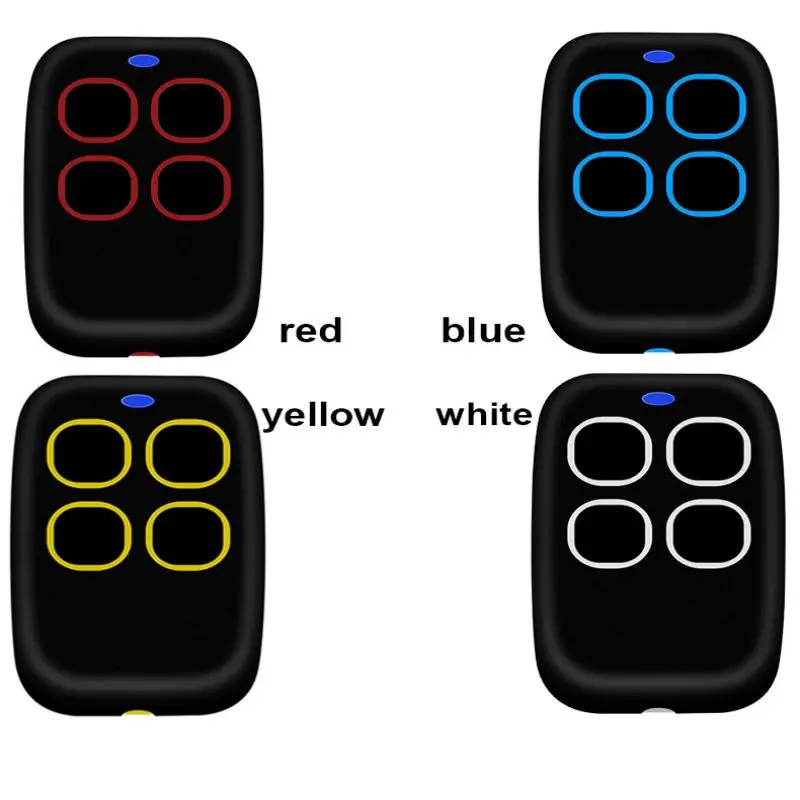

Color: As pictures show.

Type: Wireless remote.

For: Such as electric telescopic door remote control, road gate remote control, alarm remote control and so on.

Rated voltage: 2*3V Battery(included).

Wireless transmission distance: 150 (m).

How to operate the remote control

Ⅰ. Clearing method: Press and hold the two keys in the first row at the same time, the LED indicator flashes three times, release any one of the buttons (the other one keeps pressing and holding), press the released button three times, and the LED indicator enters Fast flashing status, indicating that the clearing code is completed (the remote controller has been cleared, short press, the LED indicator does not light).

Note: Press the two buttons as much as possible at the same time, otherwise it will not enter the clear code state.

Ⅱ. Copy: One hand holding the original remote control, the other hand-held copying remote control, the two remote controls are close to each other, respectively press the button to be copied, the LED indicator flashes three times and then lights up continuously, indicating that the copy is successful, other buttons the operation method is the same.

Note: If the post-copy function is not normal, please clear the code and copy it again. (Recommended: replace the original remote control battery before copying)

Recovery instructions:

If the useful code is cleared by mistake, you can press the two buttons below of the remote control at the same time without recopying the other remote controllers. After the indicator flashes rapidly for 3 times, the recovery is successful.

Package Included: 1 * remote control 433MHz(battery included)
