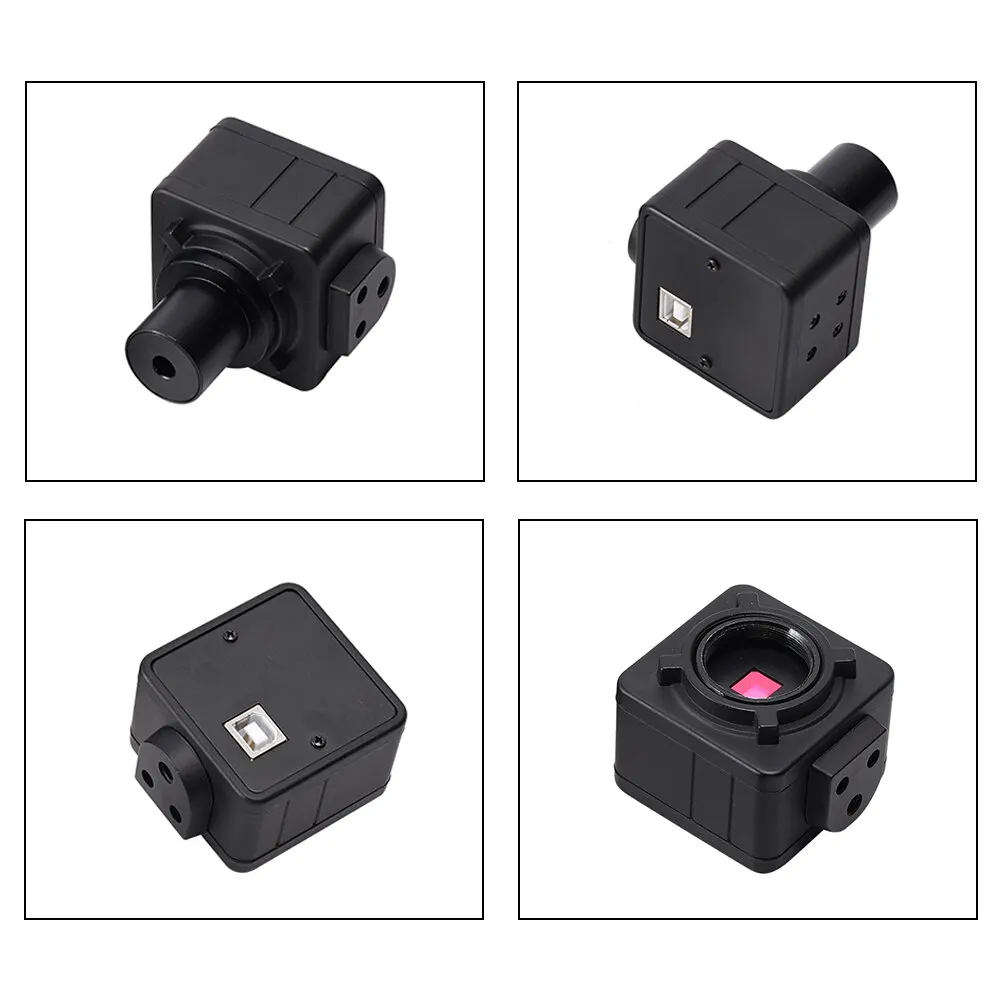

5MP Cmos Microscope USB Camera Digital Electronic Eyepiece Free Driver High Resolution Microscope High Speed Industrial Camera
$54.99
In stock
This USB microscope camera has high-speed USB2.0 interface, up to 480Mb/s, giving you a better experience. The exposure time is adjustable and support Wins 2000, XP, WIN7 operating system. If you are interested in this product, come and have a try, it will not let you down.
Features:

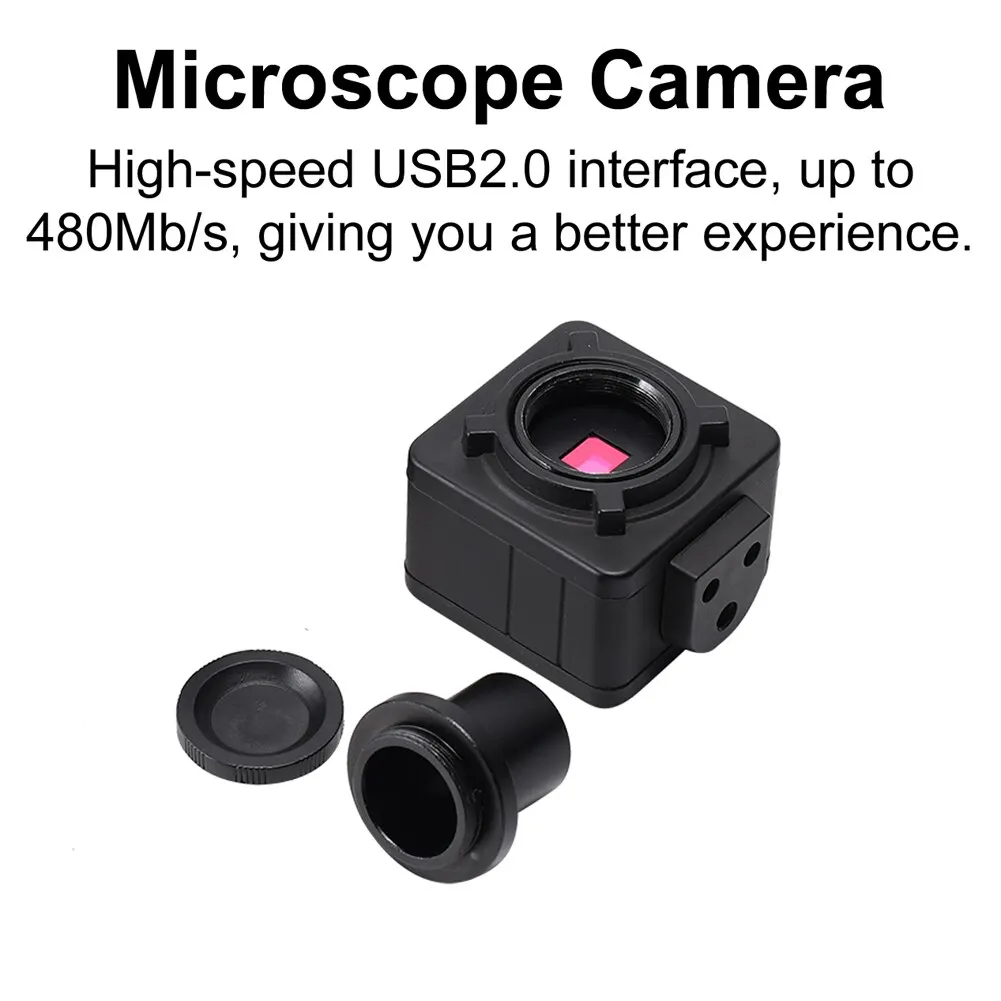

High-speed USB2.0 interface, up to 480Mb/s, giving you a better experience.
Large area array CMOS progressive scan imaging sensors, support for static and dynamic imaging capture.
Exposure time is adjustable, 8bit uncompressed imaging data, software implementation Bayer color conversion plug and playing installation.

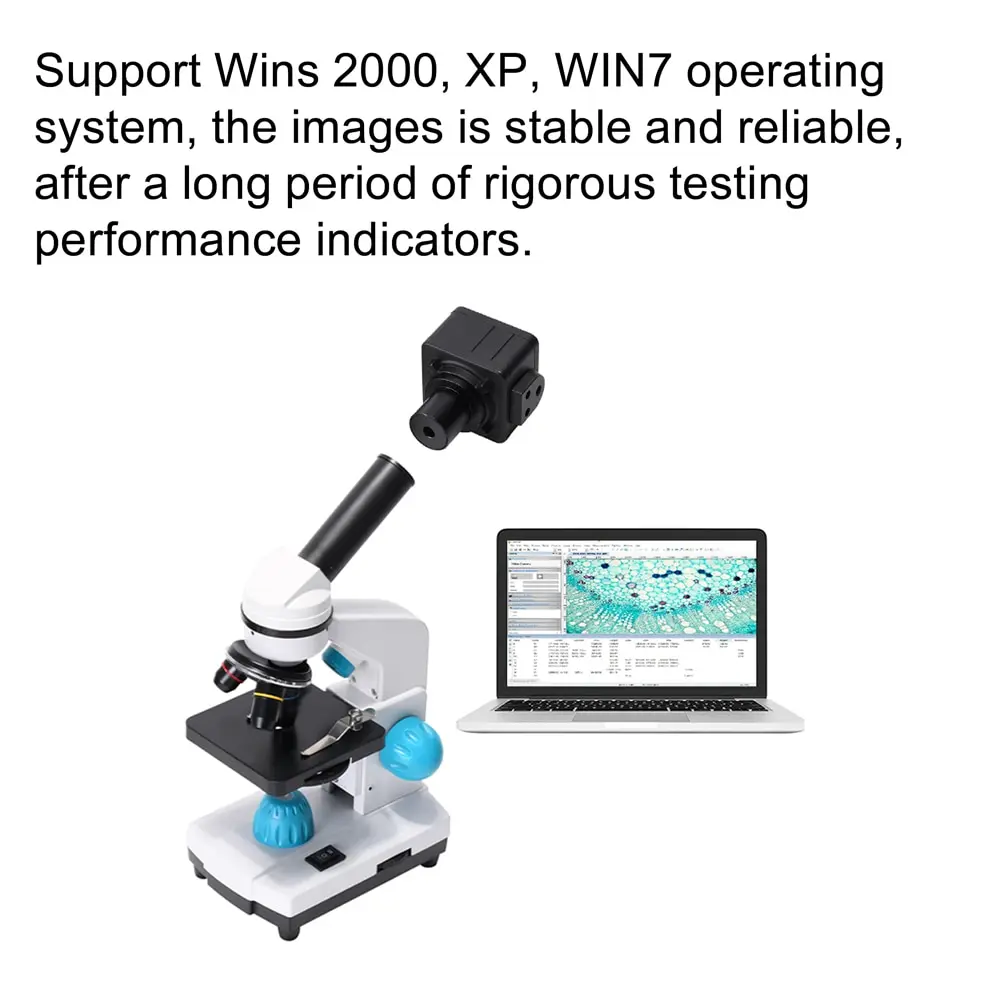

Support Wins 2000, XP, WIN7 operating system, the imaging is stable and reliable, after a long period of rigorous testing performance indicators.
Wide Applications: This tool can be widely used in pattern recognition, industrial testing, medicals microscopy and traffic management and other fields. More widely used in various fields of microscope and imaging acquisition of various occasions.
Specifications:
Material: metal
Imaging sensor: 1/2.5inch color CMOS imaging sensor
Pixels size: 2.2 μm*2.2 μm
The spectral response: 400 nm to 1000 nm
Scan mode: progressive scan
Resolution: 640*480,1280*1024,1600*1200, 1920*1080, 2048*1536, 2592*1944
White balance: Auto/Manual
Auto exposure Control: Auto/Manual
Imaging output: USB2.0, 480Mb/s
Operating temperature: 0℃~ 50℃
Package size: 120 * 120 * 80mm / 4.7 * 4.7 * 3.1in
Package weight: 230g / 8.1ounce

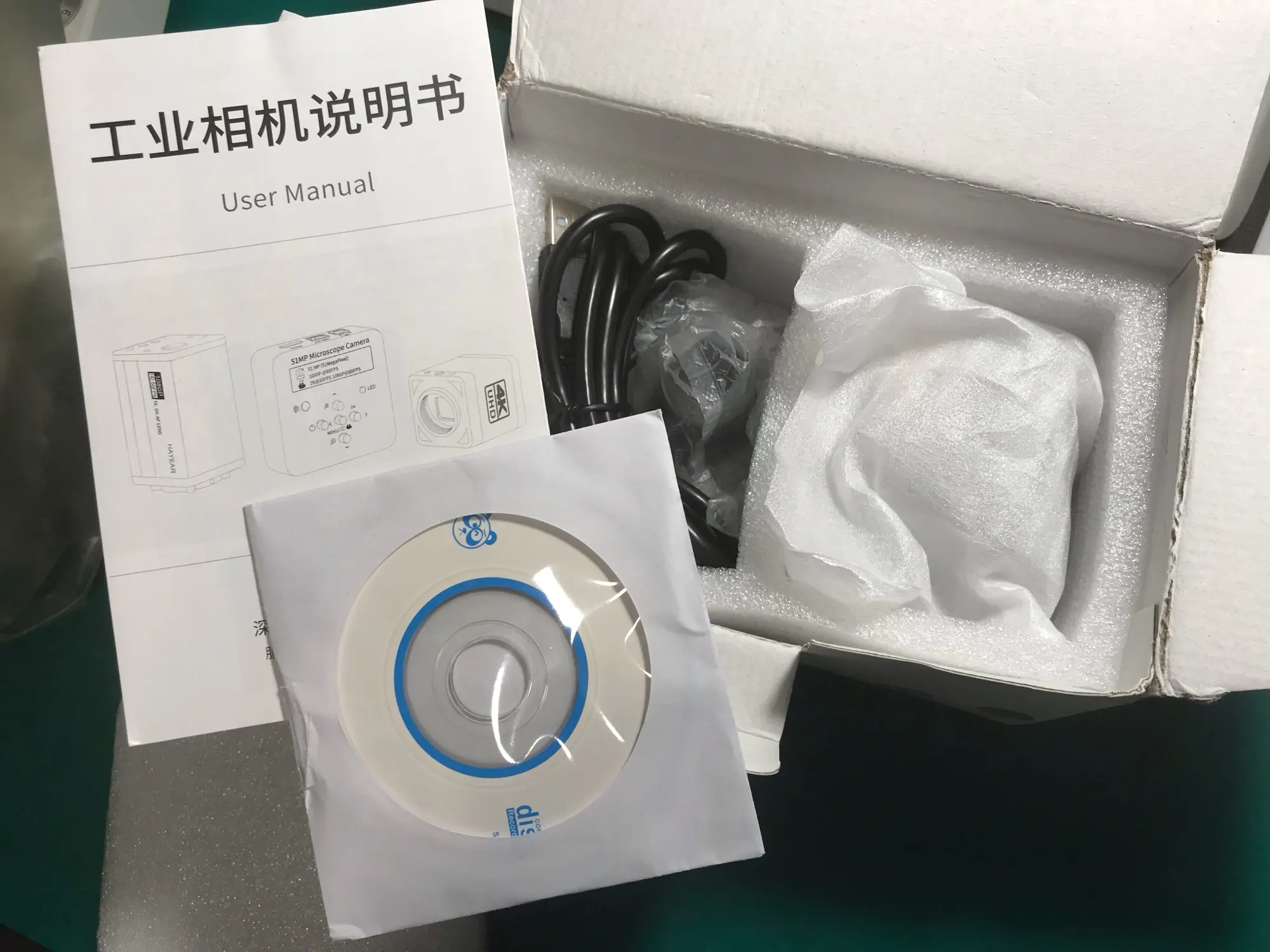

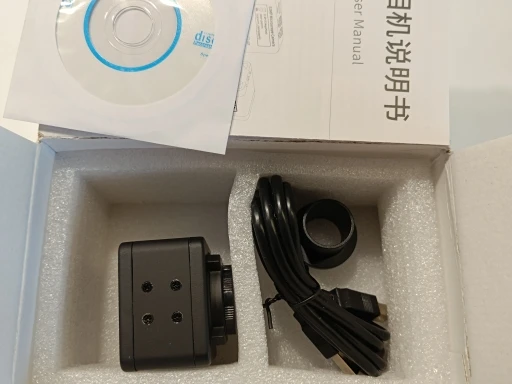

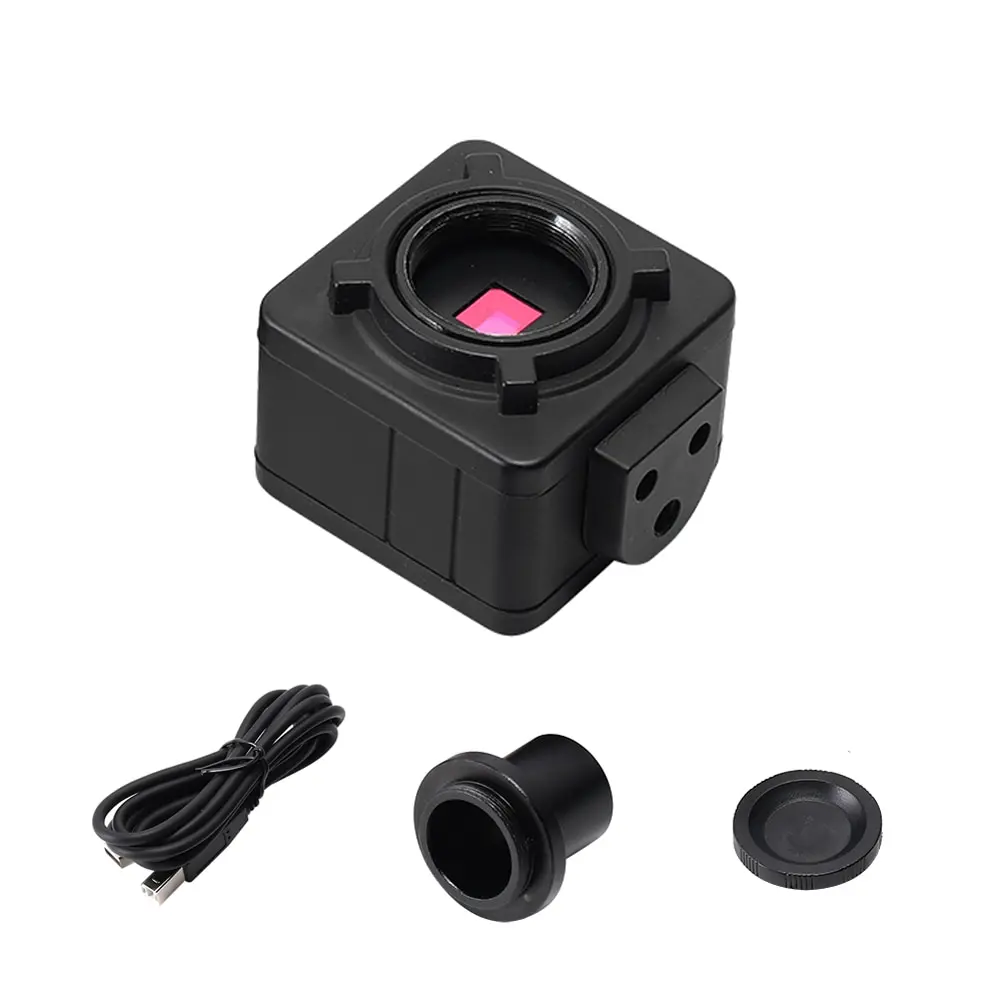

Packing list:
1 * Microscope Camera
1 * USB Cable

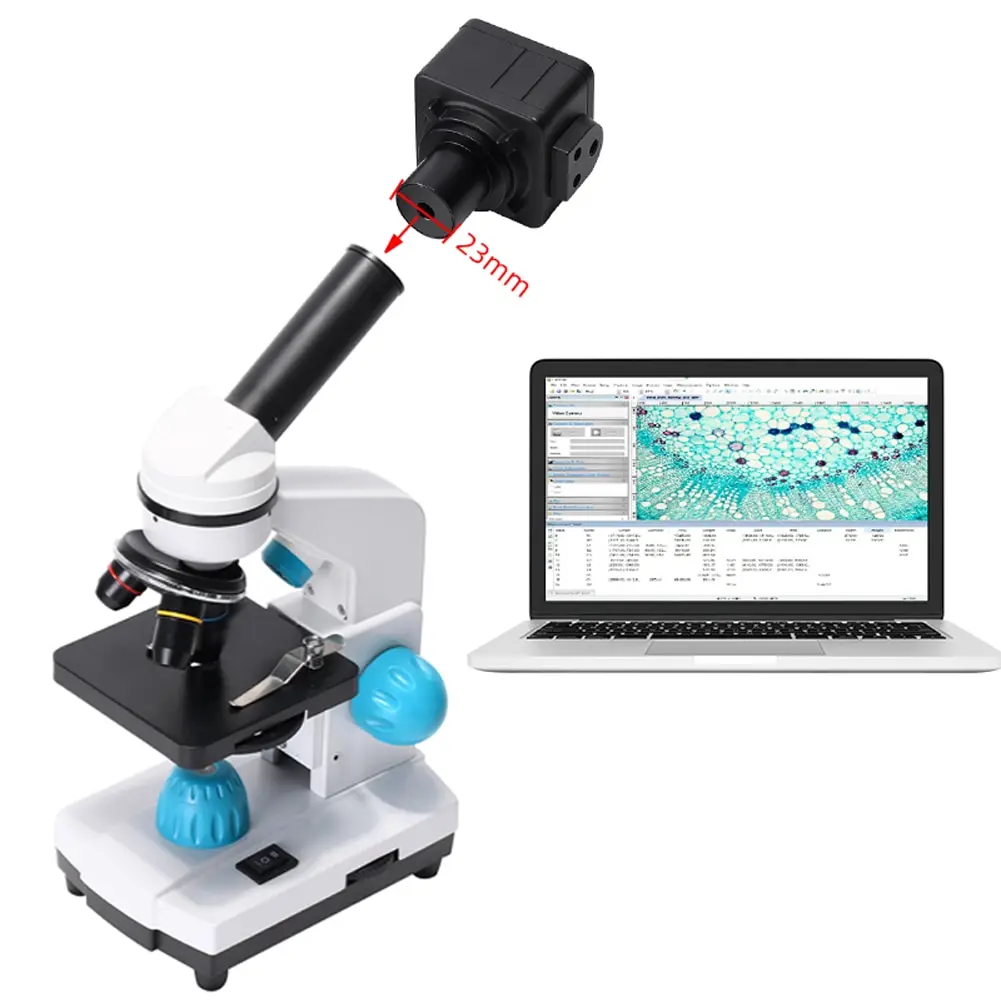

1 * 23.2 Adapter
1 * Compact Disc
| Weight | 0.267 lbs |
|---|---|
| Dimensions | 16 × 10 × 8 in |
| Brand Name | NONE |
| High-concerned chemical | None |
| Magnification Ratio | 500X & Under |
| Origin | |
| Battery Included | No |
| Theory | Video Microscope |
| Model Number | E21416 |
| Features | High Definition, Digital |
| Certification | CE |
| Choice | yes |
16 reviews for 5MP Cmos Microscope USB Camera Digital Electronic Eyepiece Free Driver High Resolution Microscope High Speed Industrial Camera
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
L***d –
I primarily ordered the camera for my old microscope, which originally came with a 640×480 camera that no longer works today due to the lack of drivers.
This new 5mp camera with the matching eyepiece attachment worked right away and provided an excellent image.
I am very satisfied with it.
An affordable way to bring an old microscope up to date.
Since that worked so well, i also ordered a 180x objective lens.
It worked well with that as well.
Color: black
P***z –
The 5MP camera for microscope is great. The image quality is clear and the details look incredible, perfect for observing small samples. Easy to use and compatible with my device. Very satisfied with the purchase, each weight is worth it.
Color: black
Anonymous –
The software it has is surprising, you can do everything with the captured images. The quality of the cameras is normal according to the price of the camera.

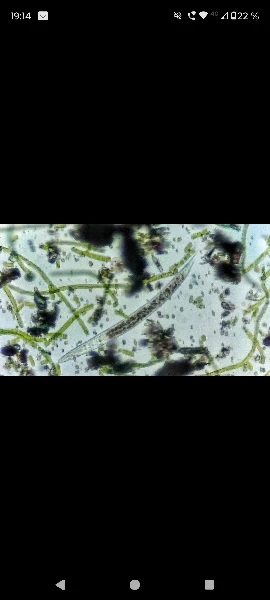

I use it for a microscope 🔬 biological and if resolution at 1000 magnification is acceptable. The measurement function after calibration is very accurate. The software on the disk is from the last century, you have to transfer it to a pen drive.
Color: black
A***d –
The parcel was delivered to Dnepr in 14 days. The product matches the description. The camera has a pretty good resolution, I liked how it works. It worked without problems both on the computer and on the smartphone.
One of the downsides: the problem number 1 was to get the program from the CD, for this I had to “shake a tambourine” over the computer to get my ancient CD-ROM to work :).

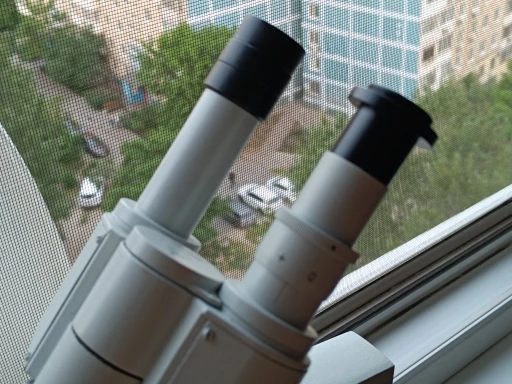

The second downside is the incompatibility of the adapter with my USSR-made microscopes. The adapter is 32.2mm, but in my microscopes, all the eyepieces are 32.1mm, and it doesn’t fit freely. You will have to remove a layer of 0.1mm on the lathe. but this is not a problem for me, the main thing is that the camera works as it should! I recommend it to everyone! Many thanks to the seller!
Color: black
O***N –

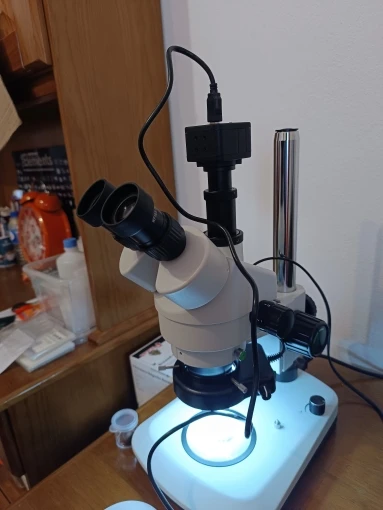

Incredibly good. I recommend it without any hesitation. I have tested it with a binocular microscope and it works perfectly. I have downloaded the Hayear software (excellent). The camera is Hayear and it is magnificent.
Color: black
A***c –
Very fast delivery, the product is looking good, haven’t tried yet but i used the same one before and i was very satisfied
Color: black
L***o –
Good shots can be achieved, completely satisfied.
Color: black
Anonymous –
No, it works and doesn’t work when connected to the phone.
Color: black
D***n –
The camera is intended for astronomical observation by coupling it with a photo lens. I chose it because it is advertised that the installation time and gain are adjustable. My main issue was that the provided software is for Windows while I use a Mac running OSX. However, by using the CameraController application (github), the camera is recognized and we can adjust these two parameters. The Hayear website allows you to download software for Mac that works but unfortunately does not allow control over gain and installation time.
Color: black
F***n –
Works well. This is already the second order.
Color: black
Anonymous –
I tested it and it worked as expected. Excellent purchase.
Color: black
N***O –
Excelent quality.
Color: black
D***r –
Good camera, I am very satisfied, well-suited for my purposes.
Color: black
I***r –
Perfect. Fast shipping and everything as described.
Color: black
R***s –
I think the quality of the product is quite alright. I got it to test and i think i’ll be able to do some things with it
Might need to improve for a higher resolution later on but for now, it’s top notch, the adapter fit my microscope and the software seems to be easy to use, however i atill need to learn how to use it
Color: black
Anonymous –

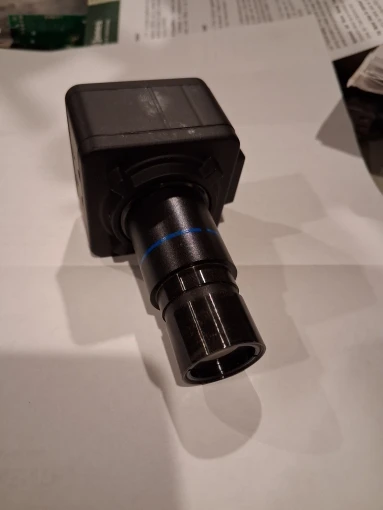

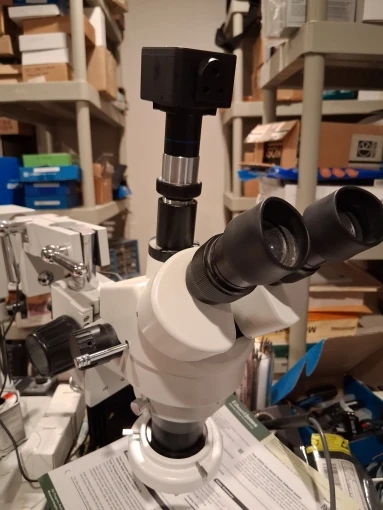

The camera works very well, and the supplied software is excellent. However, the camera is supplied was not appropriate for my amscope microscope. The object needed to be within about an inch of the objective lens in order to be in focus, and the field of view is extremely small. However, i had a previous similar camera which had a lens screwed onto it and when i put that lens on to this camera it worked beautifully. You can see this lens in the pictures.
Color: black
