AIYIMA T9 PRO HiFi 5.2 Bluetooth Tube Amplifier VU Meter Stereo Power Amplifier USB DAC COAX OPT Home Audio Amp 100Wx2
Description
Product Descriptions:

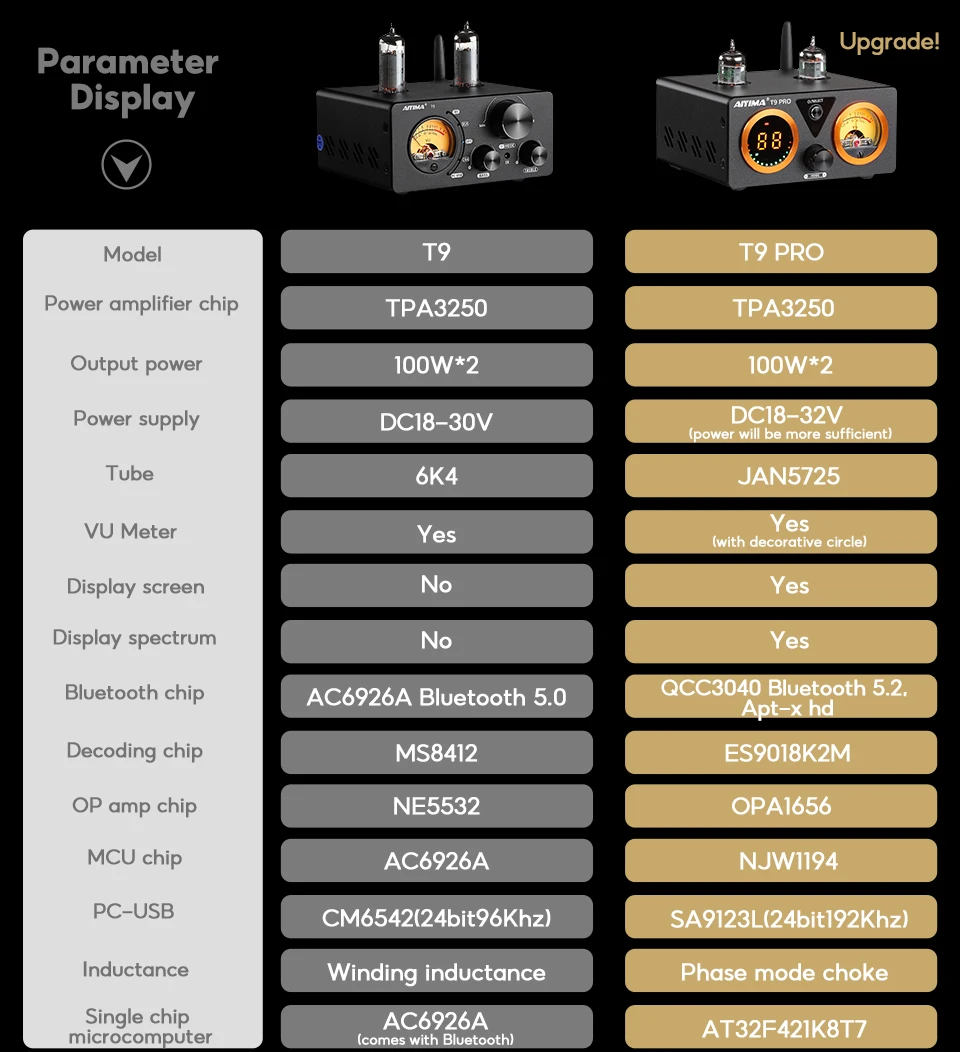

T9 PRO TPA3250 power amplifier 100Wx2
Chipset: TPA3250+Jan5725+QCC3040+ES9018K2M+SA9123L+OPA1656+NJW1194
PC-USB sampling rate: 24bit/192khz, 16bit/192khz, 24bit/96khz
PC-USB operating system: Windows XP / Win10/11/ Max OS/MAC/Linux
Bluetooth/optical fiber/coaxial sampling rate: 24bit44.1khz/24bit192khz/24bit192khz
Bluetooth chip: QCC3040, Bluetooth 5.2, support SBC，AAC，aptx ，aptx-ll,aptx-HD
Tube model: JAN5725 or 5725 or 6K4
The pipes that can be replaced are: 6AK1П, 6AK5, 6K4, EF95.6J1, GE5654, etc.
Speaker impedance: 4-8Ω
Output power: 100W*2 (4 Ohm load)
AUX output amplitude: 2V
Signal-to-noise ratio: ≥102dB
Input sensitivity: 1.4V
Frequency response: 20-20kHz (±1.5dB)
Total harmonic distortion: 0.03% (1kHz 1w)

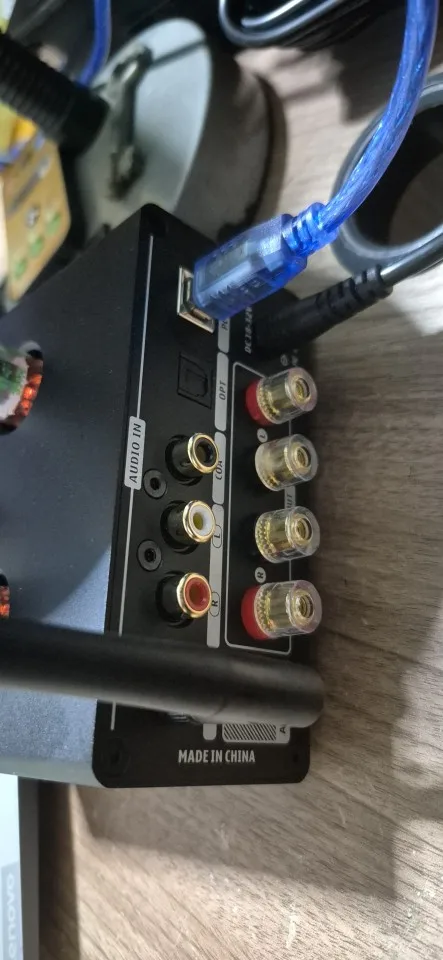

Input mode: RCA/Bluetooth/PC-usb/optical fiber/coaxial
Supported devices: mobile phones, tablets, computers, MP3, TVs, etc.
Output mode: passive speaker, active speaker, post-stage power amplifier
AUX OUT: support amplifier or active subwoofer
( as output connect to next amplifier without volume control)
( as output connect to next amplifier without volume control)
Working power supply: DC18V-32V, 3A or more
Product size: 116*100*54mm
Packing size: 295*205*85mm
Product net weight: 617g
Packing（without power supply）weight:966g
NOTE:

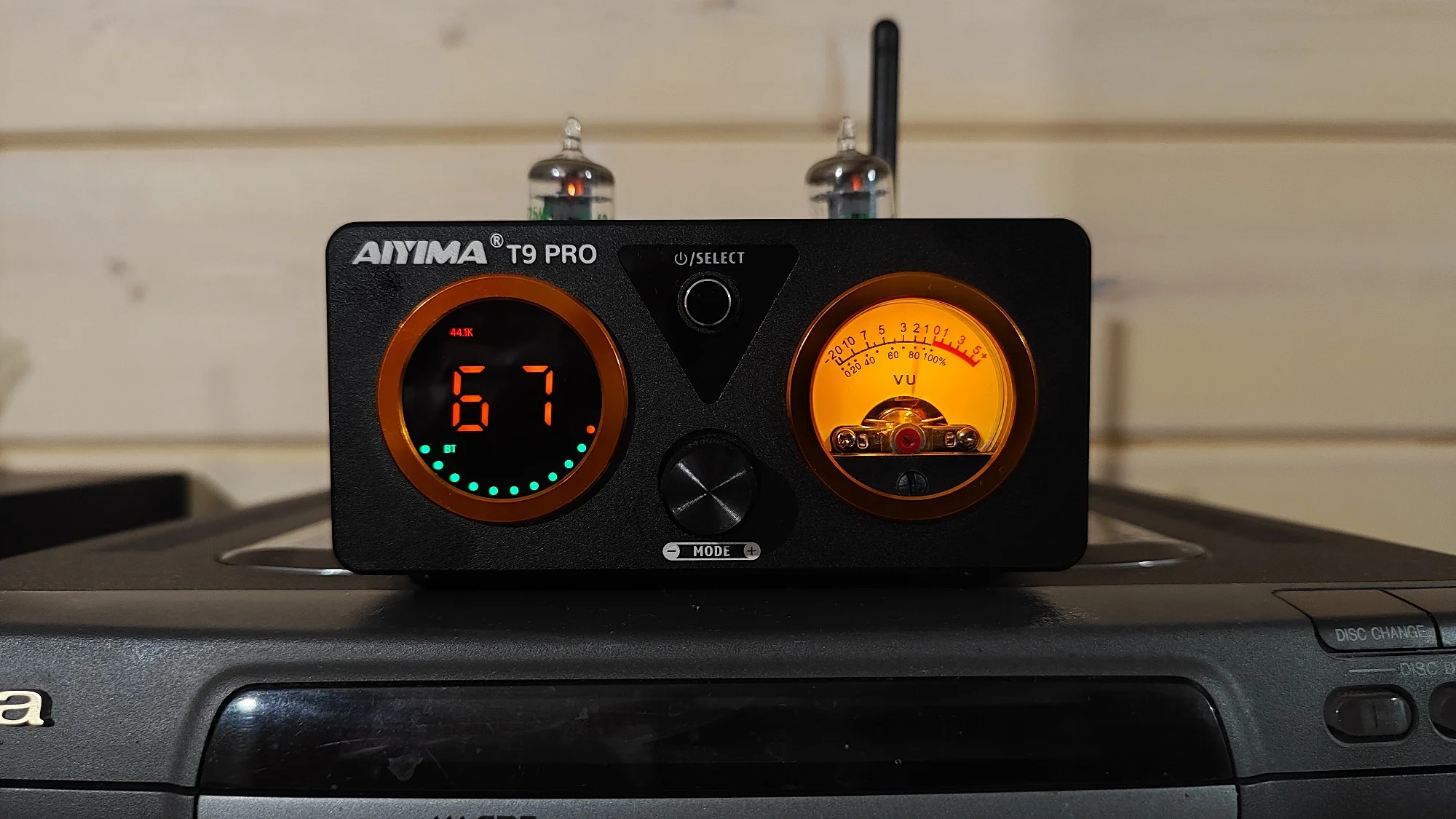

The pointer swing of the VU meter is related to the input audio signal. If the pointer swing of the VU meter is small, please adjust the input audio signal to the maximum, or adjust the sensitivity of the audio signal input at the bottom of the T9 PRO, thank you!
Since the tube is often updated,the picture has not been replaced. The current tube is 5725.
Startingfrom May 2025, T9PRO does not provide U disk
Q: All my cables are connected, but there is no sound output?
A: 1. Check whether the screen lights up. If the screen does not light up, briefly press the
ON/OFF key to start the machine.
2.Check the screen volume value. If the volume value is too low, turn the encoder knob or the
remote control to the right to increase the volume.
3.If the above two points are normal, check whether the playback device of the input sound source
is paused, muted, or the volume is at the minimum.
Q: Why is the sound distorted?
A: The input level may be too large. If the volume of the sound source equipment is adjusted to the maximum, and the volume of the machine is also adjusted to the maximum, it is easy to be distorted. At this time, turn down the volume of the sound source input device or machine.
Q: Why does the volume of the machine remain the same, but the sound level is different when connecting to different audio sources (for example, connect a CD first, then a mobile phone)?
A: The amplitude of electrical signals output by different playback devices is different. For
example, mobile phones are usually 0.35V, while CDs are 1V. The natural sound size is different.
Q: Why does the horn make a loud current sound?
A: If you use a power supply other than the original standard, please replace the power supply before testing. Many power sources on the market have large interference coefficient of the text wave, which will cause a large current sound.
Q: Why does the speaker make a loud buzzing sound when I plug in the input cable and do not connect the playback source?
A: When the unshielded signal line is unloaded, the interference signal will enter the power amplifier for amplification. It is recommended to replace it with shielded signal wire or unplug the signal wire.
Q: Why can’t I find the Bluetooth pairing name?
A: Since power consumption is considered in the design of this machine, Bluetooth does not work when other channels are used. You must switch to Bluetooth input mode to search for pairing.
Q: can I change the tube directly without turning off the power?
A: No, because the machine works under high voltage, the hot plug electronic tube may burn out
and damage the machine.
Q: Why does Bluetooth sound intermittent?
A: When using Bluetooth to test the distance, it is normal that the sound is not stuck or disconnected (without any obstacles) within 10 meters.(Note: The router will interfere with the Bluetooth signal. Don’t get too close!)
Package included:
1Pcs T9 PRO tube amplifier + 1Pcs Power adapter 24V4A or 32V5A(optinal)
Remote control *1
Warranty：24 Months
Additional information
| Weight | 1.500 lbs |
|---|---|
| Dimensions | 30 × 21 × 9 in |
| Brand Name | Aiyima |
| High-concerned chemical | None |
| Maximum Power Per Channel | 100 W |
| Origin | |
| Package | Yes |
| Channels | 2 (2.0) |
| Certification | CE, KC |
| Model Number | T9 PRO |
| output power | 100Wx2 |
| tube | JAN5725 |
Reviews (20)
20 reviews for AIYIMA T9 PRO HiFi 5.2 Bluetooth Tube Amplifier VU Meter Stereo Power Amplifier USB DAC COAX OPT Home Audio Amp 100Wx2
Shipping and Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
$261.99 $385.99Price range: $261.99 through $385.99
$35.99 $39.99Price range: $35.99 through $39.99
$22.99 $39.99Price range: $22.99 through $39.99
Anonymous –
Color: T9 PRO 32V EU Ships From:
U***r –
Color: T9 PRO 32V US Ships From:
a***r –
Happy with the aiyima t9 pro. It’s a small, powerful amp with great build quality. The glowing tubes look cool, and the sound is a major upgrade warm, clear, and with strong bass. Highly recommend this fantastic, affordable amp.
Color: T9 PRO 32V EU Ships From:
R***m –
Absolutely amazing! Quality and responsive for all kind of music. I like it and recommend.
Color: T9 PRO 32V EU Ships From: brazil
a***r –
Excellent sound, I already tried it and it’s very good as described. It arrived in less than 15 days, super fast. I recommend it.
Color: T9 PRO 32V US Ships From:
L***s –
Arrived in good time, the sound quality is quite good for the cost especially the Bluetooth sounds excellent paired with a Fiio BT11 from my PC with Roon player, the sound became clear and with many details… Good purchase… now to buy the GE5654 tubes to continue with the improvement… Thank you very much seller…
Color: T9 PRO 32V US Ships From:
Anonymous –
A serious audio kit. On the outside it looks great, professional and is made with durable materials. On the inside lays a great care for quality sound. Durability needs to be proven. At the moment it serves a great function on my vintage hifi equipment. What would be fantastic is that it can double function as a media s streamer, in particular now spotify is lossless. I would buy again within this price range.
Color: T9 PRO 32V AU Ships From:
Н***ч –
Such a little one, but it sounds like a bomb. Rocked the S 90 smoothly.
Color: T9 PRO 32V EU Ships From:
D***r –
Top device, plays very nicely and cleanly. Highly recommended.
Color: T9 PRO 32V EU Ships From: GERMANY
B***y –
Okay, great sound but the Bluetooth is not 5.2 but 5.1 and only recognizes our two phones and the TV, only the laptop despite all the manufacturer’s procedures???
Color: T9 PRO 32V EU Ships From:
S***i –
Color: T9 PRO 32V EU Ships From:
Anonymous –
— the product is absolutely perfect. The quality is excellent in both appearance and sound. Everything arrived in great condition, and i couldn’t be happier with my purchase.
One small note for linux users: it’s worth manually changing the sampling rate from 48 khz to 44.1 khz, so the signal doesn’t get converted twice. After adjusting this, it sounds truly beautiful.
I can only say positive things. Thank you very much!
Color: T9 PRO 24V EU Ships From:
H***z –
I was surprised by the size because it is small but has a very good design and finish. It arrived in its respective box, it was easy to install. I don’t like that it heats up because it doesn’t have a fan, but the device is excellent.
Color: T9 PRO 32V US Ships From:
G***w –
Just wow, for the money this thing is amazing. Excellent craftsmanship and great accessories and sound. I have an older Grundig 2000r here, and I have to say the sound is different but good. Sometimes I prefer the sound of jazz or lo-fi music via Bluetooth, and other pop and rock tracks via USB – B. The remote control works and everything feels high-quality, with nothing wobbly or looking cheap. A high-quality small amplifier that really brings fun. Hi-fi doesn’t always have to be expensive, and hi-fi starts in the heart, not in the wallet as many think.
Color: T9 PRO 32V EU Ships From: spain
Anonymous –
The amplifier is a gem. It replaced an old class a/b amplifier and the difference is night and day. I can finally listen to music without any crackles or hums in the speakers. Through the usb connection, it supports up to 192khz for high-resolution audio files. The remote control is responsive and very useful, and it drives my klipsch speakers comfortably with plenty of headroom.
Color: T9 PRO 32V EU Ships From: GERMANY
A***z –
For the price, it’s a delight. The size is impressively small. I’ve enjoyed it a lot. I will pair it with a Cainyin RU7. Regards.
Color: T9 PRO 32V EU Ships From:
N***o –
So far, a beast of an amplifier has been connected to a Bose Acoustimass V Series III.
First impression: a lot of power for such a small device. I chose the 32V adapter because I want all the power this machine has to offer. A low power adapter also means fewer watts per speaker, so be careful about that!
The quality is excellent, the durability of the device remains to be seen.
Color: T9 PRO 32V EU Ships From:
a***r –
Fantastic product, impeccably packaged, made with quality materials. It makes my 100W passive speakers sound loud and clear, and it’s very compact. Highly recommended for those who want a simple and affordable amplifier!
Color: T9 PRO 32V EU Ships From:
D***r –
Color: T9 PRO 32V EU Ships From: GERMANY
D***r –
The cute little amp does get a bit warm, but I’m sure the tubes are responsible for that? 😵
Everything in the package includes what you need (except the batteries for the remote control). 👍
The small amplifier can also power large TML floor-standing speakers with great power. 🙃
The sound is very good, and the left display can be turned off (you don’t need to look at it all the time anyway). 🙂
I can recommend it to any HiFi enthusiast. 🙏 👍 😇
Color: T9 PRO 32V EU Ships From:
