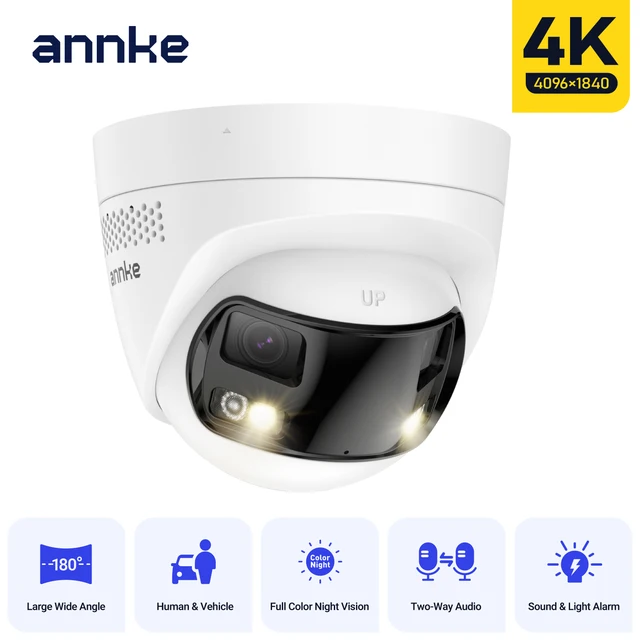

Name: ANNKE 8MP Dual Lens PoE Camera: Best 180° Panoramic Security
SKU: VNRASKP5YT3T
Availability: InStock

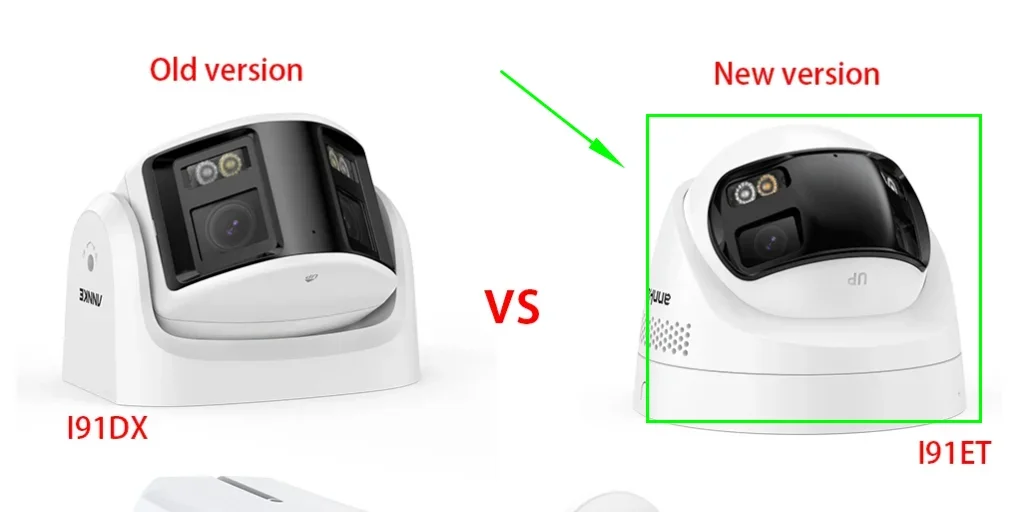

I51DX/I91DX camera only work with "ANNKE" NVR and should be updated to the latest version.
(Please confirm if your NVR is the latest version before you purchase this camera.)

8MP Key features

★ High quality imaging with 8 MP resolution

★ One image that presents all the scenes covered by the camera

★ Provide real-time security via built-in two-way audio

★ Efficient H.265+ compression technology

★ Focus on human and vehicle classification based on deep learning

★ Clear imaging against strong back light due to 120 dB WDR technology

★ Active strobe light and audio alarm to warn intruders off

★ Smart Hybrid Light: White light & IR light up to 30 m

★ Support 512 GB TF storage space

★ Water and dust resistant (IP67)

Packaging Contents

1XIP Camera

1XSurveillance Sign

1X1m Network cable

1XWaterproof connector

1XMounting Screws Bag

1XUser's Manual For Camera

Model Number		I91ET 8MP
IP Camera
Camera	Image sensor	2×1/2.4" Progressive Scan CMOS
	Max resolution	4096 x 1860
	Main Stream	50 Hz: 20 fps (4096 x 1860) 60 Hz: 20 fps (4096 x 1860)
	Sub Stream	50 Hz：20 fps（1200 × 536, 960 × 432） 60 Hz：20 fps（1200 × 536,960 × 432）
	Video compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub Stream: H.265/H.264/MJPEG
	Video Bit Rate	32 Kbps to 16 Mbps
	Built-in Microphone	Built-in Microphone, record with audio
	Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
	Built-in Speaker	Yes, max. sound pressure: 10 cm: 97 dB
	Lens	Dual lens: 2 mm
	Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON)
	Angle of View	Horizontal FOV: 180°, Vertical FOV: 77°
	Supplement Light Type	Smart light, white light, IR light
	Supplement Light Range	White light up to 30 m, IR light up to 30m
	Motion detection 2.0	Supoort, include human & vehicle detection
	Image Parameters Switch	Yes
	Image Enhancement	BLC, HLC, 3D DNR
	Wide Dynamic Range	120dB WDR
	Network Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP
	API	Support Open Network Video Interface protocol, version 19.12
	Basic Event	Motion detection (support human and vehicle detection), video tampering, exception detection
	Audio Alarm	Support(Parameters adjustable,support custom audio, can be triggered from APP)
	Flashing Alarm	White light, frequency adjustable, can be triggered from APP
	Region of Interest (ROI)	1 fixed region for main stream
	Privacy Mask	4 programmable polygon privacy masks
	General Function	Rotate, remote access, IP Address Filter
General	Housing	Metal&Plastic, white color
	Operating Power	PoE (802.3af)，max 11.5W, 12 VDC ± 25%,Ø 5.5 mm coaxial power plug, max 10W
	Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
	Storage	Built-in micro SD/SDHC/SDXC slot, up to 512 GB
	Hardware Reset	Yes
	Operating Temperature	-22 °F – 140 °F /-30 °C – 60 °C
	Indoor/Outdoor	Indoor/Outdoor
	Weatherproof Rating	IP67
	Dimension (L x W x H)	Ø 130.1 mm × 109.1 mm (Ø 5.1" × 4.3")
	Weight	Approx. 586 g (1.3 lb.)

Model Number		I51HD 6MP
IP Camera
Camera	Image sensor	2×1/2.5" Progressive Scan CMOS
	Max resolution	3632 × 1632
	Main Stream	50 Hz: 20 fps (3632 × 1632) 60 Hz: 20 fps (3632 × 1632)
	Sub Stream	50 Hz：20 fps（1200 × 536, 960 × 432） 60 Hz：20 fps（1200 × 536,960 × 432）
	Video compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub Stream: H.265/H.264/MJPEG
	Video Bit Rate	32 Kbps to 16 Mbps
	Built-in Microphone	Built-in Microphone, record with audio
	Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
	Built-in Speaker	Yes, max. sound pressure: 10 cm: 97 dB
	Lens	Dual lens: 2.8 mm
	Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON)
	Angle of View	Horizontal FOV: 180°, Vertical FOV: 77°
	Supplement Light Type	Smart light, white light, IR light
	Supplement Light Range	White light up to 30 m, IR light up to 30m
	Motion detection 2.0	Supoort, include human & vehicle detection
	Image Parameters Switch	Yes
	Image Enhancement	BLC, HLC, 3D DNR
	Wide Dynamic Range	120dB WDR
	Network Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP
	API	Support Open Network Video Interface protocol, version 19.12
	Basic Event	Motion detection (support human and vehicle detection), video tampering, exception detection
	Audio Alarm	Support, parameters adjustable,support custom audio, can be triggered from APP
	Flashing Alarm	White light, frequency adjustable, can be triggered from APP
	Region of Interest (ROI)	1 fixed region for main stream
	Privacy Mask	4 programmable polygon privacy masks
	General Function	Rotate, remote access, IP Address Filter
General	Housing	Metal&Plastic, white color
	Operating Power	PoE (802.3af)，max 11.5W, 12 VDC ± 25%,Ø 5.5 mm coaxial power plug, max 10W
	Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
	Storage	Built-in micro SD/SDHC/SDXC slot, up to 512 GB
	Hardware Reset	Yes
	Operating Temperature	-22 °F – 140 °F /-30 °C – 60 °C
	Indoor/Outdoor	Indoor/Outdoor
	Weatherproof Rating	IP67
	Dimension (L x W x H)	Ø 130.1 mm × 109.1 mm (Ø 5.1" × 4.3")
	Weight	Approx. 580 g (1.3 lb.)

Weight	15.0 lbs
Dimensions	20 × 25 × 30 in
Brand Name	ANNKE
Zoom type	none
Megapixels	8MP
Whether or Not 50Vac or 75Vdc or Higher Power Supply	No
Zoom	NONE
Origin	Mainland China
High Definition	8.0 Megapixels
High-concerned chemical	none
Lens Quantity	Dual Lens
Supported Operating Systems	Windows 98, Windows XP, Windows Vista, Windows 7, macOS, Windows 8, Windows 10, Windows 2000, Windows 2008, Windows 2003
Lens (mm)	2.8mm
Power Supply	With Poe
Style	Bullet Camera
Connectivity	IP/Network Wired
Installation	Side
Minimum Illumination(Lux)	2X1/2.5 Progressive Scan CMOS
Scene	Indoor and outdoor
Color Night Vision	Yes
Special Features	Waterproof / Weatherproof
Internal Storage	256GB
Video Compression Format	H.265
IR Distance(m)	IR light up to 30m
Certification	CE
Alarm Type	Local Alarm
Shell Material	Plastic
Color	WHITE
Movement Range(Tilt)	-10°-180°
is_customized	Yes
Model Number	I91ET/I51HD
Supported Mobile Systems	Android, iOS
Smart home platform	NONE
Optical Zoom	NONE
AI Functions	Motion Detection
IP Rating	IP67
App name	Other
TF Card	None
Power Supply(V)	12 V DC
Audio Output	1CH BNC
Power Consumption(W)	12W
Sensor	CMOS
Sensor Brand	Sony
Operating Temperature	-10°-60°
Viewing Angle	180 °
Movement Range(Pan)	-10°-180°
Rechargeable Battery	NONE
