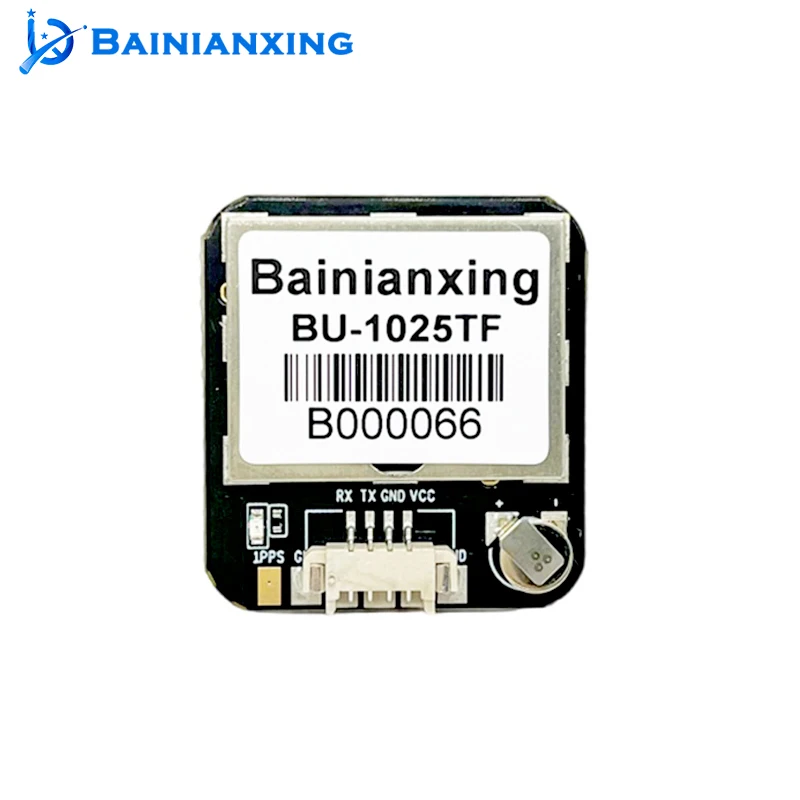

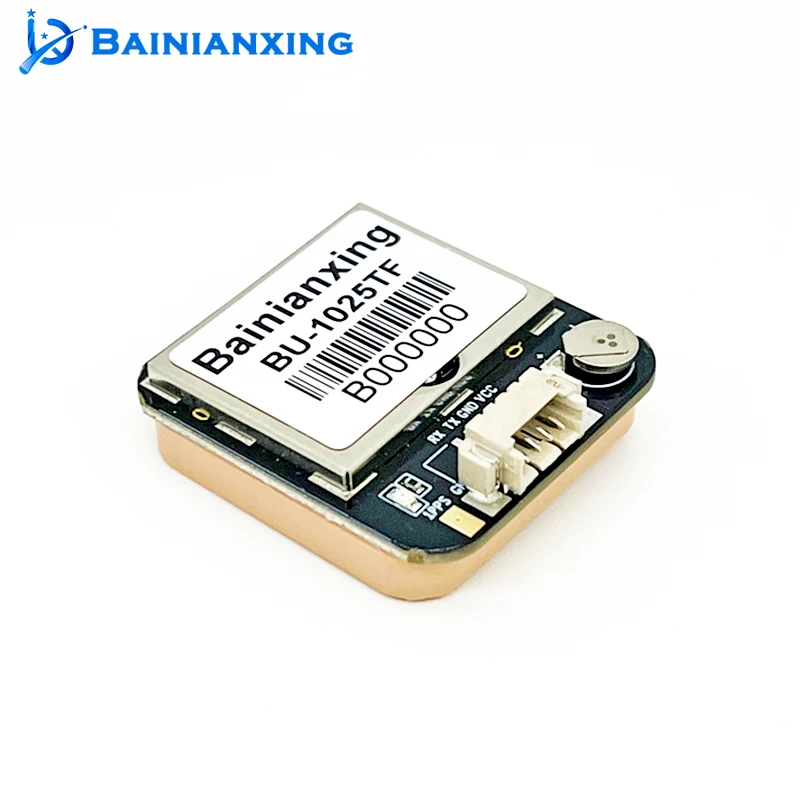

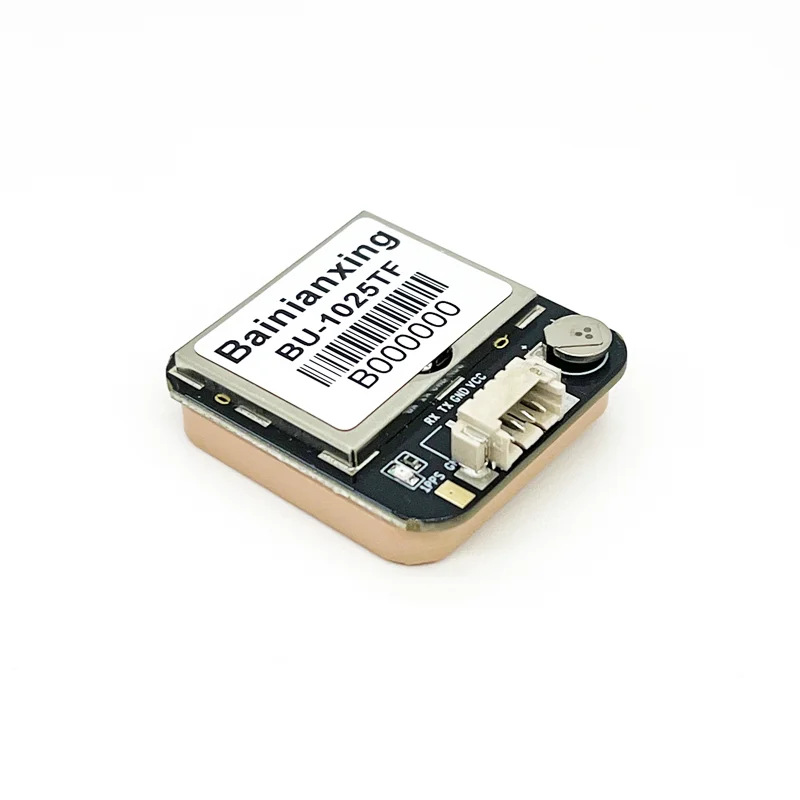

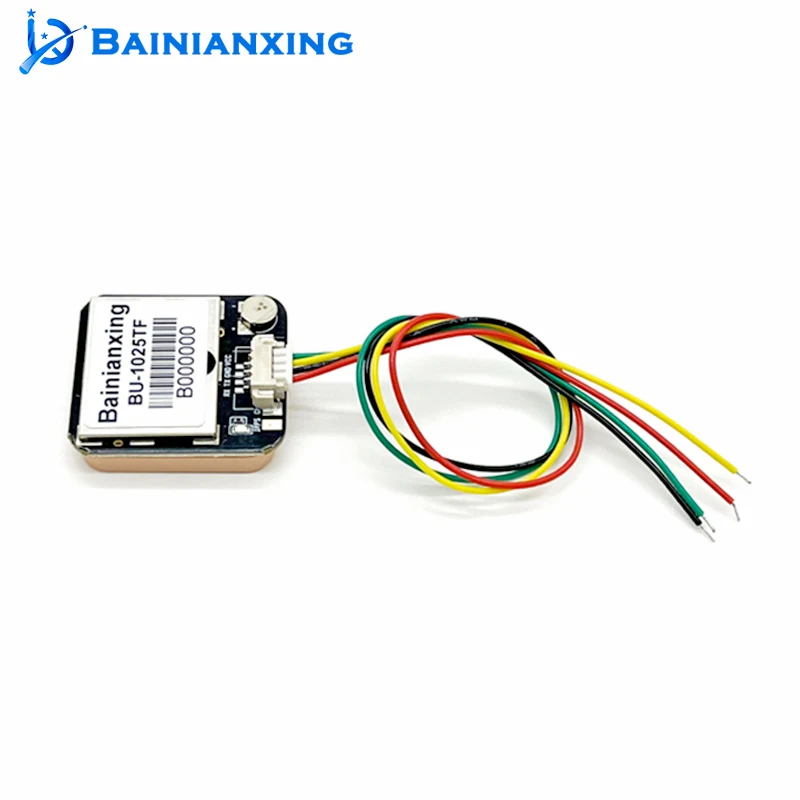

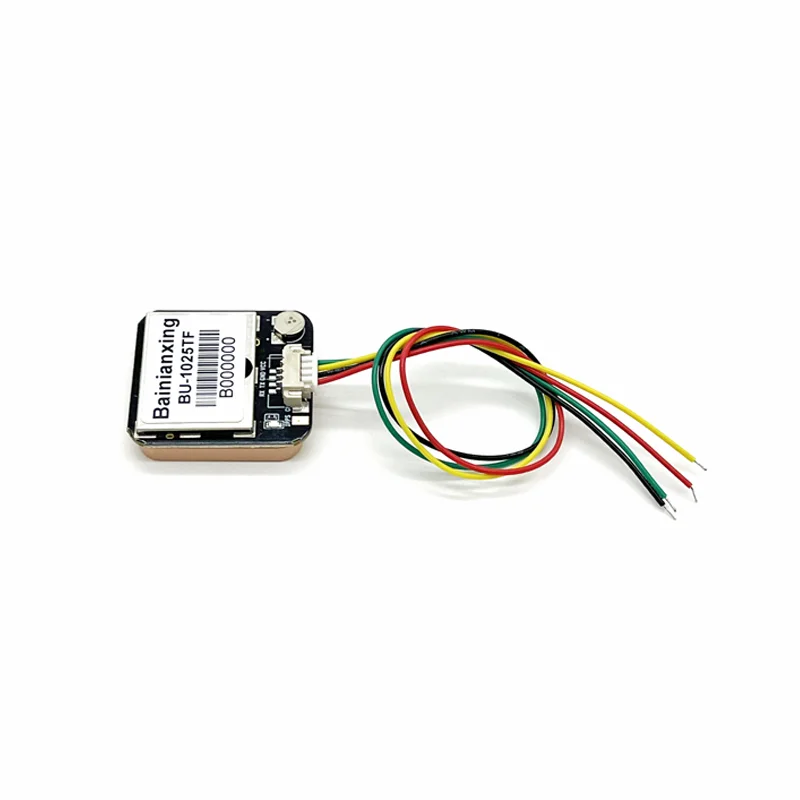

The BU-1025TF is built on the ultra-low power UBX M10 GNSS platform, which provides exceptional sensitivity and acquisition times.
The extremely low power consumption of less than 25mW in continuous tracking mode allows great power autonomy for all battery-operated devices, such as asset trackers, without compromising GNSS performance. The BU-1025TF supports the reception of GPS, GLONASS, Galileo, and BeiDou. The high number of visible satellites enables the receiver to select the best signal. This maximizes position availability, especially in challenging conditions, such as in deep urban canyons.
The BU-1025TF adopts super-S technology, which offers great RF sensitivity and can improve the dynamic position accuracy by up to 25% with small antennas or in a non-line-of-sight scenario.
The BU-1025TF module integrates an LNA and a SAW filter in the RF path for maximum sensitivity in passive antenna designs. BU-1025TF offers a cost and power-optimized setup without LNA and SAW filters. Advanced filtering algorithms mitigate the impact of RF interference and jamming, thus enabling the product to operate as intended.
♦ Features：
● Build on the high performance, high accuracy, low-power consumption UBX-M10050-KB chipset
● Ultra high sensitivity: -167dBm
● Extremely fast TTFF at low signal level
● Built-in high-gain LNA
● Ultra-low power consumption
● Build on the high performance, high accuracy, low-power consumption UBX-M10050-KB chipset
● Ultra high sensitivity: -167dBm
● Extremely fast TTFF at low signal level
● Built-in high-gain LNA
● Ultra-low power consumption
● Higher Position Accuracy: 1.5m CEP
● NMEA-0183 compliant protocol or custom protocol
● Operating voltage: 3.3V–5.0V
● Operating temperature range:-40 to 85℃

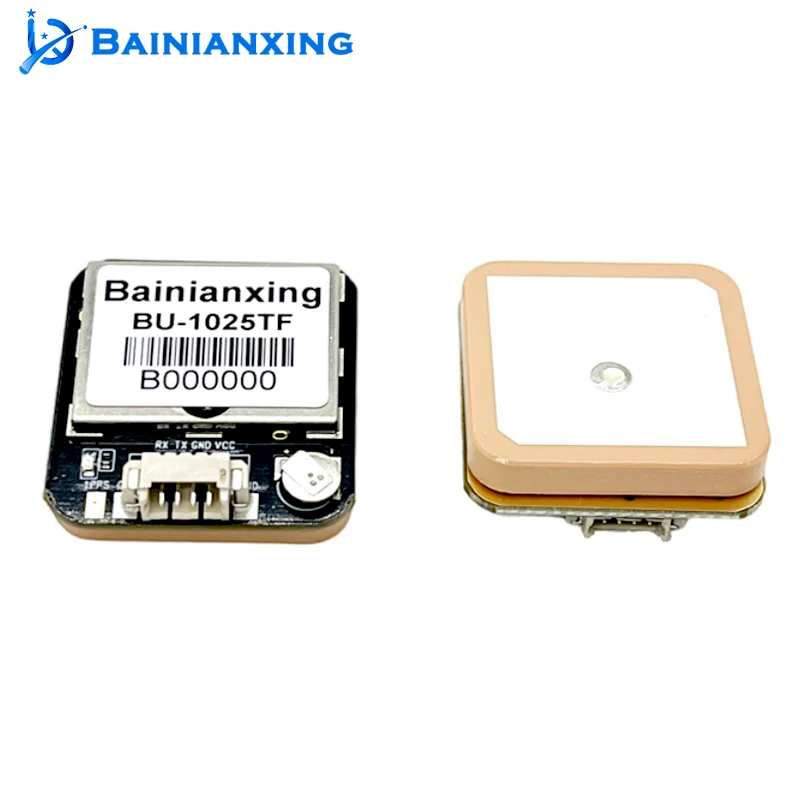

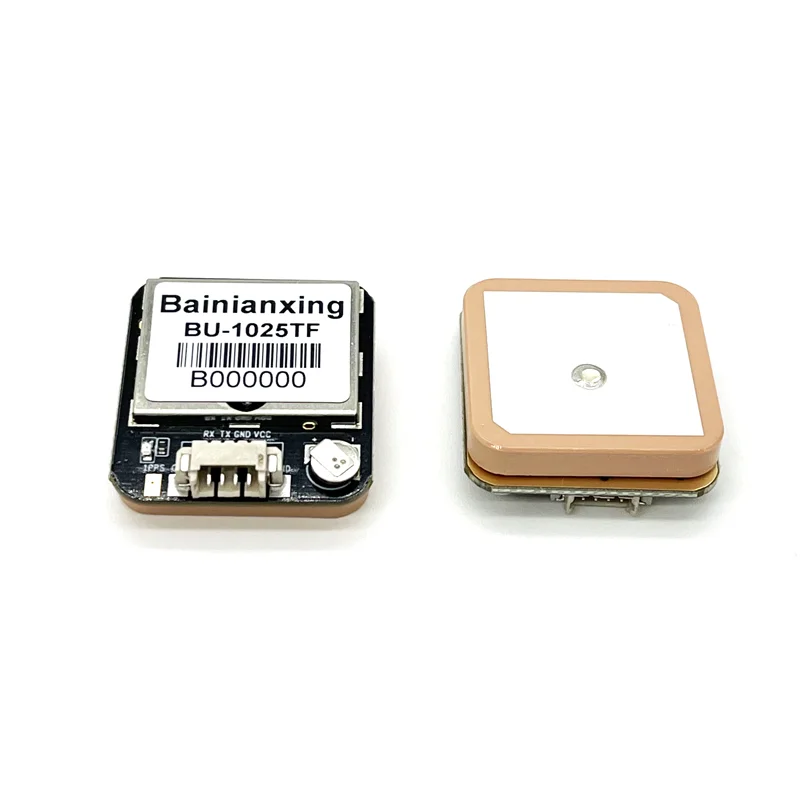

● Patch Antenna Size: 25x25x4mm ceramic antenna
● Communication type: UART TTL Level
● Wire interface type:1.25mm 4Pin connector
● RoHS compliant (Lead-free)
● NMEA-0183 compliant protocol or custom protocol
● Operating voltage: 3.3V–5.0V
● Operating temperature range:-40 to 85℃
● Patch Antenna Size: 25x25x4mm ceramic antenna
● Communication type: UART TTL Level
● Wire interface type:1.25mm 4Pin connector
● RoHS compliant (Lead-free)
This module has added flash memory, configuration settings can be modified with configuration messages. The modified settings will be stored in flash memory and remain effective until reset.
♦ Applications：
● UAV
● Boat
● LBS (Location Based Service)
● PND (Portable Navigation Device)
● Computer
● PND (Portable Navigation Device)
● Computer
● Outdoor Equipment
● Handheld GPS Device. etc
♦ Product Parameters：
● The GPS Module going to ship is based on the default parameters in the table below:
|
Working mode |
GPS, Galileo, BeiDou, QZSS |
|

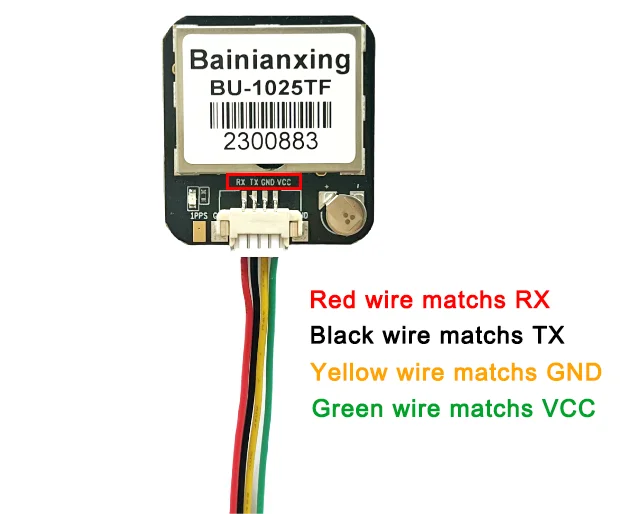

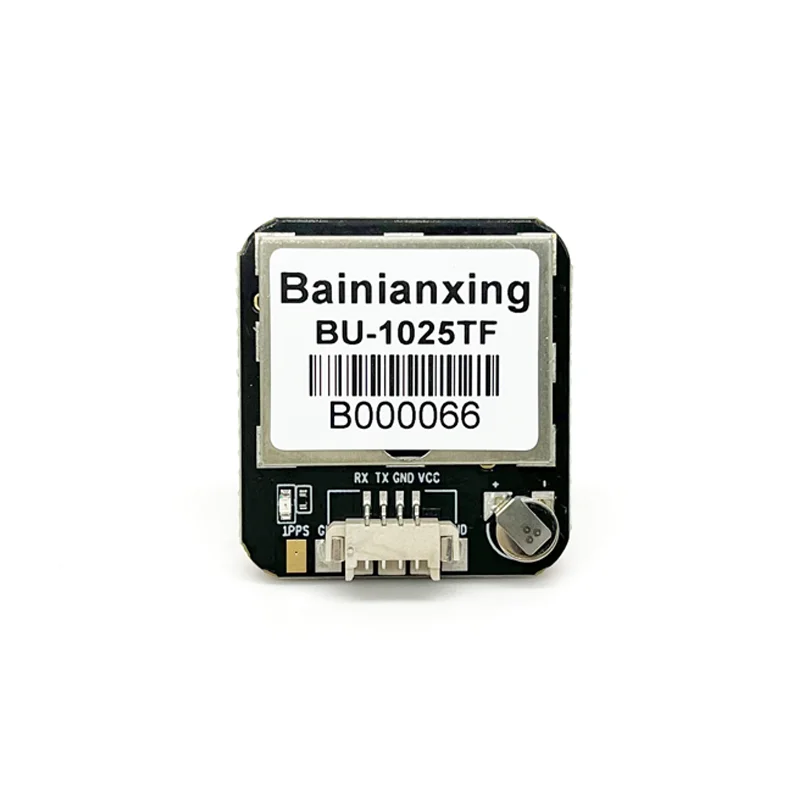

♦Pin assignment

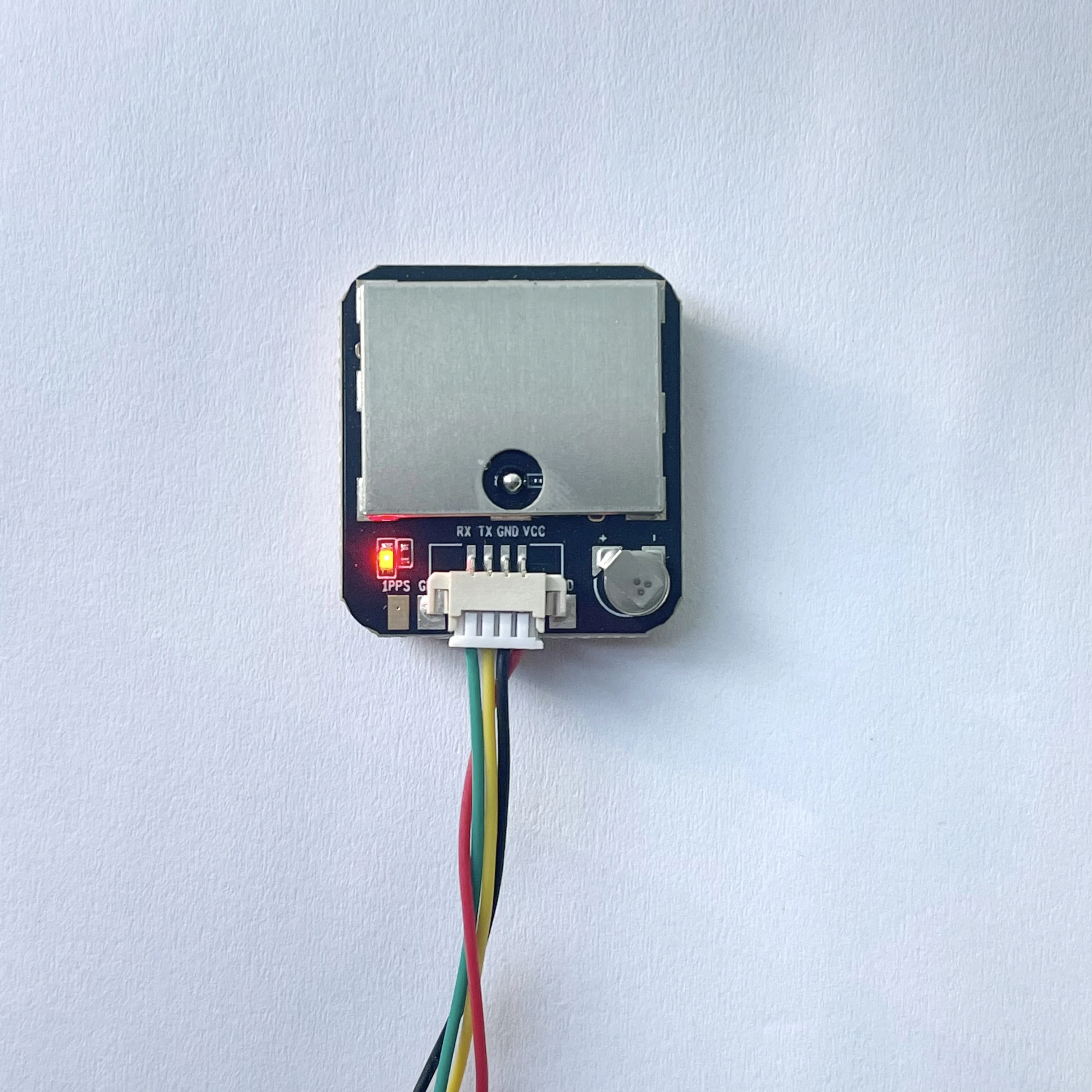

Notice: When you connect the module, please according to the pin definition marked on the module not the color of the wire!

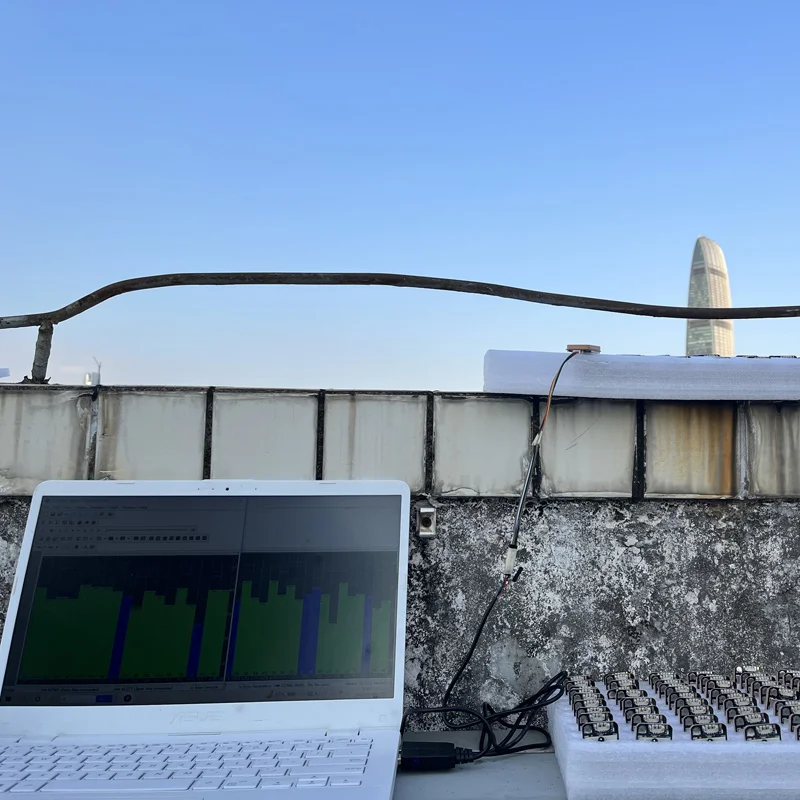

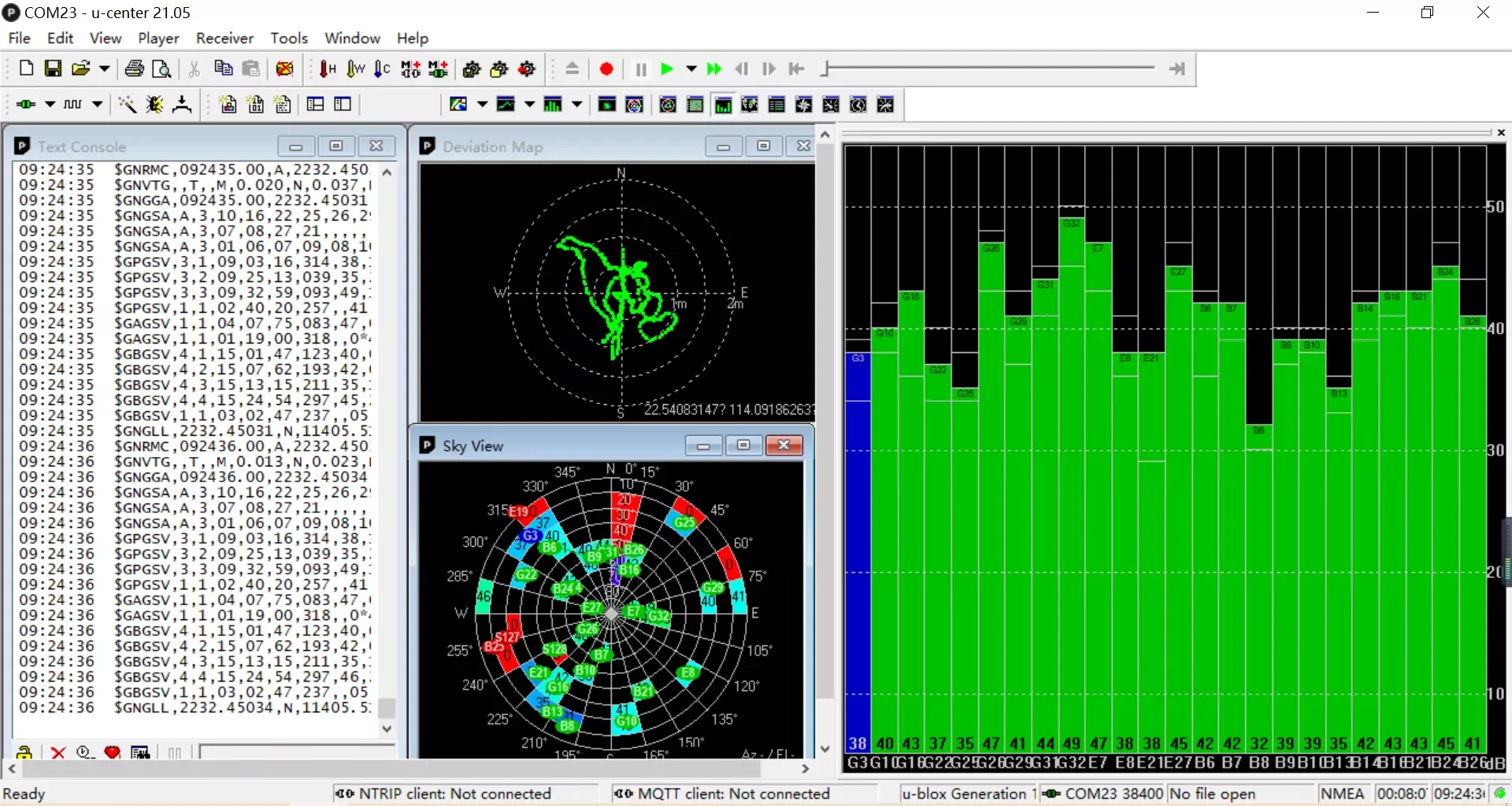

♦ Signal testing sample: Testing environment: Open Sky, stationary
