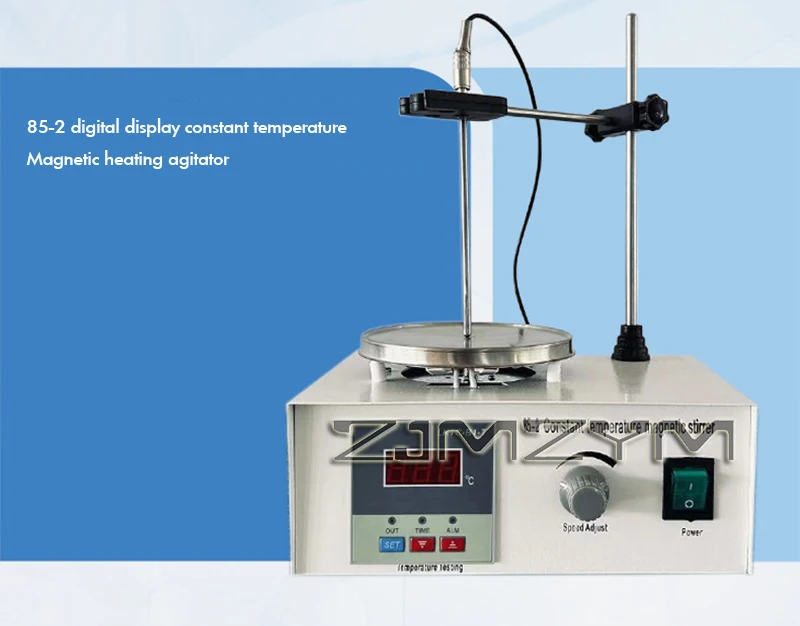

Constant Temperature Magnetic Stirrer Digital Display Constant Temperature Heating Magnetic Stirrer Laboratory Devices

Package includes: 1 piece of Laboratory Magnetic Stirrer



The product will be upgraded constantly, the appearance and color may be changed, please don’t mind. And take a consideration before place the order if you have request for color or appearance.



We have CN plug/US plug/UK plug/EU plug/AU plug,you need to remark which plug you need when you place your order.



Model :85-2 magnetic Stirrer

Voltage frequency :110V60hz/240V50hz

Display mode: LCD display

Speed range :0-1600r/min

Motor type; Carbon brush machine

Motor output power: 250W

Constant temperature range: 0-99°

Mixing capacity: 2000ML

Machine dimensions: 230*155*130mm

Tray size: 12CM diameter



Procedure of use:

1. Place the machine on a flat workbench, and insert the power cable into the power socket with the same voltage as that marked on the machine.

2. Place the experimental beaker solution fitted with the model in the center coordinate position of the heating disc to confirm that it is placed smoothly and then proceed to the next step.

3. Turn on the POWER switch and the display is on.

4. Press the SET key to enter the temperature setting mode. When the display blinks in the setting mode, press the up button to increase the time, and press the down button to decrease the time.

5. After setting the time, press the SET button again to start heating.

6. Put the temperature probe into the solution, and the display screen will display the solution temperature.

7. Put the mixer into the solution and turn the SPEED button clockwise to start stirring the solution.

8. When the test meets the requirements, turn off the SPEED button, turn off the POWER switch, pull out the power cord plug, and cut off the power supply of the whole machine.
