Chipset
|
MT7628NN
|
|

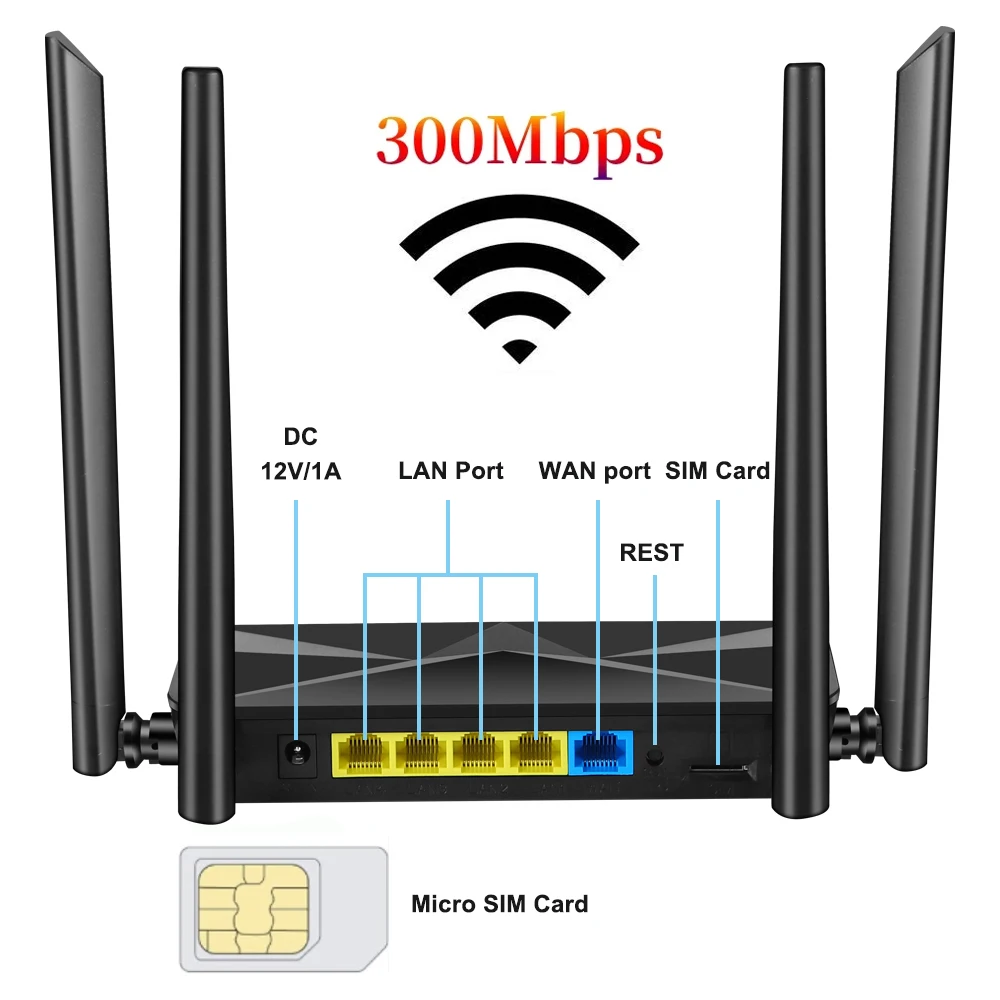

Power input port
|
DC 12V—1A
|
|
WAN Port
|
1 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u)
|
|
LAN Port
|
x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u)
|
|
WPS/Reset Buttons
|
Sgort press: WPS,Long press: reset(Used to restore the factory configuration of the router.)
|
|
Power button
|
Router’s power switch (not required)
|
|
LED indication
|
1,power supply 2,System (dial status, indiscriminate wired or wireless) 3,3/4G:Blue-green light indicates 3G, 4G status 4,WIFI Indication 5,WAN Interfaces; 6,LAN1; 7,LAN2; 8,LAN3
|
|
Storage
|
SDRAM: 64M Bytes Nor Flash: 8M Bytes
|
|
                          Wireless parameters
|
|
WIFI Frequency range
|
FCC: 2412-2462MHz(Ch1-Ch11) ETSI: 2412-2472MHz(Ch1-Ch13)
|
|

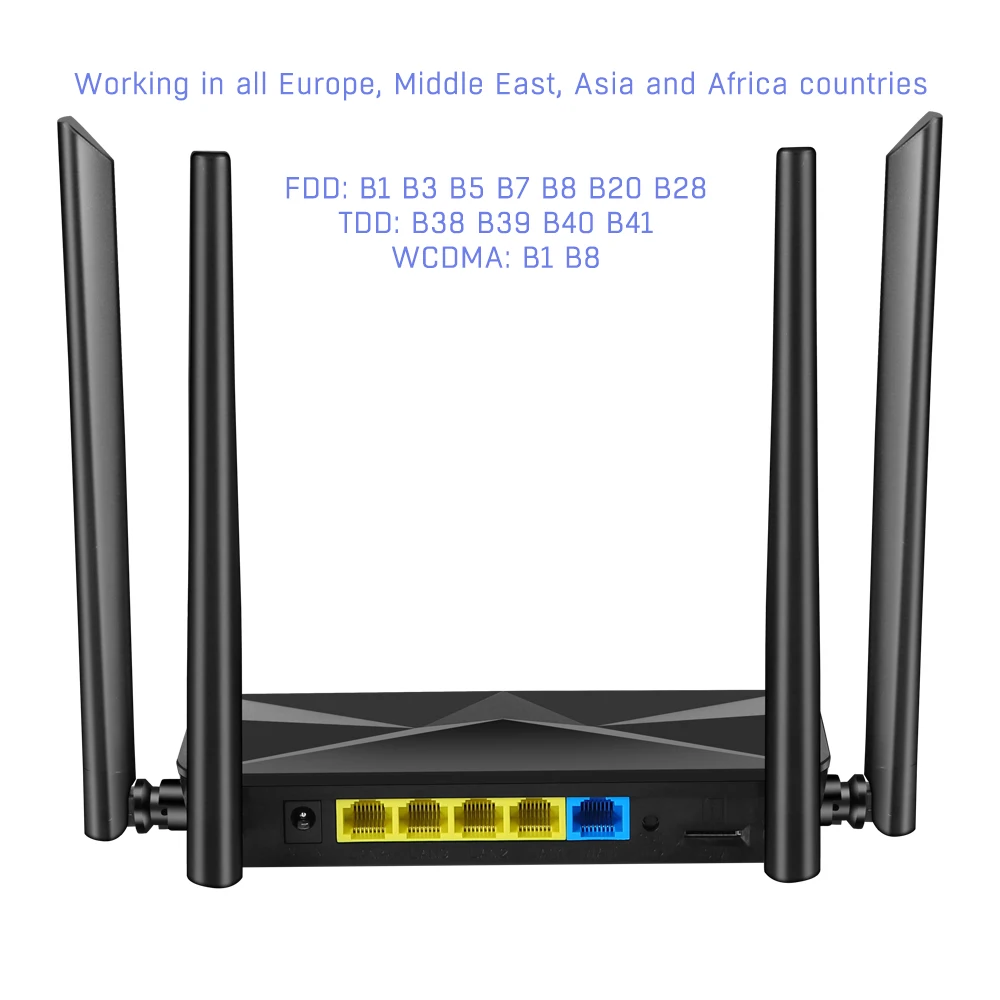

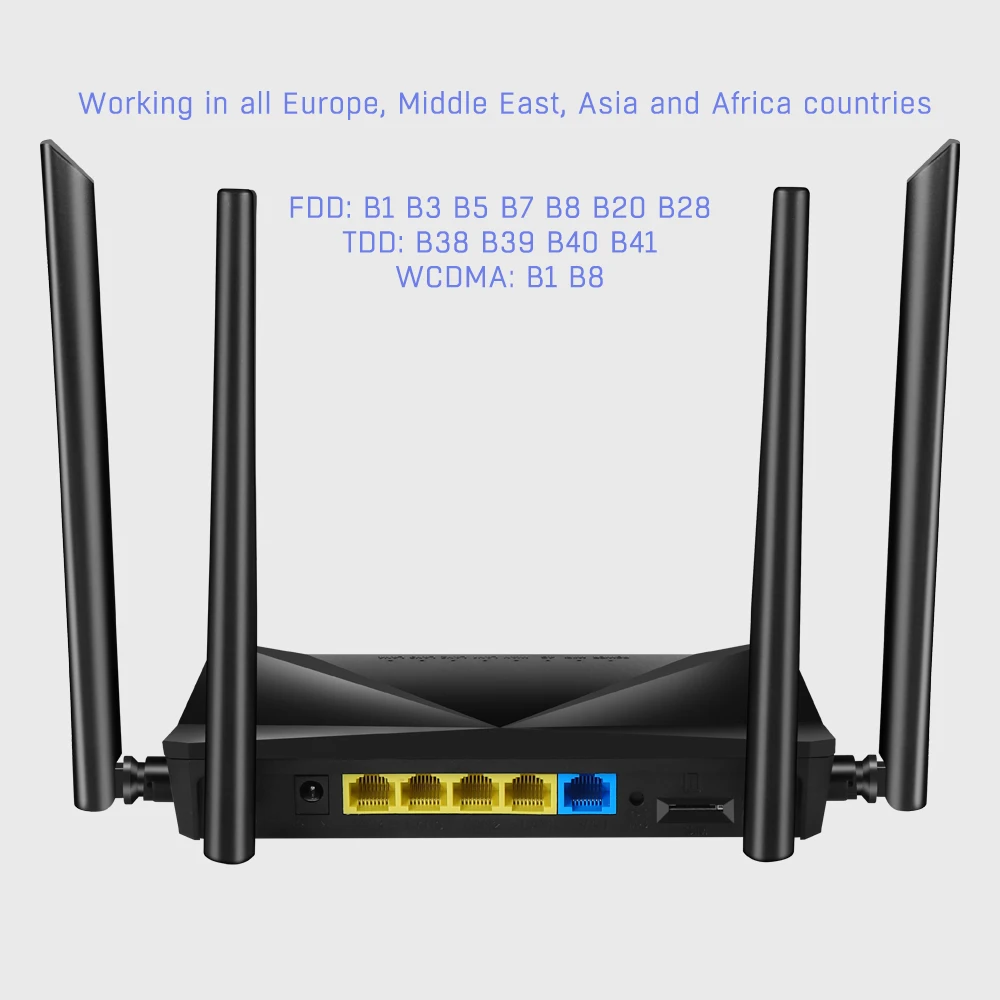

Mobile network frequency
|
FDD: B1 B3 B5 B8, TDD: B38 B39 B40 B41 TDS-CDMA: B34 B39 WCDMA: B1 B8
|
|
Transmission rate
|
11n:270/243/216/162/108/81/54/27Mbps 135/121.5/108/81/54/40.5/27/13.5Mbps 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps
|
|
|
11g:54/48/36/24/18/12/9/6M(Adaptive)
|
|
|
11b:11/5.5/2/1M(Adaptive)
|
|
Number of working channels
|
13
|
|
Spread Spectrum Technology
|
DSSS(Direct Sequence Spread Spectrum)
|
|
Data modulation method
|
BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
|
|
Sensitivity @PER (error packet rate)
|
270M:-61dBm@10% PER;130M: -61dBm@10% PER;108M:-61dBm@10% PER;54M:-65dBm@10% PER;11M:-85dBm@8% PER;6M:-88dBm@10% PER;1M:-90dBm@8% PER
|
|
Transmission distance
|
Up to 50 meters in the room and up to 200 meters in the outdoors (depending on the environment)
|
|
RF Power
|
11n : 15±dBm; 11g : 17±1dBm; 11b : 19±1dBm(Typical value)
|
|
                          LTE related hardware
|
|

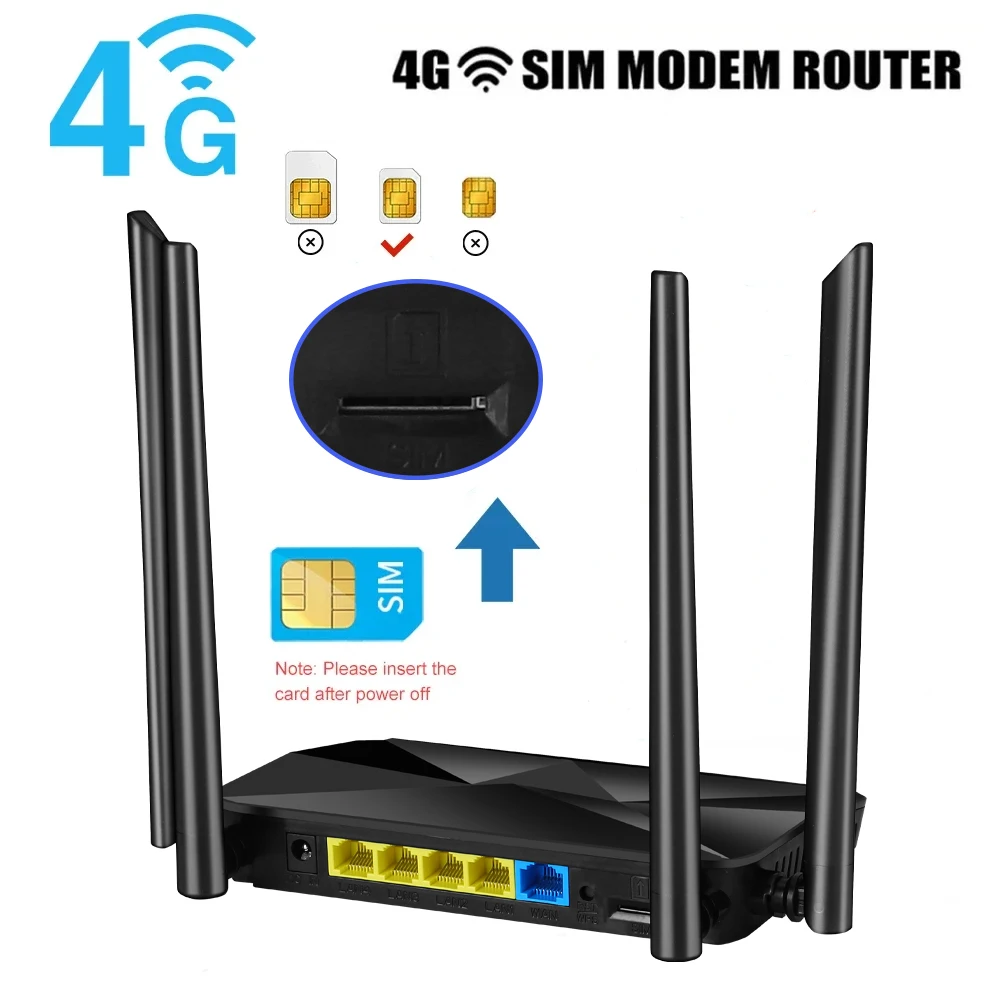

SIM Card Slot
|
Rear flip SIM card Slot
|
|
Antennas
|
External 4 antenna, corresponding to 4G main antenna, wifi dual antenna
|
|
                          Router software features
|
|
IP Address
|
Static or dynamic
|
|
PPP over Ethernet
|
YES
|
|

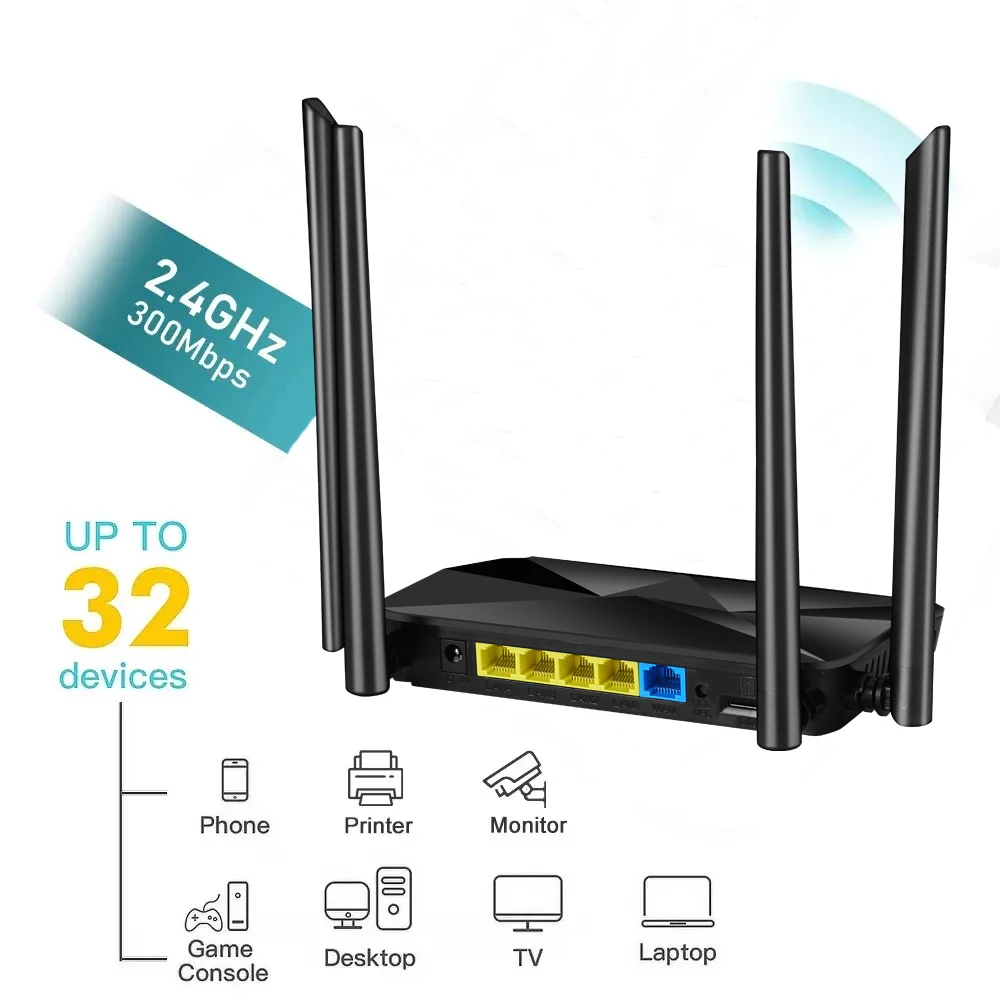

The maximum number of users
|
32 (Simultaneous Internet access)
|
|
Routing Protocol
|
Static route, RIP1/RIP2
|
|
Configuration & Management
|
Based on WEB interface management (HTTP)
|
|
DHCP
|
Support Server and Client
|
|
Firewall protection
|
Built-in NAT firewall
|
