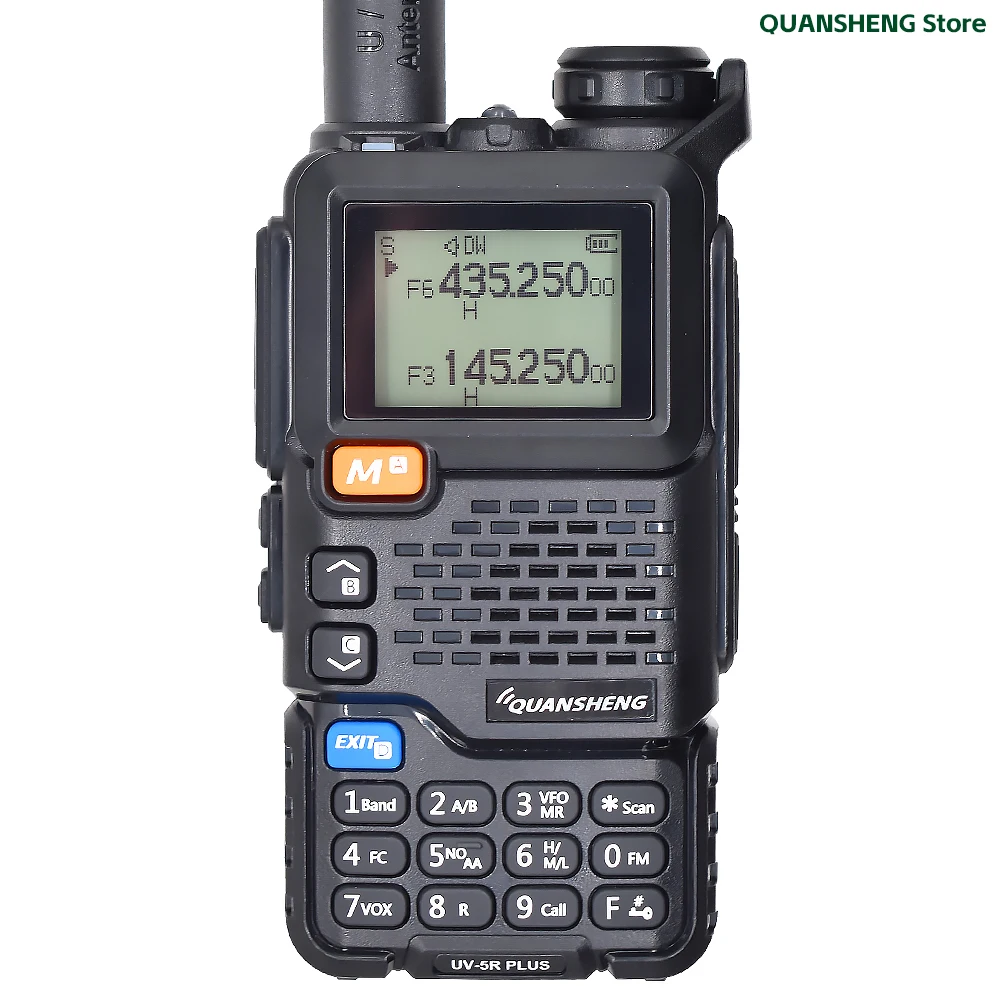

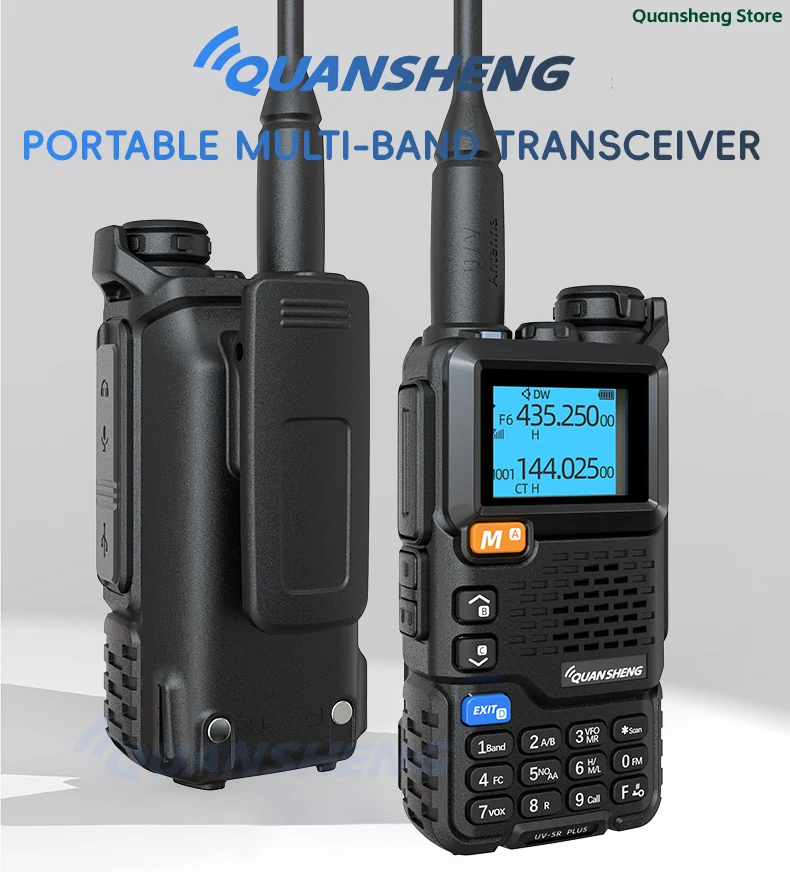

Quansheng UV 5R Plus Walkie Talkie Communication Am Fm Two Way Radio Station K5 Receiver Ham Amateur Wireless Set Long Range

[ 200 Channel ] – [ Cross-Band Intercom ]

[ 1750HZ Call Tone ] – [ Program On Site ]

[ Emergency Alert ] – [ Reverse Frequency Function ]

[ 10-Group Scrambler ] – [ Multi-Scan ]

[ CTCSS/DCS ] – [ 10 Emergency Weather Channels ]

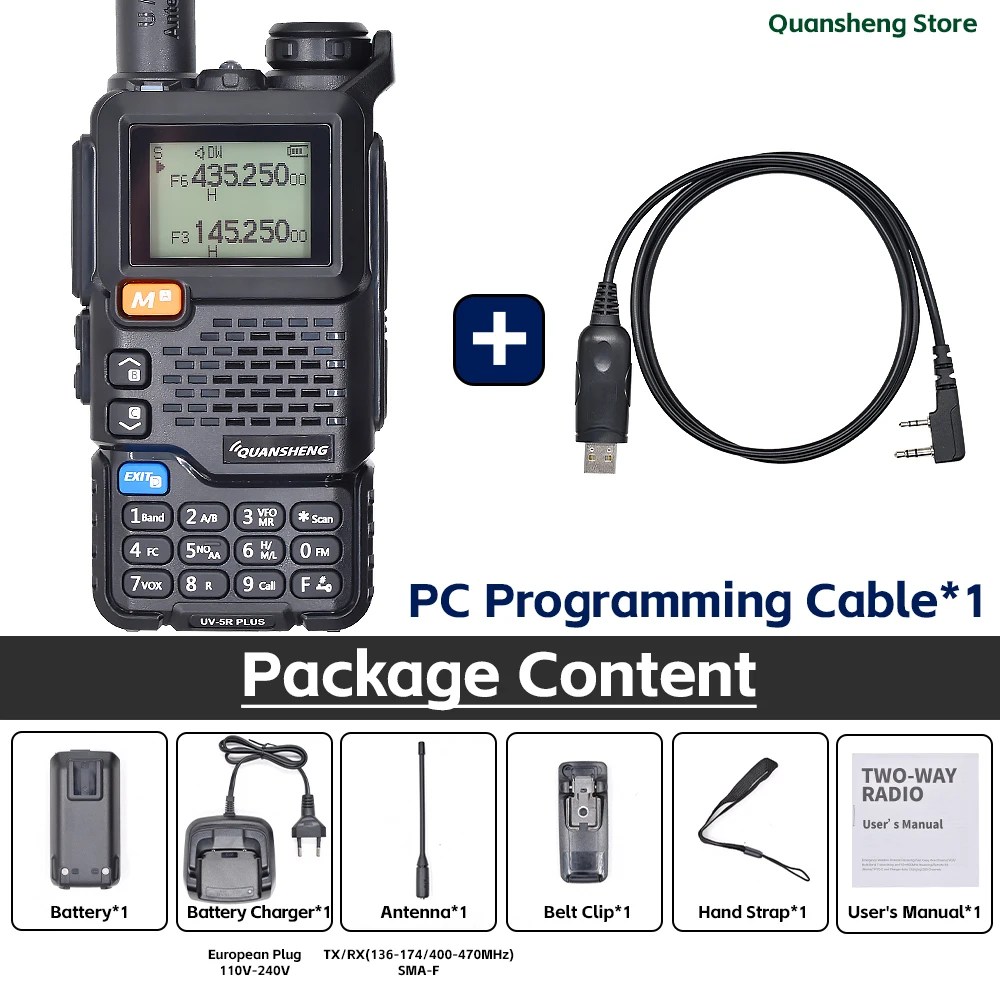

[ PC Programmable ] – [ Busy Channel Lock ]

[ VOX ] -[ Frequency And Channel Mode Shift ]

[ Time-Out-Timer ] – [ Wireless Radio Replication ]

[ Large LCD Display ] – [ Voice Prompt ]

[ Reminding Switch ] – [ Remote Kill/Revive ]

[ Power-on Password Protection(By PC Programmable)]

[ AM/FM Aviation Band Receiving ] – [ FM Radio ]

[ Charger-Base Charging ] – [ Wide/Narrow Bandwidth ]

[ Offset Frequency Direction Set ] – [ Reset ]

[ Squelch Level Adjustable ] – [ Dual-watch opertion ]

[ Offset Frequency Setting ] – [ Channel Scan And Add ]

[ Automatic Signaling Search ] – [ Multi Step Frequency ]

[ One Key Call Channel ] – [ Keypad Lock ]

[ Backlight Auto Off Time Selective ]- [ Jacklight]

[ DTMF Calling ] – [ DTMF ANI ]

[ DTMF Select Call (single call, group call, all call) ]

[ Repeater Forwarding Confirmation Function ]

[ Multi Display Of Channel No./Channel Frequency/Channel Name ]

[ H (High)，M (Medium)，L (Low) Output Power Selective ]

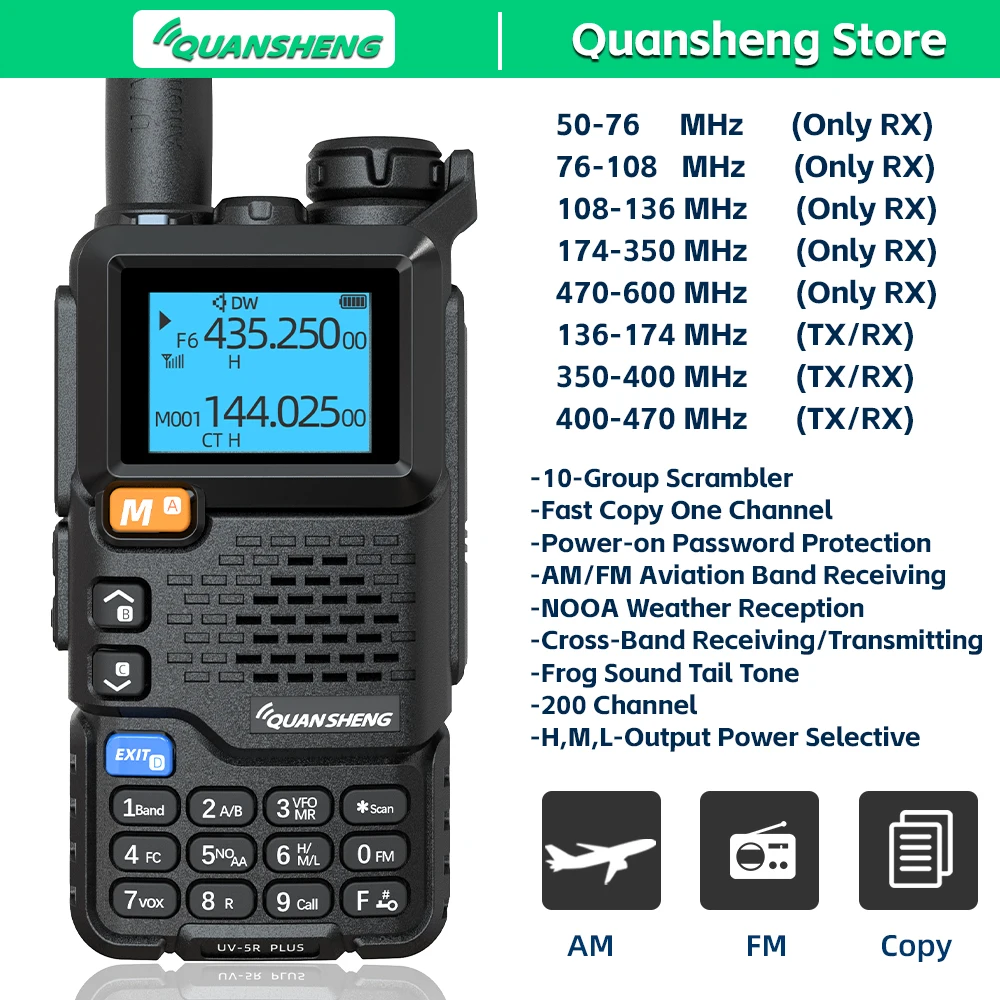

[ Multi-Band Transmitting & 50∽600MHz Receiving ]

[ Receive/Transmit Code Setting Separately ]

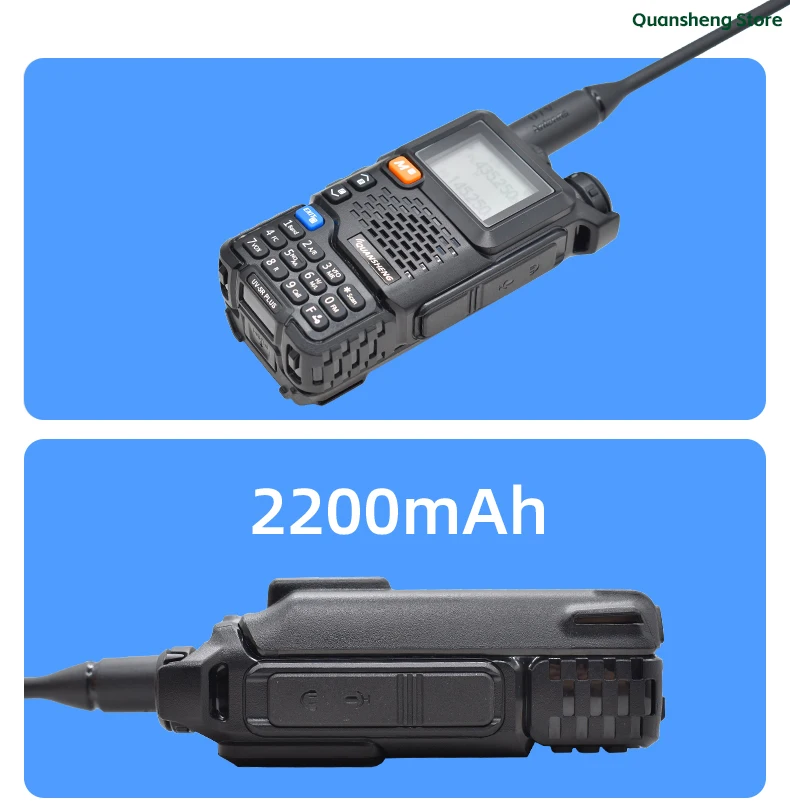

[ High Capacity BatteryLong Standby Time ]

[ Fast Copy One Channel（ACT AS FREQUENCY METER (FOR TWO-WAY RADIO & SOME OTHER DEVICES) ]

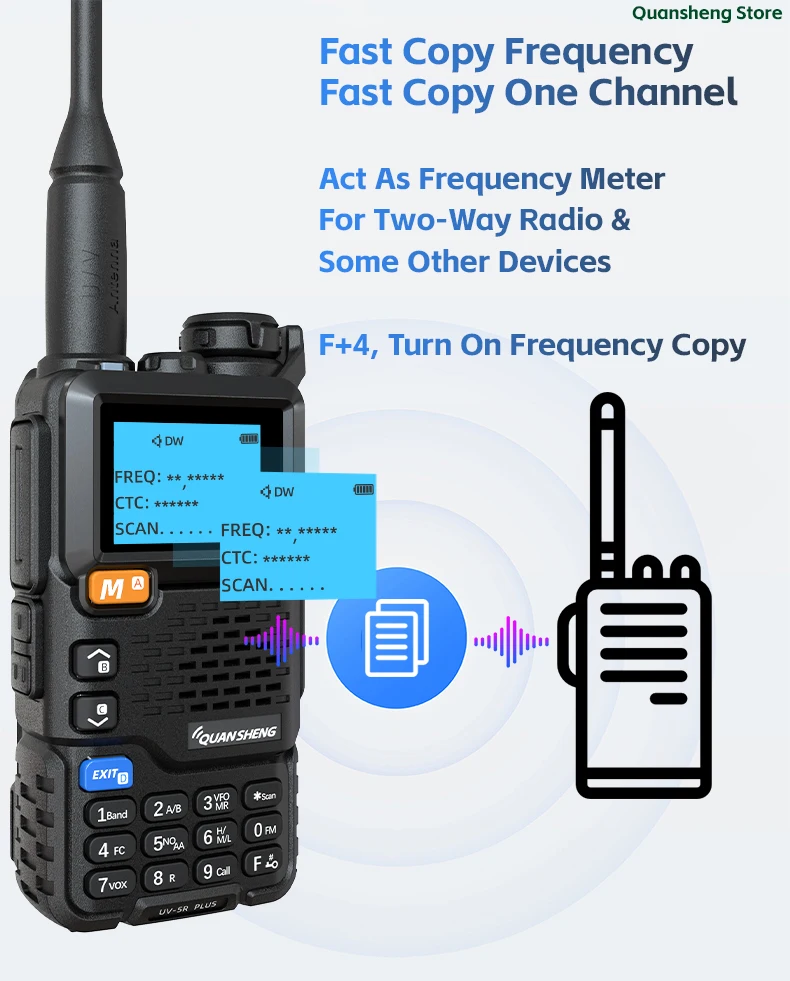

Wireless Copy Frequency .

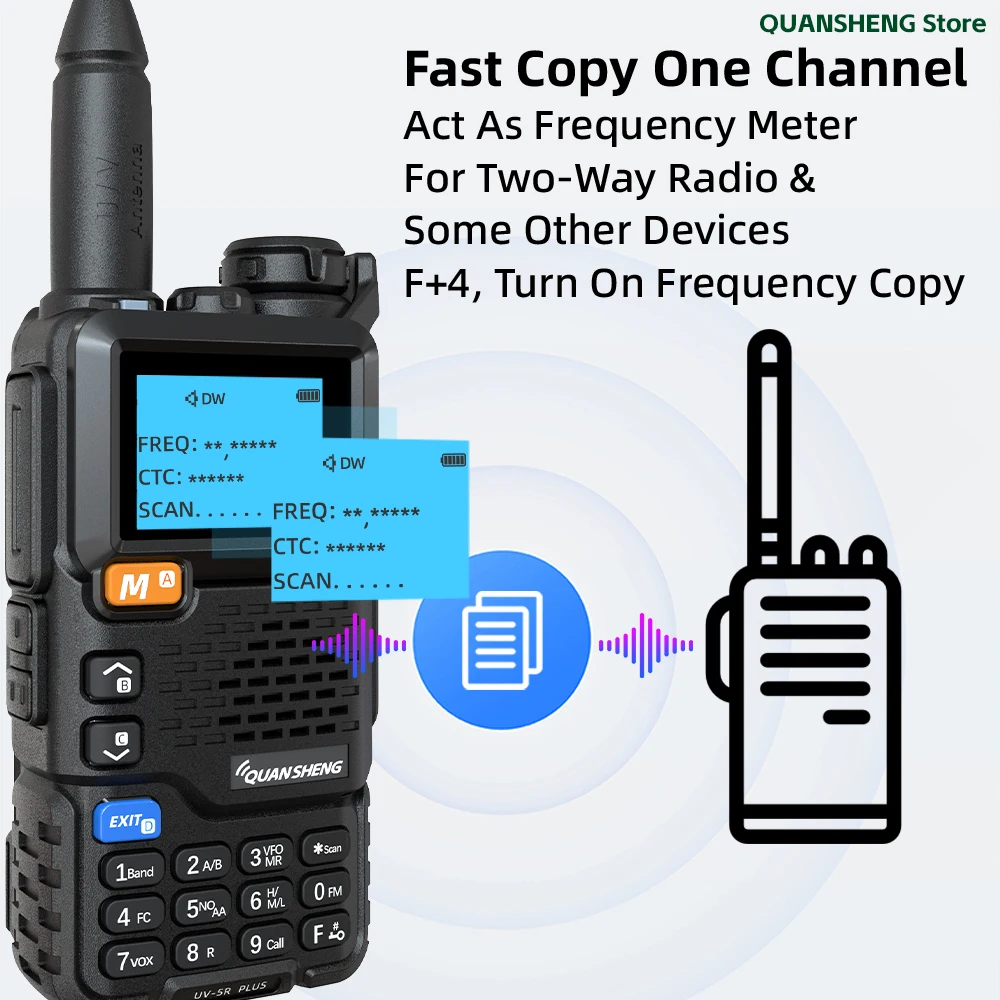

Fast Copy One Channel .

Act As Frequency Meter For Two-Way Radio & Some Other Devices .

F+4, Turn On Frequency Copy .

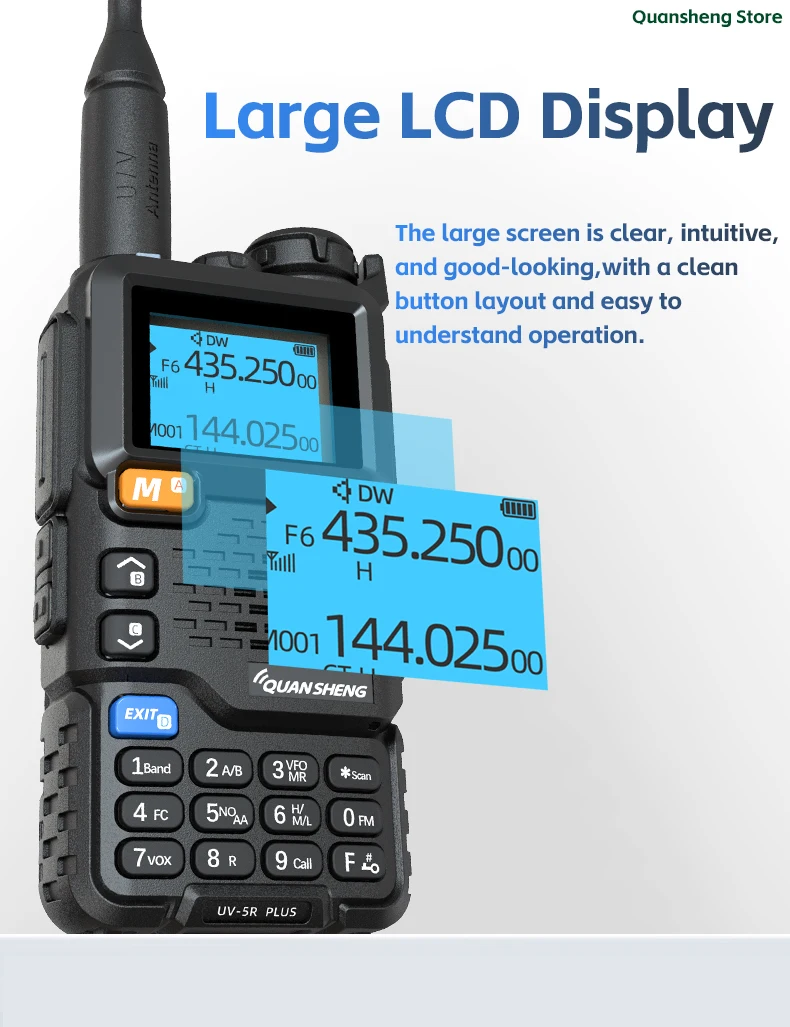

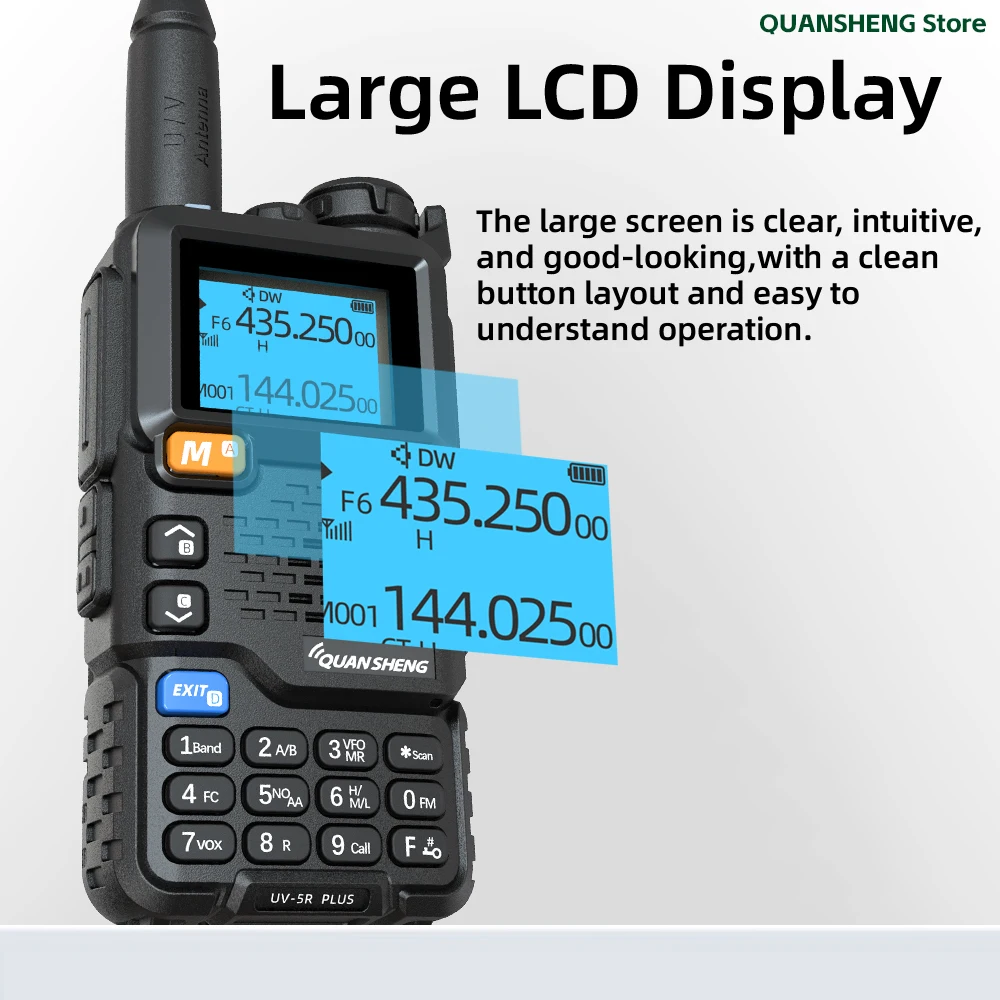

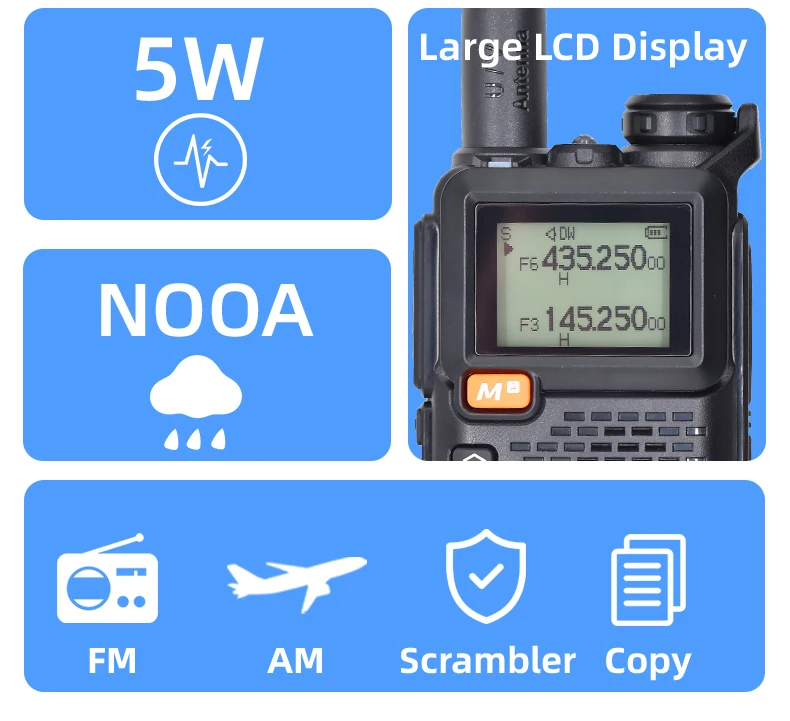

Large LCD Display.

The large screen is clear, intuitive,and good-looking,with a clean button layout and easy to understand operation.

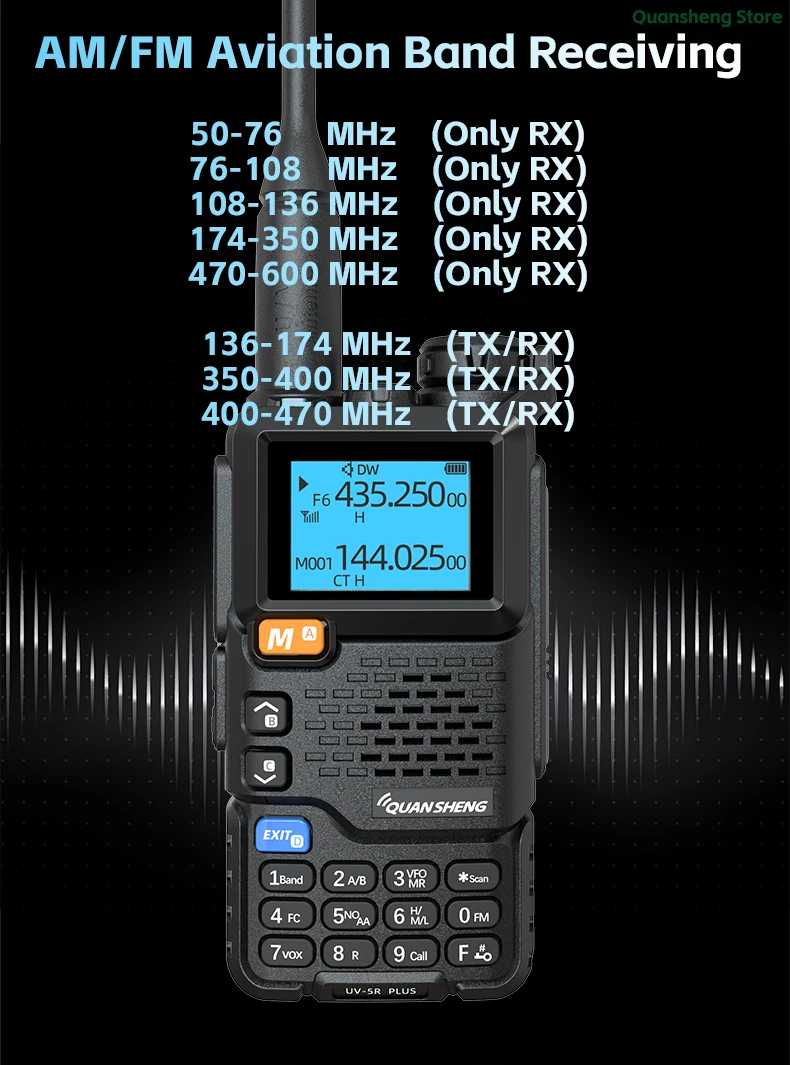

AM/FM Aviation Band Receiving .

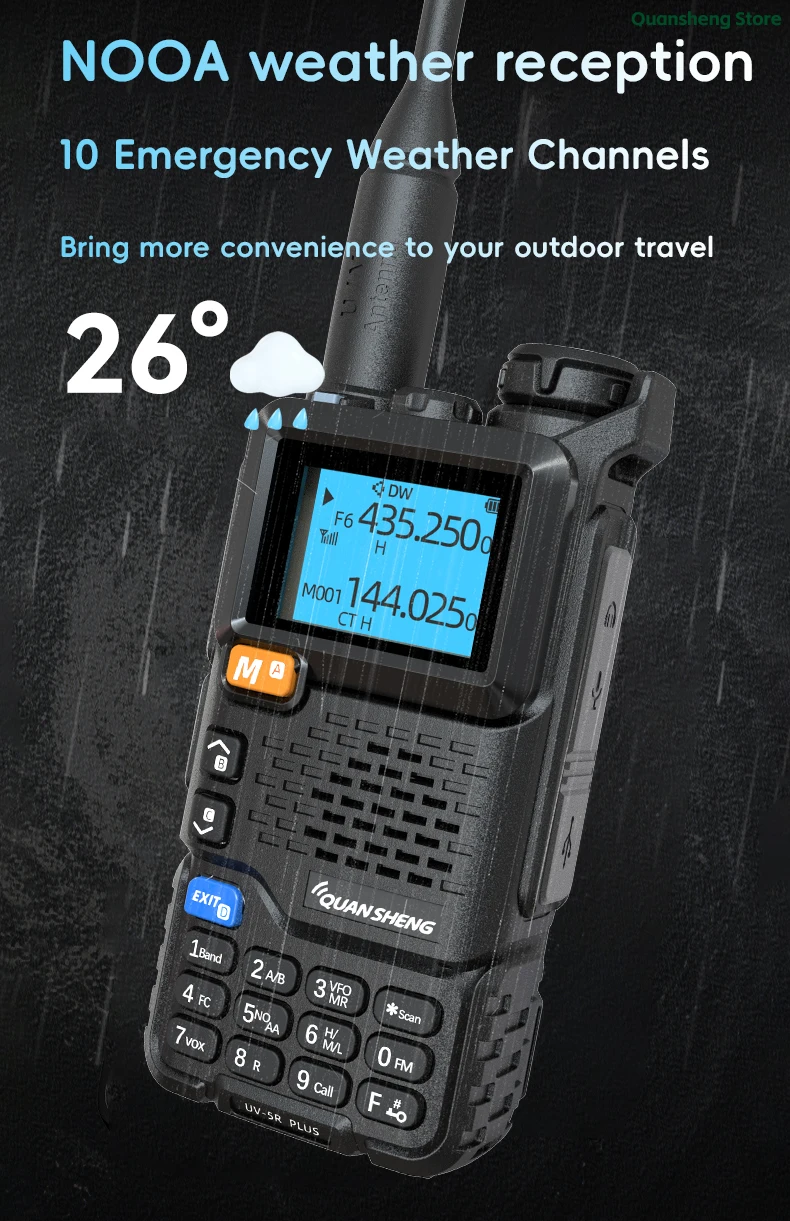

NOOA weather reception .

10 Emergency Weather Channels .

Bring more convenience to your outdoor travel .

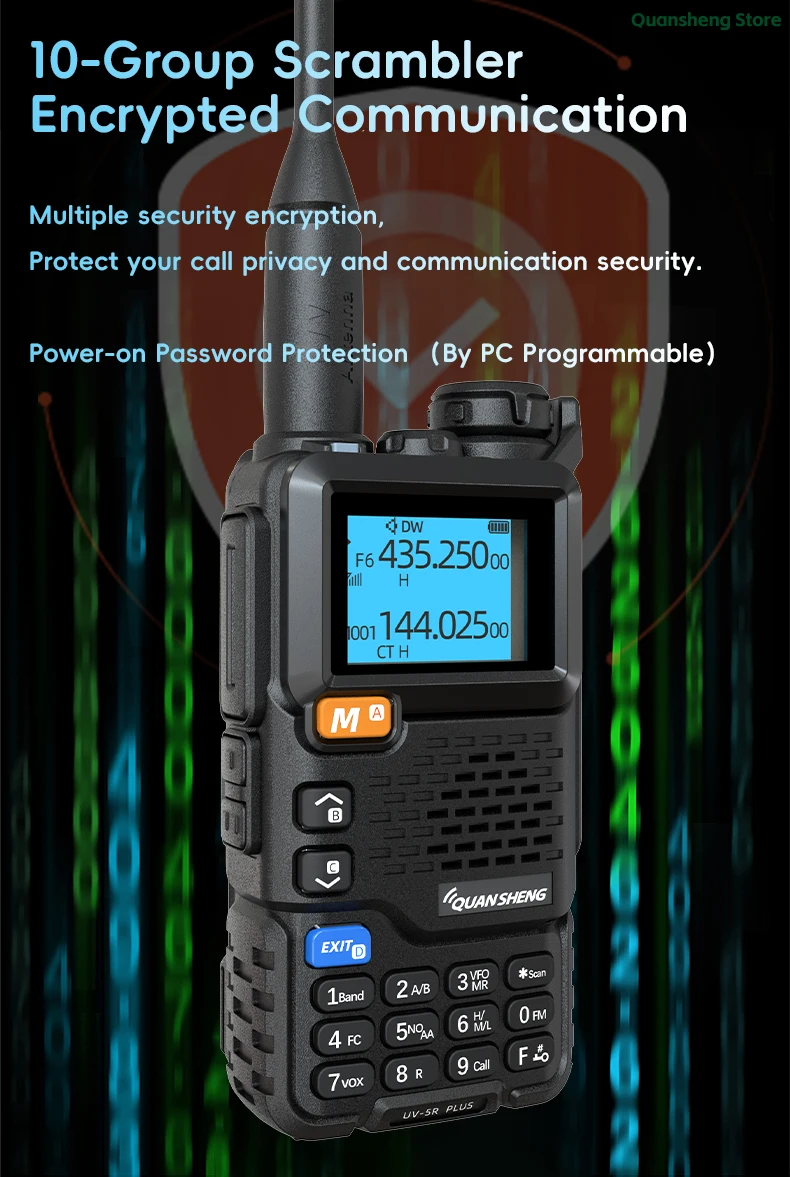

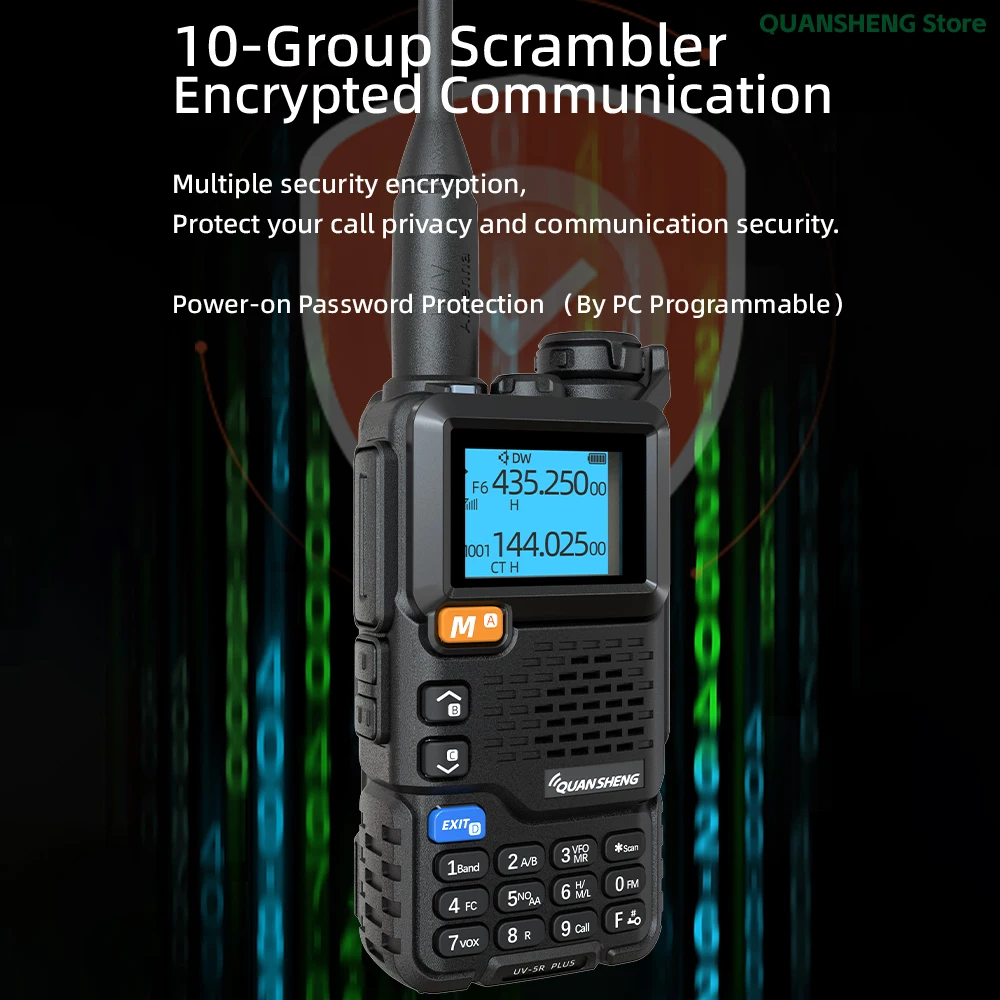

10-Group Scrambler .Encrypted Communication .

Multiple security encryption , Protect your call privacy and communication security .

Power-on Password Protection （By PC Programmable）.

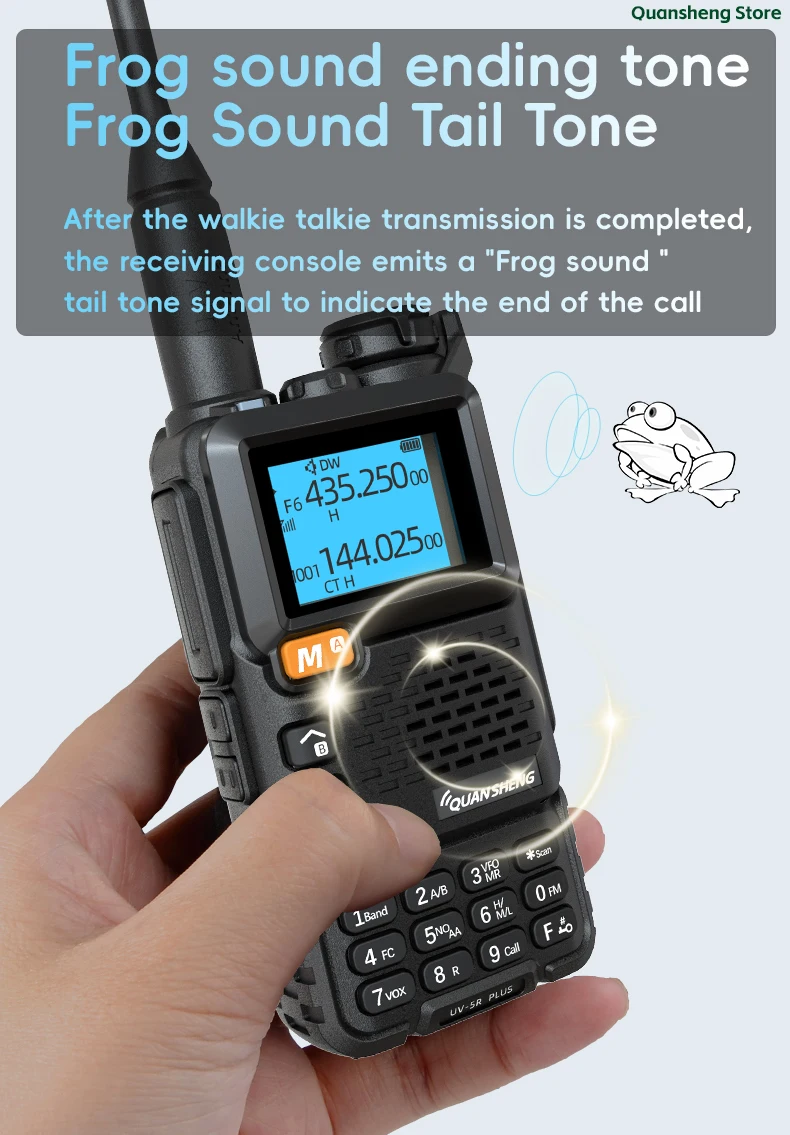

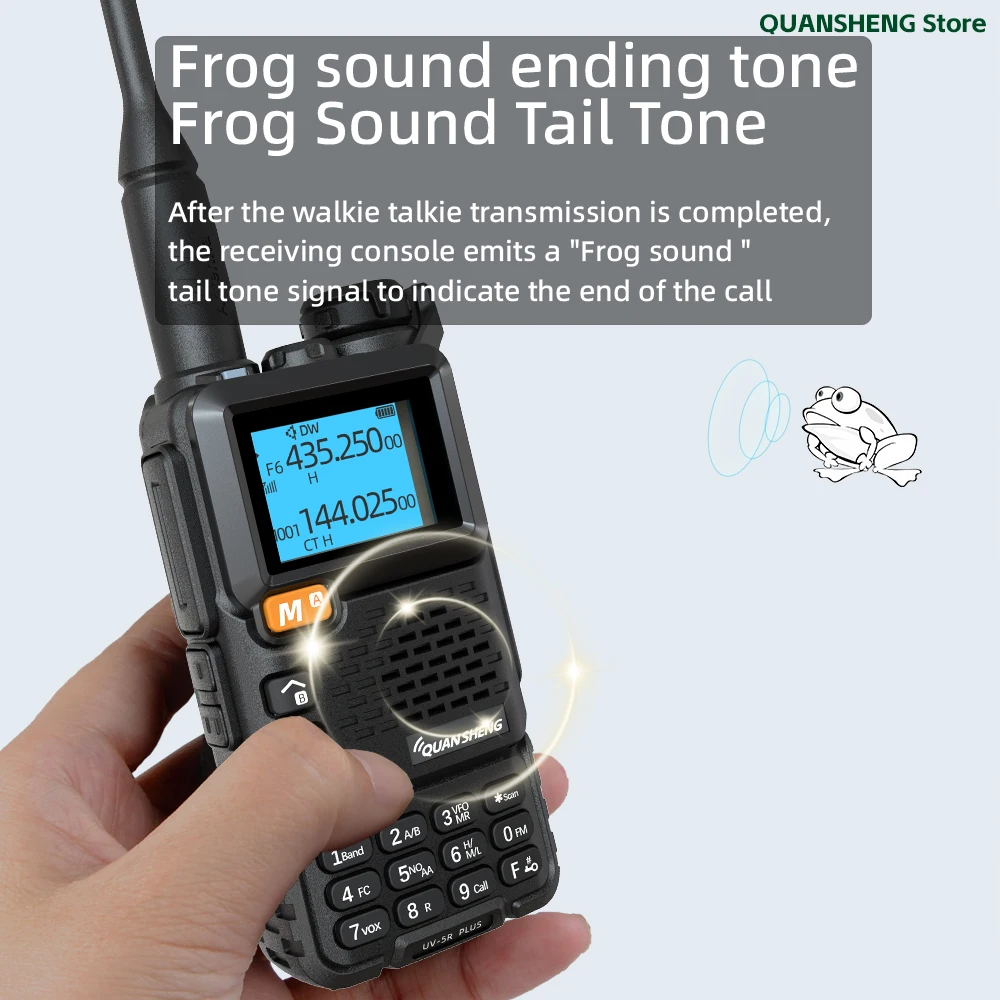

Frog sound ending tone .

Frog Sound Tail Tone .

After the walkie talkie transmission is completed, the receiving console emits a “Frog sound ” tail tone signal to indicate the end of the call .

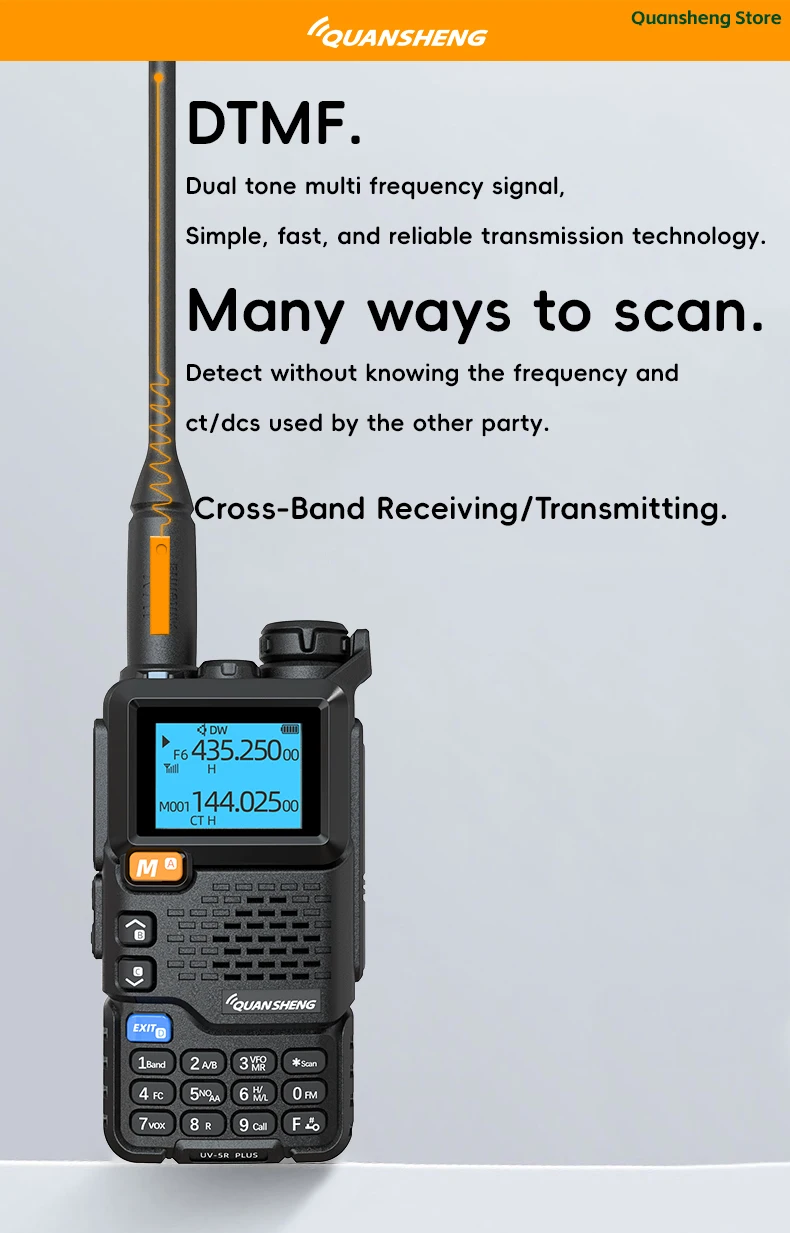

DTMF.

Dual tone multi frequency signal , Simplefast and reliable transmission technology .

Many ways to scan .

Detect without knowing the frequency and ct/dcs used by the other party .

Cross-Band Receiving/Transmitting .

General Specifications:

Channel：200；

Stored FM Radio Channel Quantity：20；

NOAA Channel：10；

Frequency Stability：±1ppm；

Modulation Mode: FM: 11K / F3E(25KHz);

Dimension：115mmX60mmX37.5mm；

Weight：234g；

Kessys: 20 inches

Antenna Impedance:50 Oh?

RECEIVING:

Sensitivity:FM(12dB SINAD);

F1(50 ∽ 76):-121dBm

F2(108 ∽ 135.9975):-121dBm

F3(136 ∽ 173.9975):-123dBm

F4(174 ∽ 349.9975):-123dBm

F5(350 ∽ 399.9975):-123dBm

F6(400 ∽ 469.9975):-123dBm

F7(470 ∽ 599.9975):-121dBm

WFM(20dB SINAD):

AM(10dB S/N):F2(108

Audio Frequency：≥0.5W

Audio Distortion: < 10%

TRANSMITTING:

Output power: ≤ 5W;

Emissions current: ≤1.5A;

Maximum frequency Deviation: ≤ 5KHz (25 KHz), ≤ 2,5 KHz (12,5 KHz);

Distorzzjoni tal-modulazzjoni: <5%;

For the purposes of this Regulation, the following definitions shall apply:

Adjacent Channel Power：70dB(25KHz),60dB(12.5KHz)；

Residual Modulation：40dB；
