Specifications
|
Model |

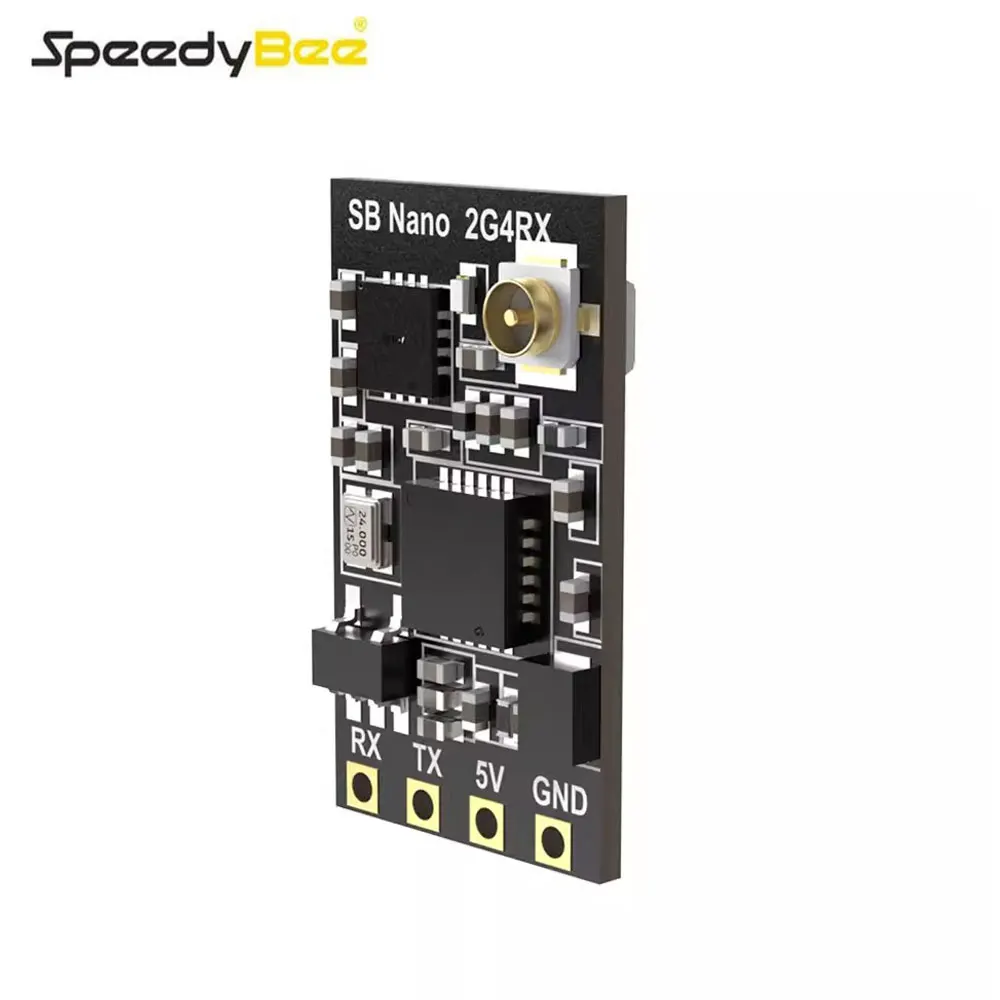

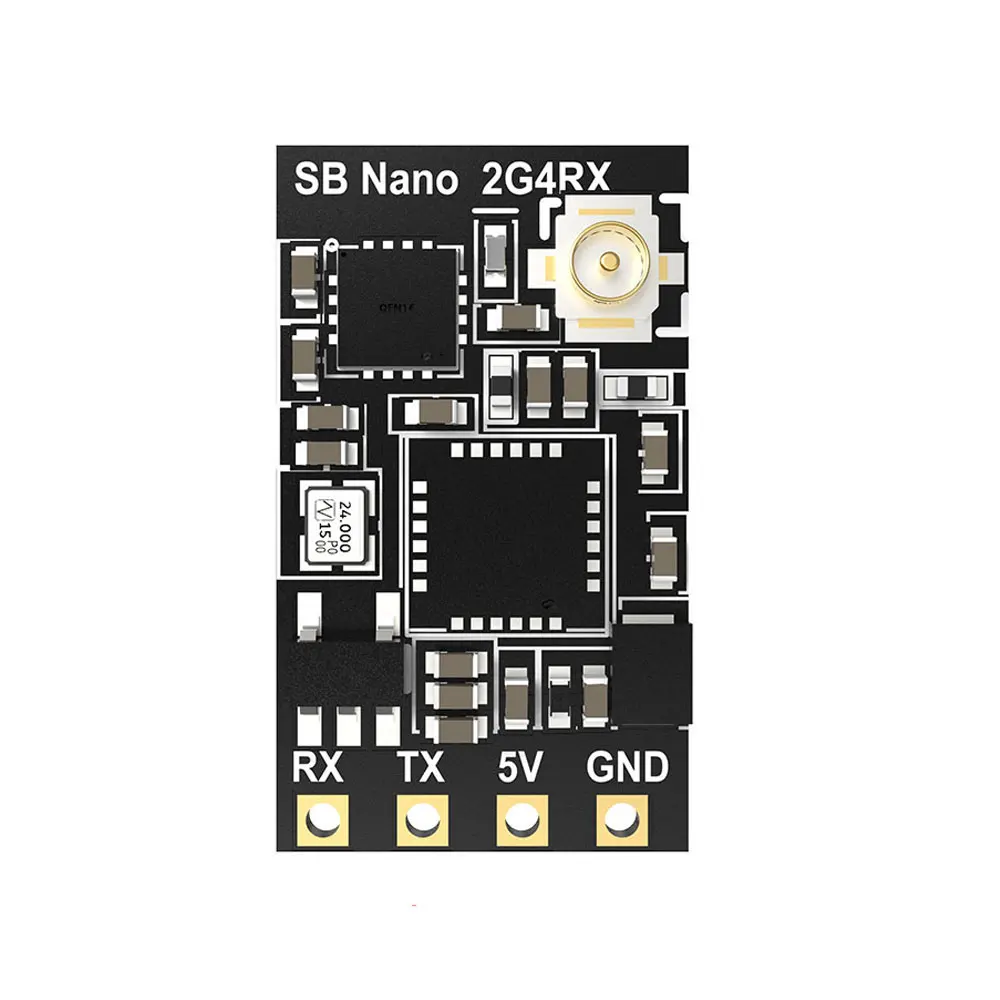

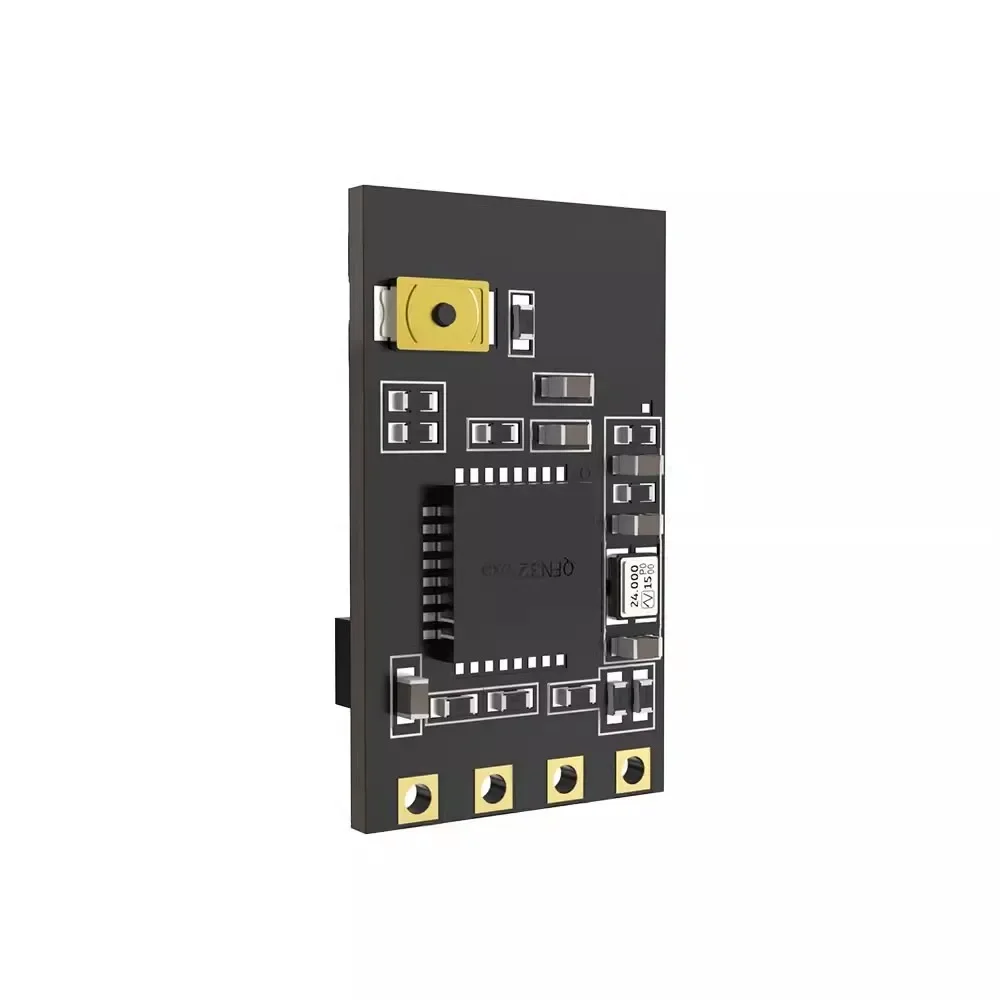

SpeedyBee Nano 2.4GHz RX |
|
Name |
ExpressLRS Receiver |
|
Frequency |
2.4Ghz |
|
Antenna |

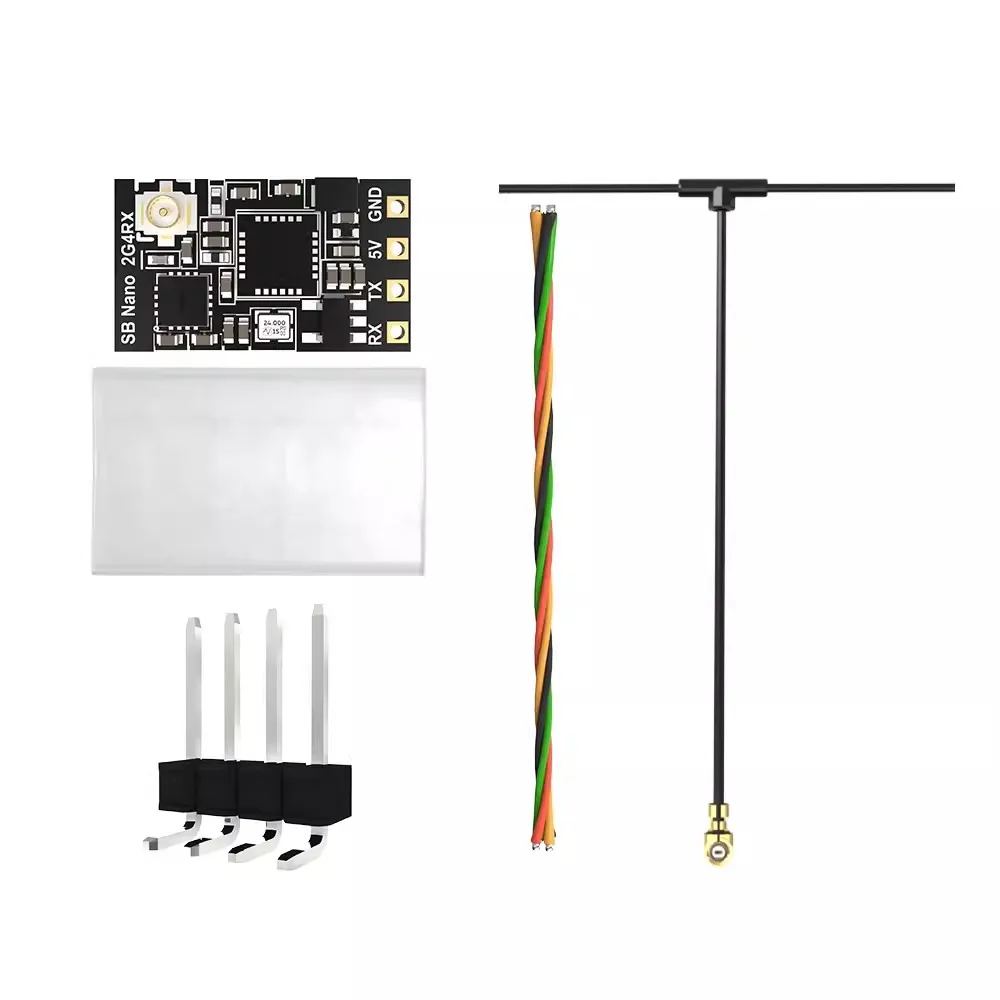

T-antenna (54*78mm, 0.6g) |
|
Chip |

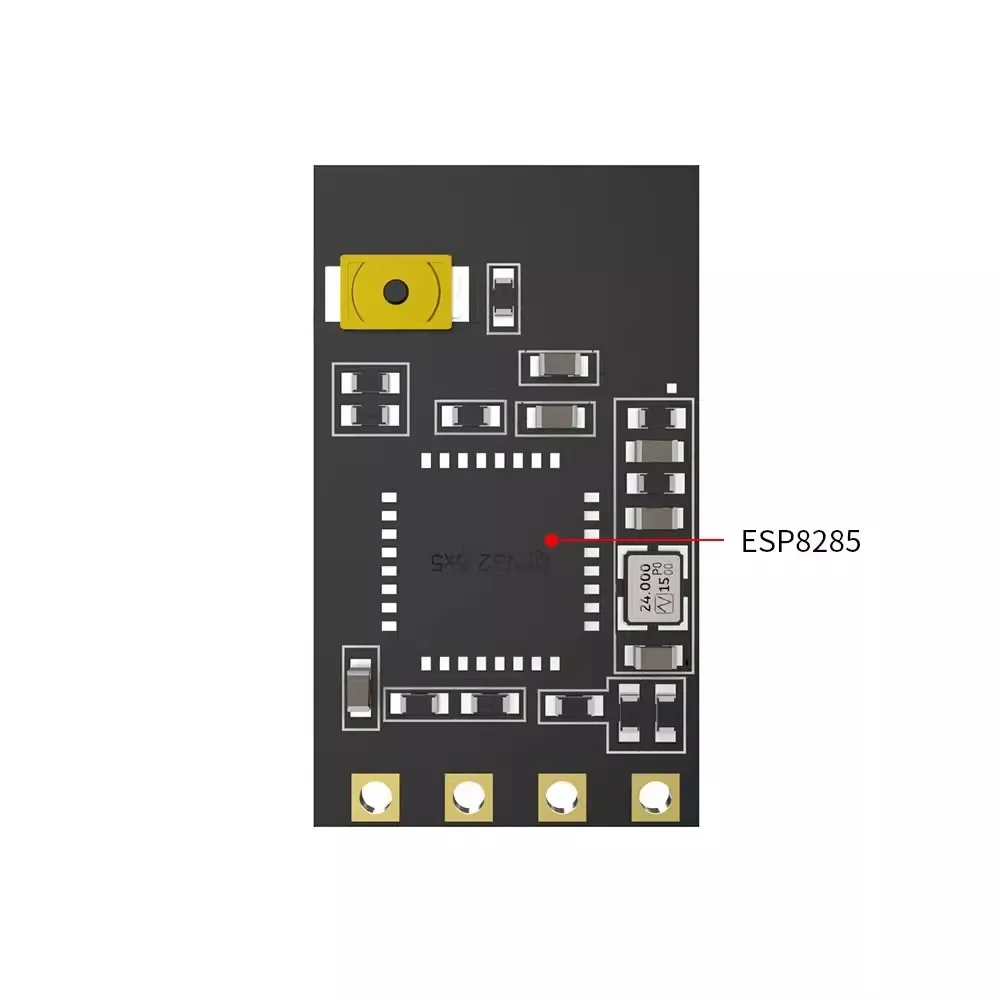

SX1280+ESP8285 |
|
Power |
100mW |
|
Input voltage |
5V |
|
Antenna connector |
IPEX1 |
|
Weight |
0.7 gram(without antenna) |
|
Dimension |
10.4mm*18.4mm |
|
Default Firmware |
SpeedyBee Nano 2.4GHz RX 3.3.1 |
Light indicator
|
Double red blinking |
binding |
|
Slow red blinking |
powering up but unlinked, no packages received from the transmitter |
|
Solid red |
receiver is connected, with signal received |
|
Fast red flashing |
Wi-Fi is turned on, and updating via Wi-Fi is available |
PS.
|
To turn on Wi-Fi, wait for 60 seconds after powering on or long press button for 3 seconds |
|
Quick to cut off the power 3 times, it enters the binding mode |
