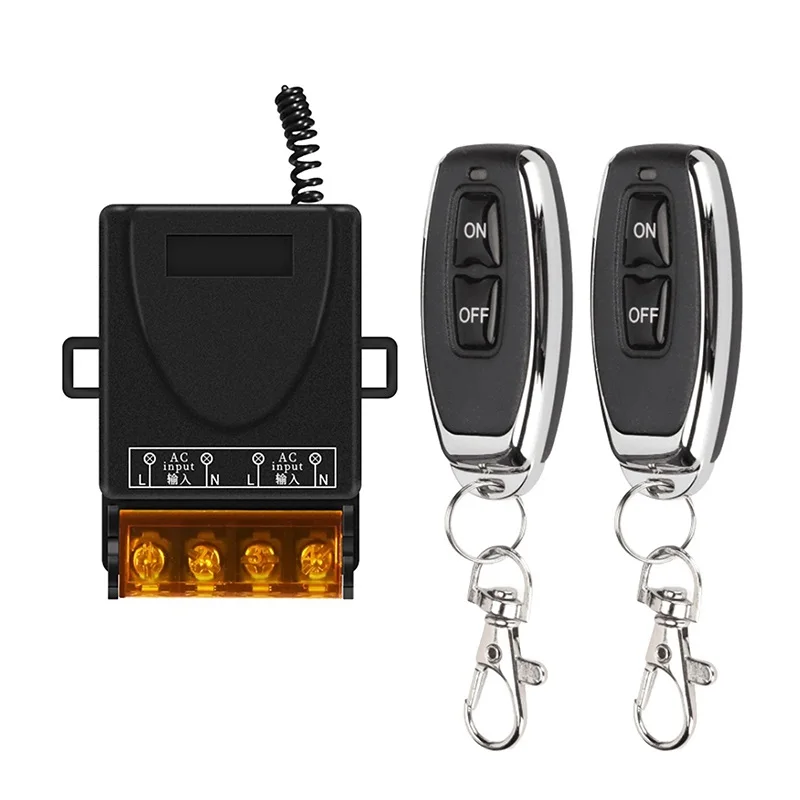

433MHz Wireless Remote Control Switch 110V-220V 10A Relay 1CH Receiver with 2-Button RF Transmitter
Price range: $12.99 through $24.99
NOTE: The LED indicator light on the remote control is red in the video, but it is actually blue,
don't worry, the functionality is the same

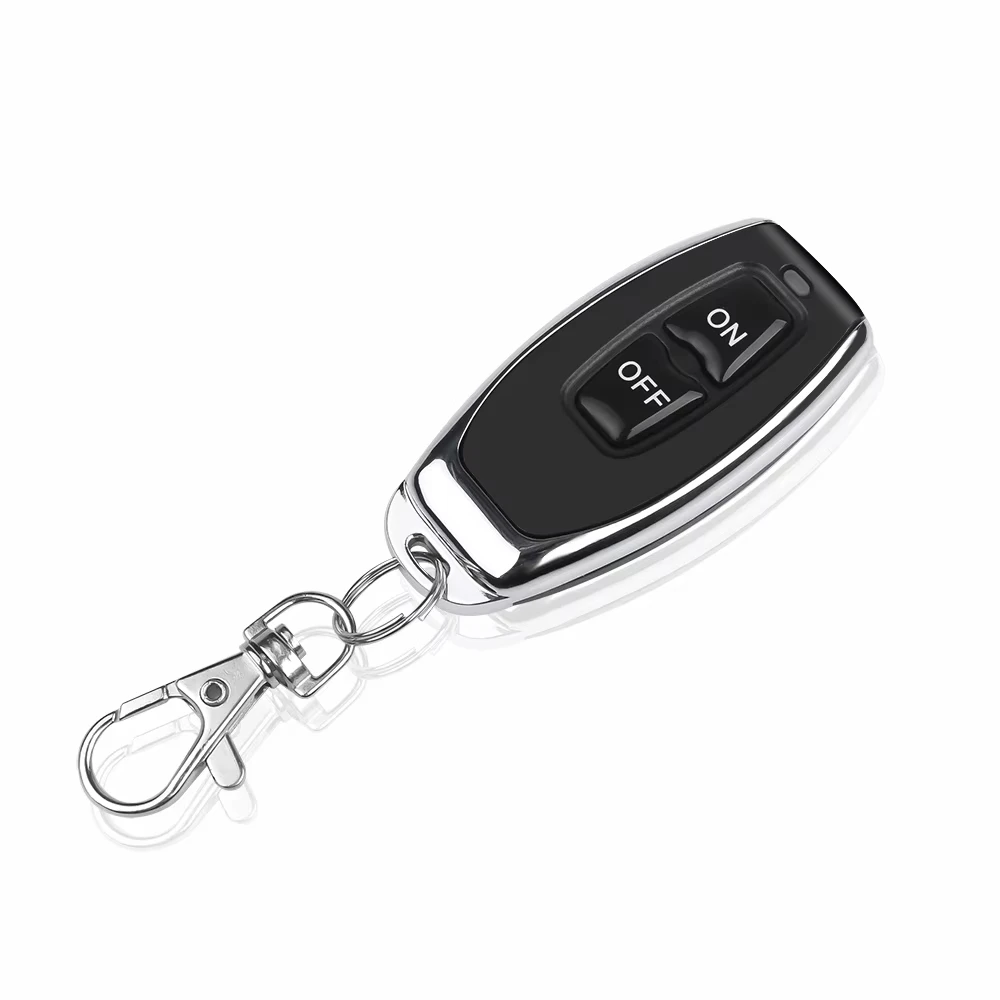

Remote control Transmitter
Operating voltage: DC12V (23A/12V battery x1)
Transmitting frequency: 433MHz
Encoding Type: Fixed code
Receiver sensitivity: > -105dB
Transmission distance : 100M (Open field)
Size: approx 55*28*10mm

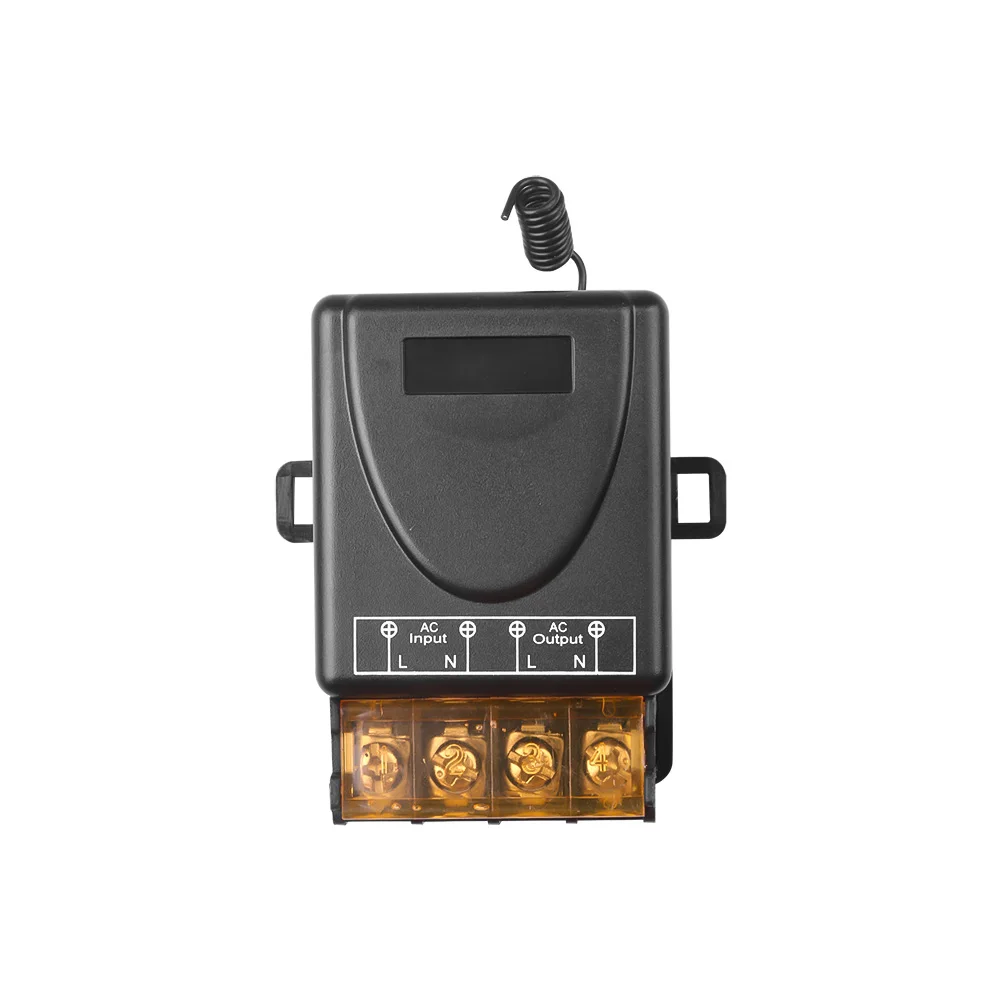

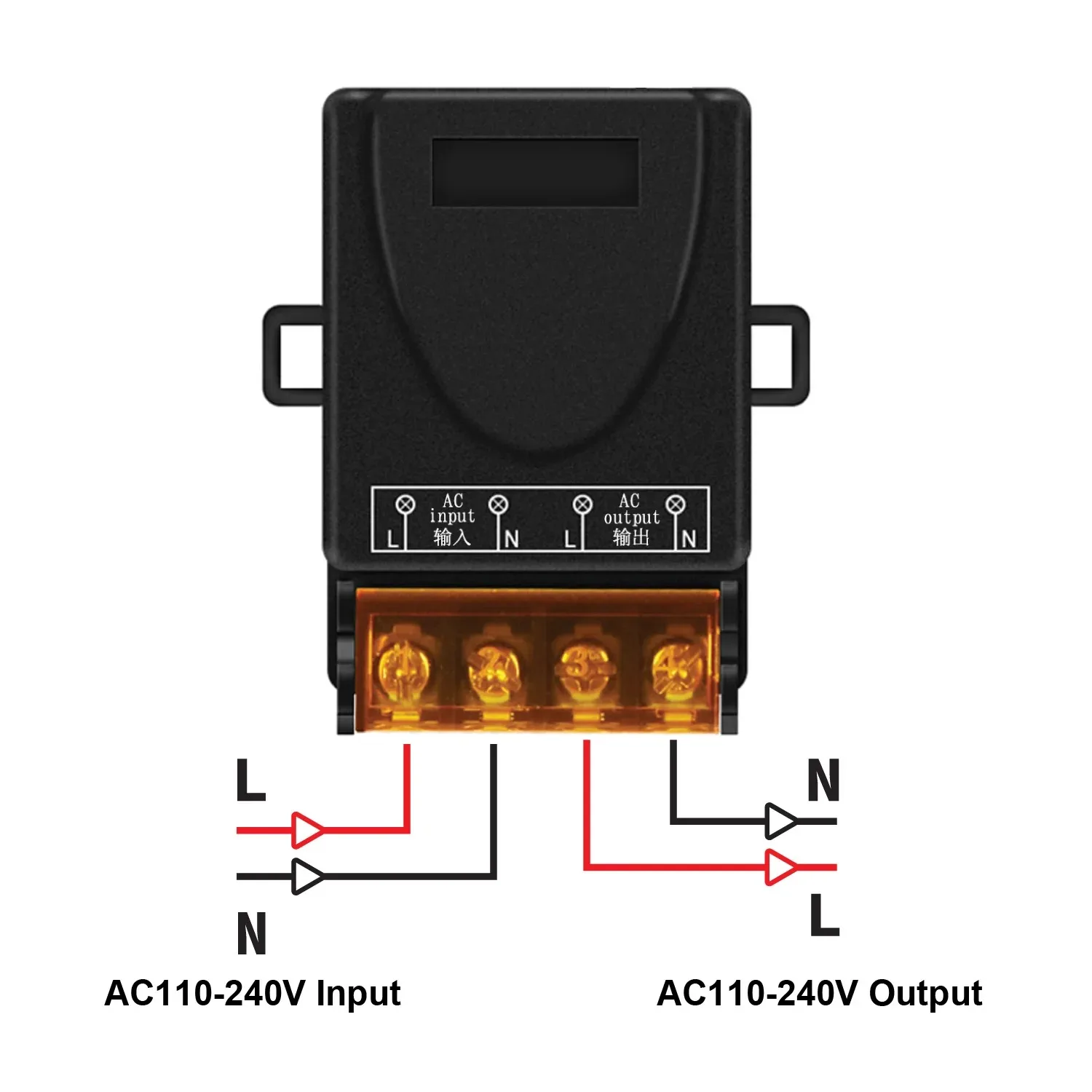

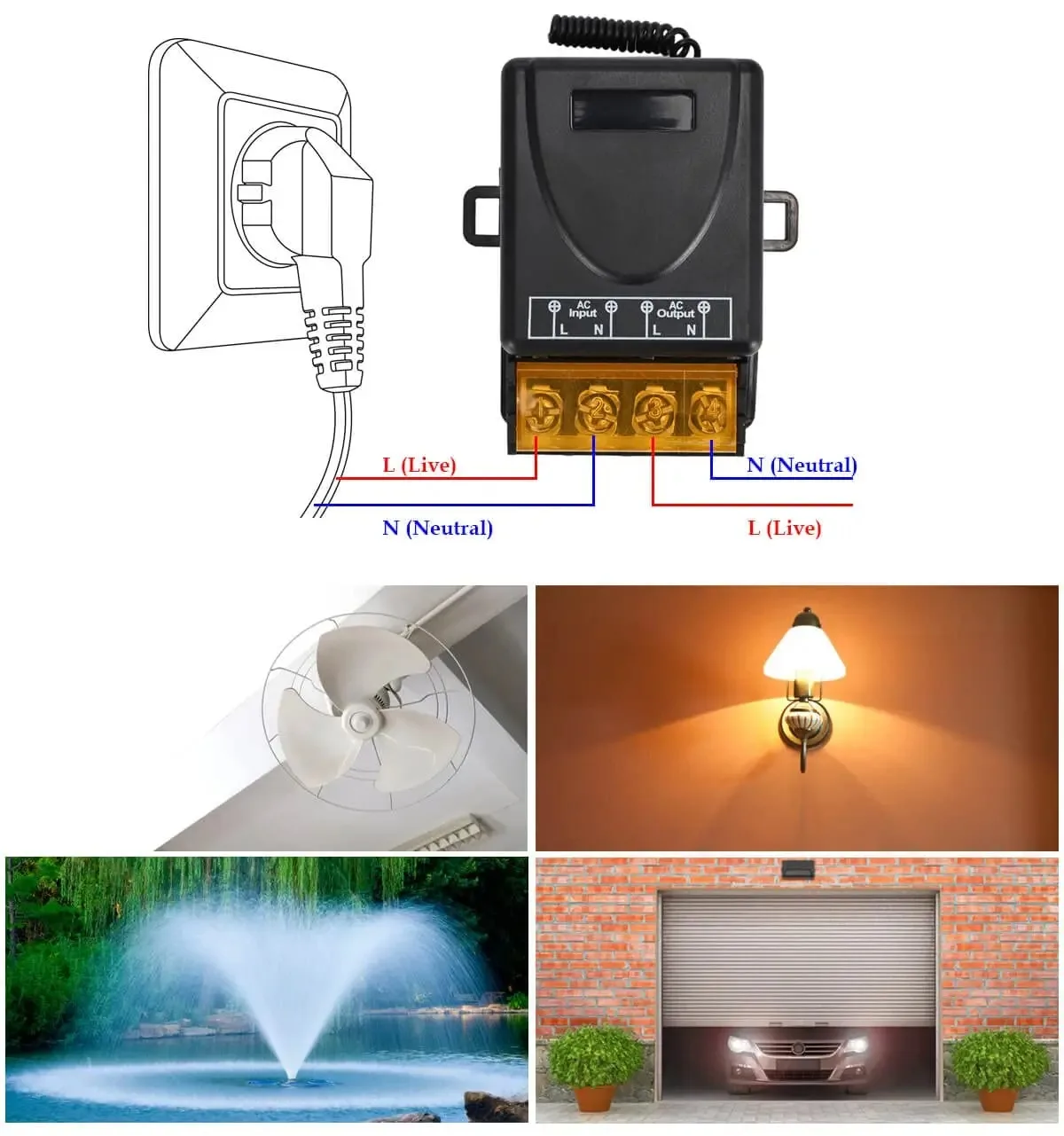

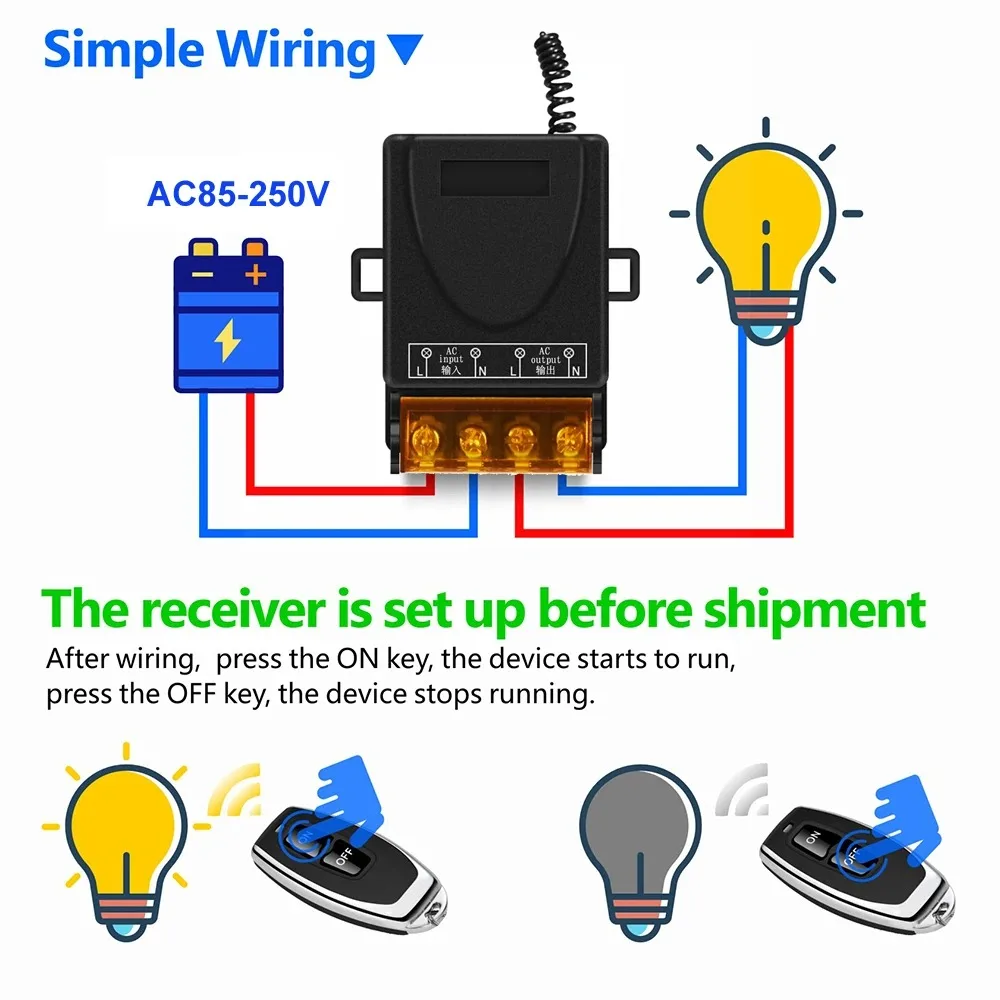

Operating voltage: AC 110V – 240V
Output voltage = Operating voltage
Operating frequency: 433MHz(Same with Remote control)
Encoding Type: learning code
Rated contact current of relay: 15A/240VAC, 15A/110VAC (Please notice that : Although the relay is marked 30A 240VAC. The 30A is for the peak current of your load. The rated current of your load should less than 15A)

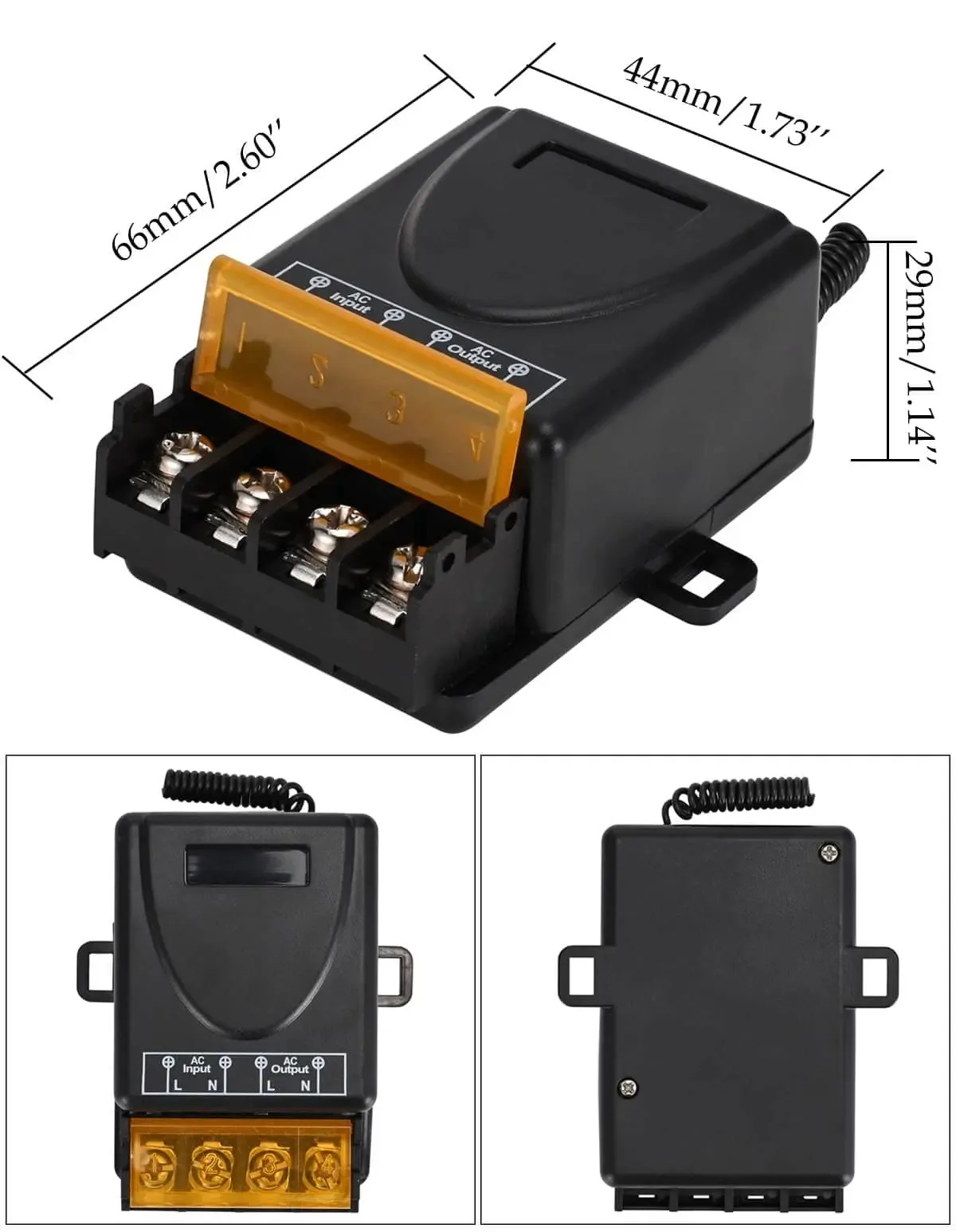

Box size: Approx 65x45x28m

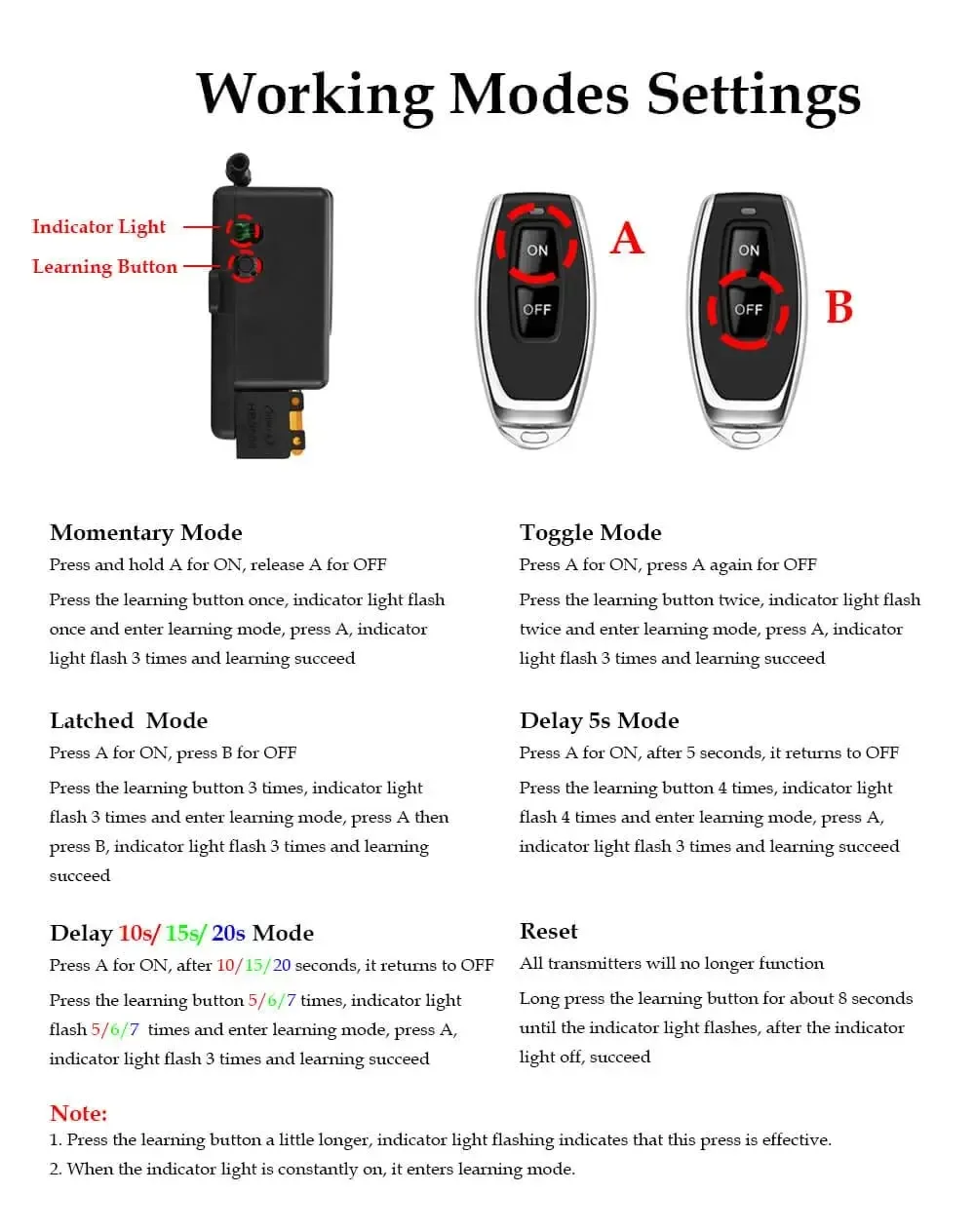

About Working way:
Momentary: Relay: Press and hold -> On; Release -> Off.
Toggle: Relay: Press -> On; Press same button again -> Off·
Latched: Relay: Press -> On; Press other button -> Off.
Delay time :
Press remote control button, the corresponding relay actuates and keeps working until the time out.

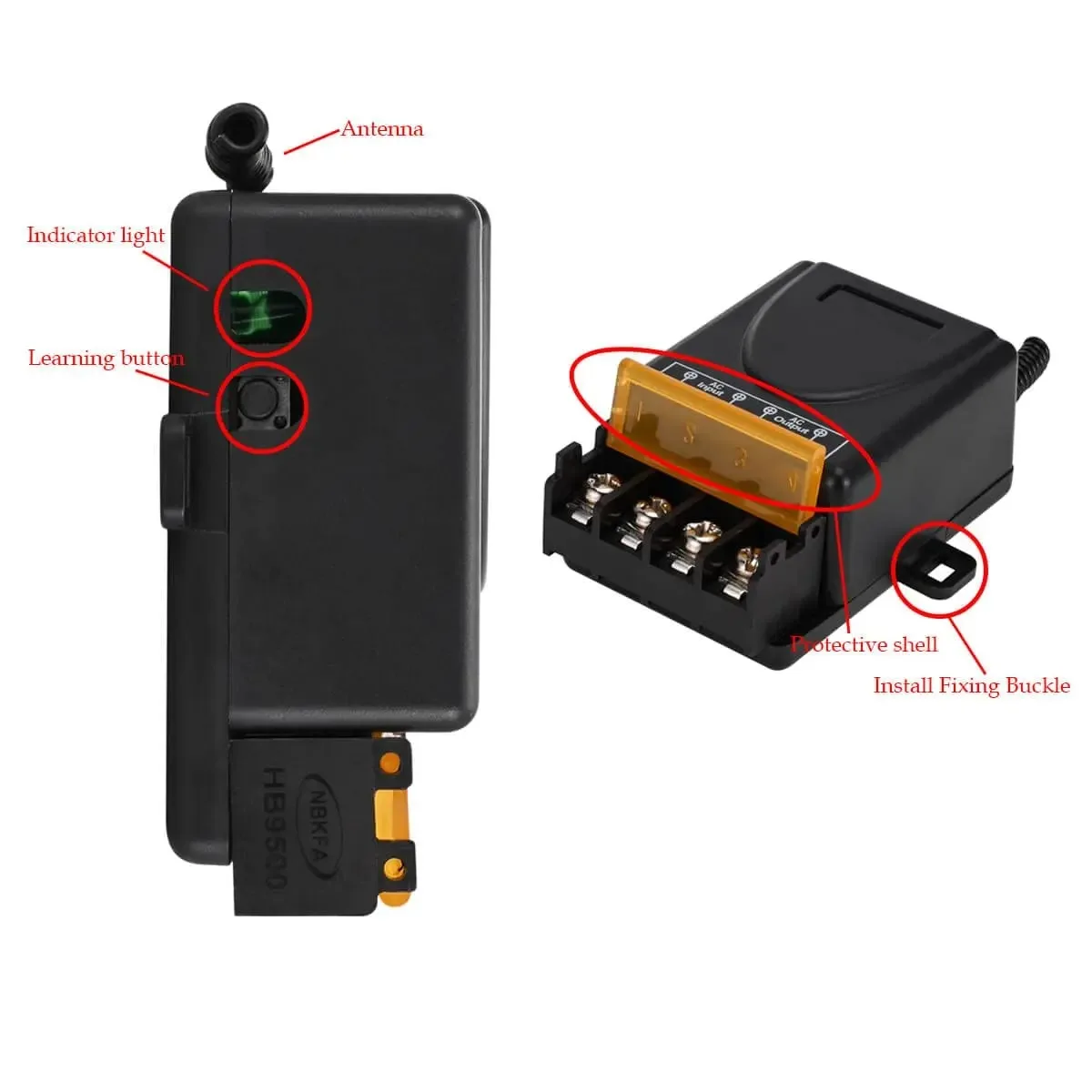

About Learning and clearing Method:
Input 12V for the Receiver ,
Momentary: press the Learning Button 1 time. the Led indicator flash 1 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Toggle: press the Learning Button 2 time. the Led indicator flash 2 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Latched: press the Learning Button 3 time. the Led indicator flash 3 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (5S): press the Learning Button 4 time. the Led indicator flash 4 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (10S): press the Learning Button 5 time. the Led indicator flash 5 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (15S): press the Learning Button 6 time. the Led indicator flash 6 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Clearning: Press the Learning button 8S . Until the receiver Led indicator flash for 3 times and OFF, it mean Clearing Code
| Weight | 0.018 lbs |
|---|---|
| Dimensions | 7 × 6 × 1 in |
| Brand Name | Szaoju |
| Use | Universal, SWITCH, Lighting, Electric Door, Automated curtains |
| Origin | |
| High-concerned chemical | None |
| Wireless Communication | RF |
| Support APP | No |
| Certification | CE |
| Frequency | 433 MHz |
| Channel | 1 |
| Package | Yes |
| Choice | yes |
