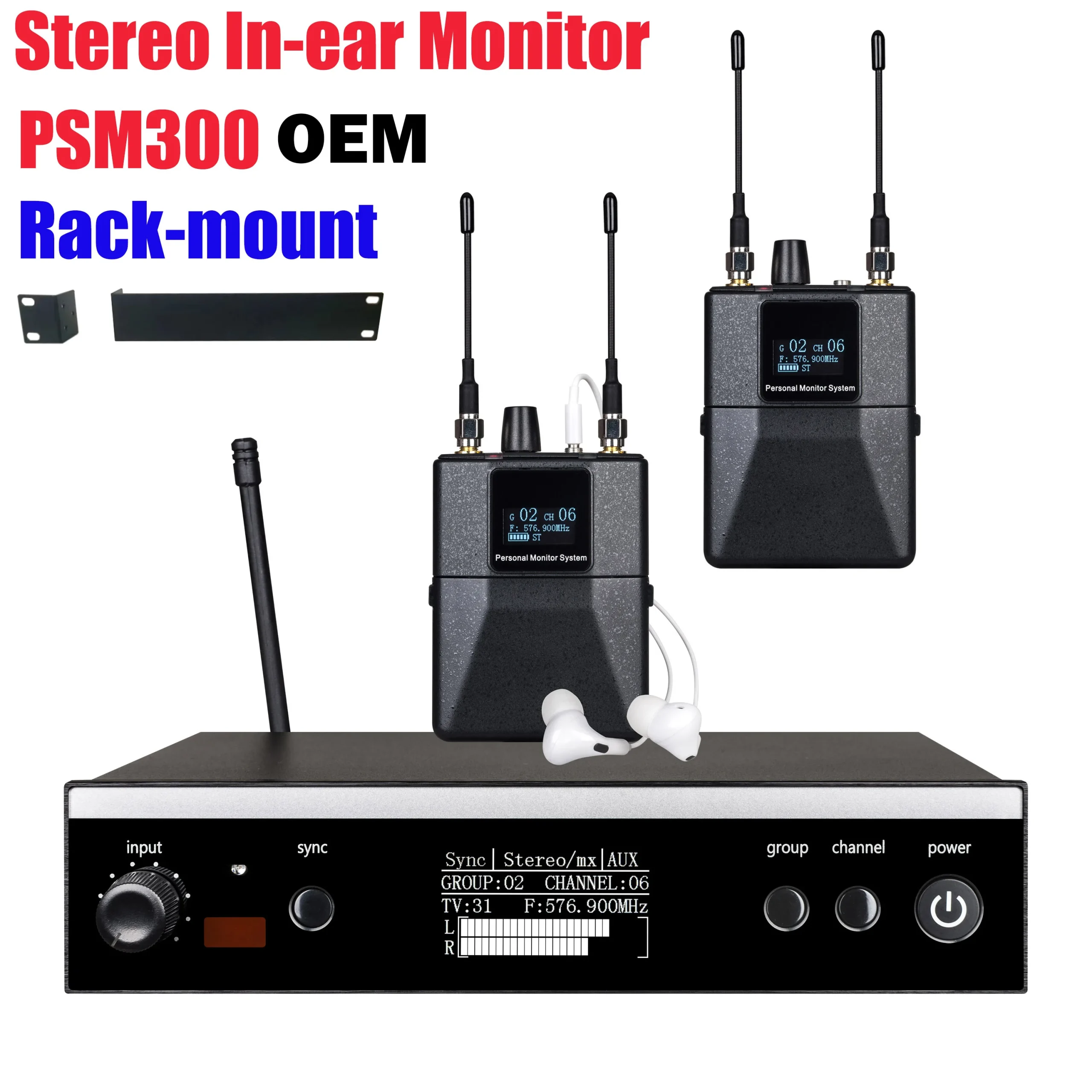

500MHz Professional Wireless In-Ear Monitor System PSM300 with DSP Audio Processing
Price range: $206.99 through $308.99
Leicozic 500Mhz Professional Monitoring System PSM300 Stage Return Stereo Personal In Ear Monitor Wireless Pro Audio Equipment
Feature Of Receiver:
1. Professional DSP is used for audio processing.
2. Adopt environment-friendly and advanced zero power standby technology.
3. The output volume can be adjusted in real time, which can effectively prevent excessive distortion of audio output and hearing loss.
4. The OLED display screen can clearly display the current real-time status and indication of the device.
5. The removable battery process is adopted to relieve emergency needs.
6. The dual antenna reception can effectively improve the reception stability.
7. The two-color independent indication process is adopted, so that the receiving status and battery status can be clearly viewed in real time.
8. It supports infrared synchronization operation, and one button synchronization between the toilet host and the bodypack
.

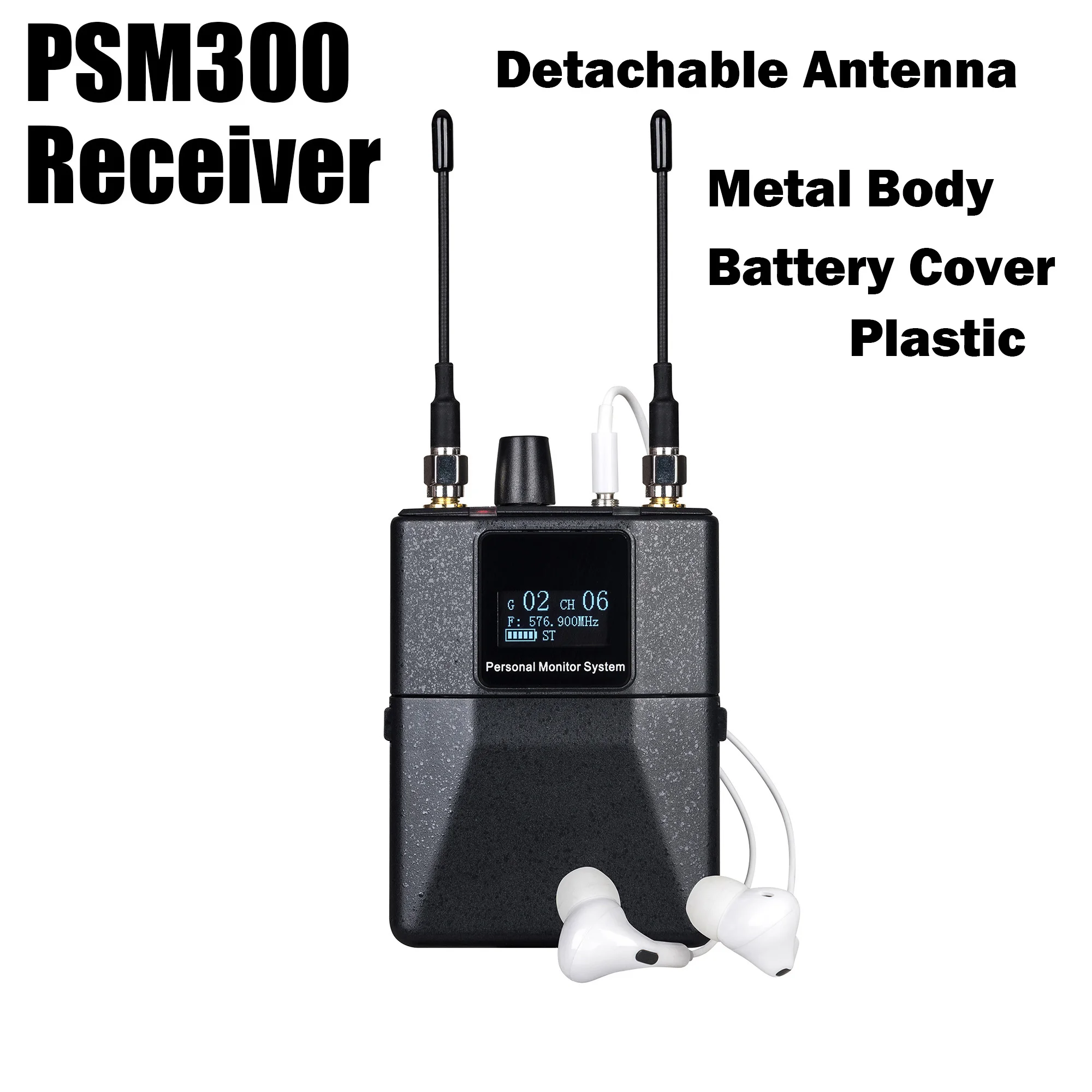

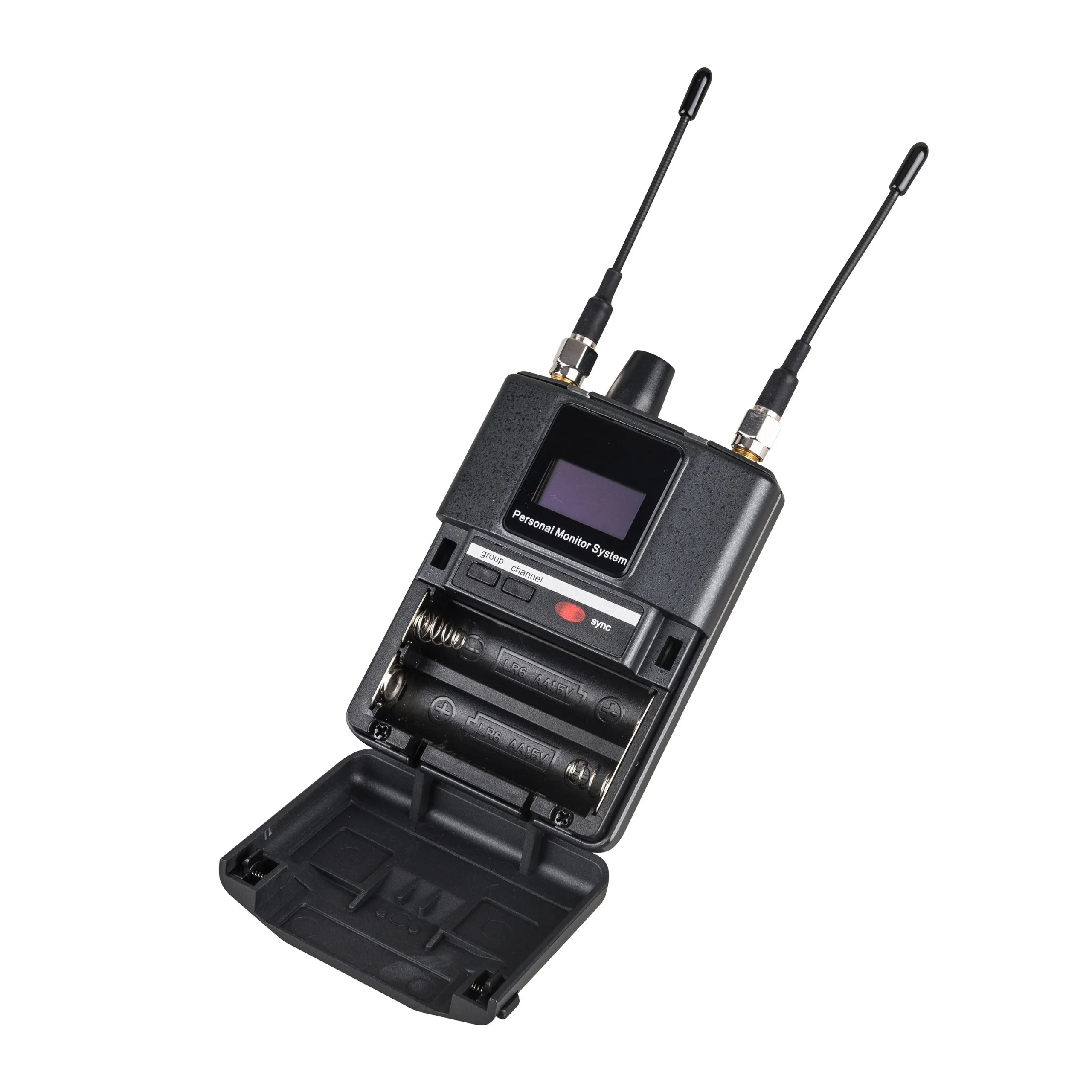

P3R Receiver:
RF carrier range: 566-590MHz
Number of channels: G (1~9) * C (1~16)
Tuning bandwidth: 24 MHz
Demodulation: Digital Demodulation (GFSK)
Sampling rate: 46.875KHz
Resolution: 24Bits
Audio processing mode: DSP
Audio response: 20-20KHz
FM mode: manual+infrared
Audio output power: 80 mW (1kHz @<1%
distortion, peak power, @ 32 Ω 80 mW)
Minimum load impedance: 16 Ω
Headphone output: 3.5 mm (1/8 inch) stereo
Audio dynamic range: 110dB+A (200Kohm)
Audio total harmonic distortion: – 94dB
Receiving sensitivity:<- 95dB
Antenna interface: SMA
Working current: 3V 240 ± 10MA (conversion
efficiency 94%)
Battery life: 3-4 hours (continuous use)
No. 5 battery (depending on battery capacity and headphone output power)
Operating temperature range: – 30 ° C to 85° C

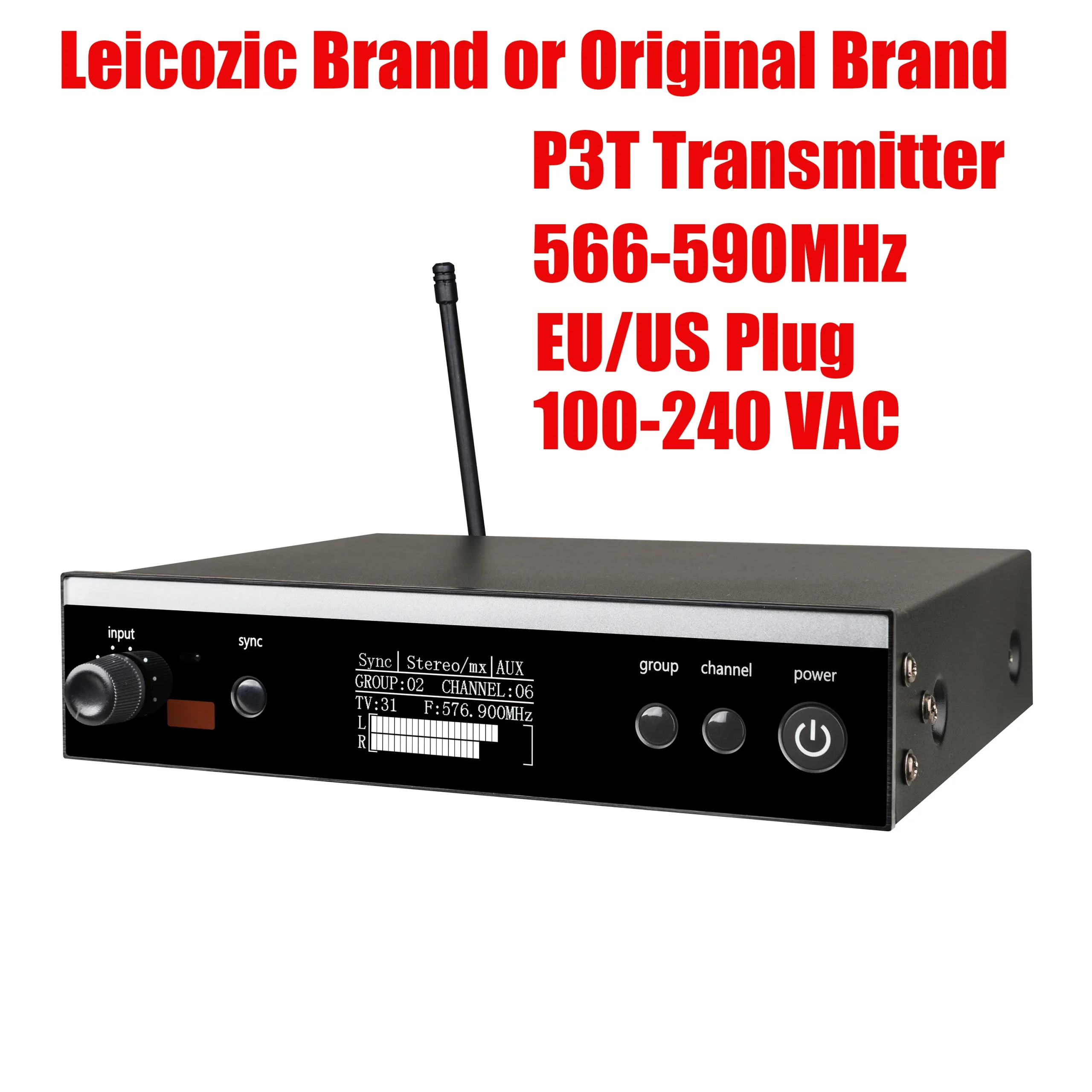

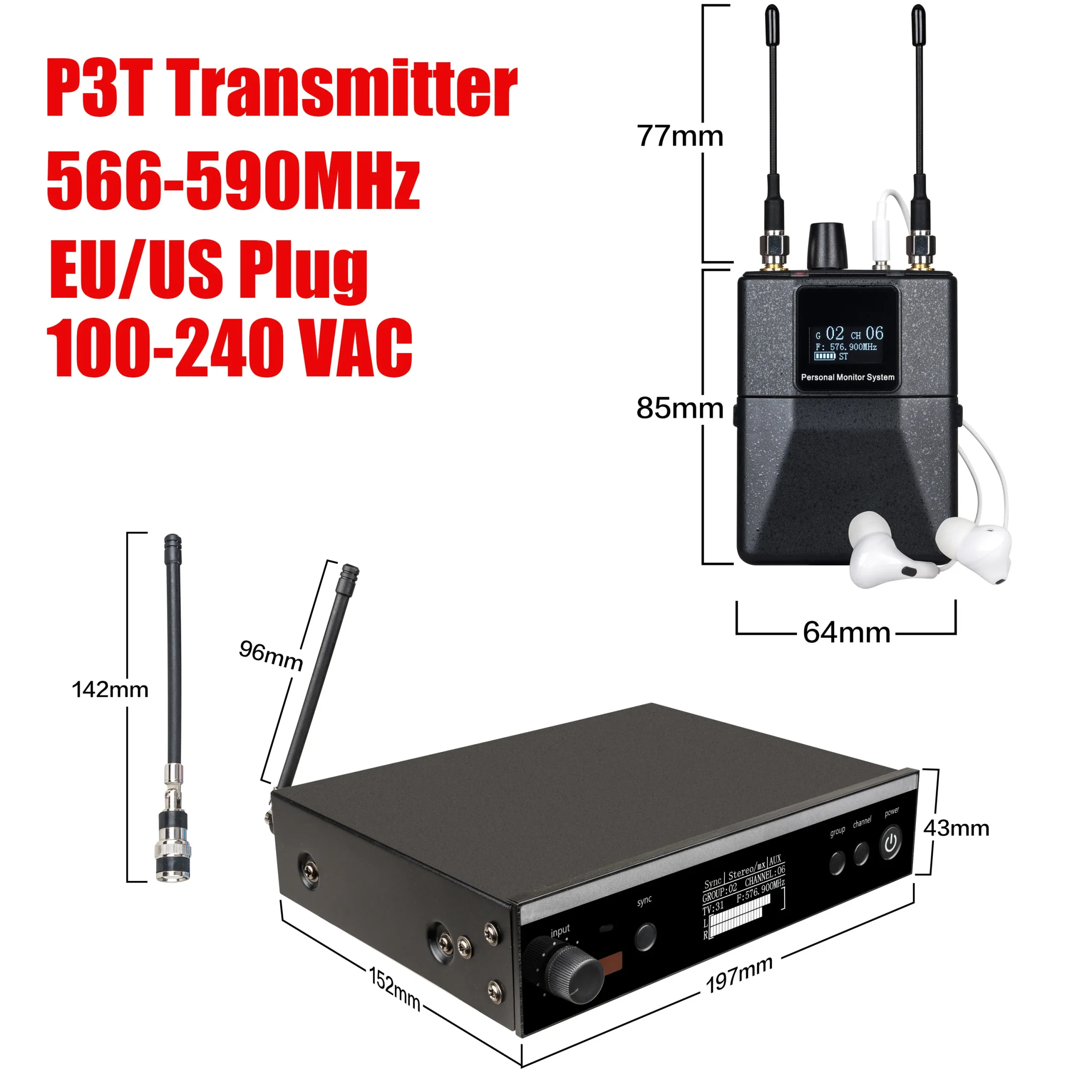

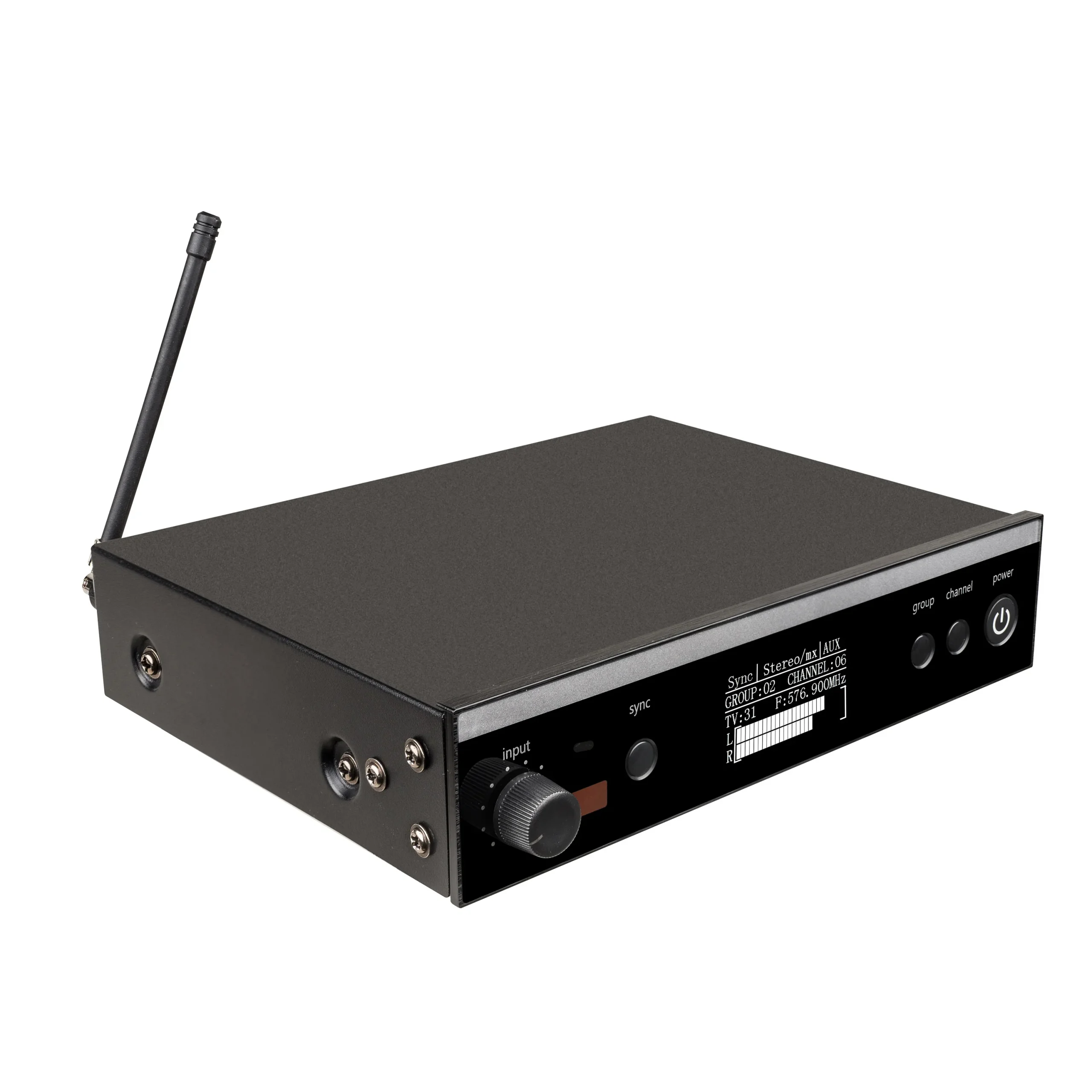

P3T Transmitter:
RF carrier range: 566-590MHz
Number of channels: G (1~9) * C (1~16)
RF output power: 100mW
RF output impedance: 50 Ω
RF interface: BNC
Tuning bandwidth: 24 MHz
Modulation: digital modulation (GFSK)
Sampling rate: 46.875KHz
Resolution: 24Bits
Audio dynamic range: 103dB+A
Audio signal to noise ratio: 109dB+A
Typical value of delay: 6ms
Audio processing mode: DSP
Audio response: 20-20KHz
FM mode: manual+infrared

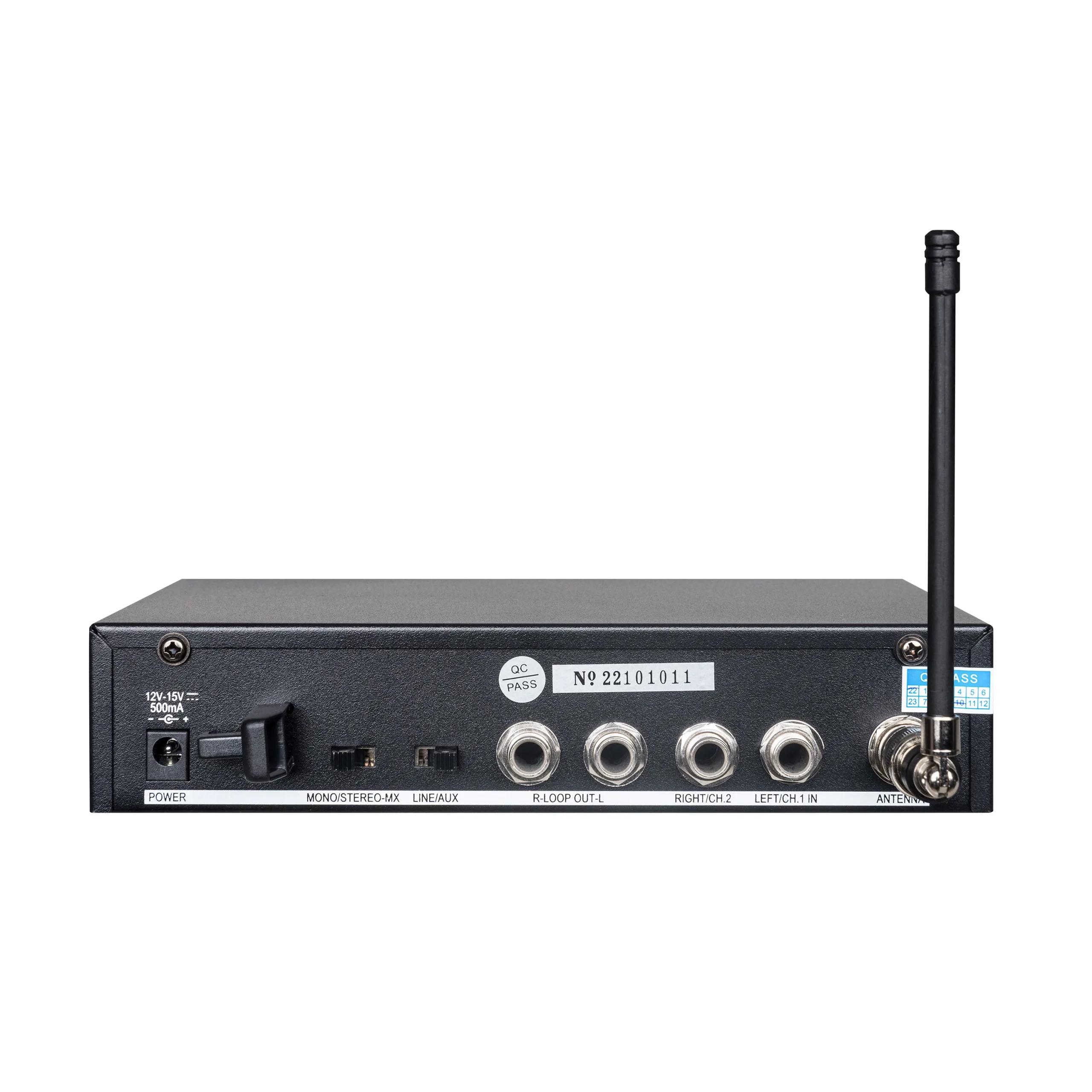

Audio input: 6.35 mm (1/4 inch) TRS
Power requirements: 12-15 V DC, 1000 mA
Operating temperature range: – 30 ° C to 85° C
1. Professional DSP is used for audio processing.
2. It supports 1/4 inch TRS differential input and output, with high signal-to-noise ratio and strong anti-interference capability.
3. Loop output is very convenient to solve the problem that audio is transmitted to the next level and audio interface is not enough.
4. Adopt environment-friendly and advanced zero power standby technology.
5. Stereo mode and mix mode can be switched in real time.
6. The input gain and input volume can be adjusted in real time to effectively prevent excessive distortion of audio input.
7. The OLED display screen can clearly display the current real-time status and indication of the device.
| Weight | 2.500 lbs |
|---|---|
| Dimensions | 41 × 32 × 10 in |
| Brand Name | Leicozic |
| Power Source | Ac, Ac |
| High-concerned chemical | None |
| Inbox adaptor | Yes |
| Voltage range | USB (5-20V DC) |
| Built-in Battery | No |
| Origin | |
| Model Number | PSM300 |
| Plug Type | US Plug |
| Certification | CE |
| Frequency | 566-590MHz |
| Number of channels | Group (1~9) * Channel (1~16) |
| RF output power | 100mW |
| RF output impedance | 50 Ω |
| Transmitter RF interface | BNC |
| Resolution | 24Bits |
| Receiver Antenna interface | SMA |
| Plug | EU or US Type |
| Voltage | 100-240 VAC |
