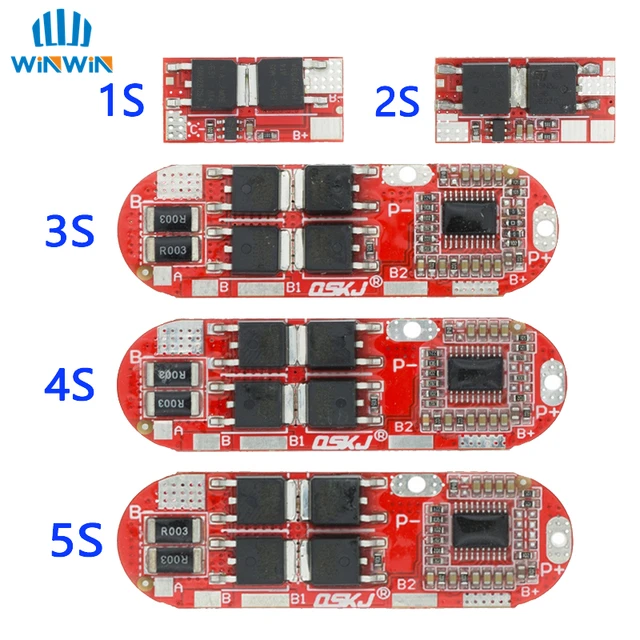

Feature:
1:FOR Li-POLYMER LiMnO Protect Parameter(3.6V/3.7V)
2:Single Cell overcharge protect voltage: 4.23 – 4.28V
3:Single Cell overcharge rotect recover voltage: 4.08 – 4.18
4:overcharge protect delay: 0.5 – 1.5S
5:Single Cell over-discharge protect voltage: 2.72 – 2.88V
6:Single Cell over-discharge rotect recover voltage: 2.9 – 3.1V
7:overcharge protect current: 60A
8:over-discharge protect current: 60A
9:over-discharge protectdelay: 0.5 – 1.5S
10:temperature protect: YES
11:disconnect protect: YES
12:shortage protect: YES
13:shortage delay: 100 – 600μS
14:shortage protect recover: YES
15:Charging current: 25A
16:discharging current: 25A
17:charging voltage : 12.6V for 3S , 16.8V for 4S, 21V for 5S BMS board
Feature:
1:10A BMS 1S 4.2V 2S 8.4V18650 Lipo lithium battery charging Module
2:FOR Li-POLYMER LiMnO Protect Parameter(4.2V)
3:Single cell battery overcharge protect voltage : 4.25-4.35 V
4:Single cell battery overcharge protect recover voltage : 4.05-4.15 V
5:Overcharge protect delay : 1S
6:Single cell battery over-discharge protect voltage : 2.3-2.5V
7:Single cell battery over-discharge protect recover voltage : 2.9-3.1 V
8:Overcharge protect Current : 16A
9:Over-discharge protect delay : 50-200mS
10:Disconnect protect : Yes
11:Short circuit protect : Yes
12:Short circuit delay : 50-100 uS
13:Charging current: 10A
14:Charging voltage: 4.2V for 1S BMS board, 8.4V for 2S BMS board.
| Weight | 0.005 lbs |
|---|---|
| Dimensions | 7 × 6 in |
| Brand Name | AITEWIN ROBOT |
| Origin | Mainland China |
| High-concerned chemical | none |
| Condition | New |
| Type | Voltage Regulator |
| Supply Voltage | 1 |
| Dissipation Power | 1 |
| is_customized | Yes |
| Operating Temperature | 1 |
| Choice | yes |
