| Weight | 3.700 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
| Brand Name | NONE |
| Memory Capacity | ≥ 4GB |
| Hard Drive Capacity | ≥ 1.5TB |
| Model Number | MINISFORUM MS-S1 MAX |
| High-concerned chemical | none |
| Processor Model | AMD Ryzen AI Max+ 395 |
| Use | Household |
| Origin | Mainland China |
| Type | Mini Desktop, Mini PC |
| Processor Main Frequency | 16 Cores, 32 Threads, Max Clock: 5.1 GHz |
| Graphics Card Type | Integrated Card |
| Certification | CE, FCC, RoHS |
| Processor Brand | AMD |
| TDP | Performance Mode: 130W Balanced Mode: 95W Quiet Mode: 60W |
| GPU | Radeon 8060S Graphics (Internal) GPU Cores: 40 GPU Clock: 2900 MHz |
| AI Engine Performance | AMD Ryzen AI NPU Computing Power: Up to 50 TOPS Total Computing Power: Up to 126 TOPS |
| RAM | 128GB LPDDR5X-8000 Onboard Unified Memory |
| SSD | 1*M.2 2280 NVMe SSD slot (supports up to 8TB, PCIe 4.0*4) 1*M.2 2280 NVMe SSD slot (supports up to 8TB, PCIe 4.0*1) |

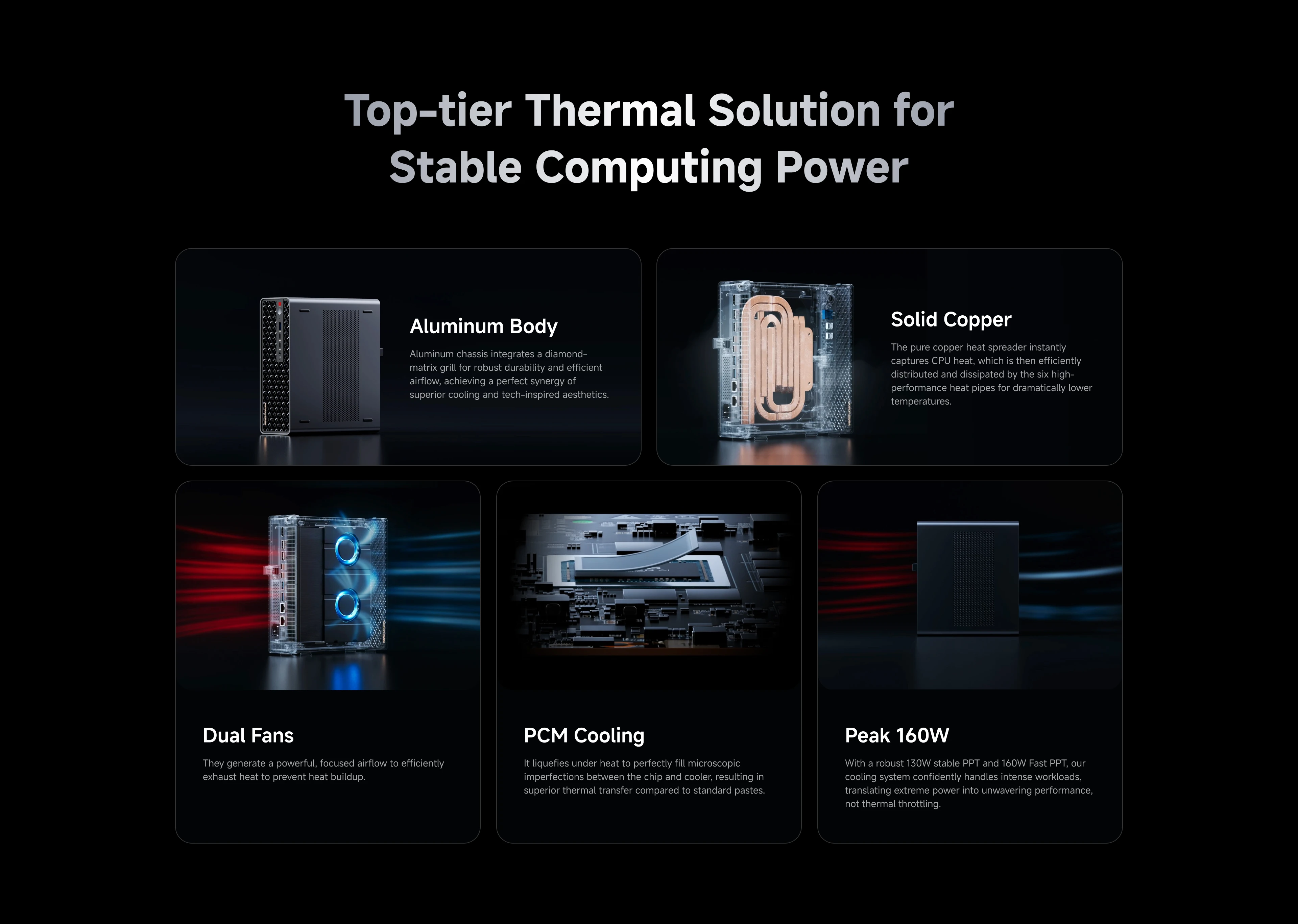

| Heat Dissipation | 6 Heat Pipes & Phase Change Material Dual Turbine Fans Max CPU Fan Speed: 3600 RPM |
| Wireless Connectivity | Wi-Fi 7, Bluetooth 5.4 (Module: MT7925) |
| Ethernet Controller | 2*10GbE LAN (RJ45) |
| Video Output | 1*HDMI (up to 8K@60Hz/4K@120Hz), 2*USB4 (up to 8K@60Hz/4K@120Hz), 2*USB4 V2 (up to 8K@60Hz/4K@120Hz) |
| Audio Output | HDMI*1, 3.5mm Audio Combo Jack (TRRS) *1 |
| Audio Input | DMIC*2, 3.5mm Audio Combo Jack (TRRS) *1 |

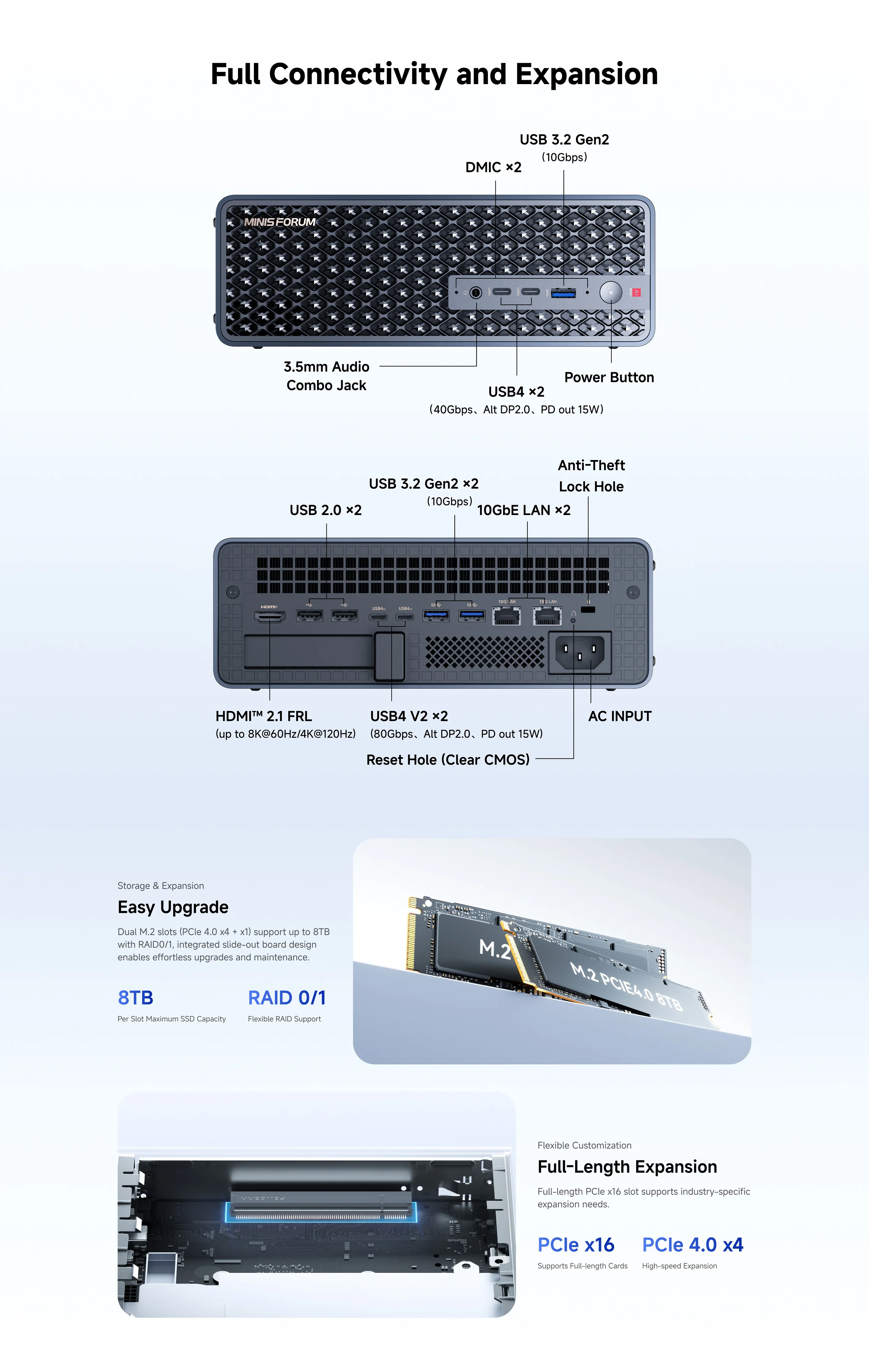

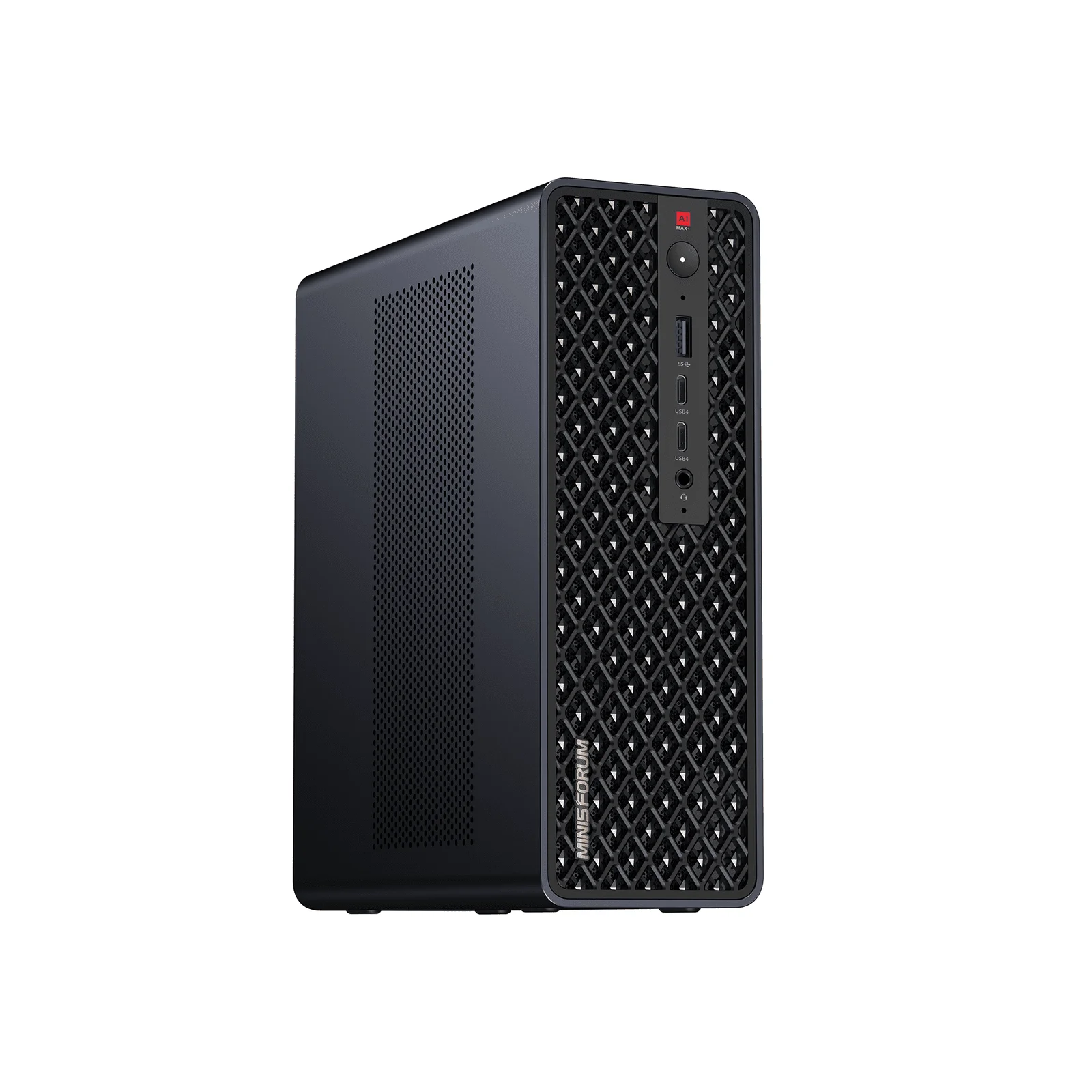

| I/O Ports (Front) | 2*USB4 (40Gbps, Alt DP 2.0, PD out 15W), 1*USB 3.2 Gen2 (10Gbps), 1*3.5mm Audio Combo Jack (TRRS), 2*DMIC |

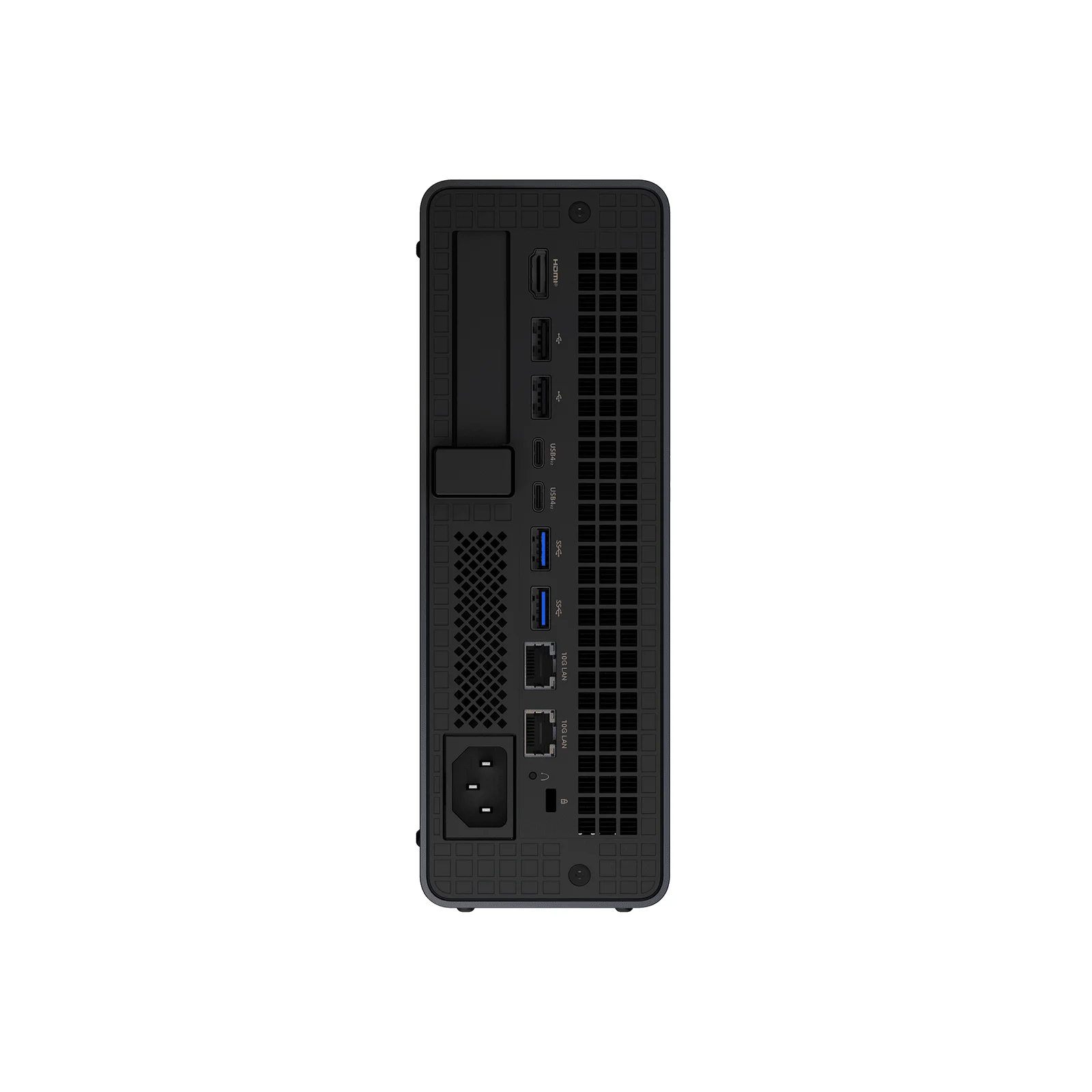

| I/O Ports (Rear) | 1*10GbE LAN (RJ45, Realtek RTL8127), 1*10GbE LAN (RJ45, Realtek RTL8127), 2*USB 3.2 Gen2 (10Gbps), 2*USB 2.0, 2*USB4 V2 (80Gbps, Alt DP2.0, PD out 15W), 1*HDMI 2.1 FRL (Up to 8K@60Hz/4K@120Hz) |
| I/O Ports (Internal) | PCIe x16 slot (PCIe 4.0 x4) |
| Button/Hole | 1*Power Button (with LED), 1*BIOS Reset Hole |

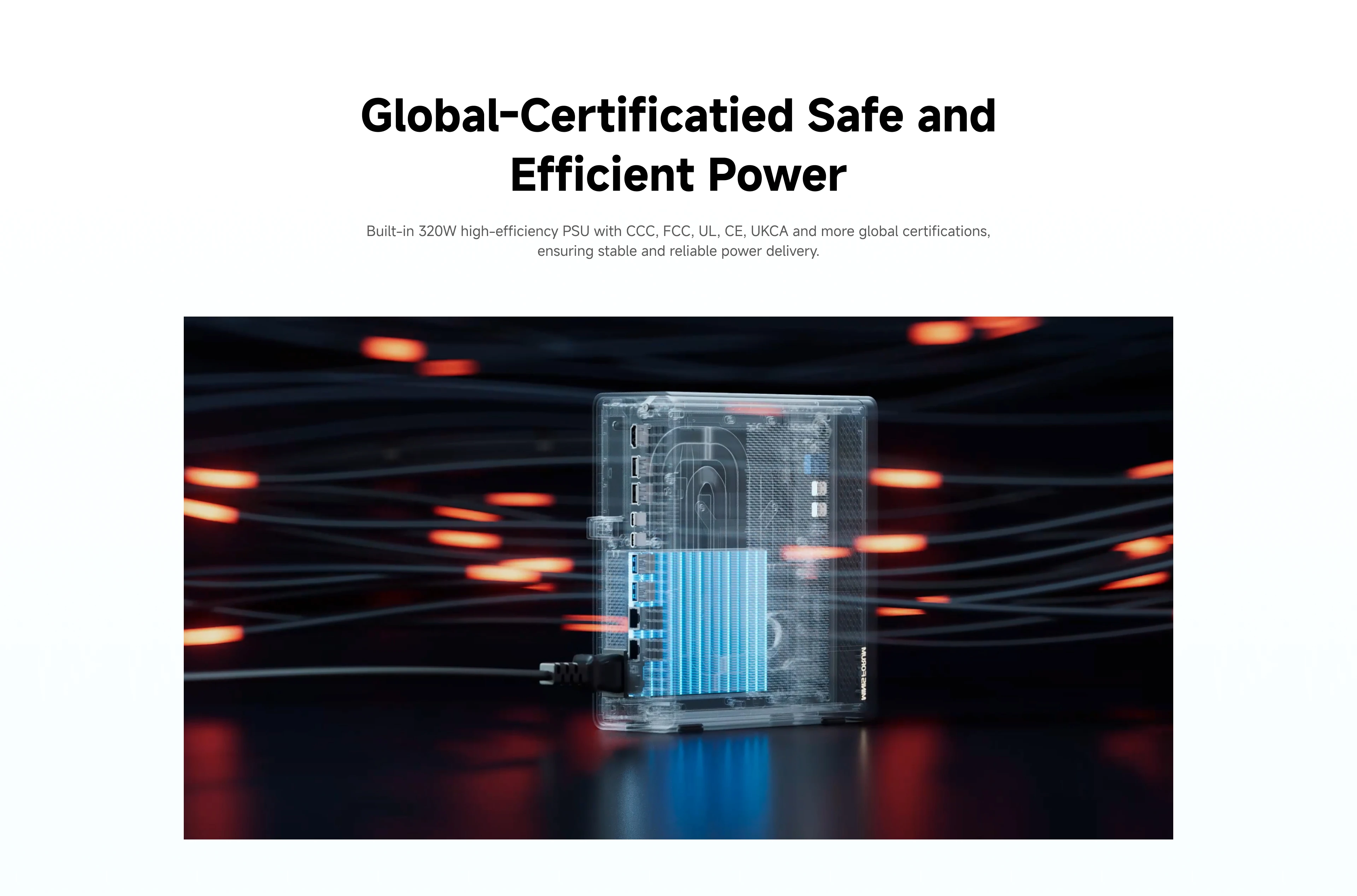

| Power | AC INPUT (100-240V ~6A 50-60Hz, Internel-DC 12V/26.6A, 320W MAX) |
| VESA Mount | 100-178.5mm |
| Dimensions | 222.1*206.3*77.1mm |
| Weight | 2.8 kg |
