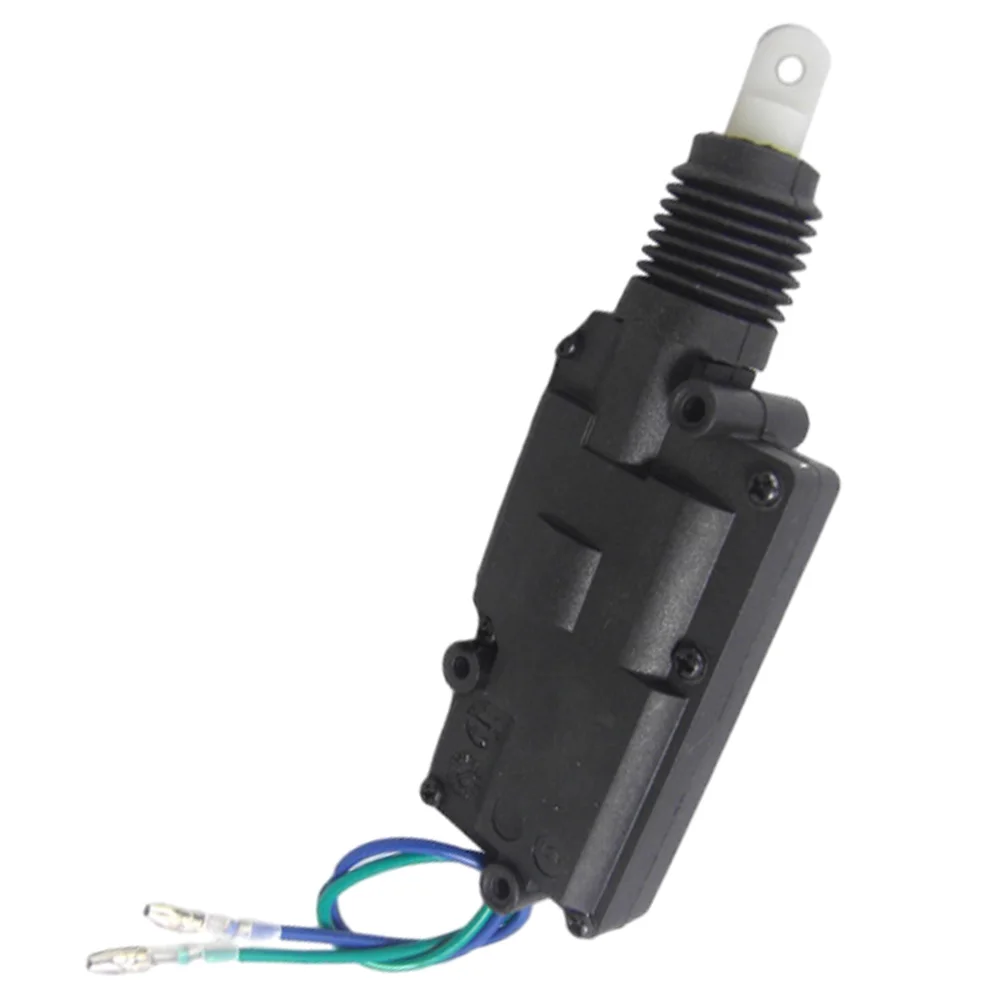

Power Door Lock Actuator – Best Universal Heavy Duty 12V Kit

Features:

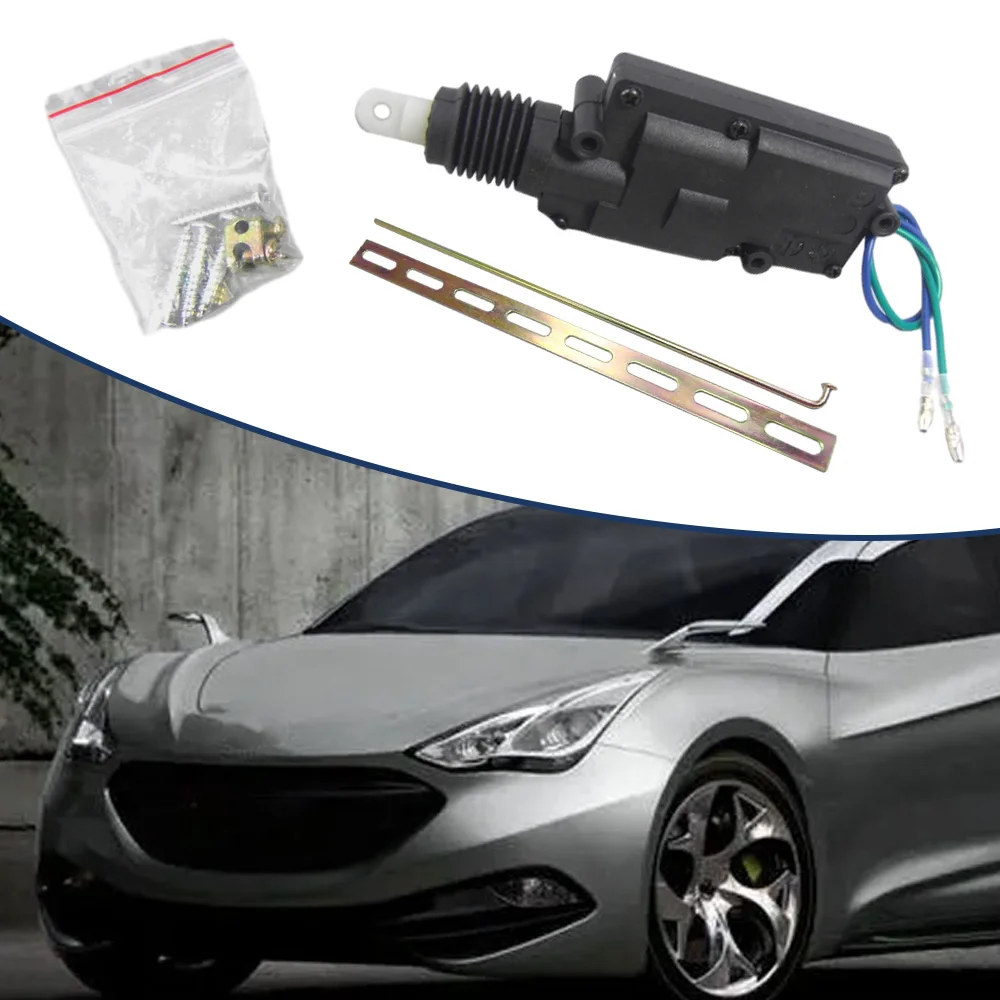

Manual To Power Lock Conversion: The universal power door lock actuator is designed for vehicles equipped with manual door locks, allowing the lock system to be converted into a power-assisted central locking setup suitable for integration with alarm systems or remote controllers

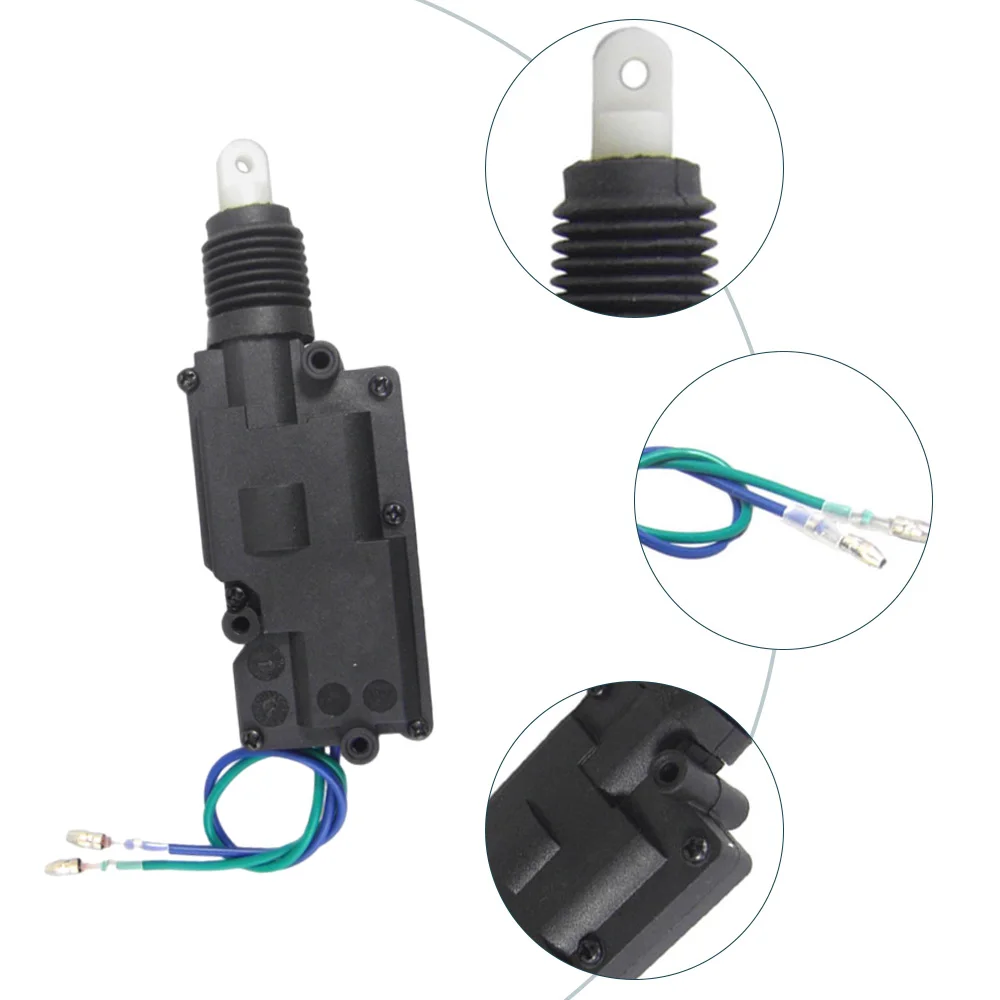

Rotating Head And Dual Track Structure: The adjustable rotating head supports flexible mounting angles during installation, while the dual track structure helps maintain steady linear movement during repeated locking and unlocking cycles

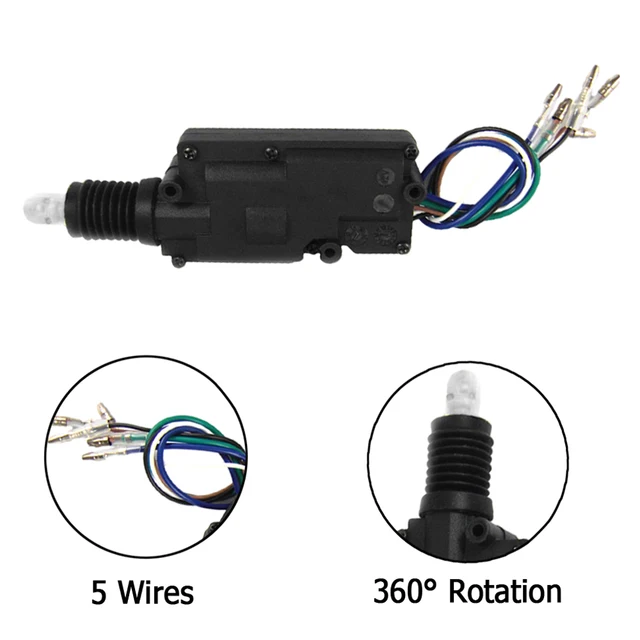

Wide Vehicle Application: This power door lock actuator is suitable for most vehicles running on a 12 V power system and is available in 2-wire or 5-wire configurations, allowing selection based on different central locking system layouts and vehicle wiring setups

Material Construction: Made from plastic and metal materials, the housing supports stable electrical insulation and structural integrity under regular in-door usage conditions, with sealed joints formed through ultrasonic welding

Installation Recommendation: Designed to match common door lock layouts, professional installation is recommended to confirm correct positioning, wiring connection, and functional setup(Note: Please check on your car model details to confirm if this item is fitted)

Specifications:

Product Name: Universal Heavy Duty Power Door Lock Actuator

Material: Plastic and Metal

Color: Black

Number of Wires: 2 Wires/5 Wires

Operating Voltage: DC12V±10%

Empty-load Current: 1.5A±5%

Stall Current:＜5A

Load Current: 3A+10%

Pull Force: 3.5kg

Push Force: 3.5kg

Mechanical Life: ≥100,000 Working Cycles (Up and Down Operation as a Working Cycle)

Electrical Life: ≥80,000 Working Cycles±10%

Travel Distance: 2.2cm±0.05cm/0.87±0.02inch

Travel Time: 0.3~0.4 Seconds

Operating Temperature: -30~80℃/-22~176℉

Specification of Motor Wire: 2.326*0.14 Copper (AVS 0.41)

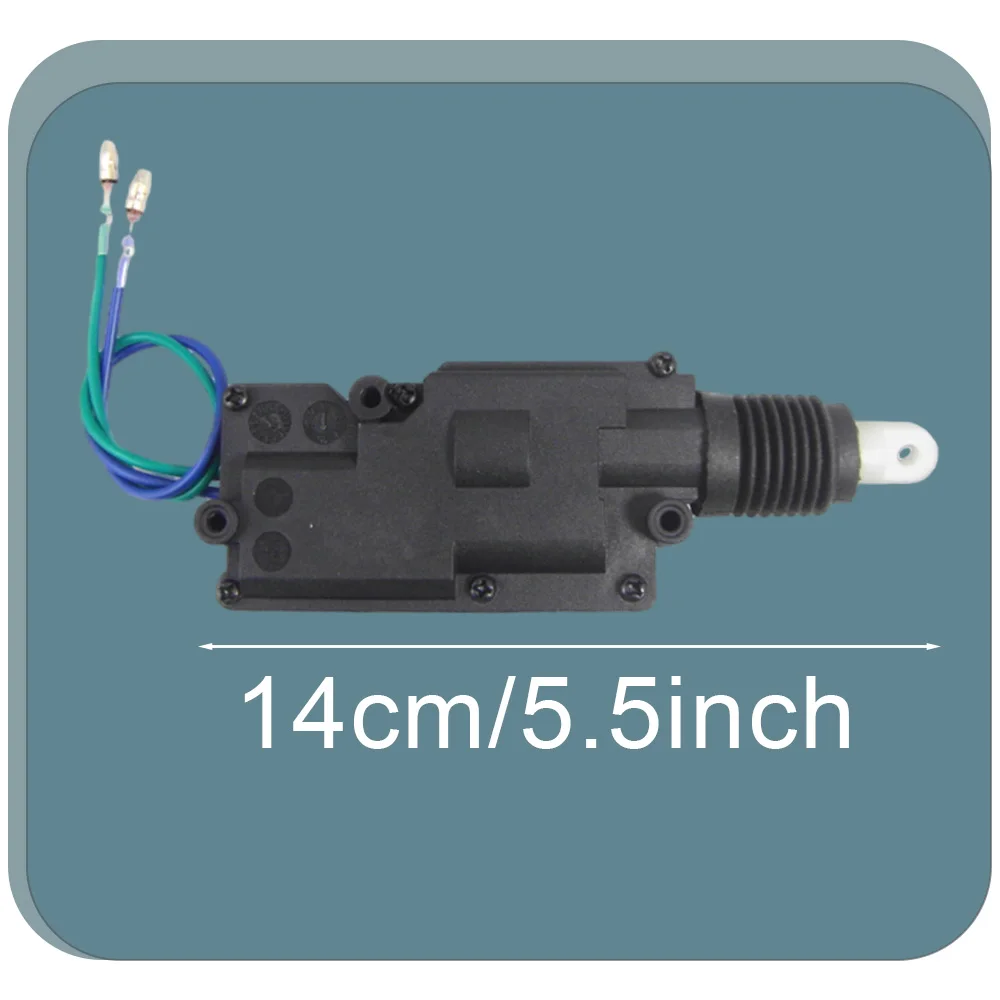

Dimensions (Not Include Cable Length): About 14*4.7*2.6cm/5.5*1.85*1inch

Telescopic Length (Not Include Cable Length): 12.6~14cm/4.96~5.5inch

Note: The actual colour of the accessories is based on the real thing.

Fitment:

Compatible with Most Vehicles Using a 12 V Power System

Note: Please check on your car model details to confirm if this item is fitted

Package Included:

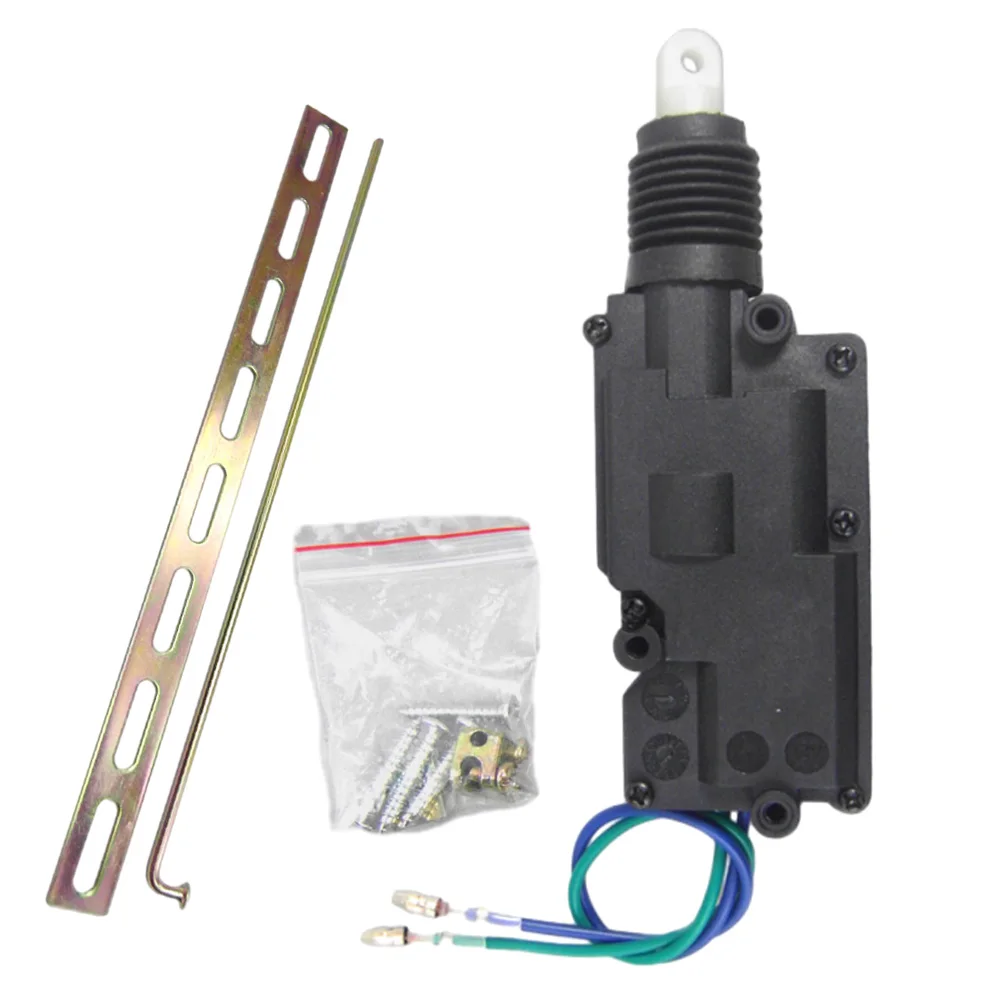

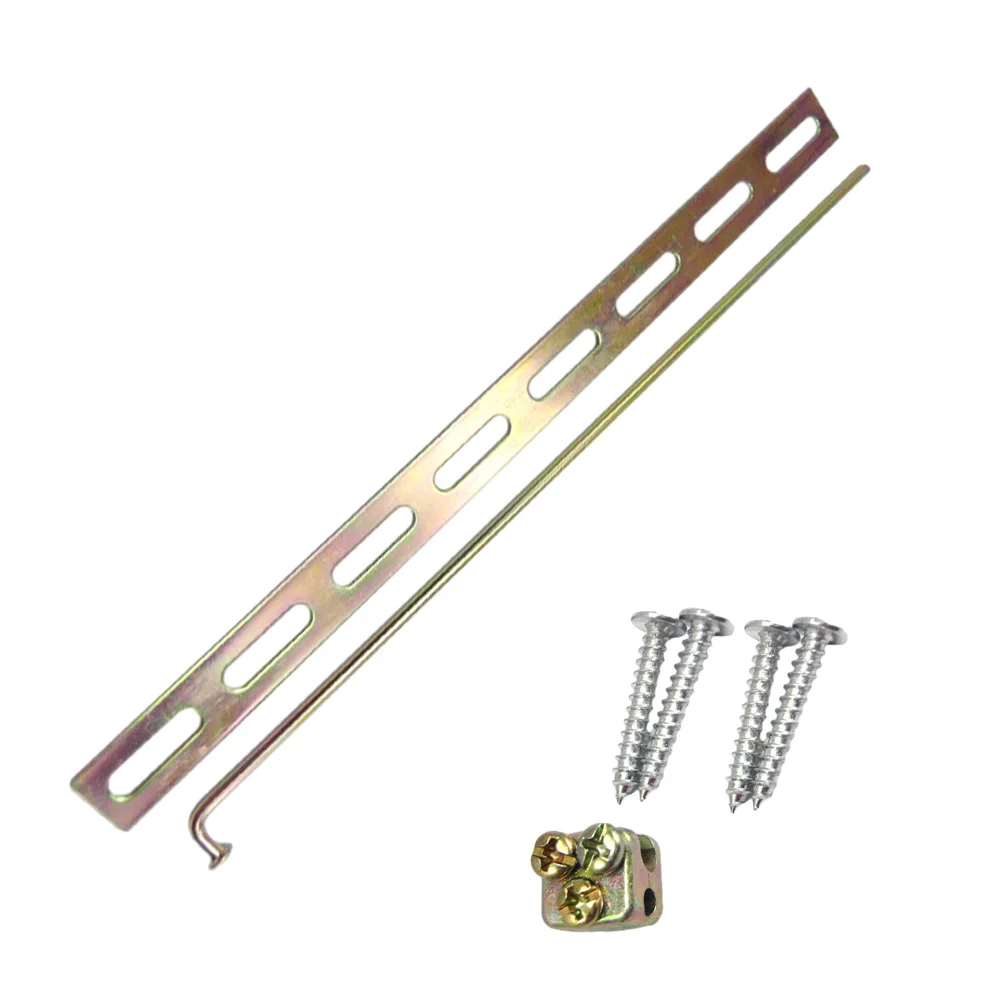

A Set of 2 Wires Universal Power Door Lock Actuator Set with Accessories

or

A Set of 5 Wires Universal Power Door Lock Actuator Set with Accessories
