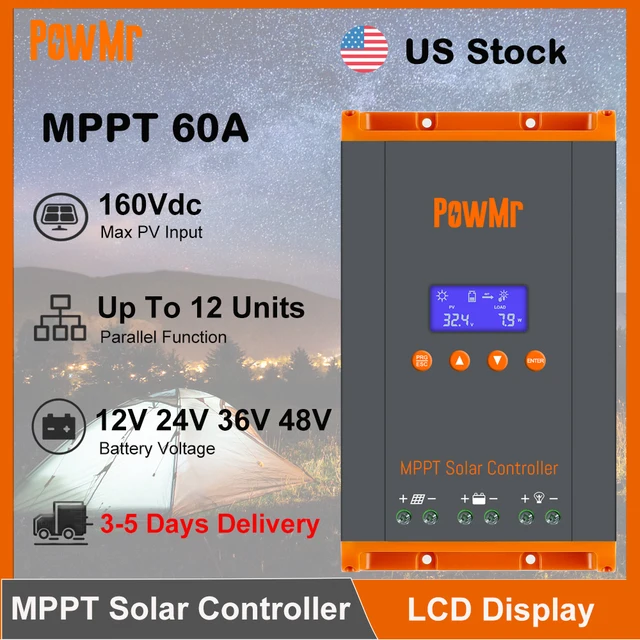

PowMr 60A MPPT Solar Charger Controller 12V/24V/36V/48V LCD Dispaly Max Solar Panel PV 160V Support Parallel Max 12 Units Fit for Home RV Boat Camp
Introduction
Product Features
Software Update MPPT Design 100% MPPT 60A solar charge controller Intelligent, Max efficiency ≥98.1%, PV utilization ≥99%. Built-in DSP controller with high performance Automatic battery voltage detection 12V/24V/36V/48V, Make sure batteries' voltage more than 12V to boost controller and make sure battery has enough power to Self-detection when connected to the controller
Supports Up to 12 Units in Parallel
The parallel operation function allows for easy expansion of the solar panel configuration and energy storage capacity limits, thus increasing the scale of energy storage. For detailed parallel operation guidelines, refer to Section 7.

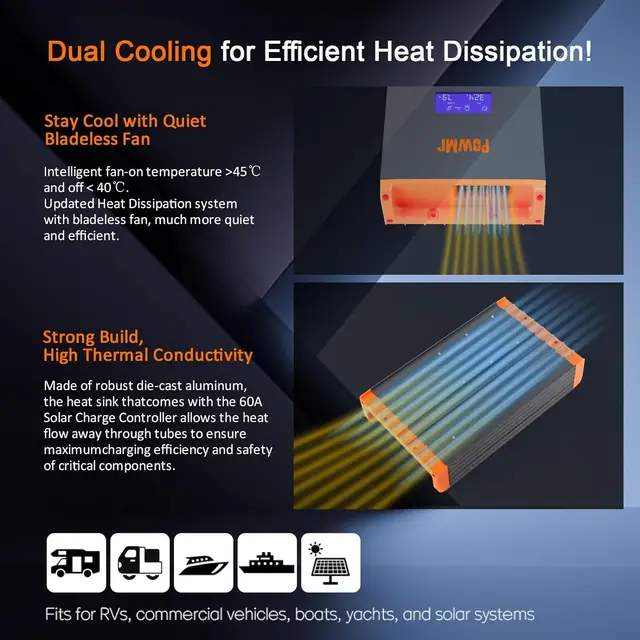

Forced Air Cooling
Built-in cooling fan for forced heat dissipation, improving overall device operational efficiency.
Lithium Battery Activation
Compatible with lithium batteries. When the battery type parameter is set to lithium batteries, the charging cycle will be adjusted to accommodate the needs of lithium battery charging. Additionally, when connected lithium batteries are in a protected state, the controller will activate the lithium batteries with the energy from the solar panels, with current not exceeding the lithium battery protection voltage and current range.
|
Models
|
HHJ60-PRO
|
|
Solar Input Parameters
|
|
|
Max. Solar Array Open-Circuit Voltage
|
160V
|
|
Maximum Input Power:
For 12V System
For 24V System
For 36V System
For 48V System
|
720W
1440W
2100W
2800W
|
|
Input Voltage Range:
For 12V System
For 24V System
For 36V System
For 48V System
|
20V~80V
37V~105V
50V~160V
72V~160V
|
|
Battery Charging Parameters
|
|
|
Charging Technology
|
MPPT
|
|

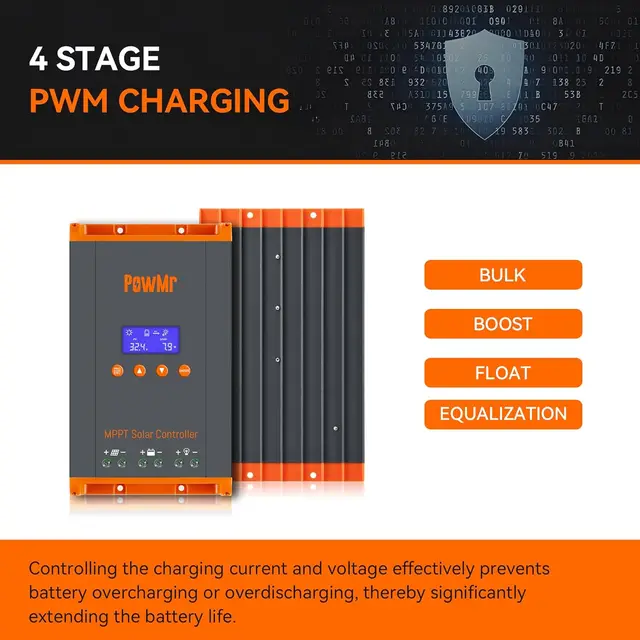

Charging Algorithm
|
3 stages
|
|
Battery Voltage Auto-Detection
12V System
24V System
36V System
48V System
|
DC9V~DC15V
DC18V~DC29V
DC30V~DC39V
DC40V~DC60V
|
|
Overcharge Protection Voltage
|
60V
|
|
Charging Limit Current
|
61A
|
|
Maximum Efficiency
|
≥98. 1%
|
|
Solar Utilization Rate
|
≥99%
|
|
Load Terminal Output
|
|
|
Rated Output Current
|
6A
|
|
Maximum DC Output Current
|
8A
|
|
Protection
|
|
|
Temperature Protection
|
75℃ / 167 ℉
|
|
Fan Start Temperature
|
>45℃ / 104℉
|
|
Fan Shutdown Temperature
|
<40℃ / 95℉
|
|
General Specification
|
|
|
Electromagnetic Compatibility
|
EN61000, EN55022, EN55024
|
|
Protection Level
|
IP21
|
|
Operating Temperature
|
-20℃ ~ +55℃ / -4℉ ~ 131℉
|
|
Storage Temperature
|
-40℃ ~ +75℃ / -40℉ ~ 167℉
|
| Weight | 1.35 lbs |
|---|---|
| Dimensions | 33 × 20 × 15 in |
| Brand Name | PowMr |
| High-concerned chemical | none |
| Origin | Mainland China |
| Model Number | MPPT 60A |
| Maximum Current | 60A |
| Application | Charger Controller, Voltage Controller, Lighting Controller, Solar System Controller, Solar Working Station |
| Max. Solar Array Open-Circuit Voltage | 160V |
| Charging Technology | MPPT |
| System Voltage | 12V/24V/36V/48V |
| Display | LCD Display |
| Item | 60A MPPT Solar Controller |
| Feature 1 | MPPT Solar Controller |
| Feature 2 | MPPT 60A Solar Controller |
| Feature 3 | for home RV camp |
| Feature 4 | Fit LifePO4 Battery |
4.9
100% Recommended (19 of 19)
Submit Your Review
Related products
More Products-
Super Sticky Cloth Duct Tape Carpet Binding Floor Waterproof Heavy Duty Industrial Adhesive Tape Repair Bundles
Price range: $6.99 through $12.99Select options This product has multiple variants. The options may be chosen on the product page -
Double Sided Adhesive Tape Extra Powerful Contact Strong Waterproof Removable Mounting Tape Stickers To Stick Objects To Wall
Price range: $3.99 through $8.99Select options This product has multiple variants. The options may be chosen on the product page -
Door Bottom Door Seam Sealing Strip Under the Door Thickened Sound Insulation Bug Proof Windproof Dust Household Door Bedroom
Price range: $7.99 through $8.99Select options This product has multiple variants. The options may be chosen on the product page -
DIY Non-Slip Furniture Pads Mute Mats Bumper Damper Anti-slip Thick Pad Foot Cover Self Adhesive Table Chair Foot Protection Pad
Price range: $7.99 through $25.99Select options This product has multiple variants. The options may be chosen on the product page -
300CM Strong Permanent Double Sided Tape Acrylic Foam Adhesive Waterproof High Temperature Tape Sticker for Car Indoor Decor
Price range: $4.99 through $14.99Select options This product has multiple variants. The options may be chosen on the product page
Anonymous

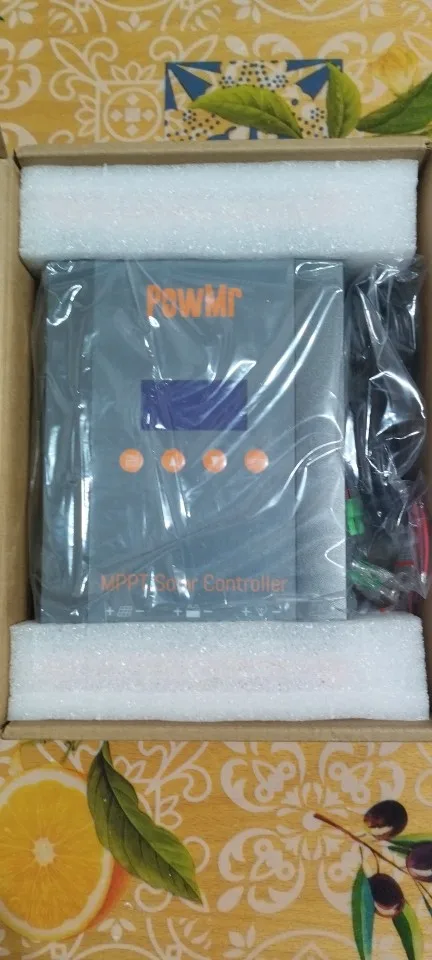

The package arrived quickly. Everything is as described. Connected it to the battery – it works. Haven’t installed it in the system yet. Weight is 1.3 kg. Thank you to the seller. Packaged well. I will update the review after installation in the system.
Color: MPPT 60A Rated Voltage: 12V 24V 36V 48V Auto Ships From: China Mainland
Anonymous
I have been using the same model for a year with 2 480W panels at a voltage of 40V each, connected in series. The no-load voltage of over 80V works better than a 24V LiFePO4 battery. There are not many settings, so it’s simple and easy to configure.
Current: MPPT 60A Rated Voltage: 12V 24V 36V 48V Auto Ships From: GERMANY
Anonymous
The first impression of the system is very positive.
The PowMr MPPT charge controller operates stably and charges reliably. With two 100-watt solar modules, I achieve about 120–130 watts under real conditions with good sunlight, but not the optimal installation angle – a very good result for this configuration.
Rated Voltage: Regular Version Controller Type: 1PC
Anonymous
It works well, you need to configure it by connecting only the battery and choosing the right battery model. I have it connected to a 24V LiFePO4 battery and it works fine; we’ll see how it performs when summer arrives and there’s more sunlight.
Current: 60A Rated Voltage: 12V 24V 36V 48V Ships From: China Mainland
Anonymous
Everything as described, would gladly buy again, excellent, thank you.
Current: MPPT 60A Rated Voltage: 12V 24V 36V 48V Auto Ships From: GERMANY
Anonymous
It works, the maximum power I measured on a 620-watt panel was about 400 watts. A decent product.
Color: MPPT 60A Rated Voltage: 12V 24V 36V 48V Auto Ships From: China Mainland
Anonymous
Arrived in Ukraine in 8 days, well packaged, top seller, highly recommended.
Color: MPPT 60A Rated Voltage: 12V 24V 36V 48V Auto Ships From: China Mainland
Anonymous
It works perfectly and fast charging
Color: MPPT 60A Rated Voltage: 12V 24V 36V 48V Auto Ships From: China Mainland
Anonymous
Yes, the package arrived.
Color: Parallel Version Current: MPPT 60A Ships From: China Mainland
h***r
Turbo delivery, 100 points, couldn’t be better, thank you!
Current: MPPT 60A Rated Voltage: 12V 24V 36V 48V Auto Ships From: GERMANY
j***r

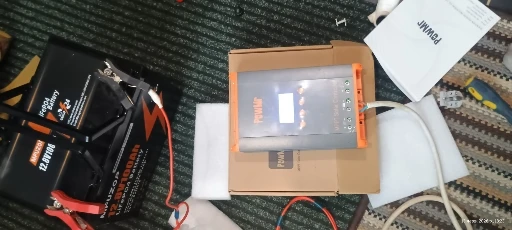

Fast shipping. I have only been able to test the battery connection and it works. I haven’t tested the panels due to lack of sunlight.
Color: MPPT 60A-Parallel Ships From: france
S***i

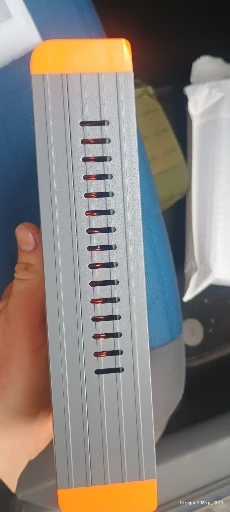

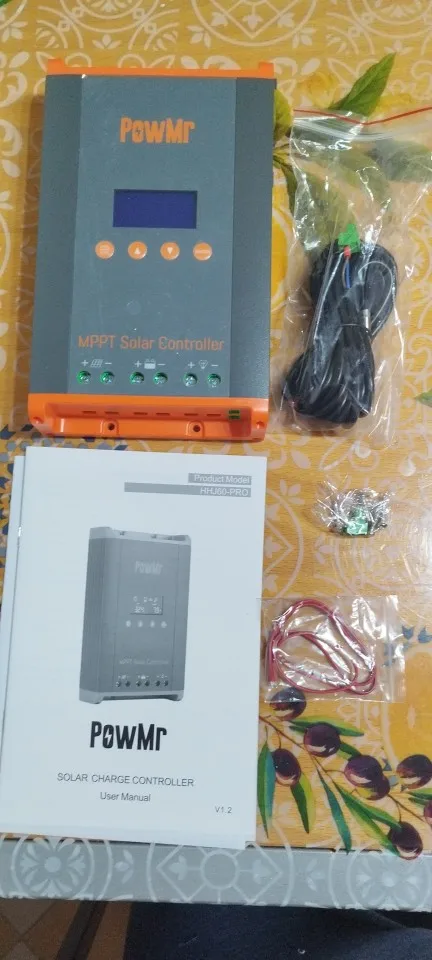

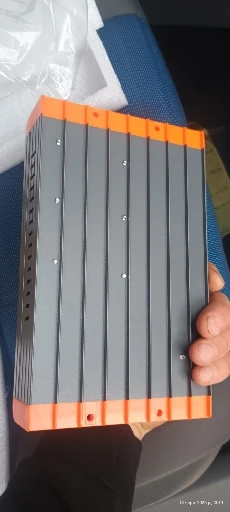

mppt charge controller powmr very well made, aluminum frame, and cooling fan. Now I have to test it, I’m optimistic.
Current: MPPT 60A Rated Voltage: 12V 24V 36V 48V Auto Ships From: france
A***n

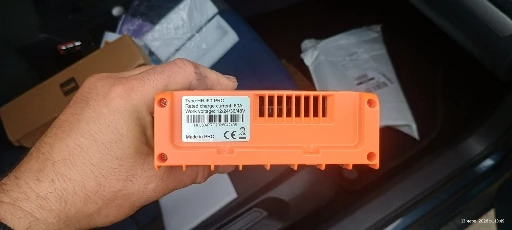

The controller was shipped within 24 hours of placing the order, it was packaged well, and arrived with no visible external damage.
I just got it, so haven’t installed it yet, but i have a similar solar charger from the same brand, and it’s been working without any problems for the last two years or so.
I recommend both this brand and the store.
Color: MPPT 60A Rated Voltage: 12V 24V 36V 48V Auto Ships From: CHINA
D***p
Yes, the package arrived very well, I haven’t tried it yet.
Color: Parallel Version Current: MPPT 60A Ships From: CHINA
Anonymous
Good charger.

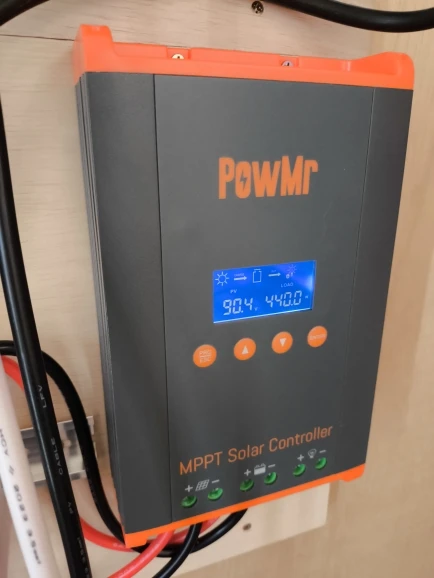

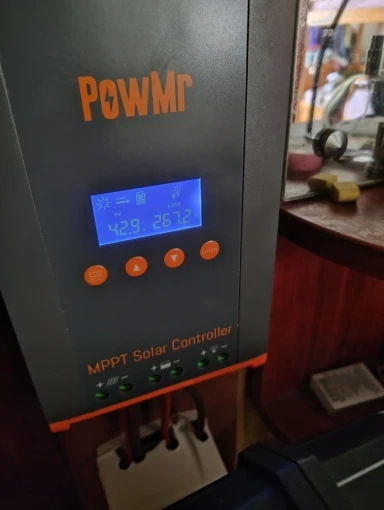

I setup for 100v pv input and 48v output batt.

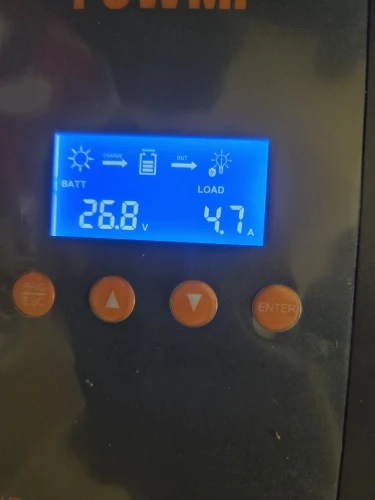

As of now it works fine and easy to know the current voltage aand wattage.
Color: MPPT 60A Rated Voltage: 12V 24V 36V 48V Auto Ships From: CHINA
Anonymous

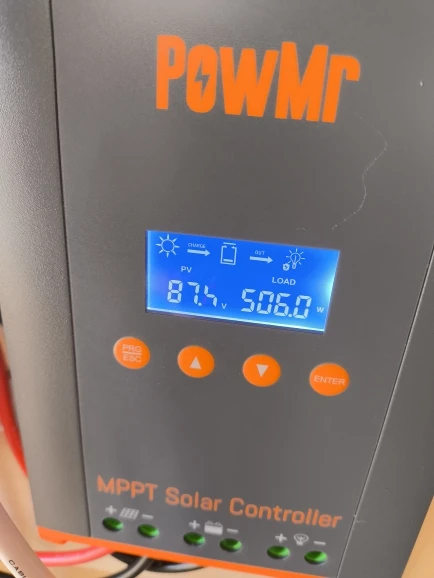

Definitely, when using 2 panels with a voltage of 40V, the voltage adds up so it works perfectly at 80V from the panels.
