Precautions:
1. This rangefinder is designed for long-distance measurements, with a minimum measurement distance of 5 meters.
2. Glass can reflect the laser beam and affect measurement results. Do not measure through glass during use!
3. In low-light conditions at night, additional lighting is required to view the readings, as the eyepiece display is not illuminated.
4.It supports fixed 6x magnification, which can be adjusted to the appropriate magnification by manual rotating the eyepiece knob.
5.Rain, fog, and dusty conditions may obstruct laser transmission and affect the maximum measurement distance.When measuring objects, select light-colored buildings as the farthest target as possible. Complex vegetation on mountains can obstruct the reflection of laser signals.
Model Number:HK-600H(NKG-GOLF)
Unit：M/Yard Press the M button to switch the unit Y or M.

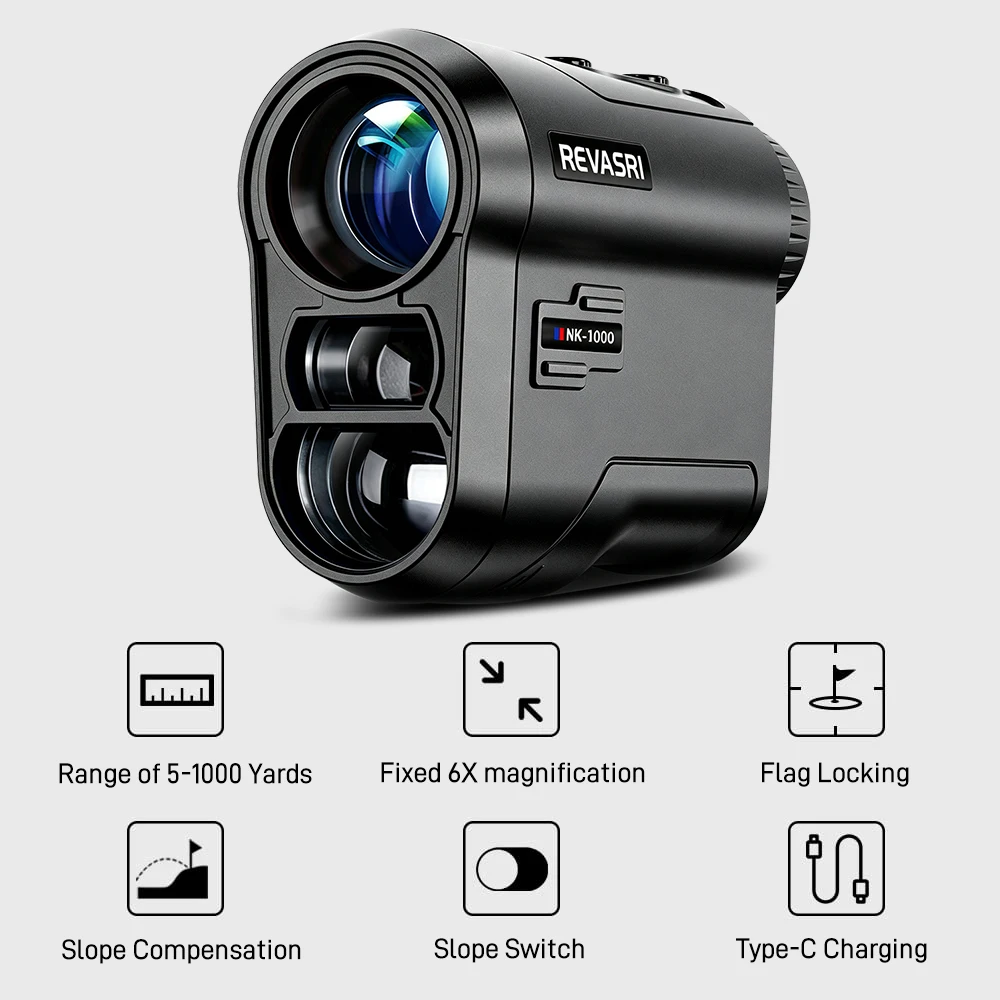

Features:
-
Ranging Method:Semiconductor laser ranging
-
Ranging Distance:5-600M/5-1000M
-
Ranging Accuracy:±1M
-
Ranging Display Mode:In-view LCD display
-
Exit Pupil Diameter:3.1mm
-
Exit Pupil Distance:12.1mm
-
Working Temperature:-20~50℃
-
Operating Humidity:≤80%
-
Laser Safty:905nm Class 1 laser, laser output<5mw
-
Power Supply:built-in Li-ion battery (3.7V) Supports USB-C charging
-

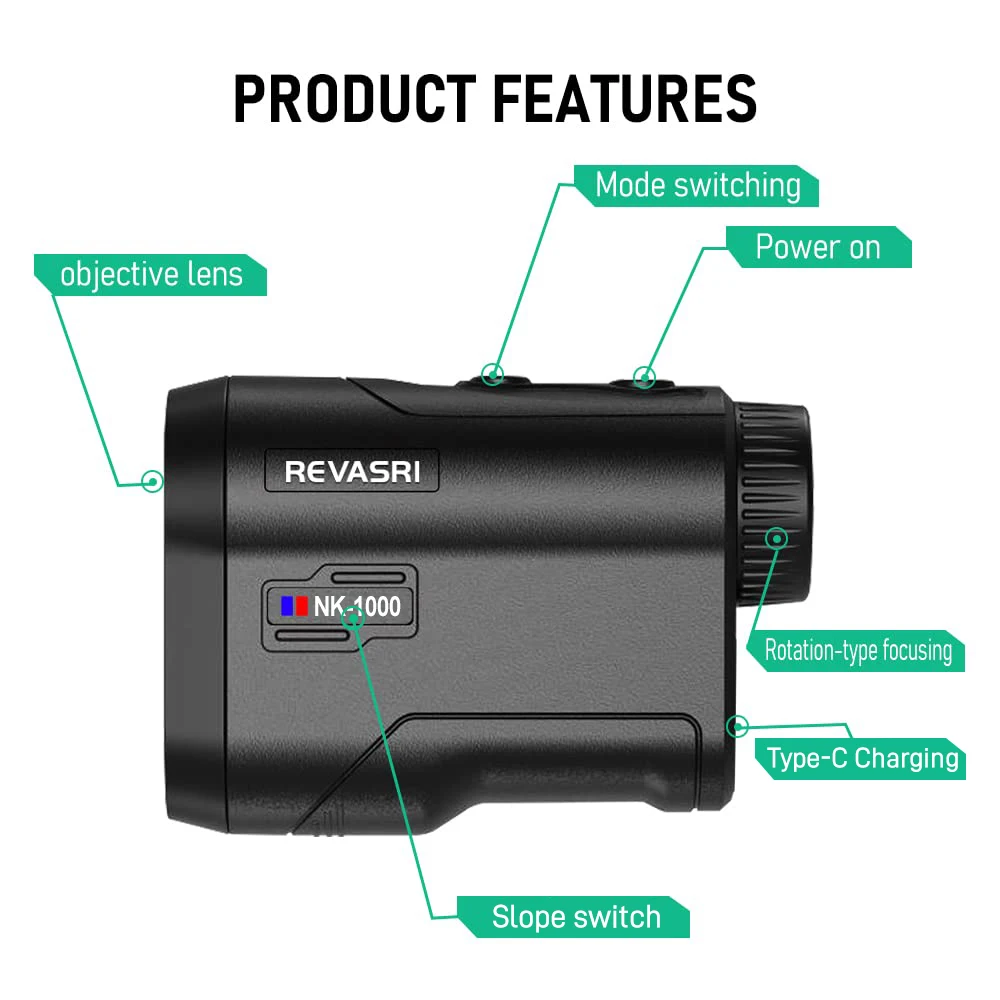

Focusing Mode:Manual Focusing(Rotating mirror）
-
Eyepiece Lens Quality:Multilayer Coated
-
Magnification:6X
-
Product Size:96*34*67mm
How does the rangefinder cause the lock fag to vibrate?
In Golf Mode.
1. measure the background of the slope behind the flag.
2. Press and hold the Measure button (to enter Scan Mode) and slowly move from the background toward the flag. The rangefinder will recognize the flag and the flag logo will flash and vibrate.
3. The distance to the flag and the slope compensation distance are displayed.
You can try again as mentioned above; if you have any other questions, please do not hesitate to contact me and we will reply to you as soon as possible.
| Weight | 0.215 lbs |
|---|---|
| Dimensions | 19 × 17 × 6 in |
| Brand Name | REVASRI |
| REVASRI Model | Golf Rangefinder with Slope |
| Laser hazard level | Class 1（<1mW） |
| High-concerned chemical | none |
| Origin | Mainland China |
| Semi-finishedproduct | No |
| Battery Included | Yes |
| Operation Mode | Manual |
| Lock Type | none |
| Power Source | Rechargeable |
| Power Type | Rechargeable |
| Certification | CE, FCC, RoHS, weee |
| Model Number | Golf Range Finder |
| Size | 96*34*67mm |
| Measurement Accuracy | ±1m |
| Product name | Golf Rangefinder for Golfing Tournament Legal |
| Measuring Range | 5-600m/5-1000m |
| Measurement errors | ±1Yard/Meter |
| Power supply | Type-C Rechargeable |

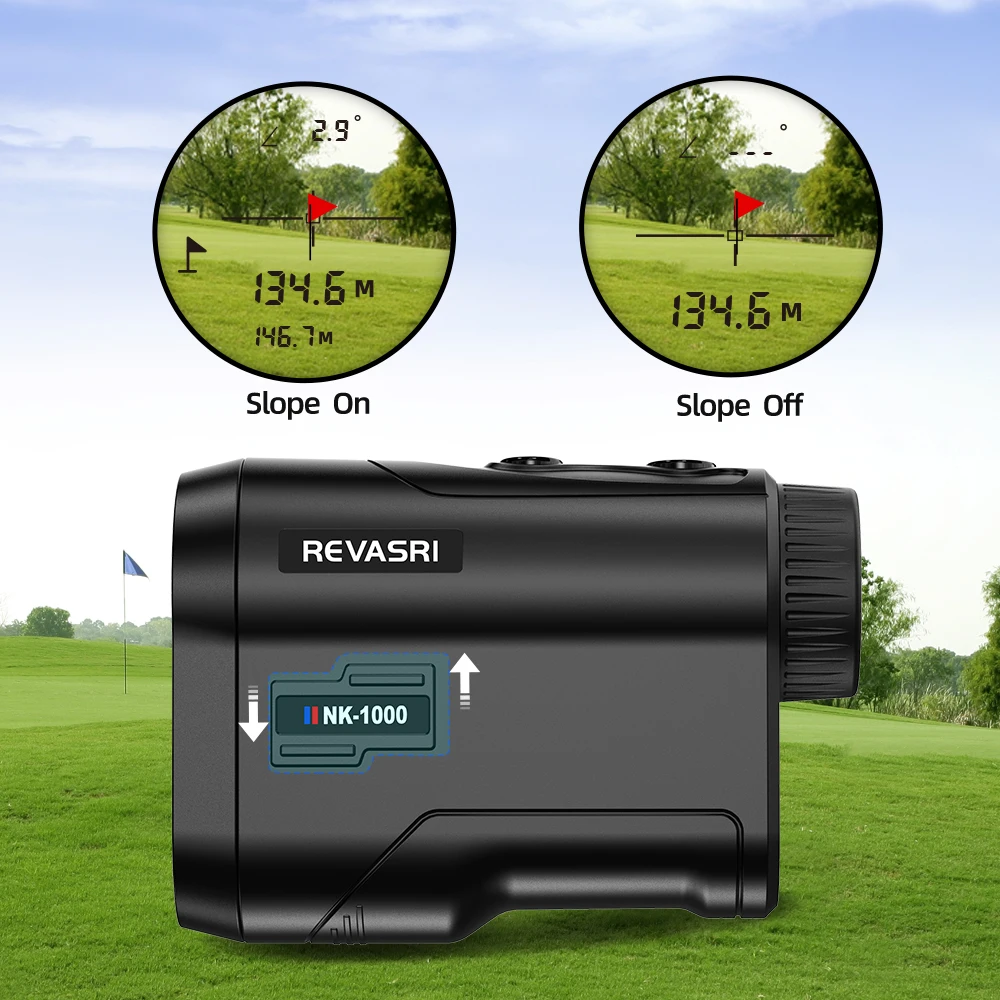

| Slope switch | Yes |

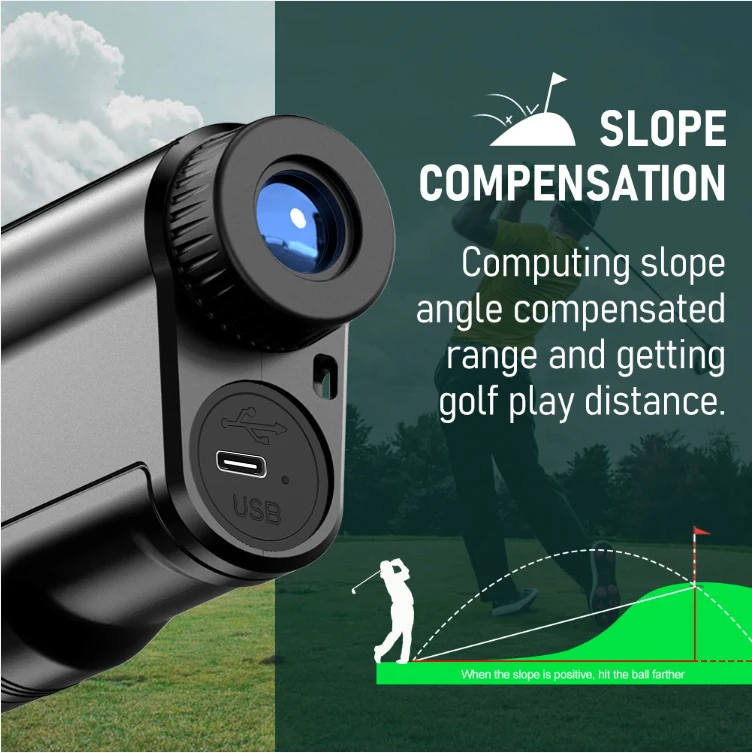

| Slope compensation | Yes |
| Magnification | 6x fixed magnification |
| Switch Unit | Press the M button to switch the unit-M/Yard |
| Vibration | After the flag is locked |
| Applications | for Golf Tournament Legal |
| Choice | yes |
