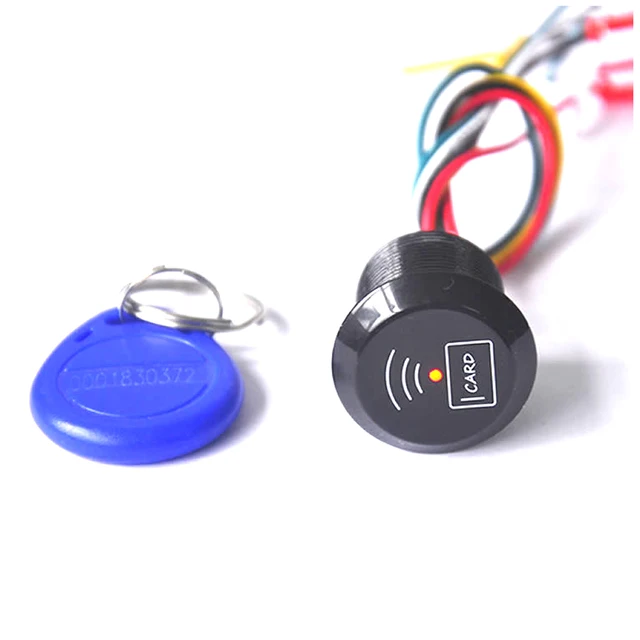

Read head is used in the international standard Wiegand protocol in the most common format WG-26 read head to support all access devices on the market, embedded installation.
ID 125KHZ Reader:
-
Operating frequency: 125Khz
-
Card read type: EM Marine
-
Read card distance: 2-6cm
-
Protocol: Wiegand 26
-
Voltage: 8-18V
-
Current: 35mA
-
Reminder lamp: red light
-
Shell material: polyamide
-

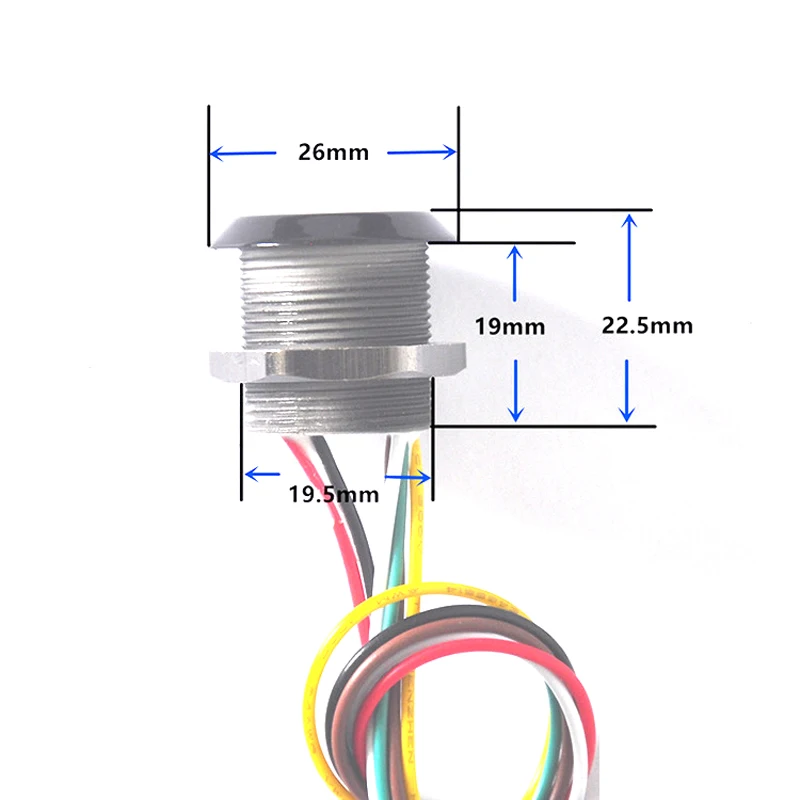

Size (mm): 25MM in diameter, 22MM in heig
IC 13.56MHZ Reader:
-
Operating frequency: 13.56 MHz
-
Card read types: Ultralight, 1K, 4K, Plus
-
Card reading distance: 2-6 cm
-
Protocol: Wiegand 26
-
Voltage: 8-18 V
-
Current: 35 mA
-
Red light emitting diode
-
Body material: polyamide
-

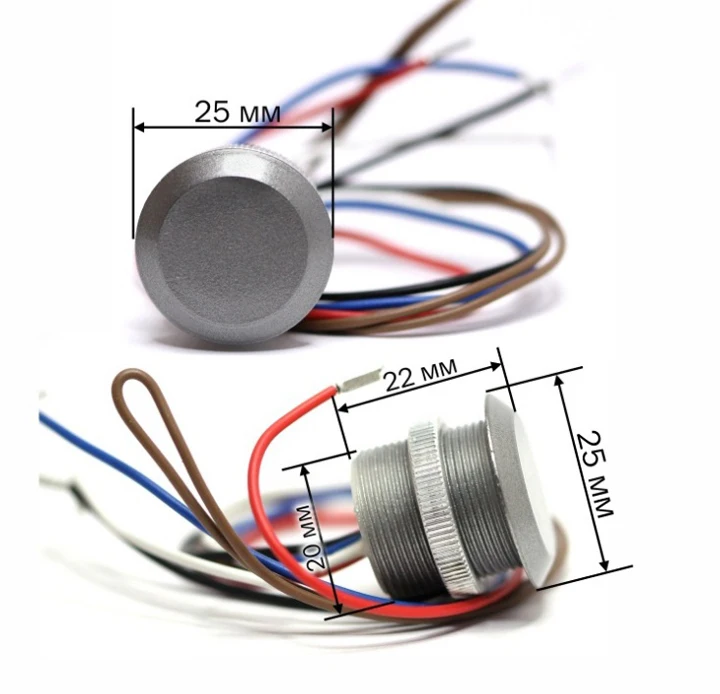

Size (mm): 25 mm in diameter and 22 mm in height
-
Datas for black readers as following:
| Weight | 0.100 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Brand Name | BoboYun Tech |
| High-concerned chemical | none |
| Origin | Mainland China |
| Certification | CE |
