Model |

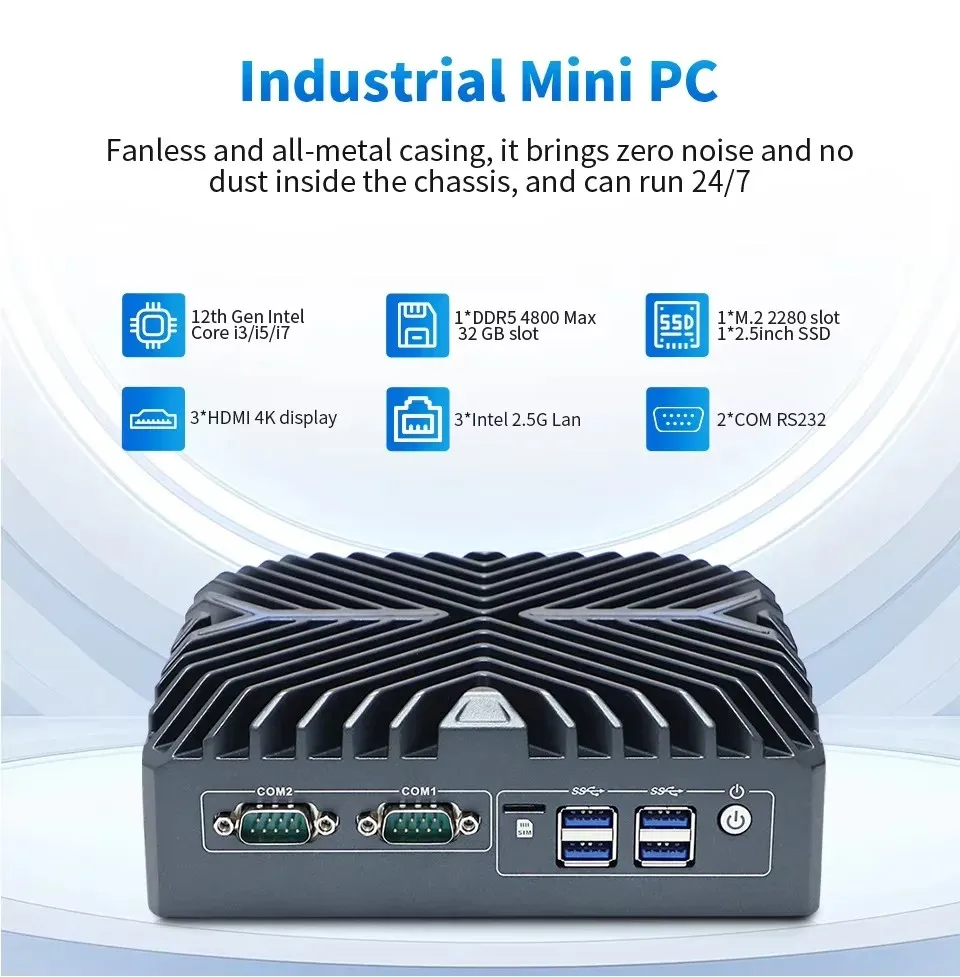

Industrial Mini PC |
|
Case Color |
Metal gray |
|
Material |
Aviation grade aluminum alloy fanless efficient heat dissipation |
|
Processor |

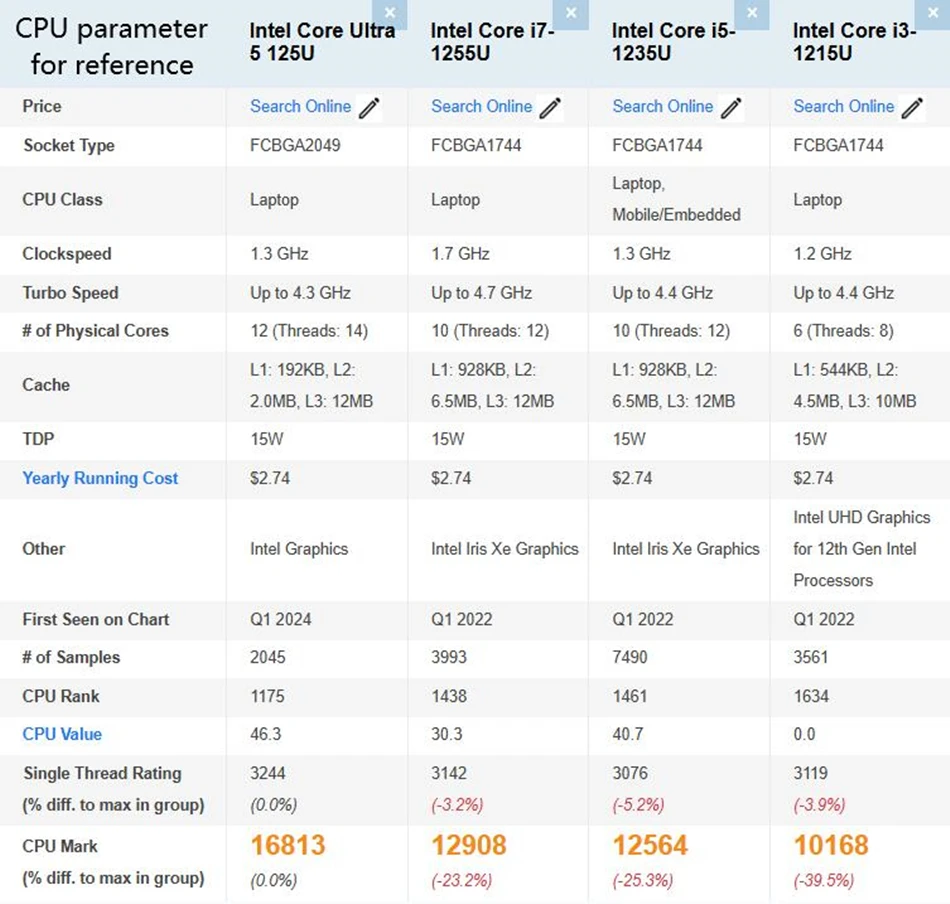

Intel Core Ultra 5 125U (12 core 14 threads, Max Turbo 4.3 GHz ) |
|
NPU |
Intel AI Boost (Max Frequency 1.4GHz) |
|
Memory |
1*DDR5 4800 SODIMM memory slot, Max 32 GB |
|
Storage |
1*M.2 NVME 2280 Slot，1*2.5” SATA3.0 |
|
Display Chip |
Intel Graphics |
|
DisplayPort |
3*HDMI2.0+1*Type-C(125U) Max resolution 4096×2160@60Hz |
|

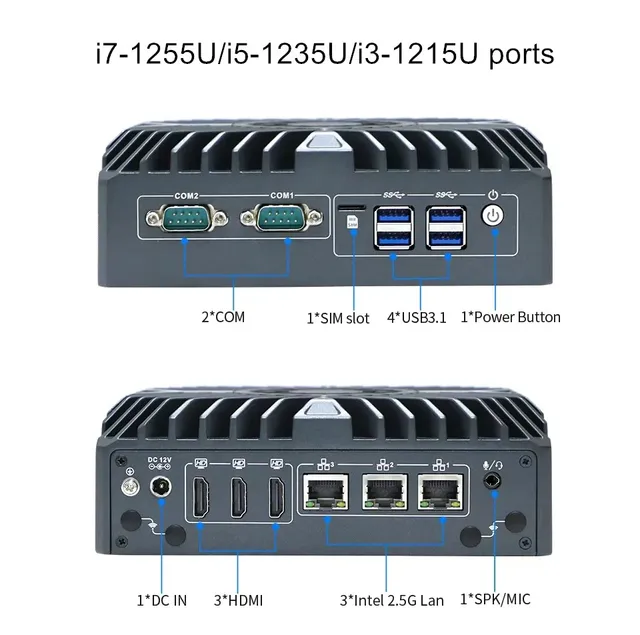

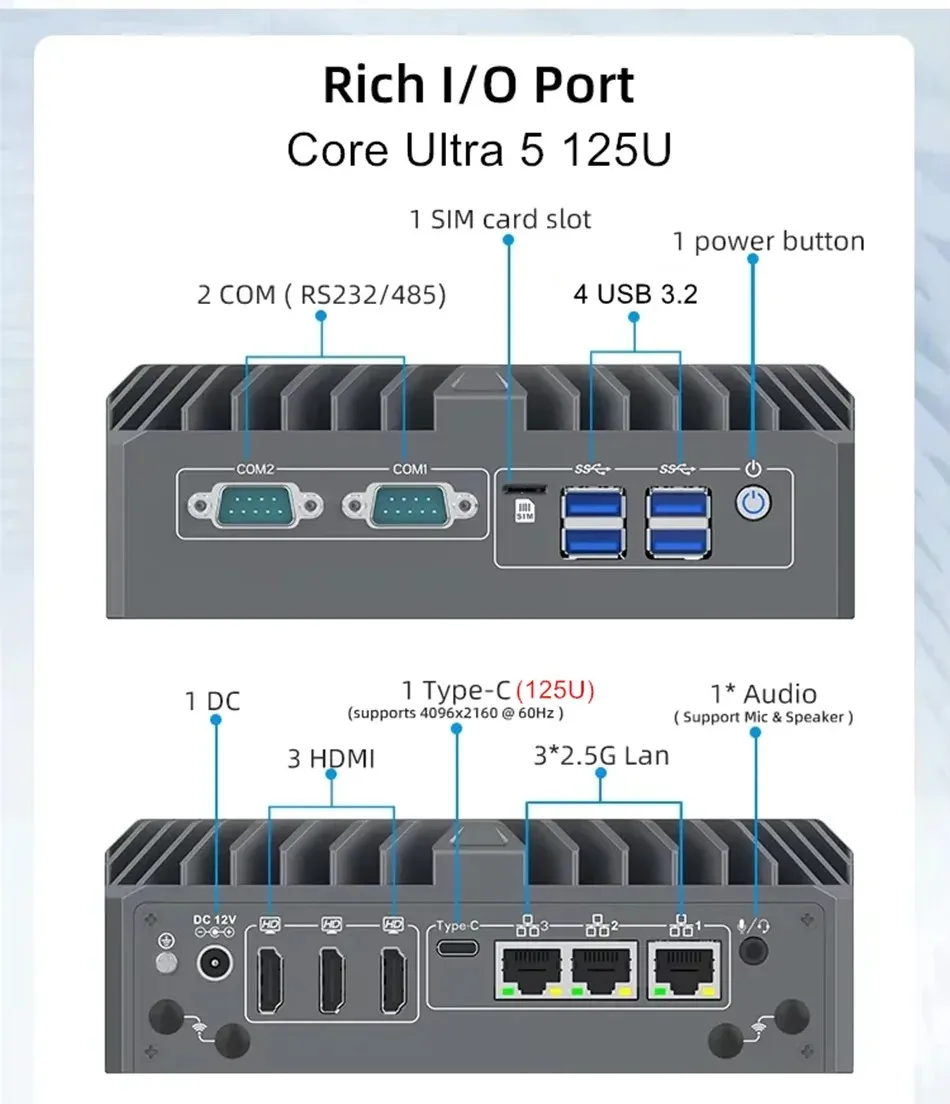

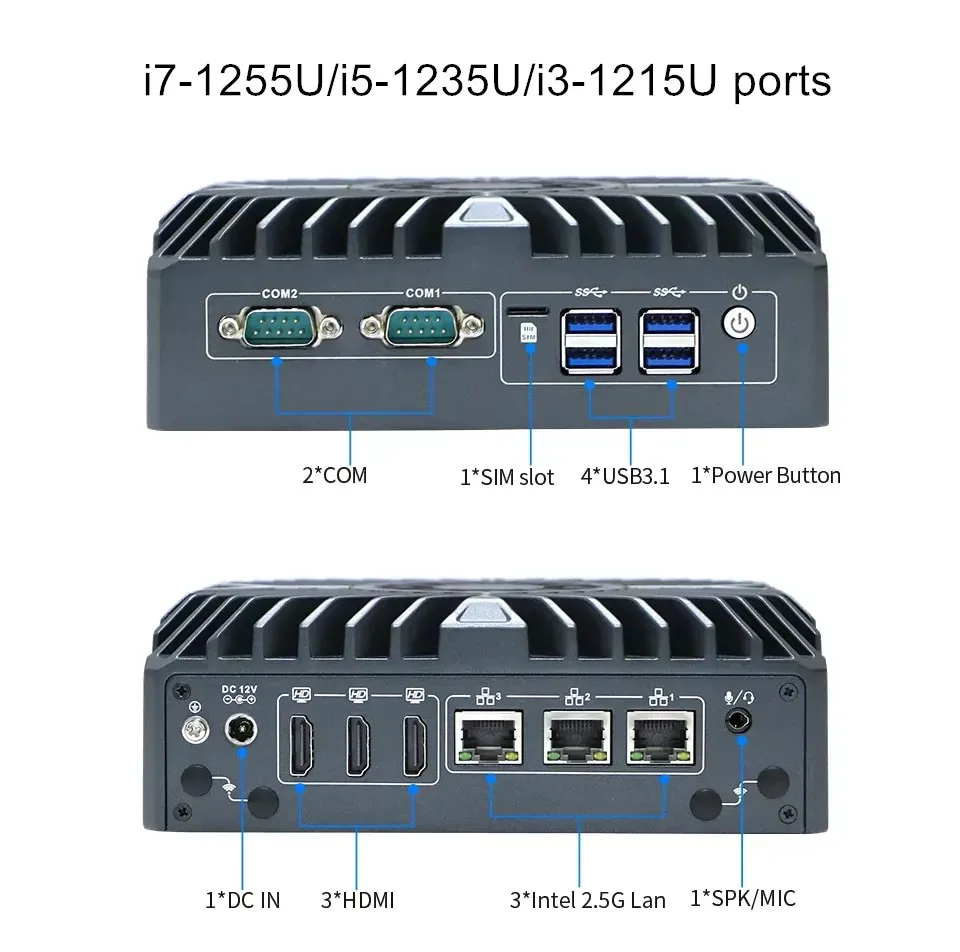

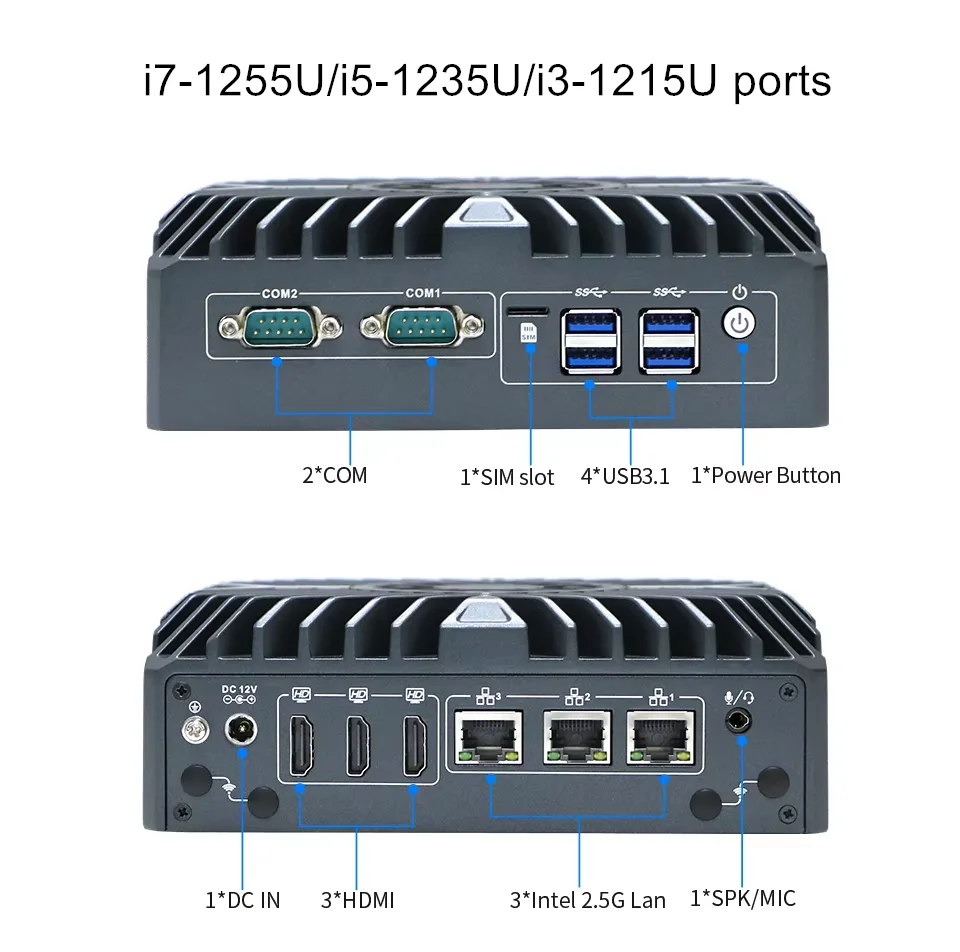

Front I/O |
2*COM ( RS232/485), 1*SIM card slot, 4*USB 3.2, 1*Power Button |
|
RearI/O |
1*DC-IN , 3*2.5G LANs, 1* Audio ( Support Mic & Speaker ) |
|
Expansion Slot |
1*M.2 2280 M-Key slot (NVME protocol, PCIE4.0/3.0) |
|
1*M.2 2230 E-key slot (supports WIFI, BT) |
|
|
1*MINI PCIE slot (PCIE &USB2.0 , supports 4G/WIFI), external SIM card slot (Nano card) |
|
|
Network |

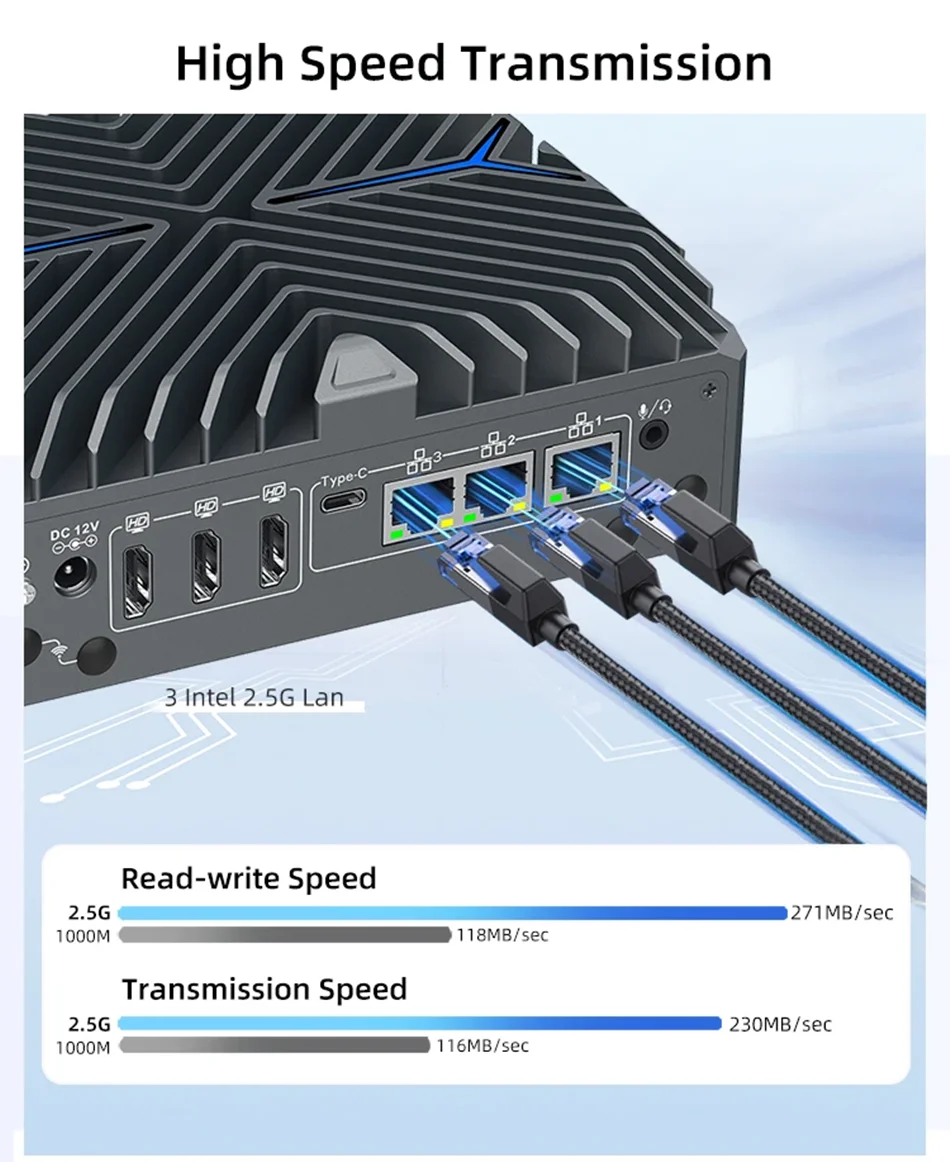

3*Intel i226-V 2.5G LANs |
|
Other Function |
Auto power on, RTC, Wake On LAN, PXE boot, Watchdog (0～255 Level), TPM2.0 security encryption |
|
Power Supply |
DC 12V |
|
Work Temp |
0℃ ～ +40℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
|
Work Humidity |
5% ～ 95% non-condensing |
|

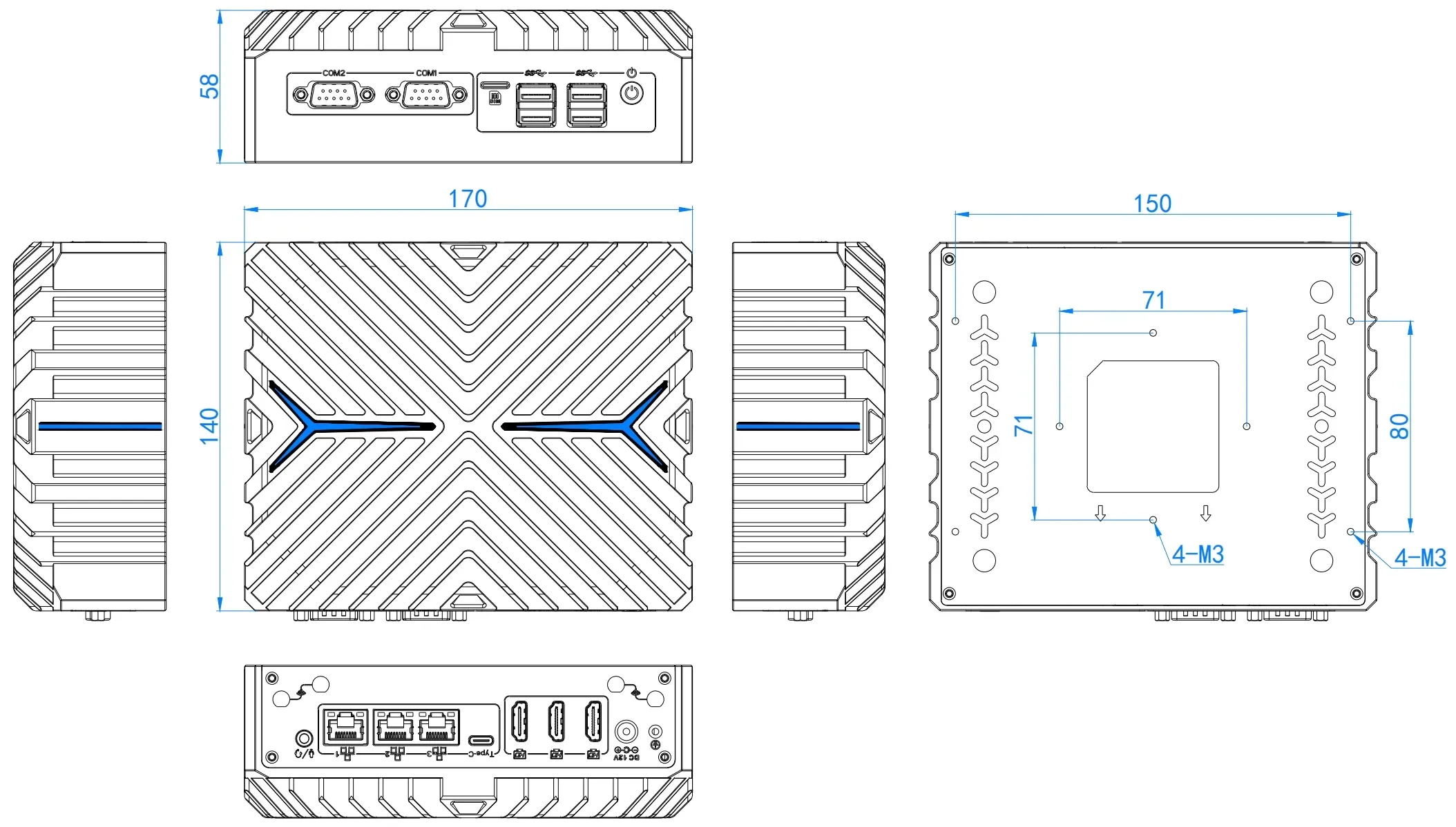

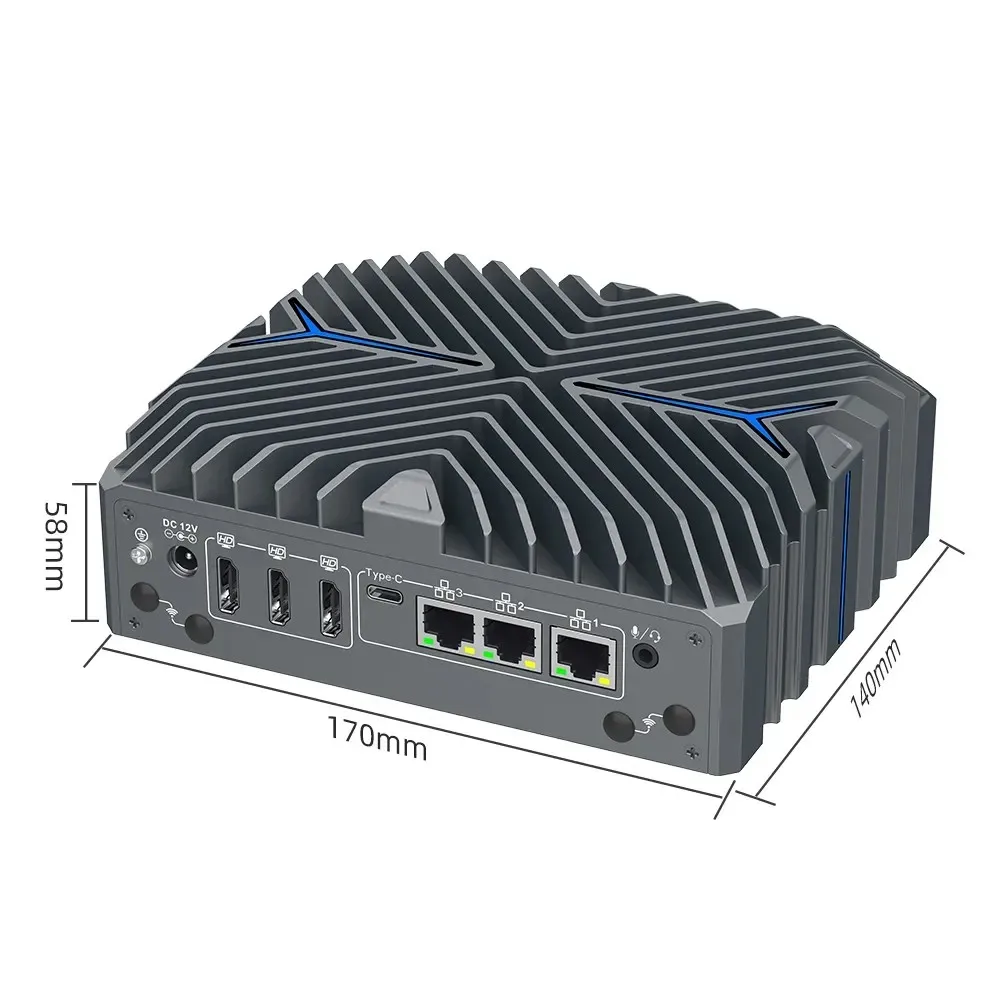

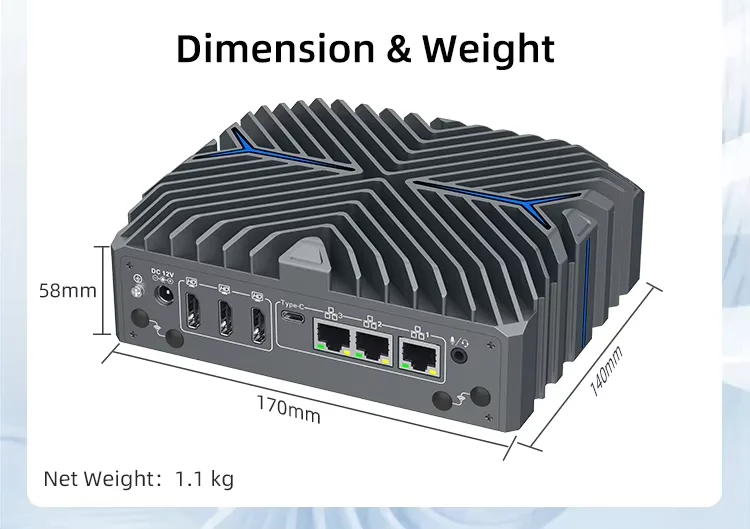

Dimension |
170 * 140 * 58 mm |
|
Weight |
1.1 kg |
|
Application |
Industrial Control, Industrial Automation, Robot, IoT gateway, Edge computing, Machine Vision, AGV/AMR, etc |
| Weight | 2.000 lbs |
|---|---|
| Dimensions | 1 × 1 × 1 in |
| Brand Name | kingnovyPC |
| Memory Capacity | ≤ 128MB |
| Hard Drive Capacity | ≤ 40 GB |
| Model Number | X3 |
| High-concerned chemical | none |
| Processor Model | Intel |
| Use | Multimedia |
| Origin | Mainland China |
| Type | Mini Desktop, Mini PC |
| Processor Main Frequency | Depend on CPU |
| Graphics Card Type | Integrated Card |
| Certification | CE, FCC, RoHS |
| Processor Brand | Intel |
