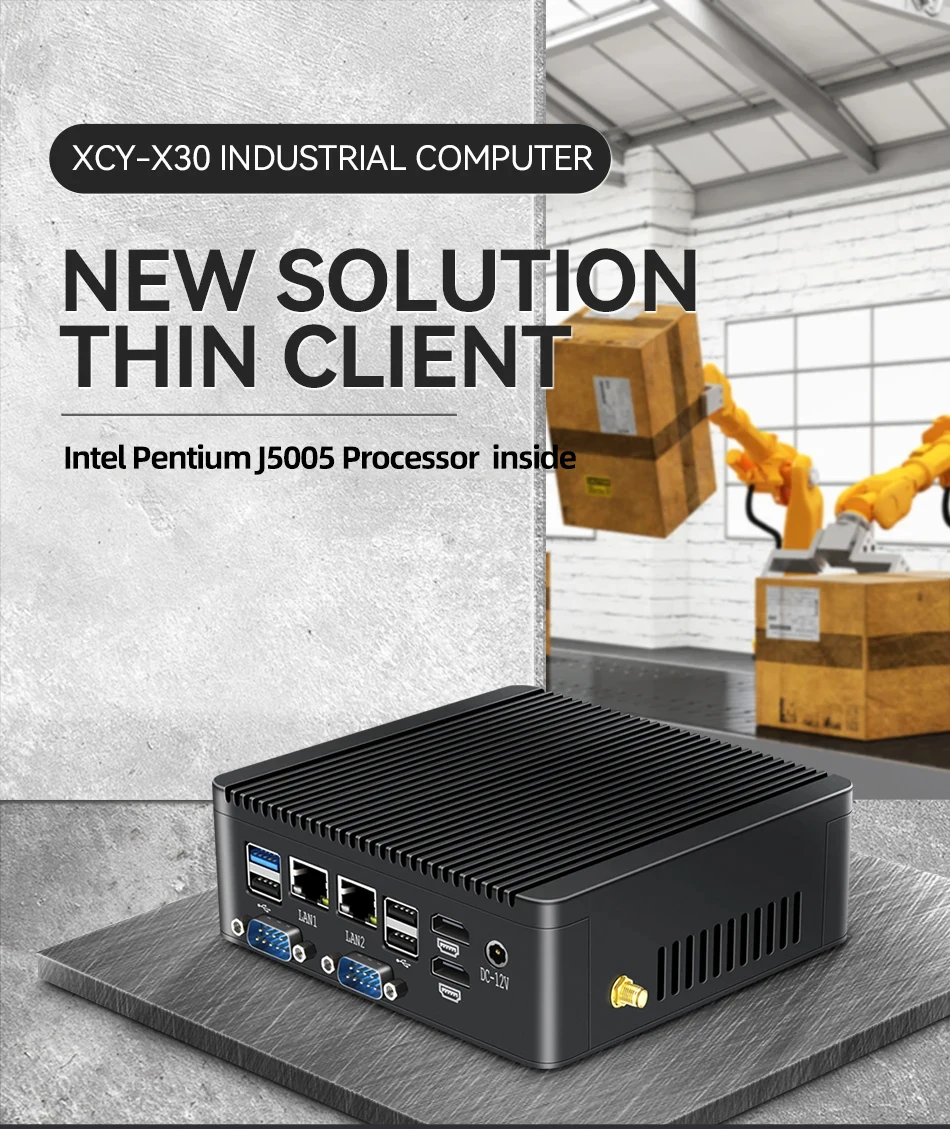

XCY Fanless Mini PC Celeron J4105 N4000 DDR4 M.2 SSD RS232/485 2x LAN GPIO mPCIE 4G LTE SIM 8x USB LVDS HDMI TPM 2.0 Windows 11

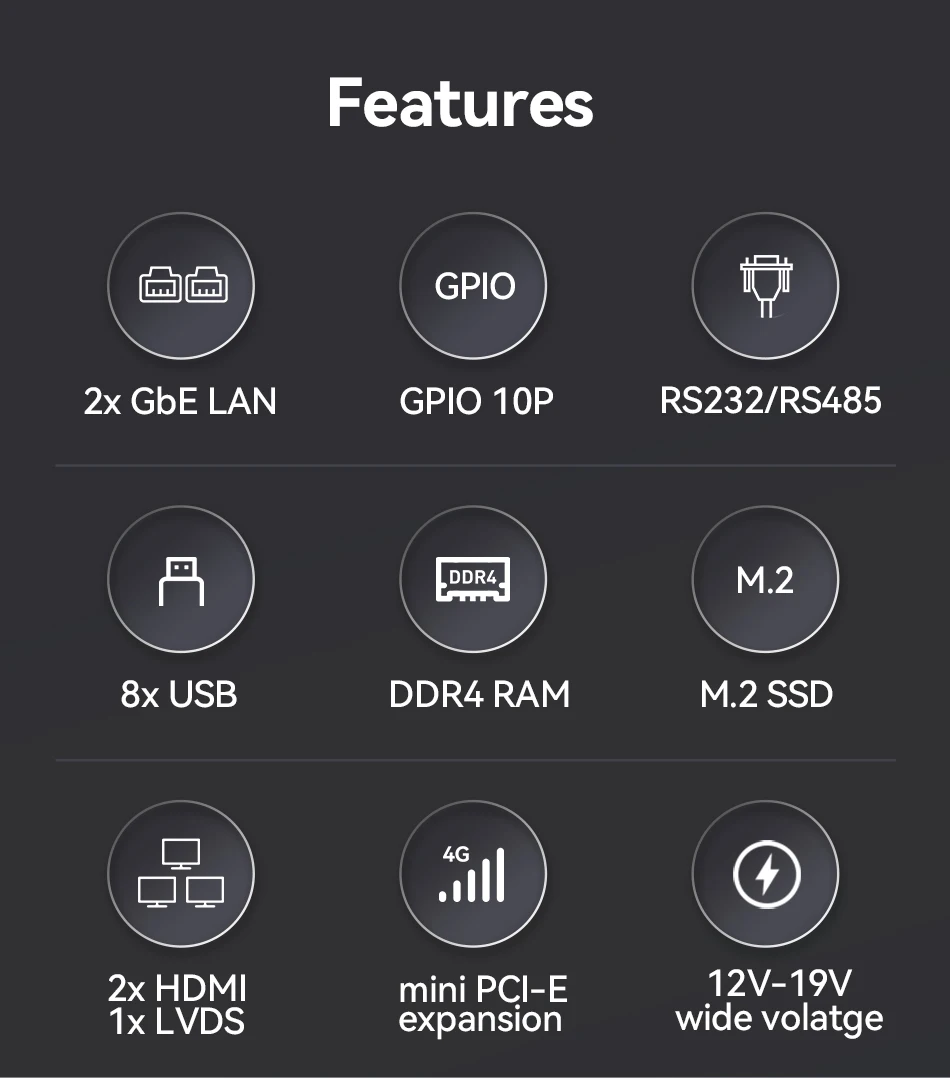

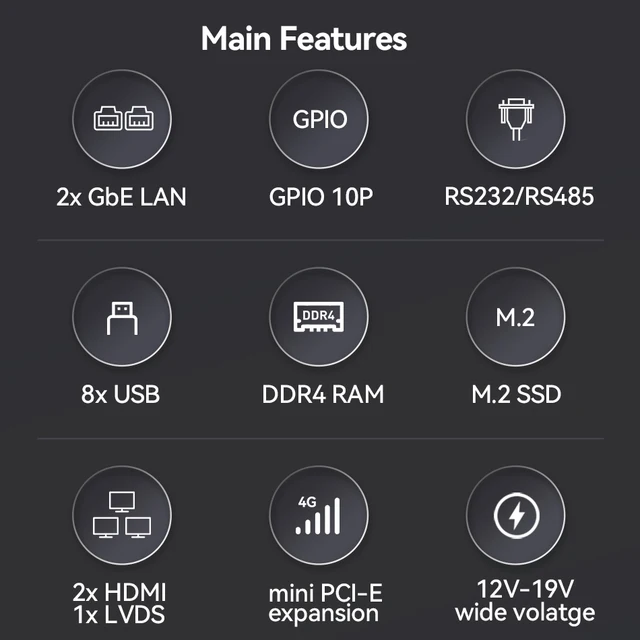

Motherboard Size

NANO 120mmX120mm

Processor

Intel Pentium J5005 Processor, 4 cores 4 threads, 1.50Ghz, up to 2.80GHz, TDP 10W

Intel Celeron N4000 Processor, 2 cores 2 threads, 1.10GHz, up to 2.60GHz, TDP 6W

Intel Celeron J4105 Processor, 4 cores 4 threads, 1.50GHz, up to 2.50GHz, TDP 10W

Memory Types

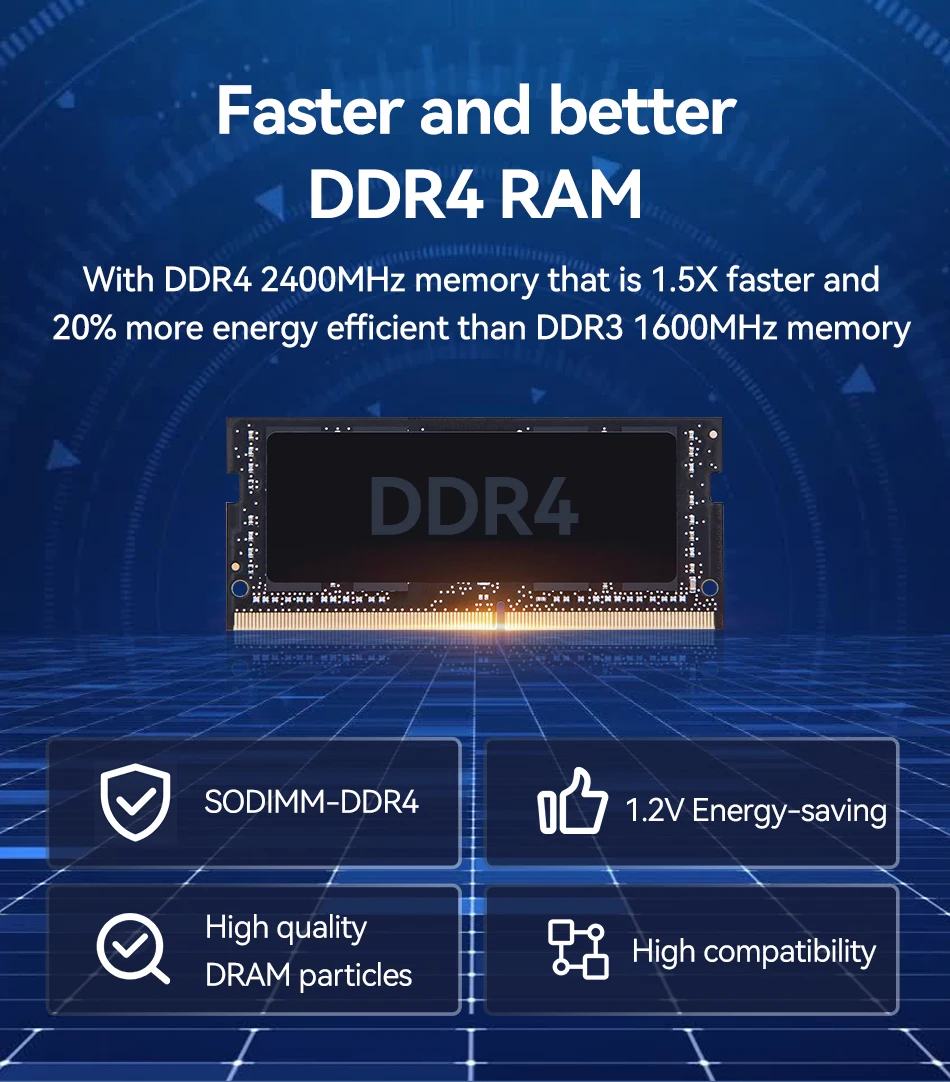

1x SO-DIMM DDR4 slot
Max support to 8GB

Expansion

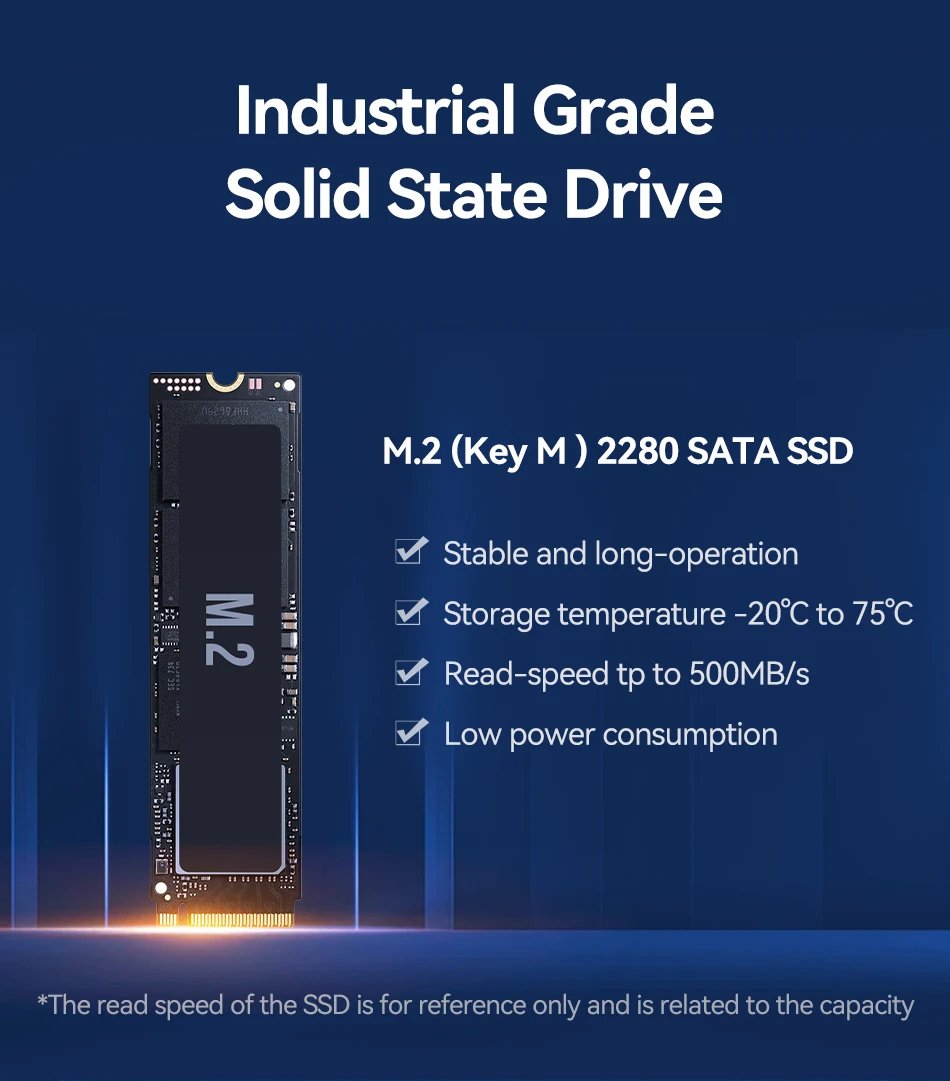

1 x M.2 Key M（22*80mm，M.2 SATA SSD）
1 x Mini PCIe slot for Wifi/Bluetooth /4G module

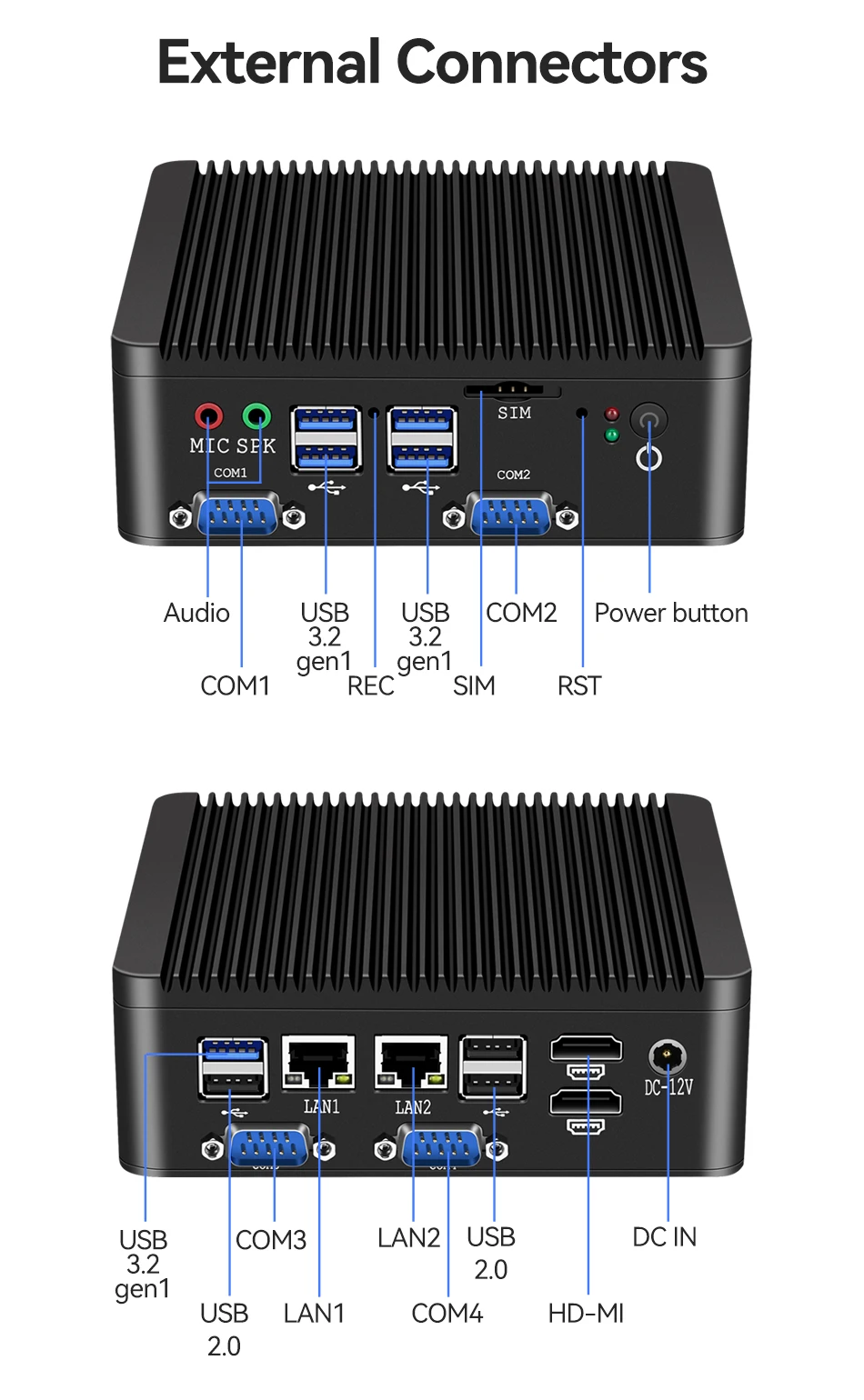

External
Connectors

1 x DC-IN
2 x HDMI
3 x USB2.0
2 x LAN
1 x MIC-IN
1 x HP-OUT
5 x USB3.2 GEN1(5Gbps)
1 x REC (Ghost button (one-key system restore)
1 x RST (Reset button & CLR_CMOS button)
2 x LED,1 x HDD LED（red） ；1 x WIFI&4G module states（green）
1 x PWR_BT

Internal
Connectors

1 x Debug
1 x LVDS
1 x SATA_PWR
1 x SATA

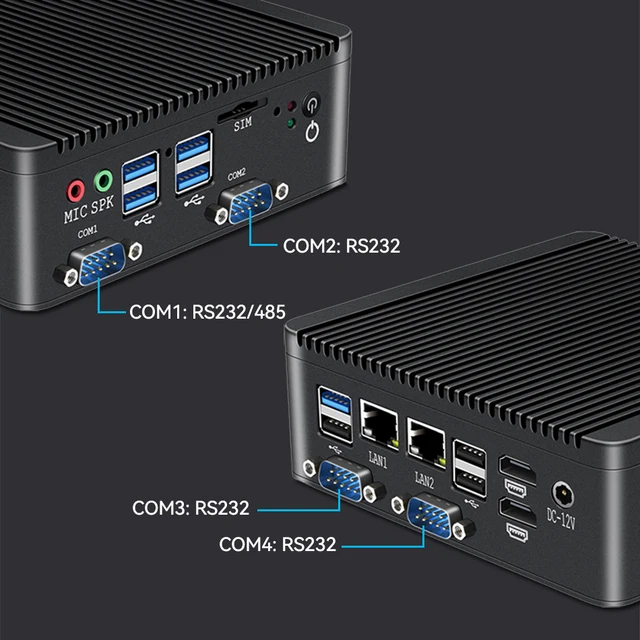

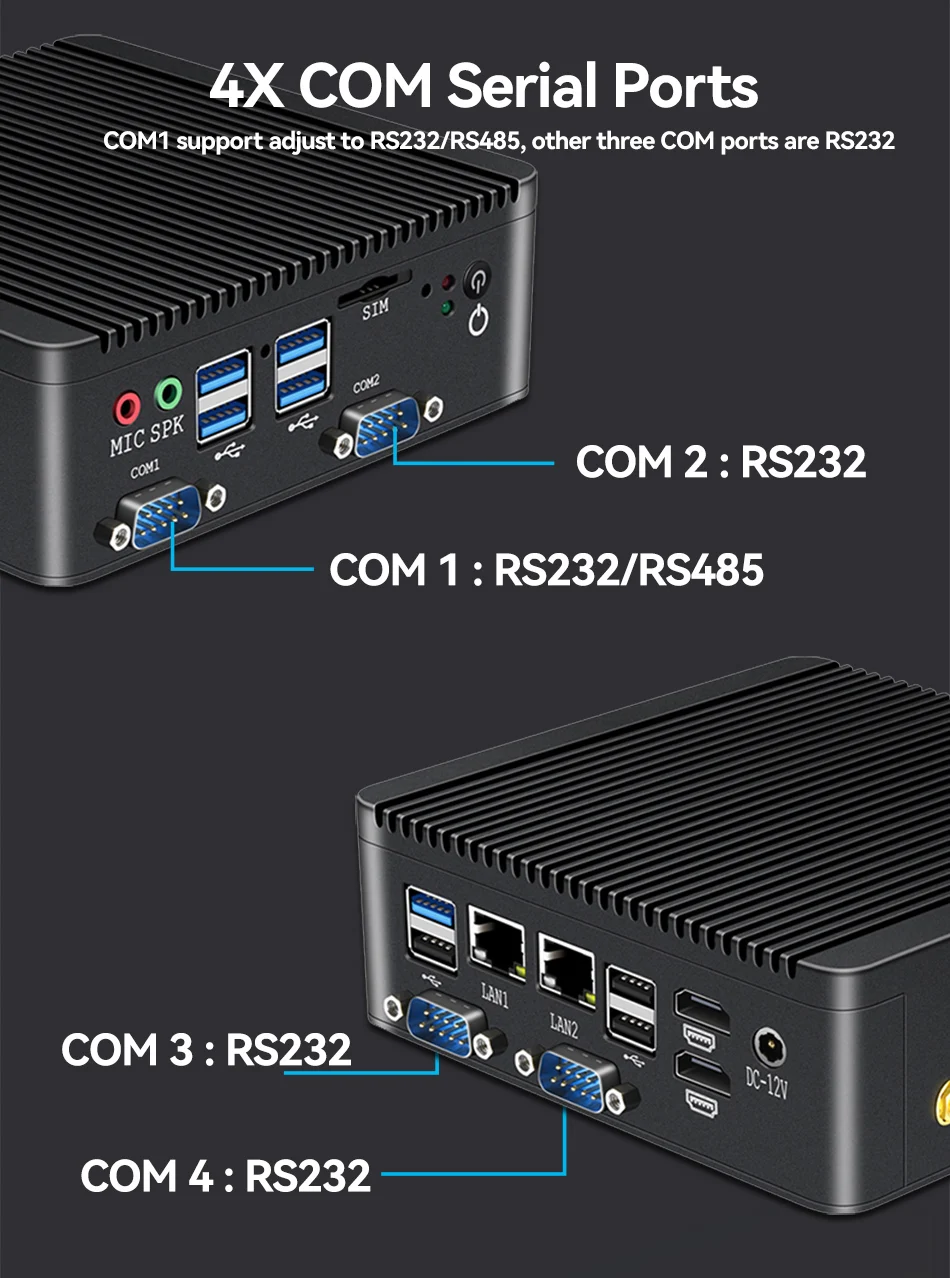

1 x COM_CONN（4*COM232,COM1 support RS232/485 adjust on J1 jumper）
1 x JFP (automatic power on set up jumper)

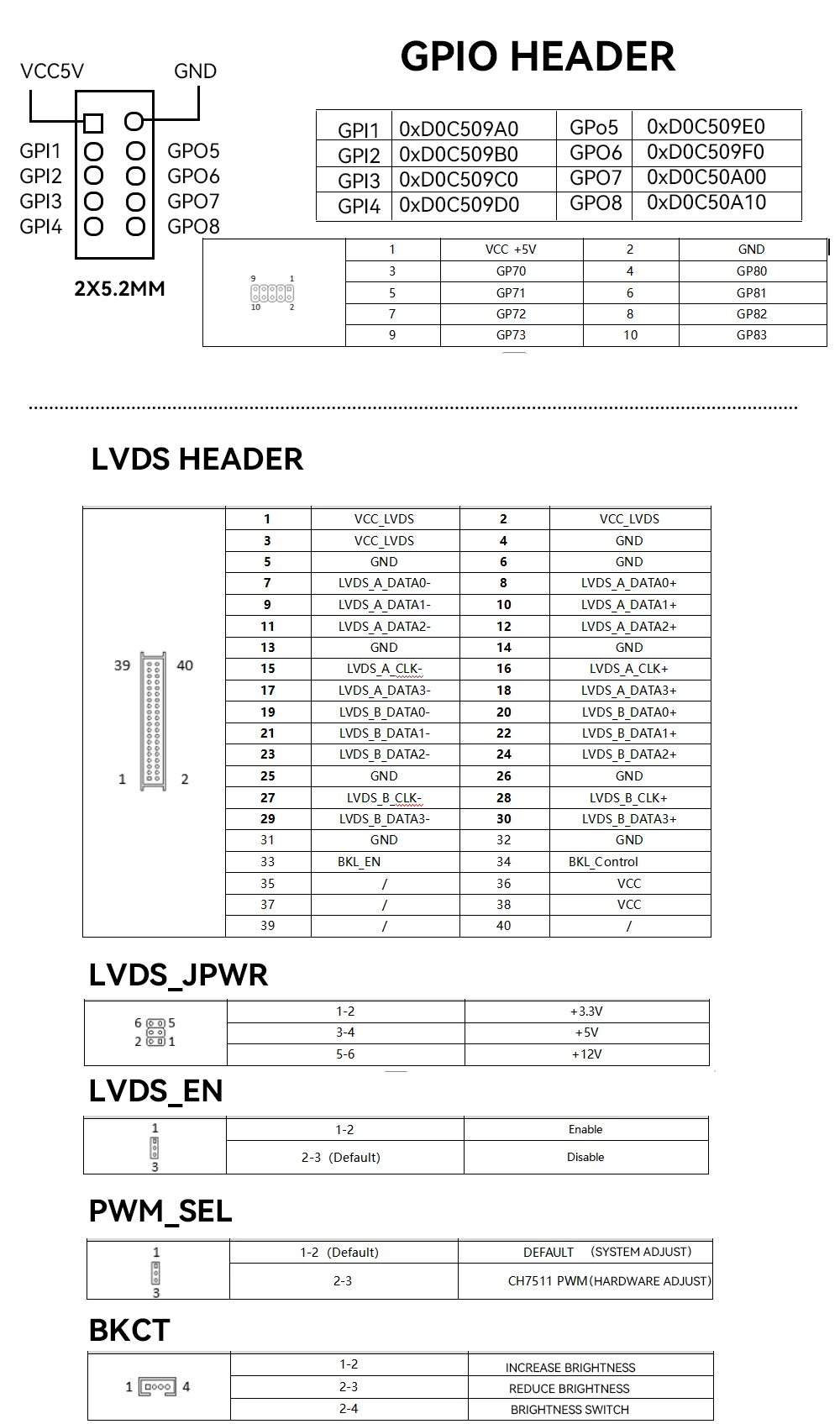

1 x GPIO
1 x AUDIO
1 x Speaker
1 x F_USB2.0

BIOS

AMI BIOS

Power Management

Supports Advanced Power Management ACPI
Support hardware real-time monitoring
Support automatic power-on

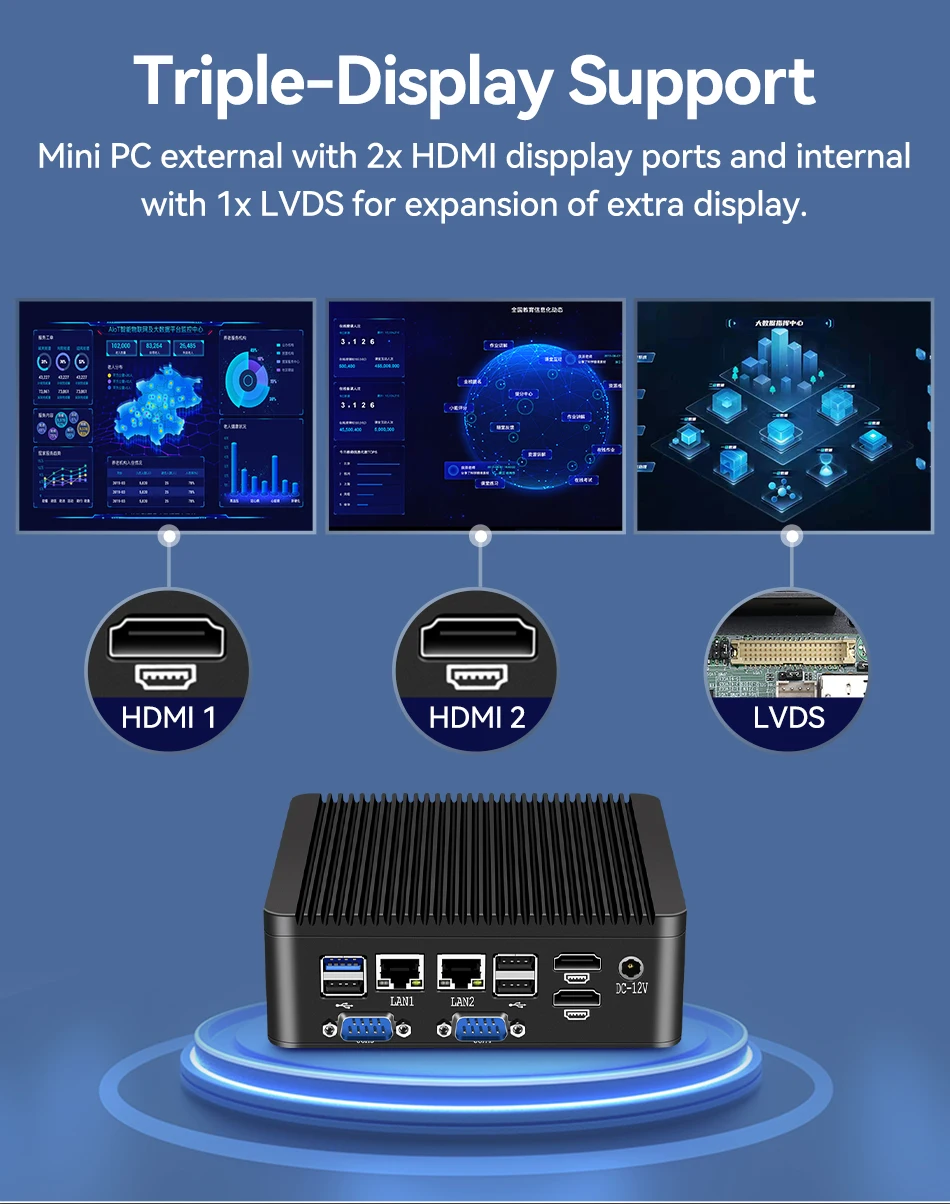

Display

Support synchronous/asynchronous triple display (HDMI1, HDMI2, LVDS3)

Backlight
Adjustment

LVDS can support system/hardware adjustment, select adjustment method through jump cap
(default system adjustment)

LAN

2 x Realtek Gigabit Ethernet（RTL8111H/8111G）

Audio

Realtek ALC662/ALC887 ；Integrated power amplifier NS4251 3W@4Ω max

I/O Chipset

ITE8786E-I

Power Input

DC 12-19V

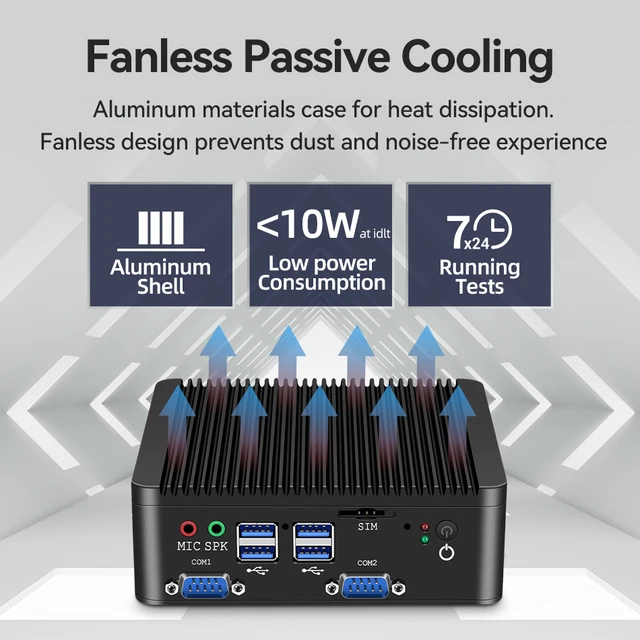

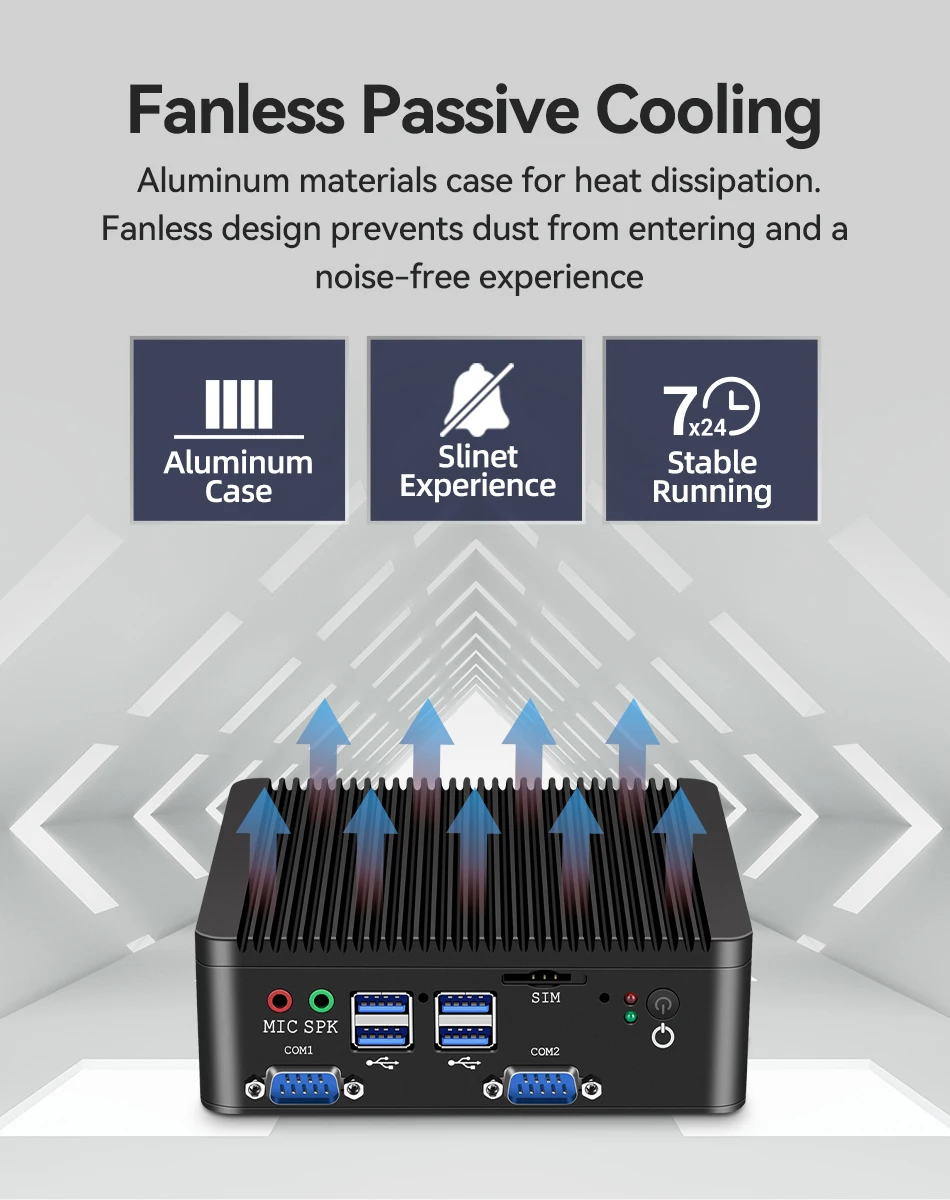

Working
Environment

Working temperature: -15℃~60℃
Ambient humidity: 0%~95%

Operating System

Windows 7/10 / Windows 11/ Linux

Dimension

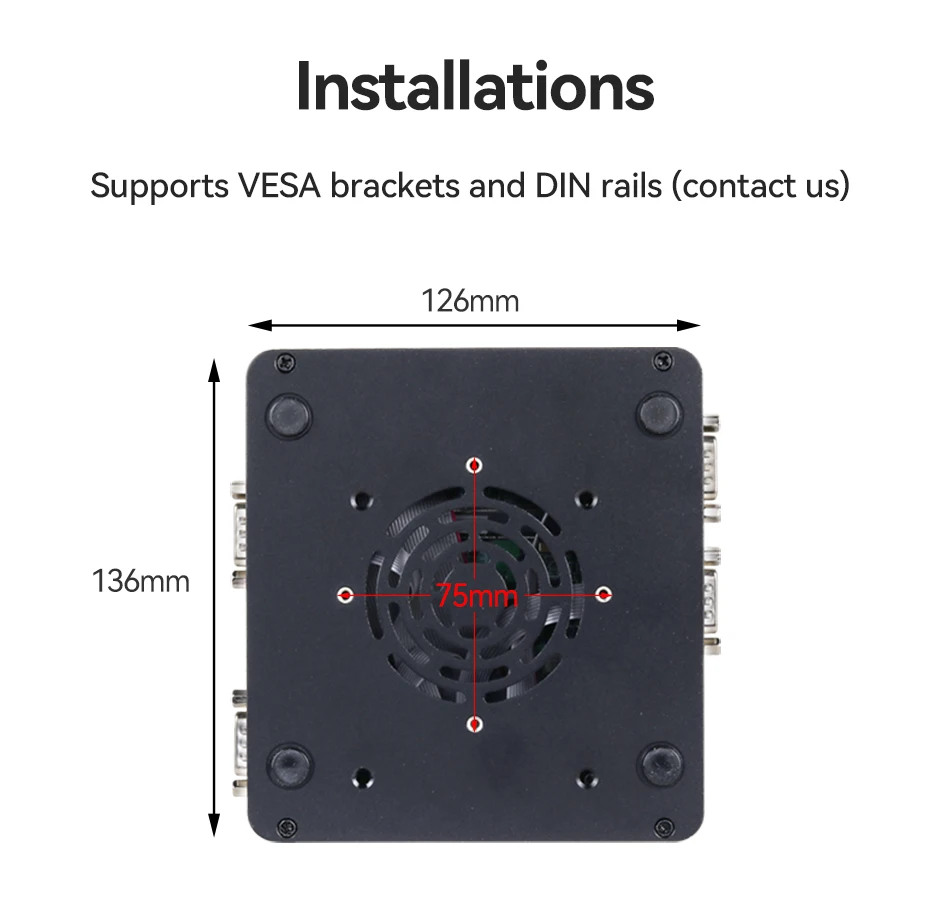

136 x 126x 46mm

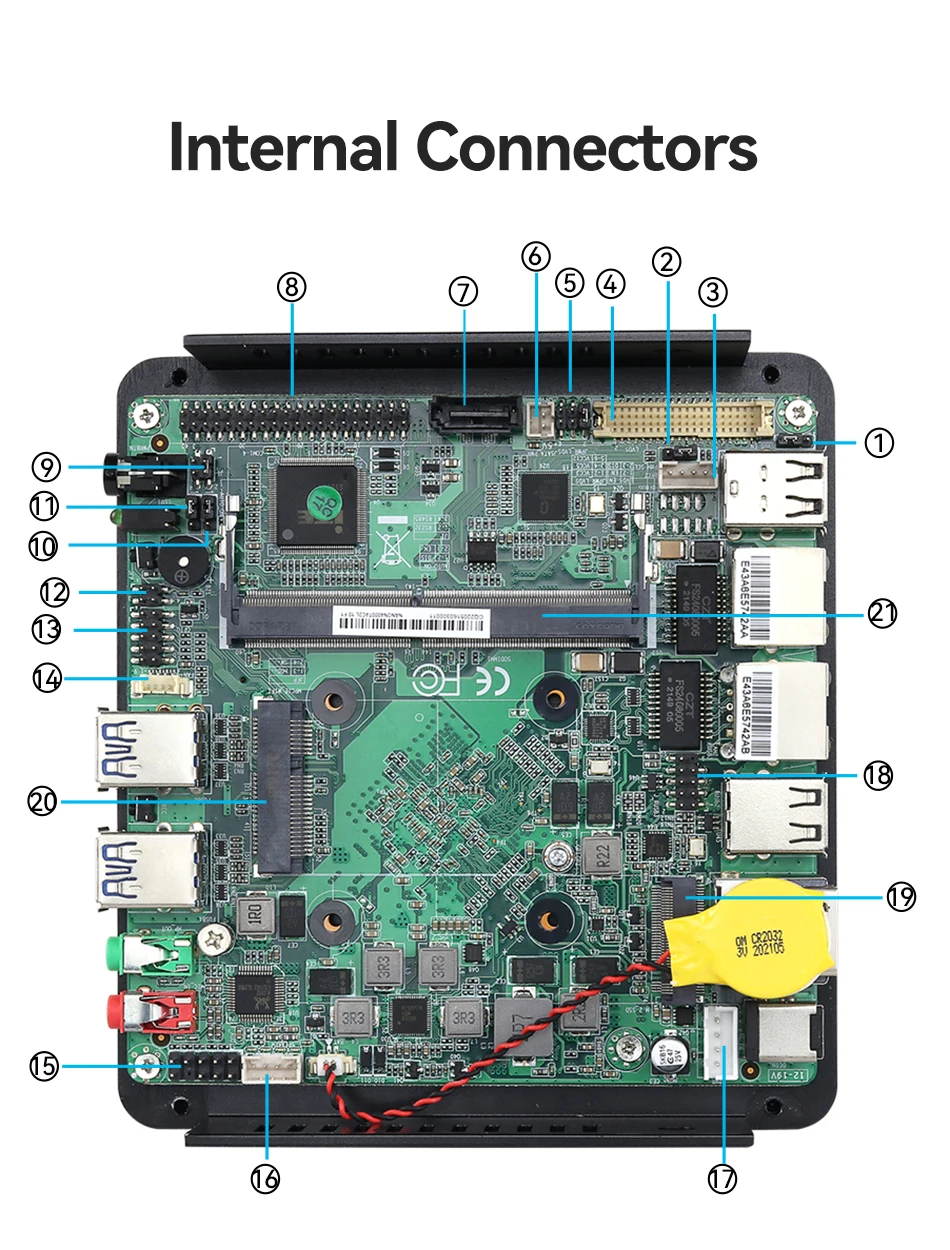

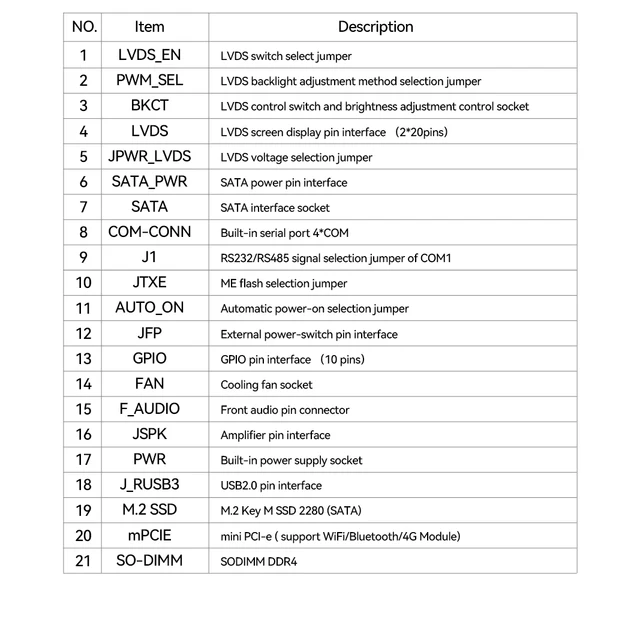

Item

Description

1

LVDS_EN

LVDS switch selection jumpers

2

PWM_SEL

LVDS backlight adjustment selection jumper

3

BKCT

LVDS control switch and brightness adjustment control socket

4

LVDS

LVDS screen display pin interface 2*20P

5

JPWR_LVDS

LVDS voltage selection jumper

6

SATA_PWR

SATA power pin connector

7

SATA

SATA interface socket

8

COM-CONN

Built-in serial port 4*COM

9

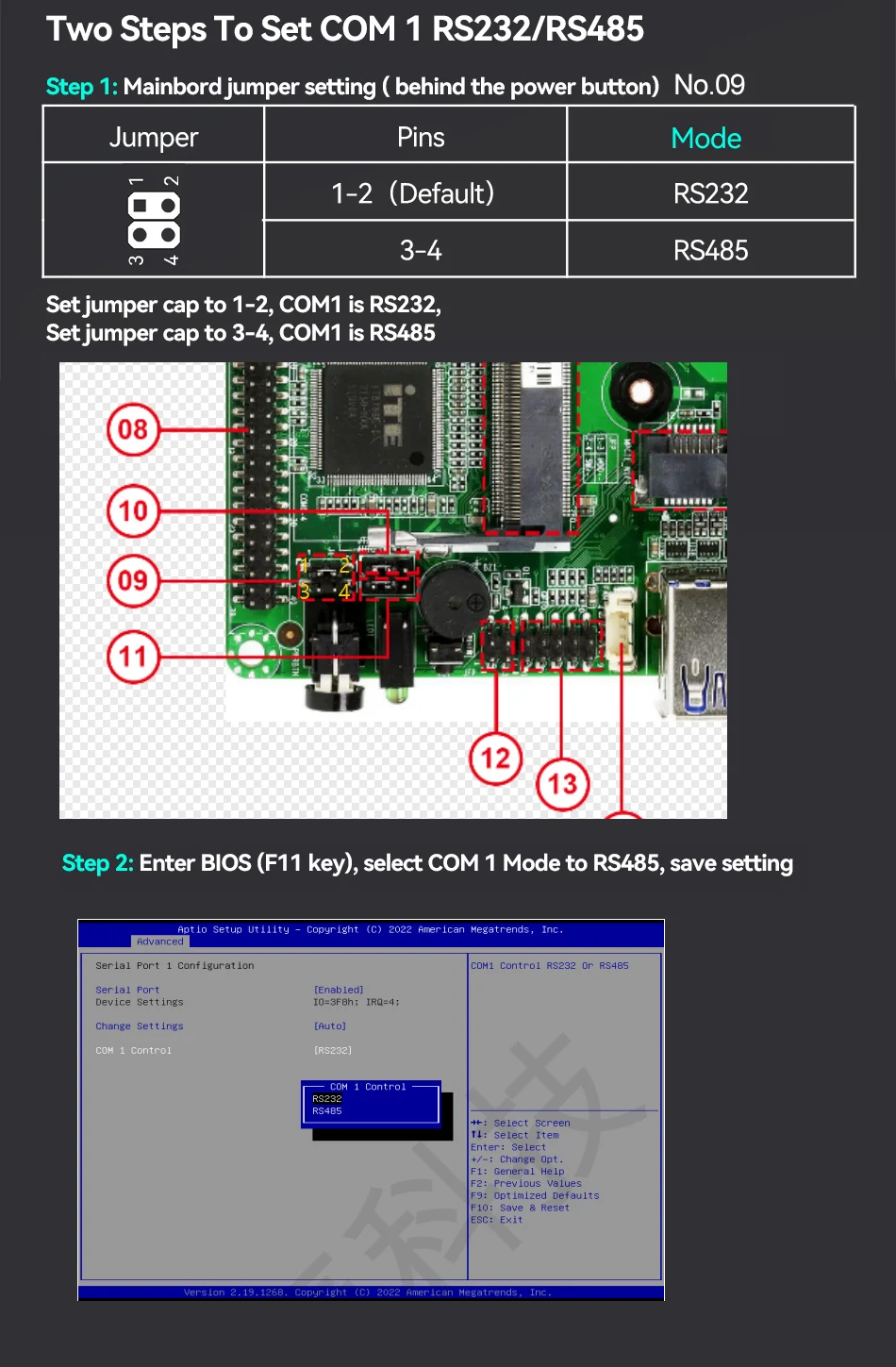

J1

RS232/RS485 signal selection jumper of COM1

10

JTXE

ME flash selection jumper

11

AUTO_ON

Automatic power-on selection jumper

12

JFP

External power switch pin interface

13

GPIO

GPIO pin interface 10P

14

FAN

Cooling fan socket

15

F_AUDIO

Front audio pin connector

16

JSPK

Amplifier pin interface

17

PWR

Built-in power supply socket

18

J_RUSB3

USB2.0 pin

19

M.2 SSD

M.2_SSD 2280 SATA

20

mPCIE

mPCIE (4G/WiFi/Bluetooth)

21

SO-DIMM

SO-DIMM DDR4
