What It Is

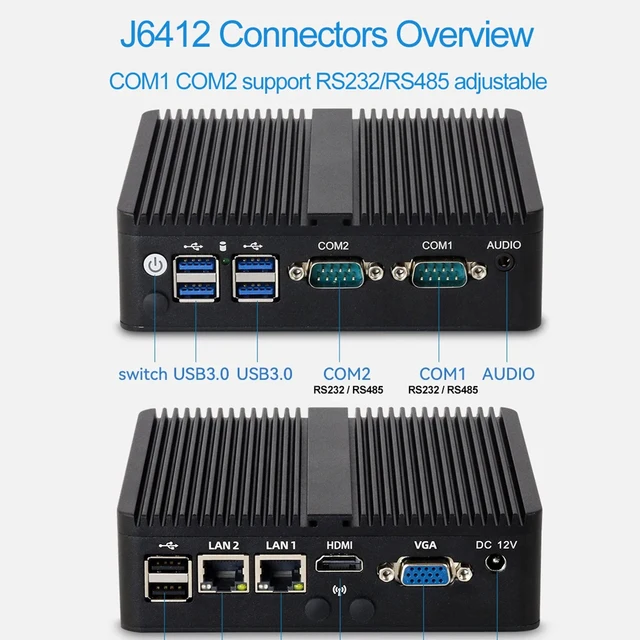

An XCY fanless industrial PC with the Intel Celeron J6412 quad-core, two RS232/485 serial ports, dual gigabit Ethernet, a mini PCIe slot for WiFi or expansion, and HDMI plus VGA outputs. Runs Windows or Linux for control cabinets, signage and gateways.
Key Features
- Intel Celeron J6412 quad-core
- 2× RS232 / RS485 COM ports
- Dual gigabit Ethernet
- Mini PCIe expansion slot
- HDMI and VGA; fanless
Specifications
- Brand: XCY
- Processor: Intel Celeron J6412
- Serial: 2× RS232/485
- LAN: 2× gigabit
- Video: HDMI, VGA
- Expansion: mini PCIe
- Cooling: fanless
| Weight | 1.500 lbs |
|---|---|
| Dimensions | 20 × 20 × 10 in |
| Brand Name | XCY |
| Memory Capacity | ≥ 4GB |
| Hard Drive Capacity | 128 GB |
| Model Number | X30G |
| Processor Model | Intel Celeron J1900/J6412/N5095/2955U, i3-5005U, i5-4200U, i5-5200U |
| Use | Commercial |
| Type | Mini Desktop, Mini PC |
| Processor Main Frequency | Depends on CPU |
| Graphics Card Type | Integrated Card |
| Processor Brand | Intel |
| Memory Type | SODIMM DDR3L (J6412/N5095 use DDR4) |
| Hard Drive Type | mSATA SSD (J6412/N5105 use M.2 SSD ) |
| OS Support | Windows 7/8/10, Linux |
| USB Ports | 4x USB (6x USB) |
| Dispaly Ports | 1x HDMI, 1x VGA |
| Audio | 1x Combo jack 3.5mm |
| LAN1 LAN2 | 2x Gigabit Ethernet Realtek 8111H |
| COM1 COM2 | 2x RS-232 (J2900/J6412/J1900 support RS485/232) |
| Expansion | 1x Mini PCIe slot for WiFi or 4G LTE |
| Dimension | 135x124x40mm |
| Case Material | Aluminum alloy |
| Cooling | Fanless passive cooling |
| Power Adapter | AC100-240V to DC12V-5A/3A |
| Operating Temperature | -20℃ to 60℃ |
| Color | Celeron 2955u ddr3l, Celeron j1900 ddr3l, Celeron j6412 ddr4, Celeron n5095 ddr4, Core i3-5005u ddr3l, Core i5-4200u ddr3l, Core i5-5200u ddr3l, Pentium j2900 ddr3l |
| Bundle | 4g ram 128g ssd wifi, 8g ram 128g ssd wifi, 8g ram 256g ssd wifi, No ram no ssd nowifi |
5.0
100% Recommended (5 of 5)
